Dometic RM8551 Product # 921084493 Parts Diagram · Replacement Refrigerator

Refrigerator · 5 assemblies · 5 diagram sheets · 70 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM8551 Product # 921084493 RV refrigerator: 5 assemblies (Replacement Refrigerator, Cabinet Assembly, Gas & Electric Controls, Door Assembly, Cabinet Rear View) and 70 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement Refrigerator

Components

2 items

1. #Refrigerator; Single Compartment Refrigerator; Left Hinge Door; 3.74 Cubic Foot (3.53 Cubic Foot With Freezer Compartment); 32.48 Inch Height x 20.74 Inch Width x 23-1/2 Inch Depth; 110 Volt AC/ 12 Volt DC; 3 Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Black Frame; With Coated Sheet Steel/ Positive Lock System/ Automatic Front Frame Heater/ Solid Steel Frame/ CFC/HCFC-Free Foam Insulation/ LED Interior Light/ Magnetic Seal MFR # RM8551LF
2. #APPLIANCE COMPONENTS RV; RM 8551 ABSORPTION REFRIGERATOR 12 MFR # RM8551R2F

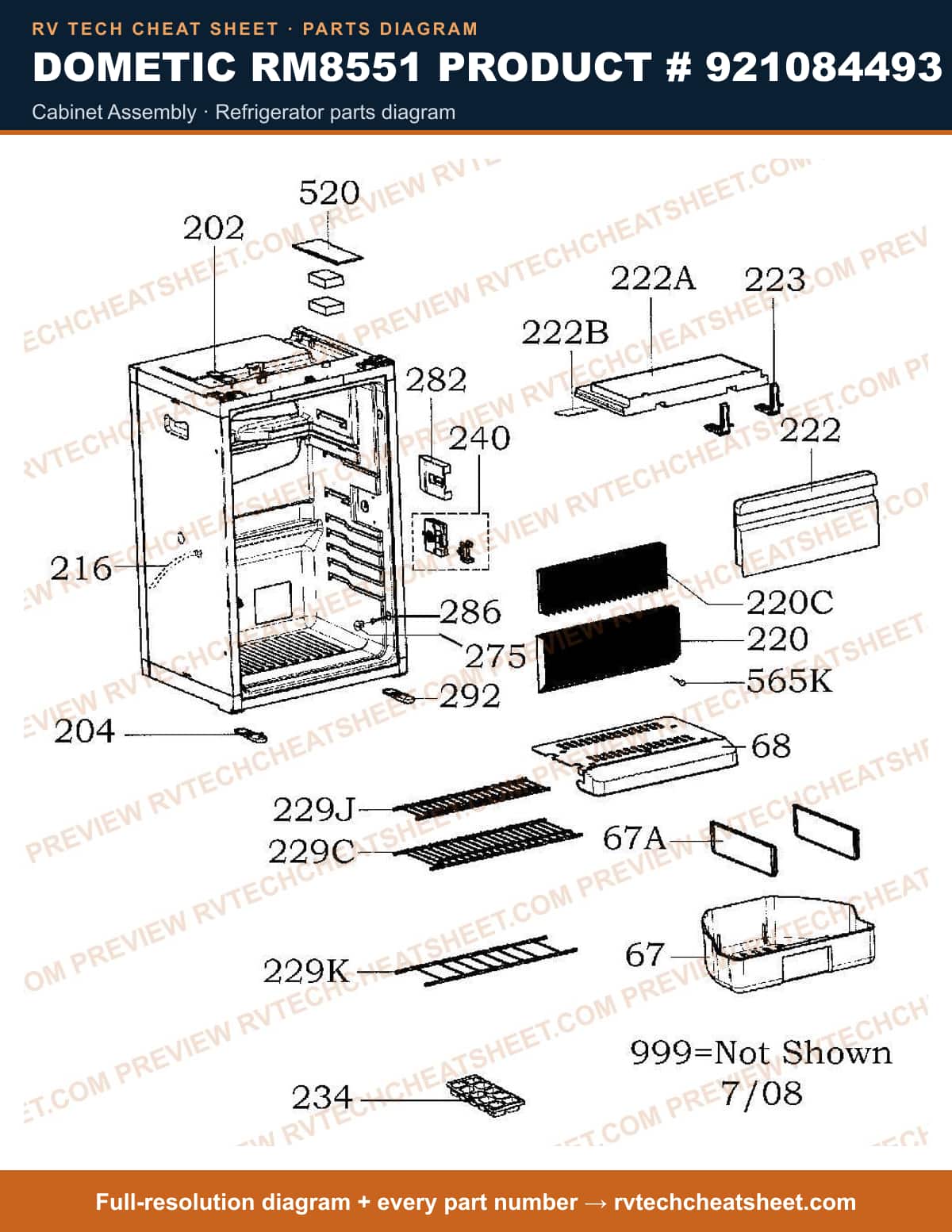

Cabinet Assembly

Components

22 items

1. #CRISPER, TRANSPARENT MFR # 2413367000
2. #APPLIANCE COMPONENTS RV; DIVIDER CRISPER MFR # 2413377207
3. #Refrigerator Crisper Bin Cover; Replacement For Dometic Refrigerator MFR # 2413956000
4. #HINGE, BOTTOM BLK/GREY MFR # 2413322518
5. #APPLIANCE COMPONENTS RV; HINGE LOWER RIGHT CHROME PLATED MFR # 2412098101
6. #REAR EVAPORATOR COMPLETE MFR # 2412606416
7. #REAR-EVAPORATOR FREEZER COMPARTMENT MFR # 241294838
8. #REAR-EVAPORATOR REFRIGERATOR MFR # 241294837
9. #BOTTOM,FREEZER COMP. MFR # 2413339108
10. #APPLIANCE COMPONENTS RV; SLIDER FOR FREEZER COMPARTMENT MFR # 2413327202
11. #DOOR, FREEZER MFR # 2412195311
12. #HINGE, FREEZER COMPLETE MFR # 2412125011
13. #APPLIANCE COMPONENTS RV; UPPER SHELF FOR RM(S) 855X REFRIGER MFR # 2413375607
14. #SHELF, CRISPER COVER MFR # 2413381704
15. #SHELF,FREEZER COMP. 161X417MM MFR # 2413399300
16. #Ice Cube Tray; Use With Dometic Refrigerator Model RM7401; Plastic MFR # 2951132006 Superseded: see description
17. #DOOR LOCK, LIGHTING CABINET MFR # 289037103
18. #AWNING-REPAIR PARTS RV; COVER CAP MFR # 2951221056
19. #APPLIANCE COMPONENTS RV; COVER, DOOR LOCK LIGHTING MFR # 2413268018
20. #SCREWS MFR # 2926544004
21. #COVER,HARNESS GUIDE BLACK/GREY MFR # 2413320116
22. #LENS SCREW; TORX B4/ 8X19 MFR # 295123000

Gas & Electric Controls

Components

16 items

1. #RETAINER, LIGHTING SENSOR MFR # 2413929007
2. #PANEL,OPERATING TRANSPARENT MFR # 2413358702
3. #RETAINER, CONTROL PANEL BLK/GREY MFR # 2413193612
4. #APPLIANCE COMPONENTS RV; GAS VALVE WITH GAS CONNECTION MFR # 241279838
5. #GAS INLET PIPE MFR # 241259387
6. #KITCHEN SUPPLIES RV; GAS INLET PIPE COMPLETE MFR # 2412593572
7. #CONNECTION,GAS COMPLETE MFR # 2412300937
8. #APPLIANCE COMPONENTS RV; ELEMENT, 12V 130W MFR # 2951694302
9. #APPLIANCE COMPONENTS RV; HEATER 120V 135W MFR # 2952170567
10. #HEATERS & FURNACES RV; HEATER MFR # 2890180041
11. #Appliance Components RV; Filter, Gas MFR # 2923191007
12. #THERMISTOR KIT, RM8501 MFR # 2952248504
13. #APPLIANCE COMPONENTS RV; TEMPERATURE PROBE MFR # 2952248819
14. #CONNECTION, WIRING BLACK 59 INCH MFR # 2412840908
15. #CONNECTION WIRING TERMINAL BOARD HEATING ELEMENT MFR # 289035614
16. #WIRING & SERVICE ACCESSORIES RV; CONNECTION WIRING BLACK MFR # 2890281203

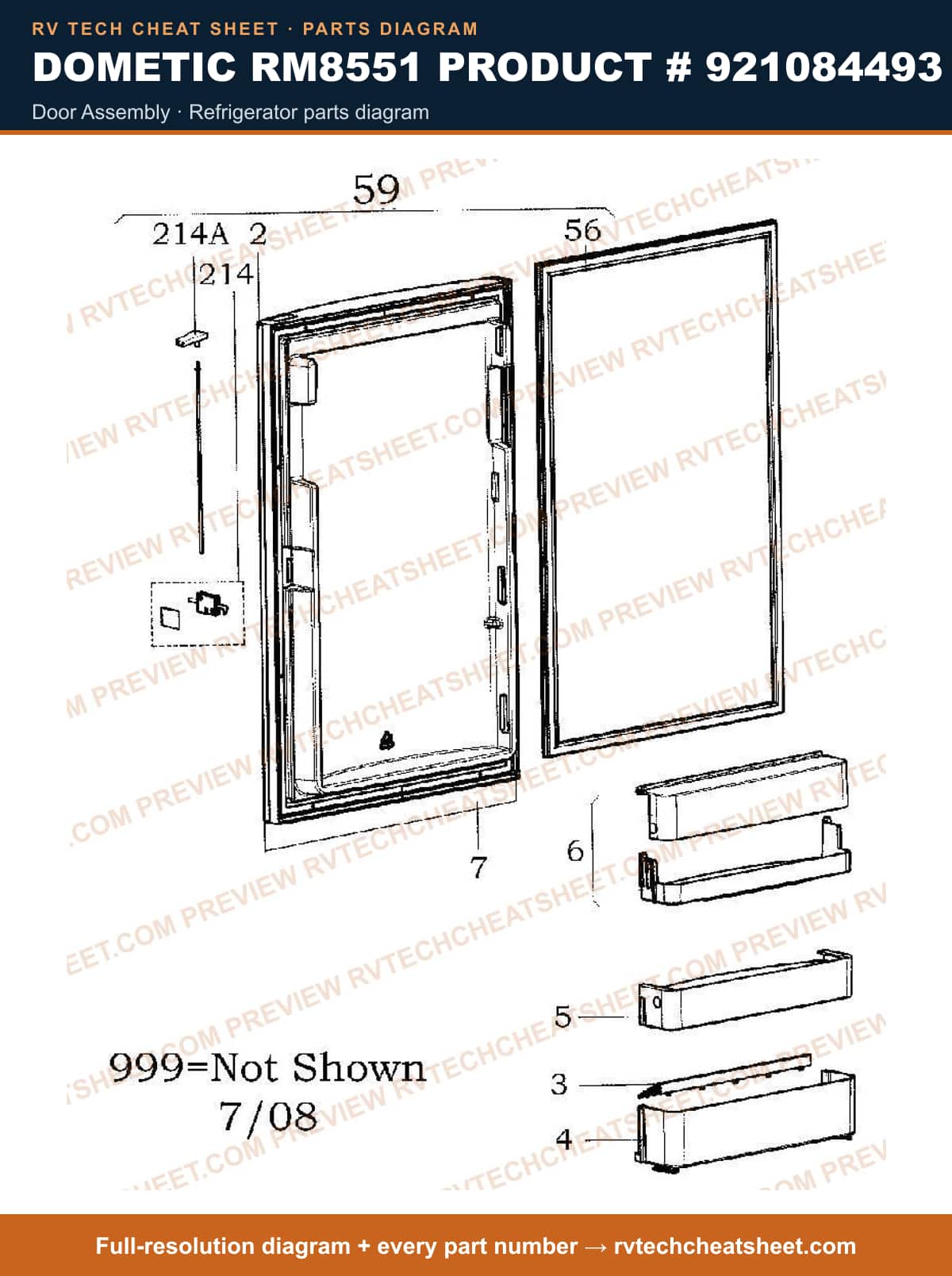

Door Assembly

Components

13 items

1. #APPLIANCE COMPONENTS RV; COVER LEDGE, DOOR BLK/GREY MFR # 2413338027
2. #DOORS RV; COVER LEDGE DOOR BLACK/GREY MFR # 2413338621
3. #BOTTLE HOLDER, BLUE, RM85XX MFR # 2951237029
4. #AWNING-ACCESSORIES RV; S,SHELF,DR,BOTTLE,BLUE,RMX85XX MFR # 2413341005
5. #APPLIANCE COMPONENTS RV; SHELF MIDDLE BLUE MFR # 2413342003
6. #RACK, UPPER L=411.5MM MFR # 2413938008
7. #PLATE, DECORATION SILVER MFR # 2413421005
8. #APPLIANCE COMPONENTS RV; DECORATION PLATE SILVER MFR # 2890238575
9. #DOORS RV; DOOR COMPLETE SERVICE MFR # 2890264035
10. #DOOR, REFER COMPLETE MFR # 2413275971
11. #LOCK, DOOR MFR # 2413946308
12. #button door lock doorhang left MFR # 241326022
13. #DOOR LOCK DOOR SERVICE MFR # 241212630

Cabinet Rear View

Components

17 items

1. #Appliance Components RV; Helix Complete MFR # 2926212206
2. #Refrigerator Cooling Unit Baffle Diffuser; Use With Dometic Refrigerator RM2193 MFR # 2926212602 Superseded: see description
3. #COVER, BOILER MFR # 2924082304
4. #INSULATION MFR # 2926680113
5. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
6. #TRAY, EVAPORATOR MFR # 2926019304
7. #BURNER, W/O ORIFICE MFR # 2412802817
8. #GAS BURNER COMPLETE MES/AES, CBS1 MFR # 289038099
9. #Refrigerator Burner Orifice; Replacement For Dometic RM4223/ RM4292/ RM4223 Refrigerators MFR # 2922033069
10. #REFRIG BURNER JET NOZZLE, KZ65, RM85XX MFR # 2890483007
11. #Refrigerator Burner Box Cover; Replacement For Dometic RM8551/ RM7401/ RML8555/ RM8551/ RM7551L/ RM7401/ RM7851L Series Refrigerator MFR # 2412559607
12. #APPLIANCE COMPONENTS RV; T-PIECE COMPLETE MFR # 2952444301
13. #SCREW MFR # 2952435408
14. #Washer; Replacement For Dometic RM4290/ RM4223/ RM7401 Model Refrigerator; Star Washer MFR # 2926559036
15. #TRAILER CONNECTOR; VENTILATOR COMPLETE CONNECTION WIRI MFR # 2106511815
16. #VENTILATOR, 12V DC, MES/AES4 MFR # 2106511856
17. #APPLIANCE COMPONENTS RV; THERMOSTAT,VENTILATOR MFR # 2412906204
