Dometic RM8551 Product # 921087120 Black Parts Diagram · Cabinet Rear View

Refrigerator · 5 assemblies · 5 diagram sheets · 73 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM8551 Product # 921087120 Black RV refrigerator: 5 assemblies (Cabinet Rear View, Door Assembly, Gas & Electric Controls, Replacement Refrigerator, Cabinet Assembly) and 73 manufacturer part numbers. 3 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

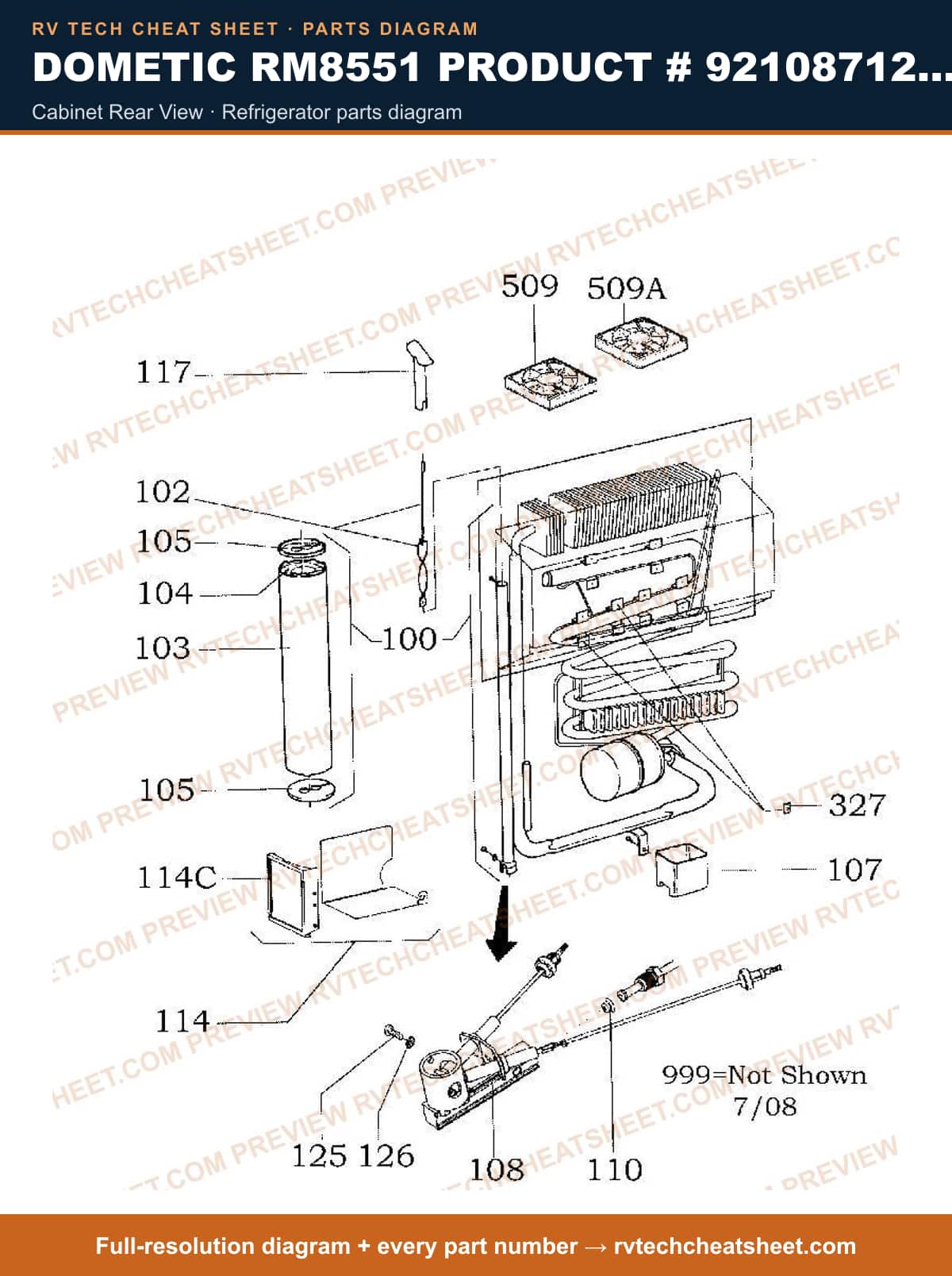

Cabinet Rear View

Components

19 items

1. #Refrigerator Cooling Unit; Use With Dometic RM8555/ RM8501 Model Refrigerators; 135 Watt MFR # 2413443108 Superseded: see description
2. #Refrigerator Cooling Unit Baffle Diffuser; Use With Dometic Refrigerator RM2193 MFR # 2926212602 Superseded: see description
3. #Appliance Components RV; Helix Complete MFR # 2926212206
4. #COVER, BOILER MFR # 2924082304
5. #INSULATION MFR # 2926680113
6. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
7. #TRAY, EVAPORATOR MFR # 2926019304
8. #BURNER, W/O ORIFICE MFR # 2412802817
9. #Refrigerator Burner Orifice; Replacement For Dometic RM4223/ RM4292/ RM4223 Refrigerators MFR # 2922033069
10. #BRACKET, COVER MFR # 2925057107
11. #Refrigerator Burner Box Cover; Replacement For Dometic RM8551/ RM7401/ RML8555/ RM8551/ RM7551L/ RM7401/ RM7851L Series Refrigerator MFR # 2412559607
12. #APPLIANCE COMPONENTS RV; T-PIECE COMPLETE MFR # 2952444301
13. #SCREW MFR # 2952435408
14. #Washer; Replacement For Dometic RM4290/ RM4223/ RM7401 Model Refrigerator; Star Washer MFR # 2926559036
15. #NUT, INSERT FOR C/U MFR # 2106626001
16. #VENT FAN, 12V COMPLETE MFR # 31087505744
17. #TRAILER CONNECTOR; VENTILATOR COMPLETE CONNECTION WIRI MFR # 2106511815
18. #VENTILATION RV; VENTILATOR COMPLETE MFR # 2106511823
19. #APPLIANCE COMPONENTS RV; THERMOSTAT,VENTILATOR MFR # 2412906204

Door Assembly

Components

10 items

1. #APPLIANCE COMPONENTS RV; COVER LEDGE, DOOR BLK/GREY MFR # 2413338027
2. #BOTTLE HOLDER, BLUE, RM85XX MFR # 2951237029
3. #AWNING-ACCESSORIES RV; S,SHELF,DR,BOTTLE,BLUE,RMX85XX MFR # 2413341005
4. #APPLIANCE COMPONENTS RV; SHELF MIDDLE BLUE MFR # 2413342003
5. #RACK, UPPER L=411.5MM MFR # 2413938008
6. #PLATE, DECORATION SILVER MFR # 2413421005
7. #GASKET, DOOR 498X732 MFR # 2413278033
8. #DOOR, REFER COMPLETE MFR # 2413275971
9. #DOORS RV; BUTTON DOOR LOCK DOORHANG RIGHT MFR # 2413260320
10. #LOCK, DOOR MFR # 2413946308

Gas & Electric Controls

Components

19 items

1. #RETAINER, LIGHTING SENSOR MFR # 2413929007
2. #APPLIANCE COMPONENTS RV; SENSOR, LIGHTING MFR # 2951380514
3. #RETAINER, CONTROL PANEL BLK/GREY MFR # 2413193612
4. #DOORS RV; CONTROL PANEL DOORHANG RIGHT BLACK/ MFR # 2413356029
5. #PANEL,OPERATING TRANSPARENT MFR # 2413358702
6. #BRACKET, GAS VALVE MFR # 2926202009
7. #TRAILER CONNECTOR; GAS VALVE WITH GAS CONNECTION MFR # 2412798346
8. #KITCHEN SUPPLIES RV; GAS INLET PIPE COMPLETE MFR # 2412593572
9. #CONNECTION,GAS COMPLETE MFR # 2412300937
10. #APPLIANCE COMPONENTS RV; HEATER 120V 135W MFR # 2952170567
11. #APPLIANCE COMPONENTS RV; ELEMENT, 12V 130W MFR # 2951694302
12. #NUT, UNION M14X1.5 MFR # 2927903100
13. #WIRING & SERVICE ACCESSORYS RV; CONNECTION WIRING BURNER CONTROL DE MFR # 2412796308
14. #Appliance Components RV; Filter, Gas MFR # 2923191007
15. #THERMISTOR KIT, RM8501 MFR # 2952248504
16. #APPLIANCE COMPONENTS RV; BURNER CONTROL DEVICE MFR # 2412789303
17. #APPLIANCE COMPONENTS RV; ELECTRICAL KIT MES MFR # 2413490000
18. #KIT, PUSH BUTTON MFR # 2413933926
19. #CONNECTION, WIRING BLACK 59 INCH MFR # 2412840908

Replacement Refrigerator

Components

2 items

1. #Refrigerator; Single Compartment Refrigerator; Left Hinge Door; 3.74 Cubic Foot (3.53 Cubic Foot With Freezer Compartment); 32.48 Inch Height x 20.74 Inch Width x 23-1/2 Inch Depth; 110 Volt AC/ 12 Volt DC; 3 Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Black Frame; With Coated Sheet Steel/ Positive Lock System/ Automatic Front Frame Heater/ Solid Steel Frame/ CFC/HCFC-Free Foam Insulation/ LED Interior Light/ Magnetic Seal MFR # RM8551LF
2. #APPLIANCE COMPONENTS RV; RM 8551 ABSORPTION REFRIGERATOR 12 MFR # RM8551R2F

Cabinet Assembly

Components

23 items

1. #CRISPER, TRANSPARENT MFR # 2413367000
2. #APPLIANCE COMPONENTS RV; DIVIDER CRISPER MFR # 2413377207
3. #Refrigerator Crisper Bin Cover; Replacement For Dometic Refrigerator MFR # 2413956000
4. #APPLIANCE COMPONENTS RV; HINGE BLACK GREY SERVICE MFR # 2413321916
5. #HINGE, BOTTOM BLK/GREY MFR # 2413322518
6. #HOSE, DRAIN MFR # 2923346205
7. #REAR EVAPORATOR FREEZER MFR # 2413328002
8. #REAR EVAPORATOR COMPLETE MFR # 2412606416
9. #SLIDER F/FREEZER COMPARTMENT MFR # 2413327004
10. #DOOR, FREEZER MFR # 2412195311
11. #BOTTOM,FREEZER COMP. MFR # 2413339108
12. #HINGE, FREEZER COMPLETE MFR # 2412125011
13. #SHELF,FREEZER COMP. 161X417MM MFR # 2413399300
14. #SHELF, CRISPER COVER MFR # 2413381704
15. #APPLIANCE COMPONENTS RV; UPPER SHELF FOR RM(S) 855X REFRIGER MFR # 2413375607
16. #Ice Cube Tray; Use With Dometic Refrigerator Model RM7401; Plastic MFR # 2951132006 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Door Lock Lighting Cabine MFR # 2413267010
18. #AWNING-REPAIR PARTS RV; COVER CAP MFR # 2951221056
19. #APPLIANCE COMPONENTS RV; COVER, DOOR LOCK LIGHTING MFR # 2413268018
20. #SCREWS MFR # 2926544004
21. #DOORS RV; RETAINER DOOR BOTTOM MFR # 2413322211
22. #COVER,HARNESS GUIDE BLACK/GREY MFR # 2413320116
23. #SCREW, SHEET METAL MFR # 2951230008
