Dometic RMD10.5XT Product # 921132832 Parts Diagram · Cooling Generator

Refrigerator · 4 assemblies · 4 diagram sheets · 49 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RMD10.5XT Product # 921132832 RV refrigerator: 4 assemblies (Cooling Generator, Door Assembly, Replacement, Housing Assembly) and 49 manufacturer part numbers.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

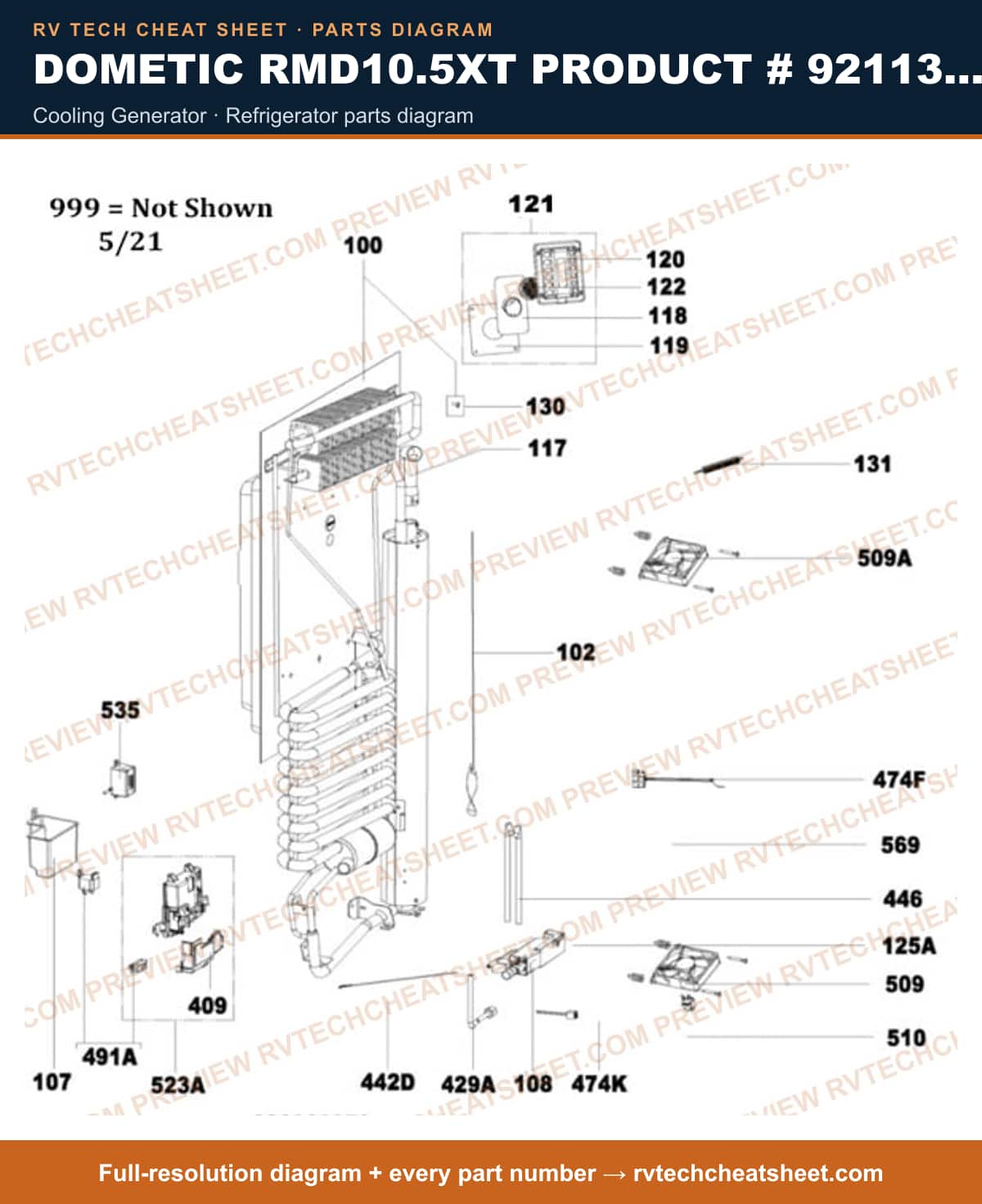

Cooling Generator

Components

23 items

1. #cooling unit MFR # 289076905
2. #COOLING UNIT MFR # 289076904
3. #HELIX MFR # 292621264
4. #HELIX COMPLETE; 600 MILLIMETER LENGTH MFR # 292621262
5. #KITCHEN SUPPLIES RV; GAS BURNER, WITH GAS VALVE, CBS3, D MFR # 289063432
6. #GAS BURNER, WITH GAS VALVE, CBS3, DN58, AUS MFR # 289063427
7. #T-PIECE COMPLETE; 95 MILLIMETER MFR # 295244450
8. #FIXING BURNER; 10SCREWS/ 10WASHERS MFR # 295246161
9. #KIT RIVET 50 PIECES MFR # 241255996
10. #RIVET MFR # 241255999
11. #BRUSH CLEANER D=7MM MFR # 241248180
12. #COVER CONNECTION BRICK MFR # 241209332
13. #IGNITION CABLE MFR # 210657830
14. #HEATER MFR # 289076300
15. #heater MFR # 289076202
16. #CONNECTION WIRING MFR # 289023614
17. #relay MFR # 289078626
18. #VENTILATOR COMPLETE MFR # 210651195
19. #fan MFR # 289080600
20. #APPLIANCE COMPONENTS RV; THERMOSTAT,VENTILATOR MFR # 2412906204
21. #CONNECTION BRICK COMPLETE MFR # 289069120
22. #CONNECTION WIRING MFR # 289076620
23. #CONNECTION WIRING MFR # 289076610

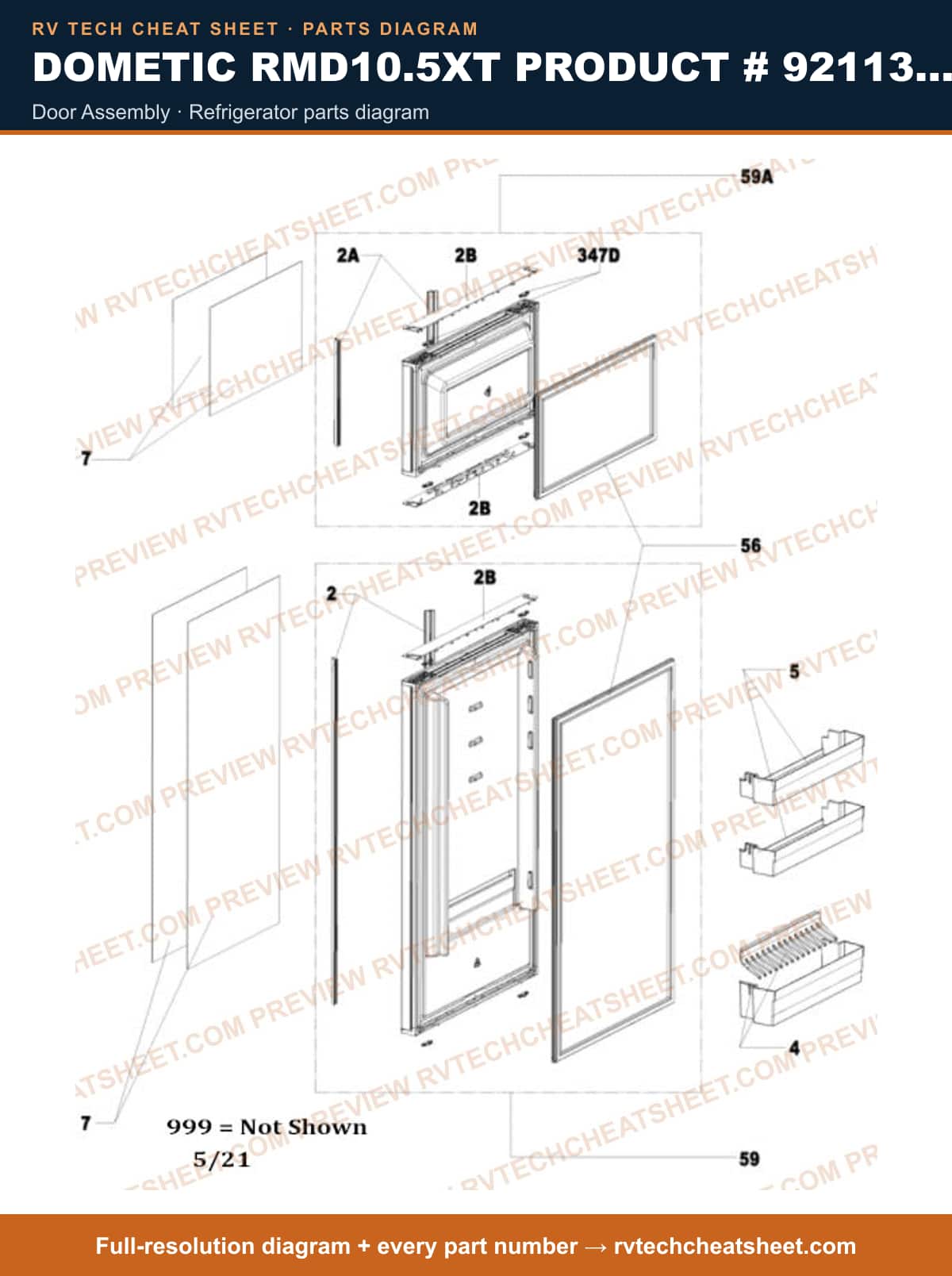

Door Assembly

Components

11 items

1. #cover ledge MFR # 289078619
2. #cover strip MFR # 289070902
3. #cover ledge MFR # 289078618
4. #bottle shelf MFR # 289078622
5. #shelf MFR # 289078621
6. #DECORATION PLATE MFR # 289078615
7. #door gasket MFR # 289078620
8. #fridge door MFR # 289081034
9. #freezer door MFR # 289074602
10. #fridge door MFR # 289074705
11. #retainer MFR # 289078623

Replacement

Components

1 item

1. #Refrigerator; Model RMD10.5XT; Dual Compartment Refrigerator With Freezer; Permanent Bolt-In; Double Hinge Door Opens To Right Or Left Without Changing The Hinge; 6.0 Cubic Foot; 49.06 Inch Height x 20.67 Inch Width x 22.44 Inch Depth Recess Dimensions; 49.02 Inch Height x 20.59 Inch Width x 23.82 Inch Depth Overall Dimensions; 2.1 Amp AC Or 14.2 Amp DC/ 120 Volt AC Or 12 Volt DC; 2-Way Alternating Current; Without Ice Maker; TFT Soft-Touch Control Panel; With LED Cabinet Light And Fan; Anthracite Black MFR # 9600022505

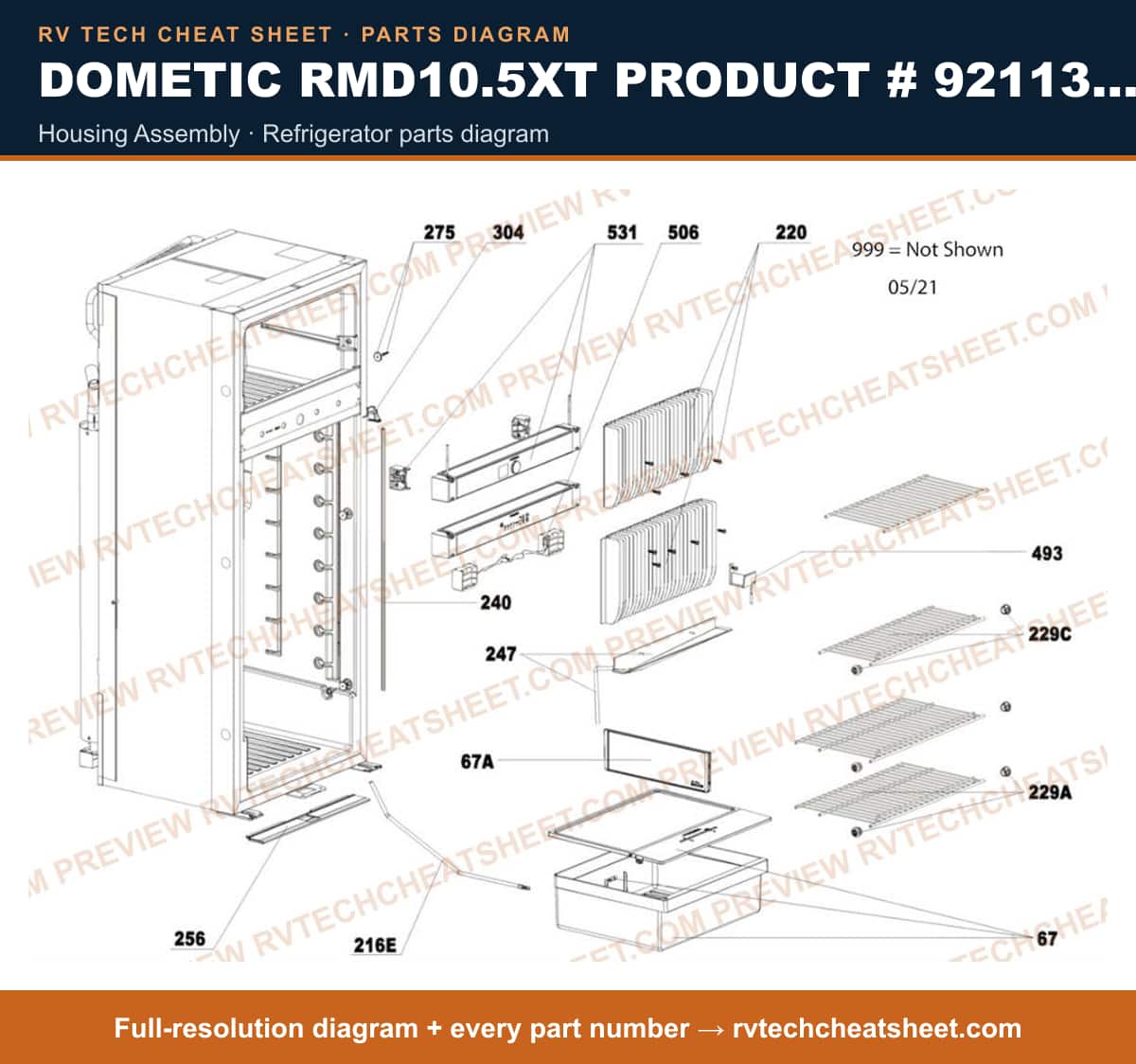

Housing Assembly

Components

14 items

1. #divider crisper MFR # 289078610
2. #APPLIANCE COMPONENTS RV; CRISPER MFR # 289078608
3. #KIT DRAIN HOSE CONNECTION MFR # 292334710
4. #REAR EVAPORATOR MFR # 289078600
5. #grating MFR # 289078606
6. #grating MFR # 289078607
7. #lighting MFR # 289073100
8. #DROP PROFILE MFR # 289078611
9. #Cover, hinge plate MFR # 289078678
10. #cover cap MFR # 289078613
11. #SENSOR MFR # 289078625
12. #NTC MFR # 289078612
13. #control panel MFR # 289078667
14. #CONTROL PANEL MFR # 289078603
