Dometic RMD10.5XT Product # 921132963 Parts Diagram · Housing Assembly

Refrigerator · 4 assemblies · 4 diagram sheets · 45 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RMD10.5XT Product # 921132963 RV refrigerator: 4 assemblies (Housing Assembly, Cooling Generator, Door Assembly, Replacement) and 45 manufacturer part numbers.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Housing Assembly

Components

26 items

1. #cover ledge MFR # 289078618
2. #cover strip MFR # 289070902
3. #cover ledge MFR # 289078619
4. #bottle shelf MFR # 289078622
5. #shelf MFR # 289078621
6. #decoration plate MFR # 289078674
7. #decoration plate MFR # 289078673
8. #door gasket MFR # 289078620
9. #freezer door MFR # 289080907
10. #fridge door MFR # 289081034
11. #FRIDGE DOOR MFR # 289081005
12. #divider crisper MFR # 289078610
13. #APPLIANCE COMPONENTS RV; CRISPER MFR # 289078608
14. #KIT DRAIN HOSE CONNECTION MFR # 292334710
15. #REAR EVAPORATOR MFR # 289078600
16. #grating MFR # 289078607
17. #grating MFR # 289078606
18. #lighting MFR # 289073100
19. #DROP PROFILE MFR # 289078611
20. #Cover, hinge plate MFR # 289078678
21. #cover cap MFR # 289078613
22. #SENSOR MFR # 289078625
23. #retainer MFR # 289078623
24. #NTC MFR # 289078612
25. #control panel MFR # 289078667
26. #CONTROL PANEL COMPLETE TFT MFR # 289078640

Cooling Generator

Components

18 items

1. #cooling unit MFR # 289076905
2. #HELIX MFR # 292621264
3. #KITCHEN SUPPLIES RV; GAS BURNER, WITH GAS VALVE, CBS3, D MFR # 289063432
4. #T-PIECE COMPLETE; 95 MILLIMETER MFR # 295244450
5. #FIXING BURNER; 10SCREWS/ 10WASHERS MFR # 295246161
6. #KIT RIVET 50 PIECES MFR # 241255996
7. #RIVET MFR # 241255999
8. #BRUSH CLEANER D=7MM MFR # 241248180
9. #COVER CONNECTION BRICK MFR # 241209332
10. #IGNITION CABLE MFR # 210657830
11. #heater MFR # 289076202
12. #HEATER MFR # 289076300
13. #Relay with connection wiring MFR # 289078629
14. #fan MFR # 289080600
15. #fan MFR # 210651198
16. #connection brick complete MFR # 289069133
17. #FAN WITH OPTION MODULE RMD10.5 MFR # 289078630
18. #CONNECTION WIRING MFR # 289076620

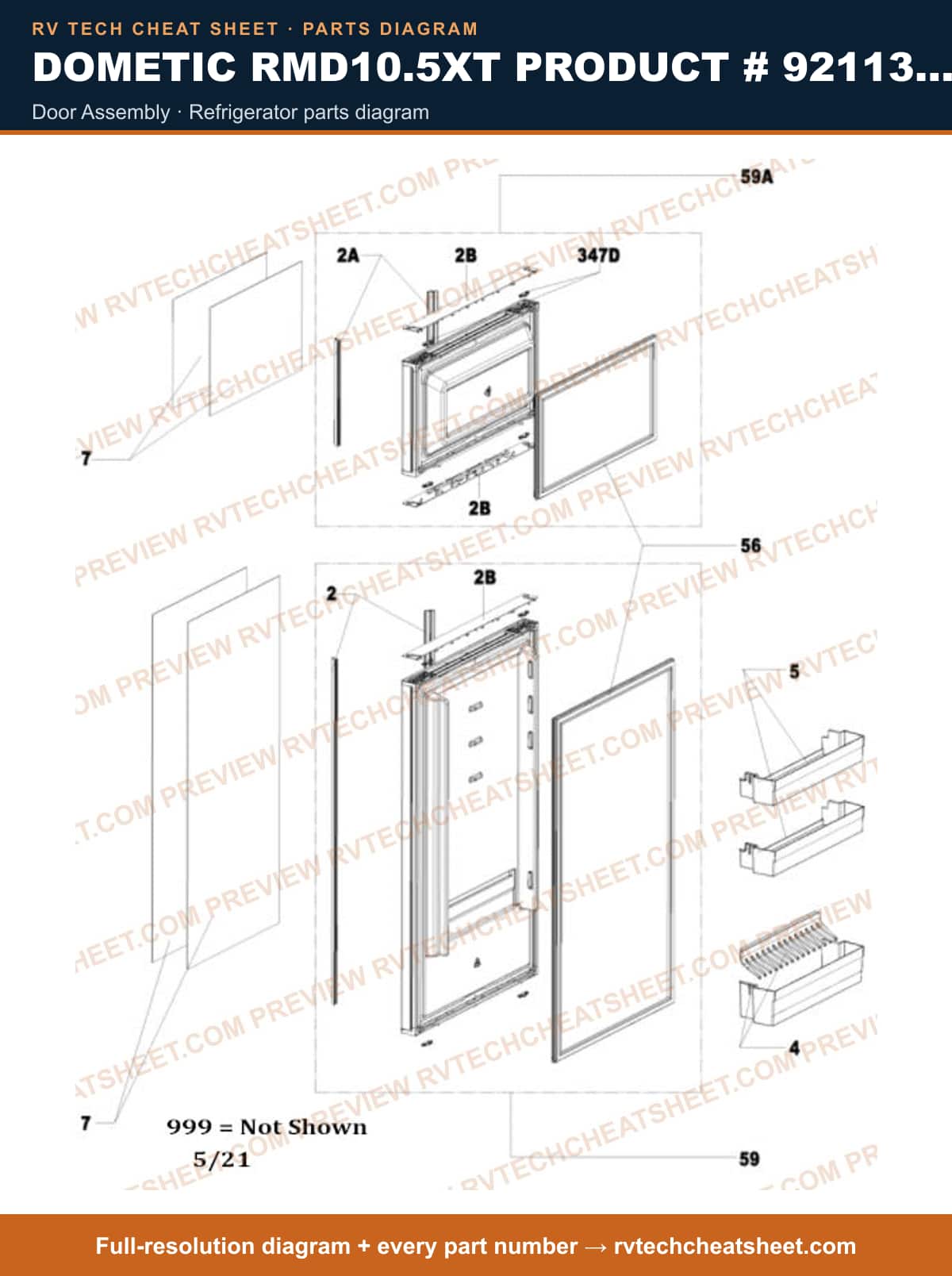

Door Assembly

Components

12 items

1. #cover strip MFR # 289070902
2. #cover ledge MFR # 289078618
3. #cover ledge MFR # 289078619
4. #bottle shelf MFR # 289078622
5. #shelf MFR # 289078621
6. #decoration plate MFR # 289078673
7. #decoration plate MFR # 289078674
8. #door gasket MFR # 289078620
9. #freezer door MFR # 289080907
10. #FRIDGE DOOR MFR # 289081005
11. #fridge door MFR # 289081034
12. #retainer MFR # 289078623

Replacement

Components

1 item

1. #Refrigerator / Freezer;;Model RMD10.5XT; Dual Compartment Refrigerator With Freezer; Permanent Bolt MFR # 9600025596
