Dometic RMD8555 Product # 921084830 Parts Diagram · Replacement

Refrigerator · 5 assemblies · 5 diagram sheets · 83 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RMD8555 Product # 921084830 RV refrigerator: 5 assemblies (Replacement, Housing Assembly, Cooling Generator, Door Assembly, Armature-fitting) and 83 manufacturer part numbers.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement

Components

1 item

1. #REFRIGERATORS & ICE MAKERS RV; REFR,6.7CF AES4 SUR 2FANS,R,DR MFR # MD8555RSAF

Housing Assembly

Components

57 items

1. #bottle holder MFR # 295123702
2. #shelf bottles MFR # 241334100
3. #shelf middle MFR # 241334200
4. #decoration plate silver MFR # 289028300
5. #decoration plate silver MFR # 289028450
6. #door gasket magnet MFR # 241301033
7. #door gasket black MFR # 241301043
8. #door complete service MFR # 289013450
9. #door complete service MFR # 289047530
10. #DIVIDER GRID DRAWER; BLUE MFR # 241337760
11. #divider crisper MFR # 241337720
12. #crisper MFR # 241339200
13. #USER MANUAL; RMD 8XXX; USA/CANADA MFR # 289045713
14. #HINGE UPPER RIGHT MFR # 241209630
15. #hinge lower right chrome plated MFR # 241209810
16. #hinge lower left chrome plated MFR # 241209910
17. #bolt hinge chrome plated MFR # 292626500
18. #button door lock doorhang left MFR # 241326022
19. #button door lock doorhang right MFR # 241326032
20. #door lock freezer compartment service MFR # 289047110
21. #Canopy door lock MFR # 241212961
22. #drain hose MFR # 292334633
23. #REAR-EVAPORATOR FREEZER COMPARTMENT MFR # 241294813
24. #REAR-EVAPORATOR FRIDGE MFR # 241294808
25. #slider for grid MFR # 241332710
26. #grating bottom complete MFR # 241398130
27. #grating freezer compartment MFR # 241396310
28. #grating upper complete MFR # 241398110
29. #ice tray MFR # 295113200
30. #door lock lighting doorhang right MFR # 289037115
31. #S, DOOR LOCK, FRZ, RMD8555 MFR # 2890371210
32. #door lock freezer compartment MFR # 289037121
33. #DROP PROFILE COMPLETE MFR # 241396210
34. #CANOPY HINGE BUSHING; BLACK MFR # 292641213
35. #EXPANDING RIVET KIT; 10 PIECES MFR # 295246162
36. #cover cap MFR # 295122105
37. #cover door lock lighting MFR # 241326801
38. #KIT SCREWS; 6X 3, 5 X 20, 6 X 4 X 17 MILLIMETER MFR # 295176590
39. #cap hinge MFR # 241274311
40. #retainer temperature probe MFR # 210650930
41. #receptor lock tab MFR # 241327101
42. #COVER CABLE CHANNEL MFR # 289016691
43. #COVER CABLE LIGHTING MFR # 241326171
44. #Display Complete Right MFR # 289050820
45. #CONNECTION WIRING LIGHTING; 1180 MILLIMETER LENGTH/ MES4/ AES4 MFR # 241343319
46. #connection wiring MFR # 289023710
47. #temperature probe MFR # 295224881
48. #HINGE CENTRAL DOORHANG RIGHT; RMD 8XXX, MES4/AES4 MFR # 241235073
49. #OPERATING PANEL COMPLETE RIGHT; RMD85X5/ AES4 MFR # 289040440
50. #LENS SCREW; TORX B4/ 8X19 MFR # 295123000
51. #BOLT; M4X8 MFR # 292661100
52. #COUNTERSUNK SCREW WITHOUT BIT; C3, 9 X 9,5 MILLIMETER MFR # 292441713
53. #SHELF UPPER COMPLETE; 411 MILLIMETER LENGTH; 5 MILLIMETER MFR # 241393800
54. #KIT DRAIN HOSE CONNECTION MFR # 292334710
55. #EXPANDING RIVET NATURE; D=7,8/2,8X12 MFR # 292314206
56. #EXPANDING RIVET NATURE; D=7,8/2,8X12, 5 PIECES MFR # 241255917
57. #FOOT COMPLETE BLACK MFR # 292329702

Cooling Generator

Components

15 items

1. #APPLIANCE COMPONENTS RV; S,CU ASM,MES/AES,CBS1X,RMD8555 MFR # 289038419
2. #HELIX; 179 MILLIMETER LENGTH; CBS1X MFR # 292621261
3. #MANTLE COOKER; 0.25 X 285 X 782 MILLIMETER MFR # 292408280
4. #COOKER INSULATION MFR # 292668013
5. #COOKER INSULATION; 230 X 480 MILLIMETER MFR # 292668011
6. #COVER BOTTOM MFR # 292408911
7. #EVAPORATION TRAY; 310 ML MFR # 292370910
8. #GAS BURNER COMPLETE MFR # 289040999
9. #COVER GAS BURNER MFR # 293266101
10. #T-PIECE COMPLETE; 95 MILLIMETER MFR # 295244450
11. #FIXING BURNER; 10SCREWS/ 10WASHERS MFR # 295246161
12. #Dometic 310 Series Toilet Ball Seal MFR # 385087001
13. #ventilator complete MFR # 210651188
14. #VENTILATION RV; VENTILATOR COMPLETE MFR # 210651187
15. #thermostat for ventilator MFR # 241290620

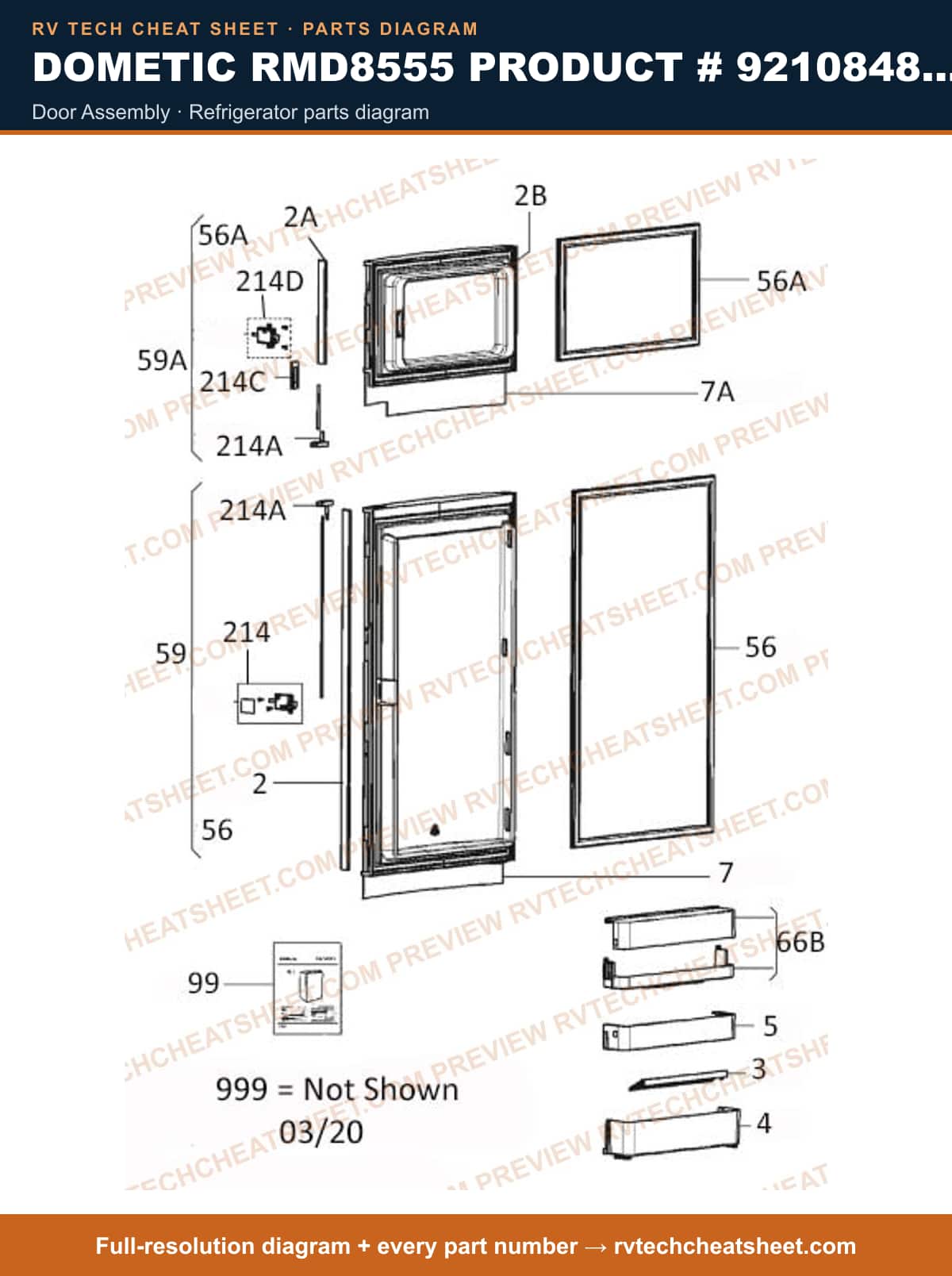

Door Assembly

Components

17 items

1. #bottle holder MFR # 295123702
2. #shelf bottles MFR # 241334100
3. #shelf middle MFR # 241334200
4. #decoration plate silver MFR # 289028450
5. #decoration plate silver MFR # 289028300
6. #door gasket black MFR # 241301043
7. #door gasket magnet MFR # 241301033
8. #door complete service MFR # 289013450
9. #door complete service MFR # 289047530
10. #USER MANUAL; RMD 8XXX; USA/CANADA MFR # 289045713
11. #button door lock doorhang left MFR # 241326022
12. #door lock freezer compartment service MFR # 289047110
13. #Canopy door lock MFR # 241212961
14. #button door lock doorhang right MFR # 241326032
15. #SHELF UPPER COMPLETE; 411 MILLIMETER LENGTH; 5 MILLIMETER MFR # 241393800
16. #EXPANDING RIVET NATURE; D=7,8/2,8X12, 5 PIECES MFR # 241255917
17. #EXPANDING RIVET NATURE; D=7,8/2,8X12 MFR # 292314206

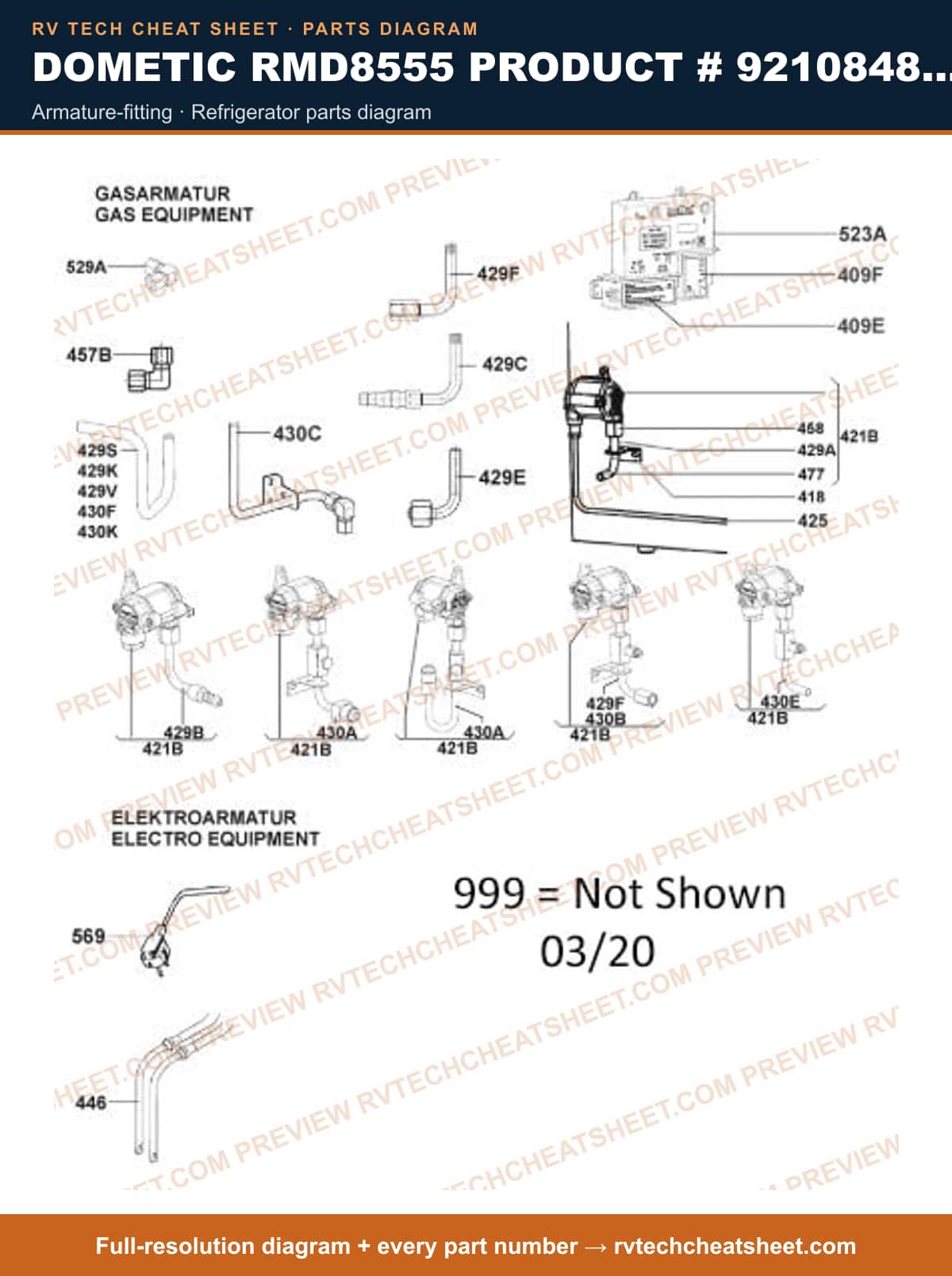

Armature-fitting

Components

10 items

1. #COVER CONNECTION BATTERY MFR # 241209331
2. #COVER CONNECTION NET MFR # 241209330
3. #APPLIANCE COMPONENTS RV; GAS VALVE WITH GAS CONNECTION MFR # 241279838
4. #GAS INLET PIPE MFR # 241259396
5. #gas connection complete MFR # 241230083
6. #HEATERS & FURNACES RV; S,HEATER,120V/240W,RMD8555 MFR # 289018013
7. #FILTER FOR GAS CONNECTION MFR # 92319100
8. #connection brick complete MFR # 289078814
9. #connection wiring black MFR # 289028120
10. #connection wiring MFR # 289023600
