Dometic RMD8555 Product # 921132319 Parts Diagram · Replacement

Refrigerator · 5 assemblies · 5 diagram sheets · 84 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RMD8555 Product # 921132319 RV refrigerator: 5 assemblies (Replacement, Housing Assembly, Armature-fitting, Door Assembly, Cooling Generator) and 84 manufacturer part numbers.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement

Components

1 item

1. #REFRIGERATORS & ICE MAKERS RV; REFR,6.7CF AES4 SUR 2FANS,R,DR MFR # MD8555RSAF

Housing Assembly

Components

39 items

1. #DIVIDER GRID DRAWER; BLUE MFR # 241337760
2. #divider crisper MFR # 241337720
3. #crisper MFR # 241339200
4. #HINGE UPPER RIGHT MFR # 241209630
5. #hinge lower right chrome plated MFR # 241209810
6. #hinge lower left chrome plated MFR # 241209910
7. #bolt hinge chrome plated MFR # 292626500
8. #drain hose MFR # 292334633
9. #REAR-EVAPORATOR FRIDGE MFR # 241294808
10. #REAR-EVAPORATOR FREEZER COMPARTMENT MFR # 241294813
11. #slider for grid MFR # 241332710
12. #grating upper complete MFR # 241398110
13. #grating bottom complete MFR # 241398130
14. #grating freezer compartment MFR # 241396310
15. #ice tray MFR # 295113200
16. #door lock lighting doorhang right MFR # 289037115
17. #S, DOOR LOCK, FRZ, RMD8555 MFR # 2890371210
18. #door lock freezer compartment MFR # 289037121
19. #DROP PROFILE COMPLETE MFR # 241396210
20. #CANOPY HINGE BUSHING; BLACK MFR # 292641213
21. #EXPANDING RIVET KIT; 10 PIECES MFR # 295246162
22. #cover cap MFR # 295122105
23. #cover door lock lighting MFR # 241326801
24. #KIT SCREWS; 6X 3, 5 X 20, 6 X 4 X 17 MILLIMETER MFR # 295176590
25. #cap hinge MFR # 241274311
26. #retainer temperature probe MFR # 210650930
27. #receptor lock tab MFR # 241327101
28. #COVER CABLE LIGHTING MFR # 241326171
29. #Display Complete Right MFR # 289050820
30. #COVER CABLE CHANNEL MFR # 289016691
31. #connection wiring MFR # 289023710
32. #CONNECTION WIRING LIGHTING; 1180 MILLIMETER LENGTH/ MES4/ AES4 MFR # 241343319
33. #temperature probe MFR # 295224881
34. #HINGE CENTRAL DOORHANG RIGHT; RMD 8XXX, MES4/AES4 MFR # 241235073
35. #OPERATING PANEL COMPLETE RIGHT; RMD85X5/ AES4 MFR # 289040440
36. #COUNTERSUNK SCREW WITHOUT BIT; C3, 9 X 9,5 MILLIMETER MFR # 292441713
37. #BOLT; M4X8 MFR # 292661100
38. #LENS SCREW; TORX B4/ 8X19 MFR # 295123000
39. #NO GENERIC NAME; S,DIVIDER,DWR,BLUE,RMD8555 MFR # 241337730

Armature-fitting

Components

11 items

1. #COVER CONNECTION BATTERY MFR # 241209331
2. #COVER CONNECTION NET MFR # 241209330
3. #APPLIANCE COMPONENTS RV; GAS VALVE WITH GAS CONNECTION MFR # 241279838
4. #GAS INLET PIPE MFR # 241259396
5. #gas connection complete MFR # 241230083
6. #HEATERS & FURNACES RV; S,HEATER,12V/170W,RMD/RML8555 MFR # 289017052
7. #FILTER FOR GAS CONNECTION MFR # 92319100
8. #connection brick complete MFR # 289078814
9. #connection wiring black MFR # 289028120
10. #KIT TERMINAL BOARD CABLE; 12 VOLT MFR # 289035622
11. #connection wiring MFR # 289023600

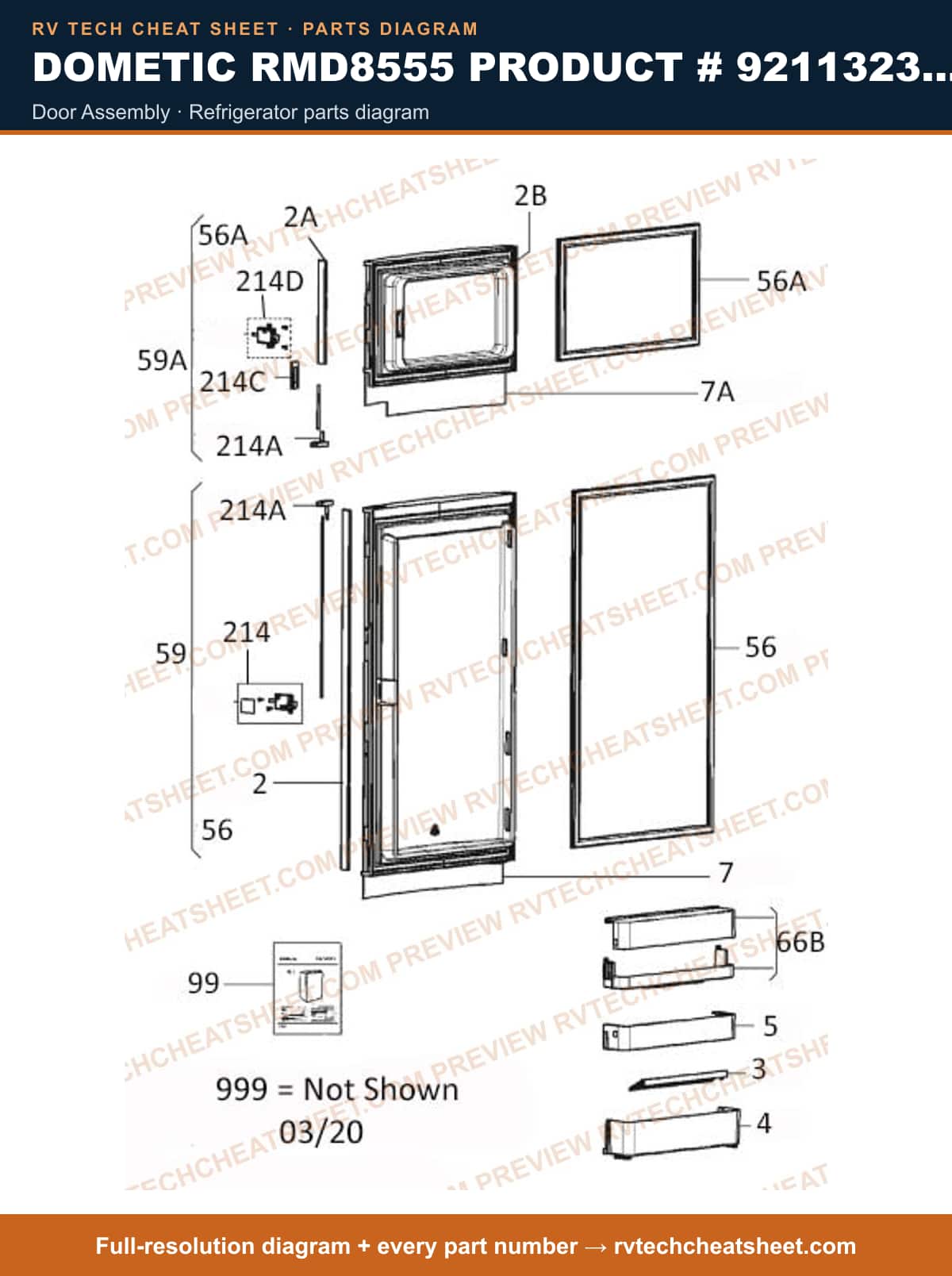

Door Assembly

Components

18 items

1. #bottle holder MFR # 295123702
2. #shelf bottles MFR # 241334100
3. #shelf middle MFR # 241334200
4. #decoration plate silver MFR # 289028450
5. #decoration plate silver MFR # 289028300
6. #door gasket black MFR # 241301043
7. #door gasket magnet MFR # 241301033
8. #door complete service MFR # 289047530
9. #door complete service MFR # 289013450
10. #USER MANUAL; RMD 8XXX; USA/CANADA MFR # 289045713
11. #button door lock doorhang left MFR # 241326022
12. #Canopy door lock MFR # 241212961
13. #button door lock doorhang right MFR # 241326032
14. #door lock freezer compartment service MFR # 289047110
15. #door lock complete MFR # 289012711
16. #SHELF UPPER COMPLETE; 411 MILLIMETER LENGTH; 5 MILLIMETER MFR # 241393800
17. #EXPANDING RIVET NATURE; D=7,8/2,8X12, 5 PIECES MFR # 241255917
18. #EXPANDING RIVET NATURE; D=7,8/2,8X12 MFR # 292314206

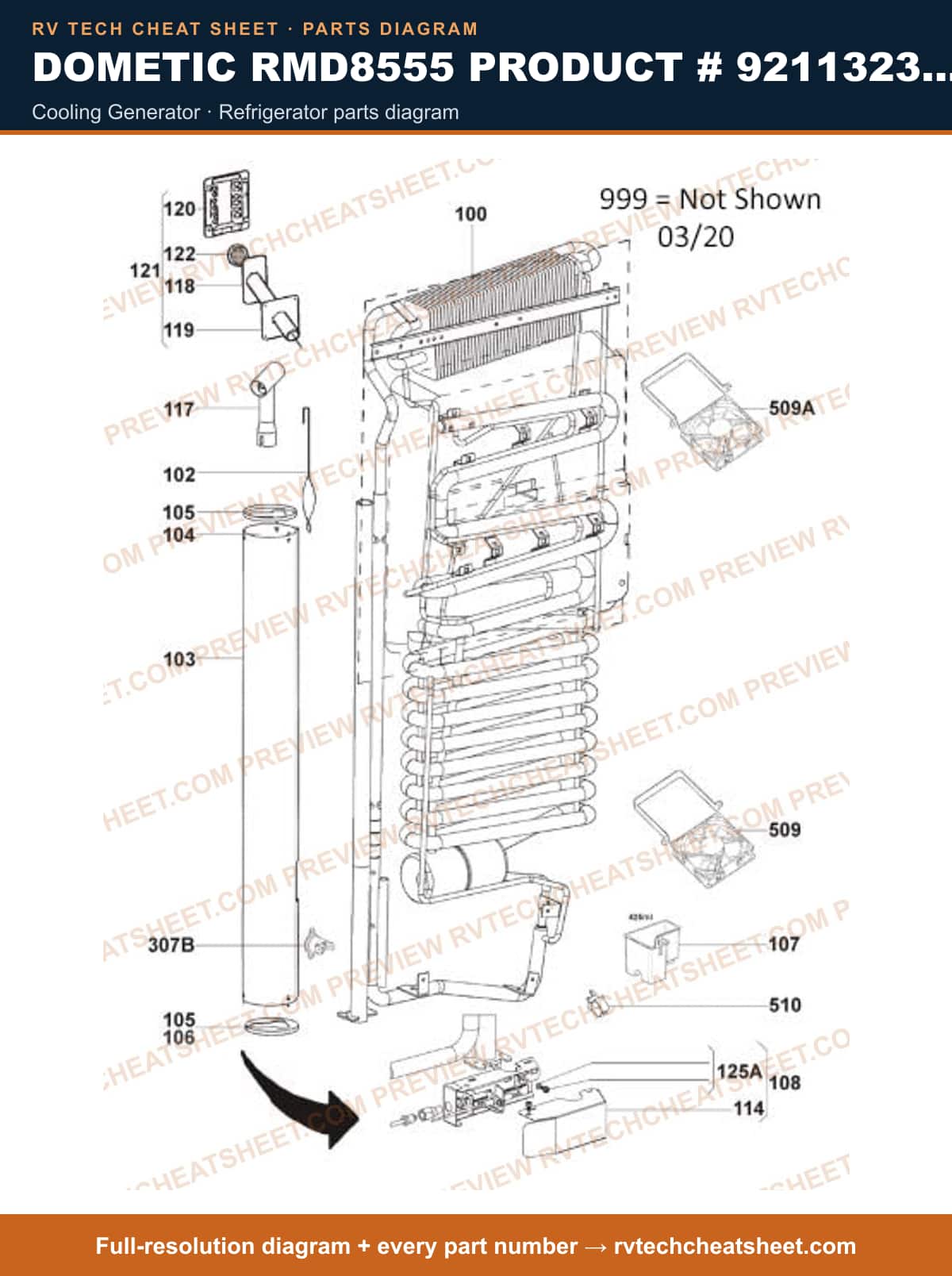

Cooling Generator

Components

15 items

1. #APPLIANCE COMPONENTS RV; S,CU ASM,MES/AES,CBS1X,RMD8555 MFR # 289038419
2. #HELIX COMPLETE; 600 MILLIMETER LENGTH MFR # 292621262
3. #MANTLE COOKER; 0.25 X 285 X 782 MILLIMETER MFR # 292408280
4. #COOKER INSULATION MFR # 292668013
5. #COOKER INSULATION; 230 X 480 MILLIMETER MFR # 292668011
6. #COVER BOTTOM MFR # 292408911
7. #EVAPORATION TRAY; 310 ML MFR # 292370910
8. #GAS BURNER COMPLETE; CBS2X/ MES/AES/ DN58 MFR # 289063499
9. #COVER GAS BURNER MFR # 293266101
10. #T-PIECE COMPLETE; 95 MILLIMETER MFR # 295244450
11. #FIXING BURNER; 10SCREWS/ 10WASHERS MFR # 295246161
12. #Dometic 310 Series Toilet Ball Seal MFR # 385087001
13. #ventilator complete MFR # 210651188
14. #VENTILATION RV; VENTILATOR COMPLETE MFR # 210651187
15. #thermostat for ventilator MFR # 241290620
