Dometic RML8330 Product # 921132506 Parts Diagram · Door Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 87 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RML8330 Product # 921132506 RV refrigerator: 5 assemblies (Door Assembly, Cabinet Rear View, Replacement, Cabinet Interior, Gas & Electric Controls) and 87 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Door Assembly

Components

13 items

1. #S,CVR LEDGE,DR,BLK/GRY,RML8330 MFR # 2412880201
2. #Refrigerator Shelf; Replacement For Dometic Refrigerator; Door MFR # 2413408226
3. #flap door door compartment blue MFR # 241341682
4. #DECORATION PLATE DOORHANG RIGHT DOORHANG RIGHT RAL 9006 MFR # 289028661
5. #holder bottles MFR # 241210450
6. #APPLIANCE COMPONENTS RV; DOOR COMPLETE RH MFR # 2413258613
7. #USER MANUAL RML 8330 USA EN/FR MFR # 289011117
8. #DOORS RV; DOOR LOCK DOOR MFR # 2412126209
9. #COVER DOOR LOCK MFR # 241212943
10. #DOOR HANDLE MFR # 289012120
11. #DOORS RV; COVER DOOR HANDLE CHROME PLATED MFR # 2890121102
12. #COVER HANDLE INSERT MFR # 289012210
13. #APPLIANCE COMPONENTS RV; SCREW FXS B6X9 MFR # 7296279016

Cabinet Rear View

Components

10 items

1. #APPLIANCE COMPONENTS RV; COOLING UNIT SERVICE MFR # 2890129055
2. #Refrigerator Drip Tray; Replacement For Dometic RML8330/ RML8555/ RM7851L Refrigerators; For Fresh Food Compartment; By Burner Assembly MFR # 2923320002
3. #KITCHEN SUPPLIES RV; GAS BURNER COMPLETE MFR # 289060490
4. #GAS BURNER, COMPLETE, CBS1A, MES/AES MFR # 2890567932
5. #REFRIG BURNER JET NOZZLE, KZ16, RML8555/8330 MFR # 2890483114
6. #AWNING-REPAIR PARTS RV; COVER GAS BURNER CBS1 MFR # 2890380500
7. #TEE, FLUE 75MM MFR # 2952444400
8. #FIXING BURNER 10SCREWS, 10WASHERS MFR # 295246160
9. #VENTILATION RV; VENTILATOR COMPLETE MFR # 2106511872
10. #APPLIANCE COMPONENTS RV; THERMOSTAT,VENTILATOR MFR # 2412906204

Replacement

Components

2 items

1. #REFRIGERATORS & ICE MAKERS RV; REFRIG-3WAY RH *C MFR # L8330RSAFD
2. #Refrigerator; Single Compartment With Detachable Freezer; Permanent Bolt-In; Right Hand Hinge; 4.8 Cubic Foot; 50.94 Inch Height x 16.61 Inch Width x 20.83 Inch Depth Recess Dimensions; 50-15/16 Inch Height x 16-9/16 Inch Width x 23-9/16 Inch Depth Overall Dimensions; 1.42 Amp AC Or 14.2 Amp DC/ 120 Volt AC Or 12 Volt DC; 3-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Panel Control; With Manual Thermostat; Stainless Steel Door With Black Trim MFR # RML8330RSA

Cabinet Interior

Components

38 items

1. #APPLIANCE COMPONENTS RV; CRISPER *C MFR # 2413367505
2. #DIVIDER CRISPER BLUE MFR # 241337740
3. #Refrigerator Door Hinge; Replacement For Dometic MFR # 2413414208
4. #APPLIANCE COMPONENTS RV; HINGE LOWER RIGHT CHROME PLATED MFR # 2412098101
5. #APPLIANCE COMPONENTS RV; HINGE LOWER LEFT CHROME PLATED MFR # 2412099109
6. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
7. #APPLIANCE COMPONENTS RV; KIT HINGE LIMITER MFR # 2412350809
8. #PIN, LOWER HINGE MFR # 2926265006
9. #drain hose MFR # 292334633
10. #REAR-EVAPORATOR FRIDGE MFR # 241294812
11. #REAR-EVAPORATOR COMPLETE FREEZER COMPARTMENT MFR # 241294803
12. #BASE FREEZER COMPARTMENT MFR # 241333950
13. #APPLIANCE COMPONENTS RV; SLIDER FOR FREEZER COMPARTMENT MFR # 2413327202
14. #DOORS RV; DOOR FREEZER COMPARTMENT MFR # 2412195709
15. #GRATING BOTTOM MFR # 241398161
16. #Refrigerator Shelf; Replacement For Dometic Refrigerator MFR # 2413981719
17. #Ice Cube Tray; Use With Dometic Refrigerator Model RM7401; Plastic MFR # 2951132006 Superseded: see description
18. #DOORS RV; DOOR LOCK LIGHTING DOORHANG RIGHT MFR # 2890371152
19. #COVER LEDGE BACK UPPER MFR # 292384230
20. #DROP PROFILE COMPLETE MFR # 295228620
21. #EXPANDING RIVET KIT; 10 PIECES MFR # 295246162
22. #INSULATING STRIP 12X30X100MM MFR # 292645802
23. #COVER LEDGE COMPLETE MFR # 292384270
24. #Nut; Replacement For Dometic RM2193/ RM4292/ RML855 Model refrigerator; Fits Cooling Unit; Push-In MFR # 2926545209
25. #SCREW, COUNTERSINK MFR # 7296350015
26. #WIRING & SERVICE ACCESSORYS RV; CONNECTION WIRING LIGHTING MFR # 2413433307
27. #AWNING-REPAIR PARTS RV; COVER CAP MFR # 2951221056
28. #AWNING-REPAIR PARTS RV; COVER CATCH LIGHTING MFR # 2413268026
29. #KIT SCREWS; 6X 3, 5 X 20, 6 X 4 X 17 MILLIMETER MFR # 295176590
30. #APPLIANCE COMPONENTS RV; CAP HINGE MFR # 2412743110
31. #APPLIANCE COMPONENTS RV; RECEPTOR LOCK TAB MFR # 2413271012
32. #COVER CABLE LIGHTING MFR # 241326161
33. #BEARING UPPER RIGHT FREEZER COMPARTMENT MFR # 292517740
34. #BEARING BOTTOM FREEZER COMPARTMENT MFR # 292517710
35. #APPLIANCE COMPONENTS RV; STOPPLE BEARING FREEZER COMPARTMENT MFR # 2925177202
36. #TRIGGER FREEZER COMPARTMENT MFR # 241227340
37. #PIN TRIGGER FREEZER COMPARTMENT MFR # 241227370
38. #COUNTERSUNK SCREW WITHOUT BIT; C3, 9 X 9,5 MILLIMETER MFR # 292441713

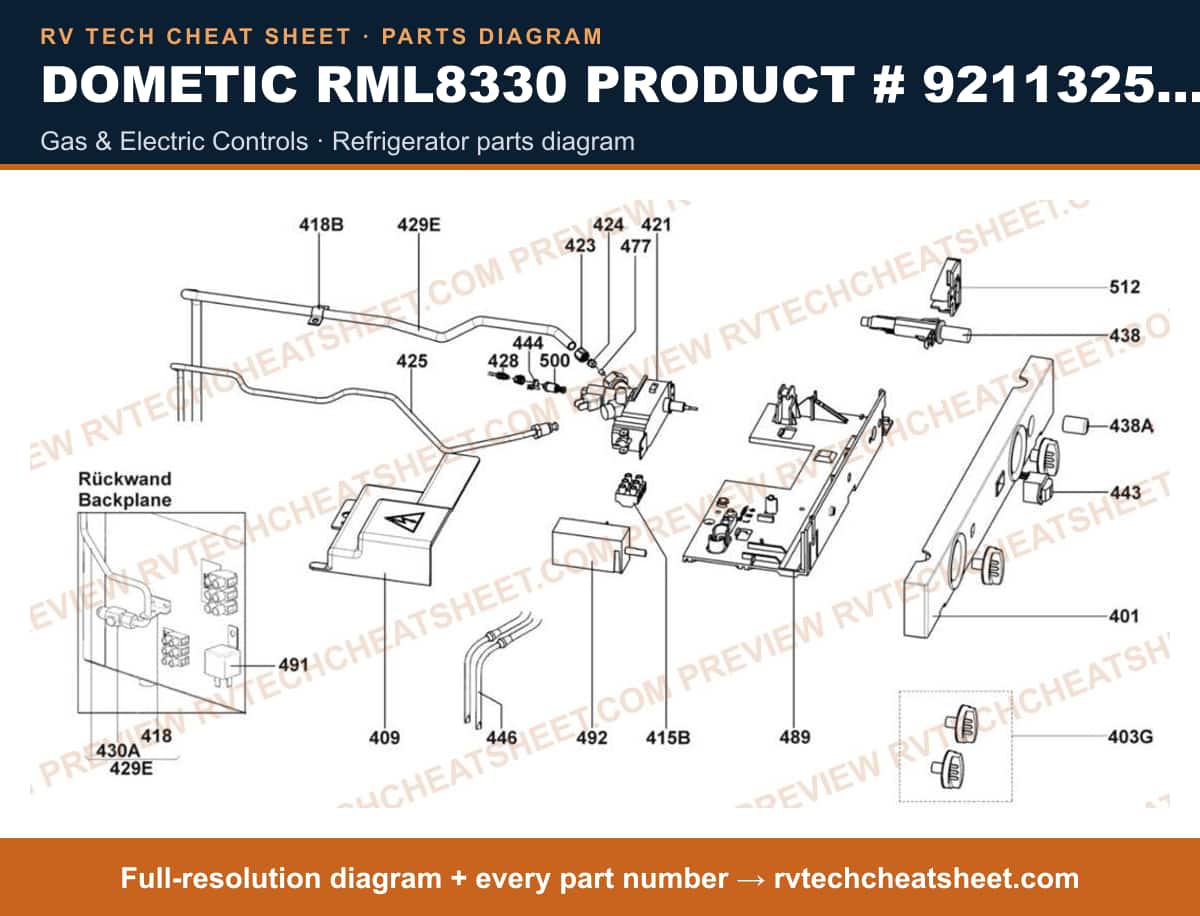

Gas & Electric Controls

Components

24 items

1. #Refrigerator Power Selector Switch Cover; Replacement For Dometic RML8330 Series Refrigerator; Black/ Gray MFR # 2413243300
2. #APPLIANCE COMPONENTS RV; KIT TURNING KNOB SELECTOR SWITCH MFR # 2412350627
3. #COVER ELECTRIC BLACK MFR # 241209320
4. #APPLIANCE COMPONENTS RV; TERMINAL BOARD MFR # 2413255015
5. #BRACKET, GAS VALVE MFR # 2926202009
6. #FIXING CLAMP D=8 MFR # 210674000
7. #APPLIANCE COMPONENTS RV; MOUNTINGS COMPACT GAS MFR # 2412190205
8. #NUT, UNION M15X1 MFR # 2923189001
9. #FERRELL .8MM DIA. MFR # 2923190009
10. #gas inlet pipe MFR # 241259399
11. #Refrigerator Thermocouple Sensor; Replacement For Dometic Refrigerators MFR # 292343590
12. #KIT GAS CONNECTION TUBE MFR # 241249883
13. #GAS CONNECTION USA MFR # 295222031
14. #APPLIANCE COMPONENTS RV; IGNITER, PIEZO MFR # 2923024612
15. #APPLIANCE COMPONENTS RV; DIAL,GAS MFR # 2923499210
16. #APPLIANCE COMPONENTS RV; ADAPTOR INSULATOR MFR # 2952985006
17. #HEATER 120V/170W MFR # 289012601
18. #HEATERS & FURNACES RV; HEATER MFR # 2412968105
19. #Appliance Components RV; Filter, Gas MFR # 2923191007
20. #INSTRUMENT RETAINER L=282,5MM MFR # 241209190
21. #APPLIANCE COMPONENTS RV; RELAY MFR # 2952089007
22. #APPLIANCE COMPONENTS RV; SELECTOR SWITCH COMPLETE SERVICE MFR # 2952025522
23. #MAGNET MFR # 2106030105
24. #BOSS INSTRUMENT RETAINER IGNITION MFR # 210645310
