Dometic RML8555 Product # 921084496 Parts Diagram · Cabinet Interior

Refrigerator · 5 assemblies · 5 diagram sheets · 84 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RML8555 Product # 921084496 RV refrigerator: 5 assemblies (Cabinet Interior, Cabinet Rear View, Gas & Electric Controls, Door Assembly, Replacement) and 84 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

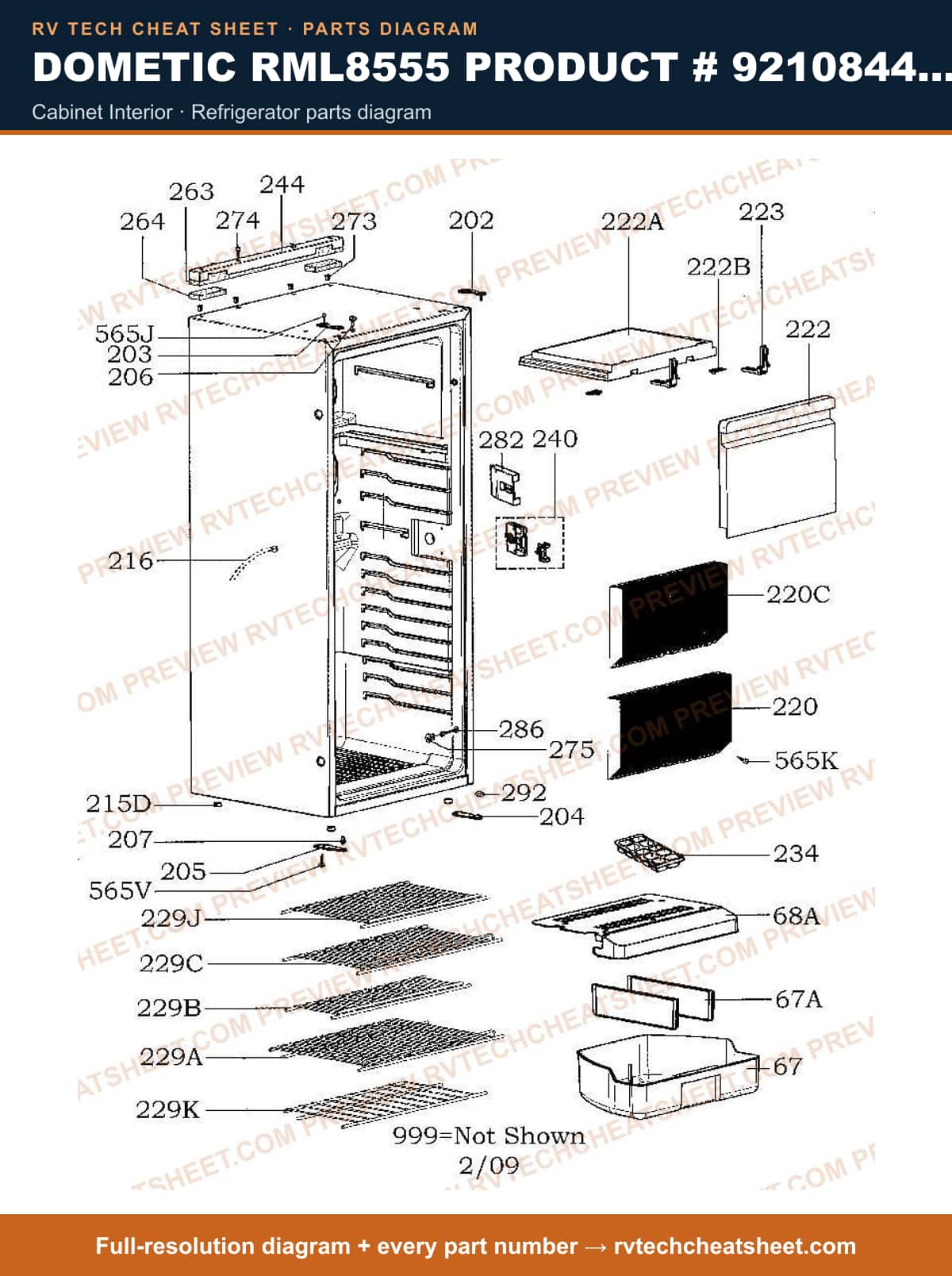

Cabinet Interior

Components

40 items

1. #CRISPER, TRANSPARENT MFR # 2413367000
2. #APPLIANCE COMPONENTS RV; DIVIDER CRISPER MFR # 2413377207
3. #Refrigerator Crisper Bin Cover; Replacement For Dometic Refrigerator MFR # 2413956000
4. #HINGE, UPPER RH CHROME MFR # 2412096204
5. #APPLIANCE COMPONENTS RV; HINGE LOWER RIGHT CHROME PLATED MFR # 2412098101
6. #APPLIANCE COMPONENTS RV; HINGE LOWER LEFT CHROME PLATED MFR # 2412099109
7. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
8. #APPLIANCE COMPONENTS RV; BOLT HINGE CHROME PLATED MFR # 2926265204
9. #FOOT MFR # 2923297028
10. #DRAIN HOSE, D=8/1X900MM MFR # 2923346338
11. #REAR EVAPORATOR, FREEZER COMPARTMENT MFR # 2412948305
12. #REAR EVAPORATOR, FRIDGE MFR # 2412948313
13. #REFRIGERATORS & ICE MAKERS RV; FREEZER DOOR FLAP MFR # 2412195410
14. #APPLIANCE COMPONENTS RV; SLIDER FOR FREEZER COMPARTMENT MFR # 2413327202
15. #APPLIANCE COMPONENTS RV; BOTTOM FREEZER COMPARTMENT MFR # 2413339405
16. #APPLIANCE COMPONENTS RV; HINGE, FREEZER COMPARTMEN MFR # 2412125110
17. #APPLIANCE COMPONENTS RV; GRATING UPPER ZINC-PLATED MFR # 2413375904
18. #APPLIANCE COMPONENTS RV; GRATING BOTTOM ZINC-PLATED MFR # 2413379609
19. #SHELF,FREEZER COMPARTMENT 407 X 238 MM MFR # 2413399805
20. #AWNING-REPAIR PARTS RV; GRATING CRISPER COVER MFR # 2413916004
21. #Ice Cube Tray; Use With Dometic Refrigerator Model RM7401; Plastic MFR # 2951132006 Superseded: see description
22. #DOOR LOCK, LIGHTING, FRIDGE, RIGHT HANG MFR # 2890371111
23. #APPLIANCE COMPONENTS RV; RECEPTOR LOCK TAB MFR # 2413271012
24. #AWNING-REPAIR PARTS RV; COVER LEDGE BACK UPPER MFR # 2923842013
25. #COVER,COMPLETE BLACK MFR # 2923842518
26. #PAD, INSULATION 519M MFR # 2925065001
27. #PAD, INSULATION 100M MFR # 2926458007
28. #Nut; Replacement For Dometic RM2193/ RM4292/ RML855 Model refrigerator; Fits Cooling Unit; Push-In MFR # 2926545209
29. #SCREW, COUNTERSINK MFR # 7296350015
30. #AWNING-REPAIR PARTS RV; COVER CAP MFR # 2951221056
31. #APPLIANCE COMPONENTS RV; COVER, DOOR LOCK LIGHTING MFR # 2413268018
32. #SCREWS MFR # 2926544004
33. #APPLIANCE COMPONENTS RV; CAP HINGE MFR # 2412743110
34. #SCREW, SHEET METAL MFR # 2951230008
35. #SCREW, COUNTERSINK MFR # 2924417021
36. #SCREW B8 X 13 MFR # 7296342012
37. #DRAIN HOSE KIT, CONNECTION MFR # 2923347104
38. #DROP PROFILE, COMPLETE MFR # 2413962107
39. #RETAINER, TEMPERATURE PROBE MFR # 2106509306
40. #COVER, CABLE, LIGHTING MFR # 2413261716

Cabinet Rear View

Components

13 items

1. #COOLING UNIT, SERVICE MFR # 2890352418
2. #cooling unit service MFR # 289035241
3. #MANTLE, COOKER INSULATION MFR # 2924082601
4. #COOKER INSULATION, 230X607MM MFR # 2926680121
5. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
6. #COVER, BOTTOM MFR # 2924089119
7. #EVAPORATION TRAY, 310ML MFR # 2923709105
8. #GAS BURNER, COMPLETE, CBS1A, MES/AES MFR # 2890567932
9. #REFRIG BURNER JET NOZZLE, KZ16, RML8555/8330 MFR # 2890483114
10. #AWNING-REPAIR PARTS RV; COVER GAS BURNER CBS1 MFR # 2890380500
11. #TEE, FLUE 75MM MFR # 2952444400
12. #Washer; Replacement For Dometic RM4290/ RM4223/ RM7401 Model Refrigerator; Star Washer MFR # 2926559036
13. #SCREW MFR # 2952435408

Gas & Electric Controls

Components

17 items

1. #APPLIANCE COMPONENTS RV; OPER PANEL/TEMP PROBE-AE MFR # 2890187004
2. #DOORS RV; CONTROL PANEL DOORHANG RIGHT BLACK/ MFR # 2413356128
3. #APPLIANCE COMPONENTS RV; RETAINER CONTROL PANEL BLACK/GREY MFR # 2413193703
4. #COVER, CONNECTION, NET MFR # 2412093300
5. #COVER, CONNECTION, BATTERY MFR # 2412093318
6. #HEATERS & FURNACES RV; S, GAS VALVE/GAS, RM/RMD/R MFR # 2412798387
7. #GAS INLET PIPE MFR # 2412593978
8. #GAS CONNECTION, COMPLETE MFR # 2412300838
9. #HEATER, 120V/190W MFR # 2890180058
10. #HEATERS & FURNACES RV; HEATER MFR # 2890170521
11. #ELECTRONIC OPERATOR PANEL CONNECT WIRE, RMX85XX MFR # 2890237106
12. #Appliance Components RV; Filter, Gas MFR # 2923191007
13. #APPLIANCE COMPONENTS RV; TEMPERATURE PROBE MFR # 2952248819
14. #APPLIANCE COMPONENTS RV; CONNECTION BRICK COMPLETE MFR # 2890189208
15. #WIRING & SERVICE ACCESSORIES RV; CONNECTION WIRING BLACK MFR # 2890281203
16. #CONNECTION WIRING, 12V, 260MM LENGTH MFR # 2890298702
17. #TRAILER CONNECTOR; CONNECTION WIRING CONNECTION BRICK MFR # 2890236009

Door Assembly

Components

9 items

1. #COVER LEDGE, DOOR, BLACK/GRAY, RAL7021 MFR # 2413338522
2. #BOTTLE HOLDER, BLUE, RM85XX MFR # 2951237029
3. #AWNING-ACCESSORIES RV; S,SHELF,DR,BOTTLE,BLUE,RMX85XX MFR # 2413341005
4. #APPLIANCE COMPONENTS RV; DECORATION PLATE SILVER MFR # 2890296003
5. #DOORS RV; DOOR GASKET MAGNETIC SEAL BLACK MFR # 2413010238
6. #DOORS RV; DOOR COMPLETE SERVICE MFR # 2413923513
7. #APPLIANCE COMPONENTS RV; DOOR LOCK DOOR SERVICE MFR # 2890127117
8. #DOORS RV; BUTTON DOOR LOCK DOORHANG RIGHT MFR # 2413260320
9. #USER MANUAL, RM8XXX MFR # 2890317130

Replacement

Components

5 items

1. #REFRIGERATORS & ICE MAKERS RV; 3 WAY LARGE SINGLE DOOR/BLACK MFR # RML8555R
2. #Refrigerator; Single Compartment Refrigerator; Left Hinge Door; 6.67 Cubic Foot; Black Frame MFR # RML8555L
3. #Refrigerator; Single Compartment Refrigerator; Left Hinge Door; 6.67 Cubic Foot; Stainless Door MFR # RML8555LSAF
4. #DOOR PANEL, RML8555, BLACK ACRYLIC MFR # 3106863198C
5. #REFRIGERATORS & ICE MAKERS RV; 3 Way Large Single Door/S MFR # RML8555RSAF
