Dometic RML8555 Product # 921087158 Parts Diagram · Replacement Refrigerator

Refrigerator · 5 assemblies · 5 diagram sheets · 87 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RML8555 Product # 921087158 RV refrigerator: 5 assemblies (Replacement Refrigerator, Cabinet Rear View, Door Assembly, Gas & Electric Controls, Cabinet Interior) and 87 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement Refrigerator

Components

5 items

1. #Refrigerator; Single Compartment Refrigerator; Left Hinge Door; 6.67 Cubic Foot; Black Frame MFR # RML8555L
2. #DOOR PANEL, RML8555, BLACK ACRYLIC MFR # 3106863198C
3. #Refrigerator; Single Compartment Refrigerator; Left Hinge Door; 6.67 Cubic Foot; Stainless Door MFR # RML8555LSAF
4. #REFRIGERATORS & ICE MAKERS RV; 3 WAY LARGE SINGLE DOOR/BLACK MFR # RML8555R
5. #REFRIGERATORS & ICE MAKERS RV; 3 Way Large Single Door/S MFR # RML8555RSAF

Cabinet Rear View

Components

18 items

1. #S,CU ASM,12V,190W MFR # 2413299104
2. #BAFFLE, FLUE MFR # 2926212008
3. #MANTLE, COOKER INSULATION MFR # 2934036019
4. #INSULATION MFR # 2926680113
5. #INSULATION, BOILER MFR # 2926680139
6. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
7. #COVER, MANTLE INSULATION MFR # 2933557031
8. #LID LOWER BOILER MFR # 2924089002
9. #Refrigerator Drip Tray; Replacement For Dometic RML8330/ RML8555/ RM7851L Refrigerators; For Fresh Food Compartment; By Burner Assembly MFR # 2923320002
10. #BURNER, W/O ORIFICE MFR # 2412802817
11. #JET KZ16 MFR # 2922033101
12. #BRACKET, COVER MFR # 2925057107
13. #Refrigerator Burner Box Cover; Replacement For Dometic RM8551/ RM7401/ RML8555/ RM8551/ RM7551L/ RM7401/ RM7851L Series Refrigerator MFR # 2412559607
14. #TEE, FLUE 75MM MFR # 2952444400
15. #SCREW MFR # 2952435408
16. #Washer; Replacement For Dometic RM4290/ RM4223/ RM7401 Model Refrigerator; Star Washer MFR # 2926559036
17. #NUT, INSERT MFR # 2106626100
18. #NUT, INSERT FOR C/U MFR # 2106626001

Door Assembly

Components

8 items

1. #COVER, LEDGE DOOR BLACK/GREY MFR # 2413338126
2. #BOTTLE HOLDER, BLUE, RM85XX MFR # 2951237029
3. #AWNING-ACCESSORIES RV; S,SHELF,DR,BOTTLE,BLUE,RMX85XX MFR # 2413341005
4. #PLATE, DECORATION SILVER MFR # 2413919008
5. #GASKET, DOOR BLACK 494 X 1157 MM MFR # 2413278330
6. #DOORS RV; DOOR COMPLETE SERVICE MFR # 2413923323
7. #BUTTON, DOOR LOCK MFR # 2413260221
8. #LOCK, DOOR MFR # 2413946308

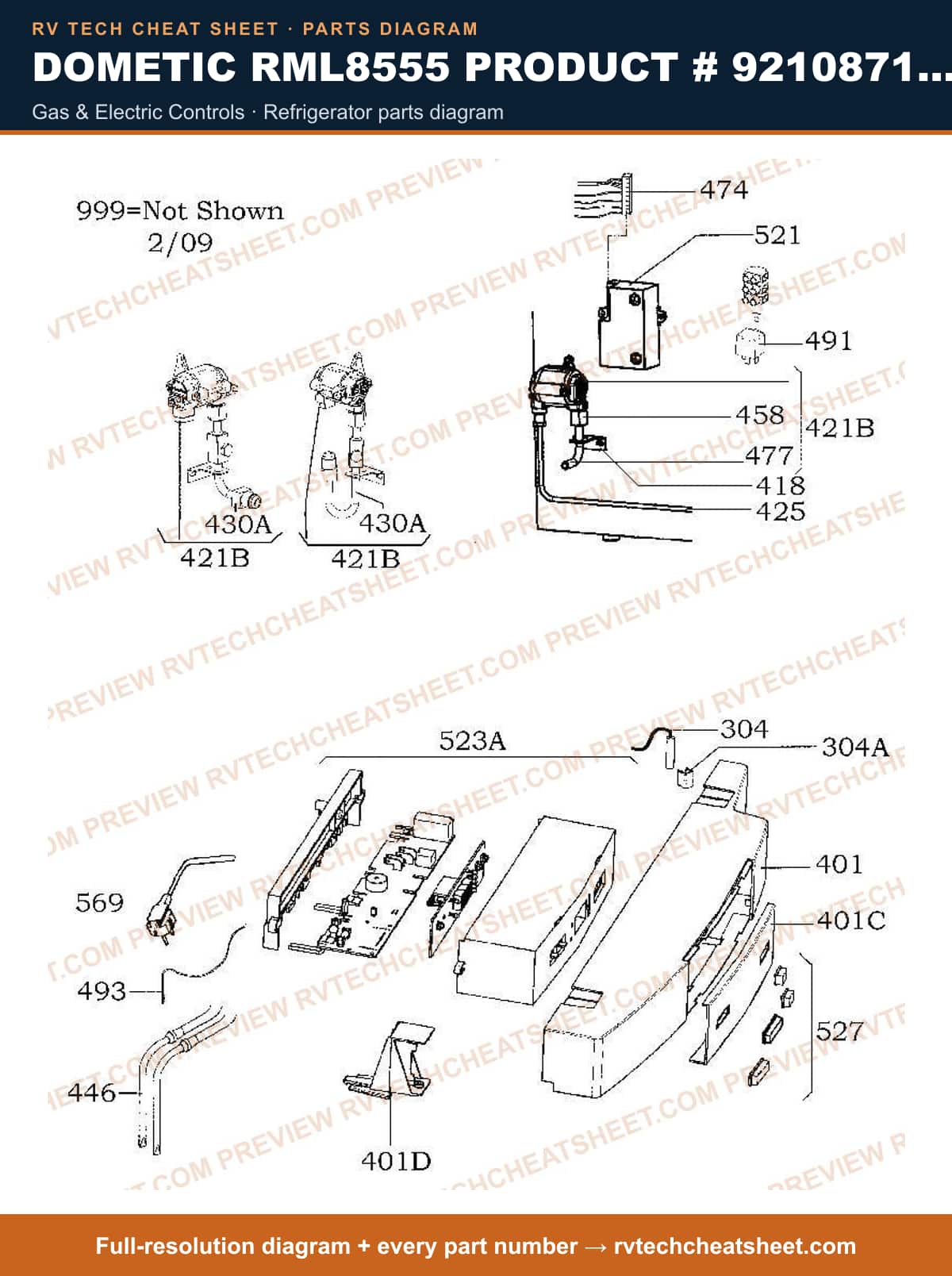

Gas & Electric Controls

Components

21 items

1. #RETAINER, LIGHTING SENSOR MFR # 2413929007
2. #APPLIANCE COMPONENTS RV; SENSOR, LIGHTING MFR # 2951380514
3. #APPLIANCE COMPONENTS RV; RETAINER CONTROL PANEL BLACK/GREY MFR # 2413193703
4. #DOORS RV; CONTROL PANEL DOORHANG RIGHT BLACK/ MFR # 2413356029
5. #APPLIANCE COMPONENTS RV; OPERATING PANEL TRANSPARENT MFR # 2413358603
6. #BRACKET, GAS VALVE MFR # 2926202009
7. #APPLIANCE COMPONENTS RV; GAS VALVE WITH GAS CONNECTION MFR # 2412798338
8. #KITCHEN SUPPLIES RV; GAS INLET PIPE MFR # 2412593903
9. #CONNECTION, GAS COMPLETE MFR # 2412300879
10. #ELEMENT, HEATING 120V/190W MFR # 2412966513
11. #HEATERS & FURNACES RV; HEATER MFR # 2412968105
12. #NUT, UNION M14X1.5 MFR # 2927903100
13. #APPLIANCE COMPONENTS RV; CONNECTION WIRING BURNER CONTROL DE MFR # 2412796407
14. #Appliance Components RV; Filter, Gas MFR # 2923191007
15. #APPLIANCE COMPONENTS RV; RELAY MFR # 2952089007
16. #APPLIANCE COMPONENTS RV; THERMISTER MFR # 2952248702
17. #APPLIANCE COMPONENTS RV; BURNER CONTROL DEVICE MFR # 2412789303
18. #APPLIANCE COMPONENTS RV; SVC, ELECTRONIC KIT, AES 120V MFR # 2413490208
19. #KIT, PUSH BUTTON MFR # 2413933926
20. #WIRING & SERVICE ACCESSORYS RV; CONNECTION WIRING BLACK MFR # 2412840338
21. #CONNECTION WIRING, 12V, SOLAR MFR # 2412796100

Cabinet Interior

Components

35 items

1. #APPLIANCE COMPONENTS RV; DIVIDER CRISPER MFR # 2413377207
2. #CRISPER, TRANSPARENT MFR # 2413367000
3. #Refrigerator Crisper Bin Cover; Replacement For Dometic Refrigerator MFR # 2413956000
4. #APPLIANCE COMPONENTS RV; HINGE UPPER LEFT CHROME PLATED MFR # 2412097202
5. #APPLIANCE COMPONENTS RV; HINGE LOWER RIGHT CHROME PLATED MFR # 2412098101
6. #APPLIANCE COMPONENTS RV; HINGE LOWER LEFT CHROME PLATED MFR # 2412099109
7. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
8. #PIN, LOWER HINGE MFR # 2926265006
9. #FOOT MFR # 2923297028
10. #HOSE, DRAIN MFR # 2923346205
11. #EVAPORATOR,REAR FREEZER COMP. MFR # 2413441003
12. #EVAPORATOR,REAR MFR # 2412948016
13. #APPLIANCE COMPONENTS RV; BOTTOM FREEZER COMPARTMENT MFR # 2413339405
14. #SLIDER F/FREEZER COMPARTMENT MFR # 2413327004
15. #REFRIGERATORS & ICE MAKERS RV; FREEZER DOOR FLAP MFR # 2412195410
16. #APPLIANCE COMPONENTS RV; HINGE, FREEZER COMPARTMEN MFR # 2412125110
17. #AWNING-REPAIR PARTS RV; GRATING CRISPER COVER MFR # 2413916004
18. #APPLIANCE COMPONENTS RV; GRATING BOTTOM ZINC-PLATED MFR # 2413379609
19. #SHELF,FREEZER COMPARTMENT 407 X 238 MM MFR # 2413399805
20. #APPLIANCE COMPONENTS RV; GRATING UPPER ZINC-PLATED MFR # 2413375904
21. #Ice Cube Tray; Use With Dometic Refrigerator Model RM7401; Plastic MFR # 2951132006 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Door Lock Lighting Cabine MFR # 2413267010
23. #AWNING-REPAIR PARTS RV; COVER LEDGE BACK UPPER MFR # 2923842013
24. #COVER,COMPLETE BLACK MFR # 2923842518
25. #PAD, INSULATION 519M MFR # 2925065001
26. #PAD, INSULATION 100M MFR # 2926458007
27. #Nut; Replacement For Dometic RM2193/ RM4292/ RML855 Model refrigerator; Fits Cooling Unit; Push-In MFR # 2926545209
28. #SCREW, COUNTERSINK MFR # 7296350015
29. #AWNING-REPAIR PARTS RV; COVER CAP MFR # 2951221056
30. #APPLIANCE COMPONENTS RV; COVER, DOOR LOCK LIGHTING MFR # 2413268018
31. #SCREWS MFR # 2926544004
32. #APPLIANCE COMPONENTS RV; CAP HINGE MFR # 2412743110
33. #SCREW, SHEET METAL MFR # 2951230008
34. #SCREW, COUNTERSINK MFR # 2924417021
35. #SCREW B8 X 13 MFR # 7296342012
