Dometic Vents Parts Diagram · All Other Vents

Refrigerator · 2 assemblies · 2 diagram sheets · 57 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Vents RV refrigerator: 2 assemblies (All Other Vents, Flush Mount Vents) and 57 manufacturer part numbers. 17 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

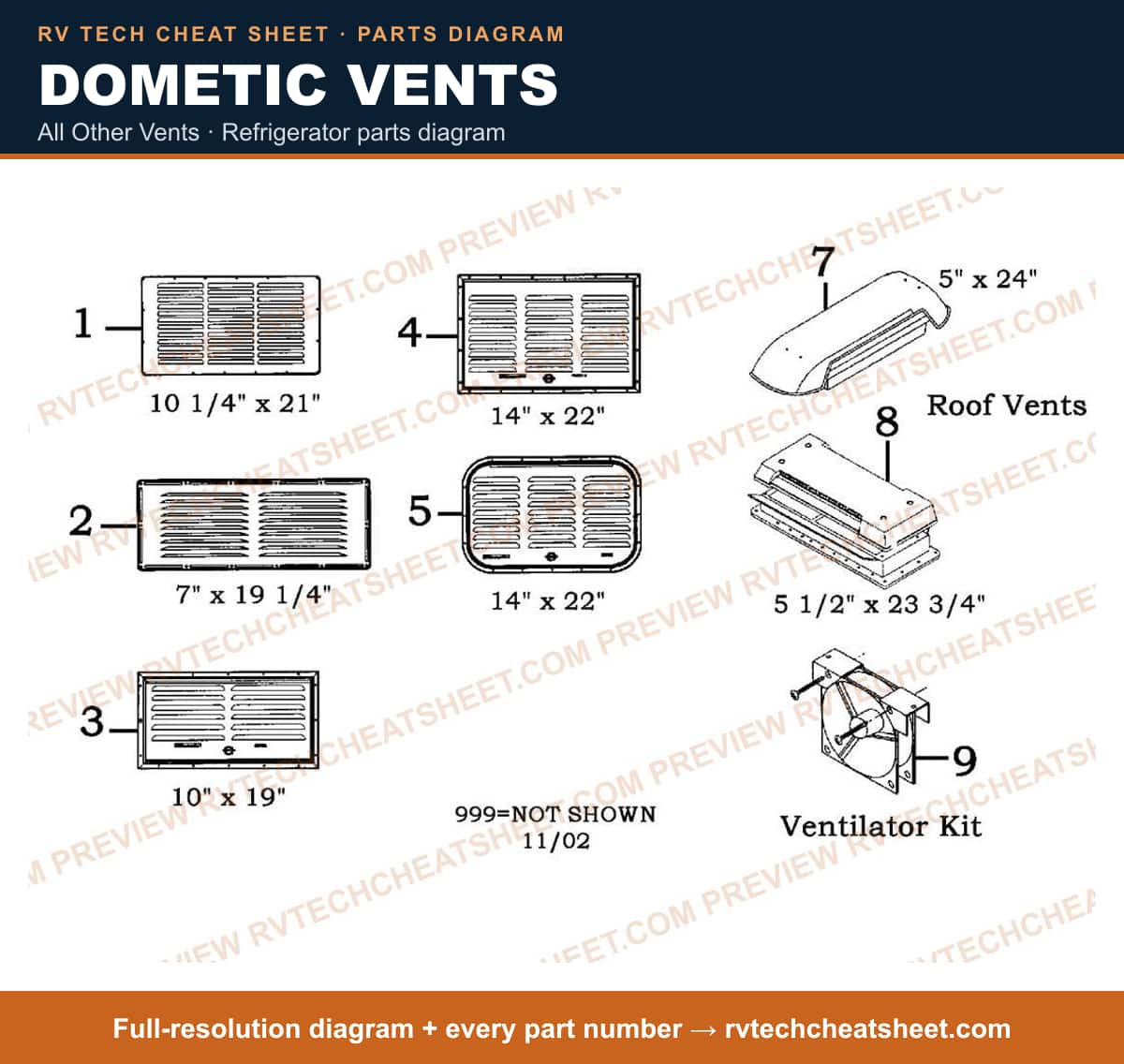

All Other Vents

Components

43 items

1. #Refrigerator Grille; Replacement For Dometic RM2201/ RM2190/ RM2150 Model Refrigerators; Upper Side; Polar White MFR # 8030122320
2. #Refrigerator Vent; Use With Norcold Models N260/ N300/ N302/ N410/ N412/ N510/ N512/ 323 Gas Absorption Refrigerator; Air Intake Side Vent; 18 Inch Width x 7-1/4 Inch Height; Square; Upper Side; Polar White MFR # 617485PW Superseded: see description
3. #Refrigerator Vent; Use With Americana Series Refrigerators; Upper Side Vent; 7-3/4” Inch x 19-1/4 Inch Cutout; Rectangular; Mill Finish MFR # 3100451065 Superseded: see description
4. #Refrigerator Vent; Use With Dometic Refrigerator; Upper Side Vent; Polar White MFR # 3100451024 Superseded: see description
5. #VENT, INSTALLATION 17-3/4 X 7 MFR # 3100451016
6. #VENT, LOWER PW (20) 19X10 MFR # 8030211322
7. #Refrigerator Vent Cover; Turn Buckle Clip; White MFR # 2951766019
8. #VENT,UPPER NUTRU WHITE MFR # 3108531017
9. #VENT,LOWER RM4290/4292 NUTRU WHITE MFR # 3108530019
10. #Refrigerator Vent; Use With Most Norcold Refrigerator; Air Intake Side Vent; 21-3/4 Inch Width x 13-3/4 Inch Height; Square; Polar White; Mill Finish Metal Frame; With Piano Hinge And Screw Cover METAL SQUARE CORNER SIDE VENT, MILL FINISH FRAME WITH PIANO HINGE AND SCREW COVER PROVISION DIMENSIONS: 13 3/4" X 21 3/4". MFR # 616010PW Superseded: see description
11. #Refrigerator Vent Door Latch; Replacement For Norcold Refrigerator Vent Door; Black; Single MFR # 617772
12. #Refrigerator Vent; Door Vent; 13-3/4 Inch x 21-7/8 Inch; Rough Opening; Square Corner; Mill Finish; White Panel; With Piano Hinge MFR # D30043PW
13. #Refrigerator Vent; Lower Sidewall Vent; Square; Colonial White [[[ WHEN INVENTORY IS DEPLETED ON THIS ITEM, PLEASE ORDER SUGGESTED ALTERNATE P# 616010PW.IS A USE # F/8032214332 FOR RADIUS CORNER, COLONI... MFR # 8032214330 Superseded: see description
14. #VENT, LOWER PW METAL SIDE, SQ CORNER -USE D30043PW FOR POL. WHITE VENT WITH RADIUS CORNERS USE 8032214R20 THE LATCH PART # IS 3101833006. MFR # 8032214320 Superseded: see description
15. #LATCH,VENT, USE 72-8366 BLACK MFR # 3101833006 Superseded: see description
16. #Refrigerator Vent; Lower Sidewall Vent; Colonial White; Aluminum MFR # 8032214R30
17. #Refrigerator Grille; Replacement For Dometic RM2201/ RM2190/ RM2150 Model Refrigerators; Lower Side; Polar White; 14 Inch x 22 Inch MFR # 8032214R20
18. #APPLIANCE COMPONENTS RV; VENT,REFER ROOF POLAR WHT MFR # 3311236000
19. #Refrigerator Vent Cover; Replacement For Dometic Model Refrigerators; 5 Inch x 24 Inch; Colonial White MFR # 3100528011
20. #APPLIANCE COMPONENTS RV; VENT, REFRIGERATOR, 6.5" X 23.75", MFR # 3312695020
21. #Refrigerator Vent Base; Replacement For Dometic Refrigerator; Polar White; Use With Cap 3100529.043 MFR # 3100528045 Superseded: see description
22. #APPLIANCE COMPONENTS RV; KIT,REF ROOF VENT BASE PW MFR # 3312694007
23. #Refrigerator Vent Cover; Colonial White; Plastic MFR # 3100529019
24. #APPLIANCE COMPONENTS RV; CAP,VENT POLAR WHITE MFR # 3100529043
25. #VENTILATION RV; BASEROOF VENTBLK MFR # 3312694023
26. #APPLIANCE COMPONENTS RV; KIT, ROOF VENT CAP-POLAR MFR # 3312695004
27. #APPLIANCE COMPONENTS RV; KIT, REFER ROOF VENT-BLAC MFR # 3311236024
28. #VENT, ROOF BRIGHT WHITE MFR # 3103634105
29. #BASE,REFER COL WHITE F/ VENT FRAME MFR # 3103633032
30. #CAP,REFER GRAY MFR # 3103634014
31. #CAP, ROOF VENT MENDE WHITE MFR # 3103634121
32. #CAP VENT PW USE 3311236000 (20) MFR # 3103634022 Superseded: see description
33. #BASE, REFER USE 3311236000 POLAR WHITE MFR # 3103633024 Superseded: see description
34. #BASE, ROOF VENT MENDE WHITE MFR # 3103633123
35. #BASE,REFER GRAY MFR # 3103633016
36. #BASE, ROOF VENT USE 3311236000 BRIGHT WHITE MFR # 3103633107 Superseded: see description
37. #CAP, VENT COL WHITE MFR # 3103634030
38. #APPLIANCE COMPONENTS RV; VENTILATOR KIT, SINGLE DO MFR # 3108705751
39. #SWITCH FAN ONLY MFR # 3104133016
40. #VENTILATOR USE 3108705744 F/FRIDGE MFR # 3104131002 Superseded: see description
41. #Refrigerator Vent Fan; For Use With Dometic RM1272/ RM1282 Double Door Refrigerators MFR # 3108705744 Superseded: see description
42. #APPLIANCE COMPONENTS RV; Switch T-Stat MFR # 3104723006
43. #Refrigerator Vent; Use With Dometic Refrigerator; Access Door Vent; 3-1/4 Inch Width x 23 Inch Length; Rectangular MFR # 8030182331 Superseded: see description

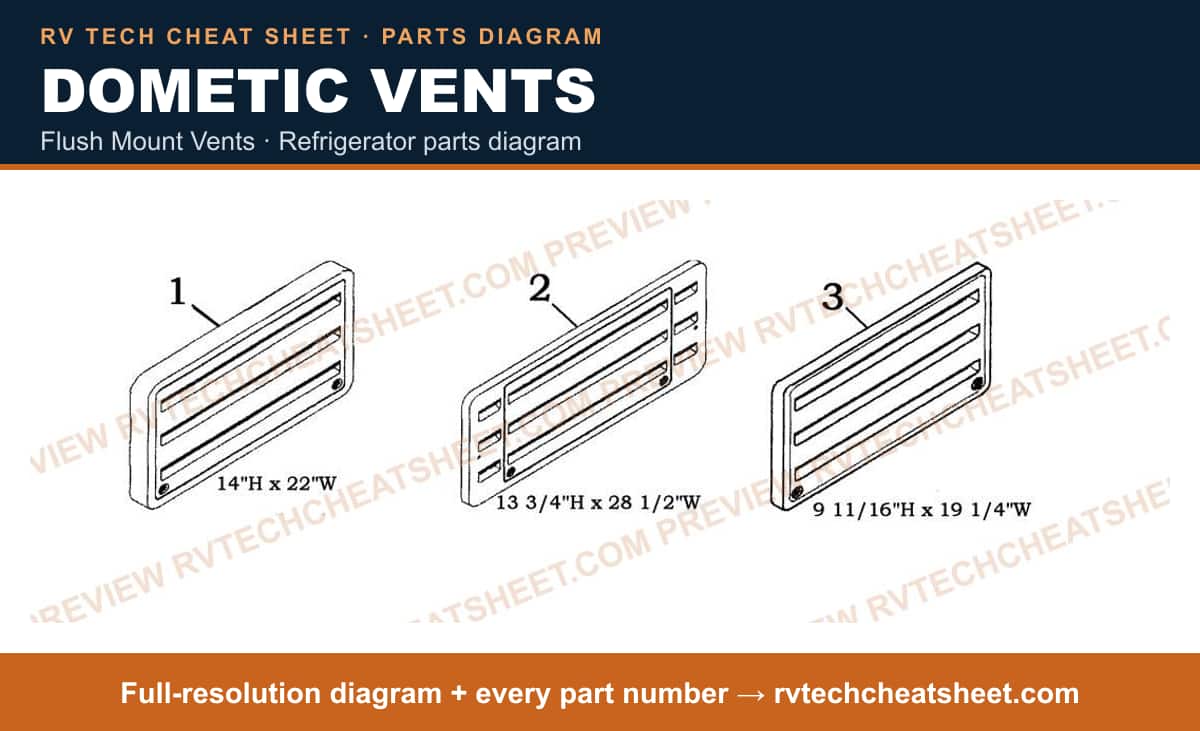

Flush Mount Vents

Components

16 items

1. #BRIGHT WHITE PLASTIC RADIUS CORNER SIDE VENT MFR # 621156BW
2. #Refrigerator Vent; For Use With Dometic Refrigerators; Lower Sidewall Vent; 16 Inch Height x 24 Inch Width/ Cutout Dimensions 14 Inch Height x 22 Inch Width; Rectangle; White; Plastic MFR # 3109350037 Superseded: see description
3. #Refrigerator Vent; Lower Side Vent; 16 Inch Height x 24 Inch Width/ Cutout Dimensions 14 Inch Height x 22 Inch Width; Bright White; Plastic MFR # 3109350052
4. #LATCH,VENT, USE 72-8366 BLACK MFR # 3101833006 Superseded: see description
5. #Refrigerator Vent; Lower/ Upper Side Vent; 16 Inch Height x 24 Inch Width/ Cutout Dimensions 13-3/4 Inch Height x 21-9/16 Inch Width; Rectangular; Black; Plastic; Also Use New Number 3316941.005 MFR # 3109350065 Superseded: see description
6. #Refrigerator Vent Door Latch; Replacement For Norcold Refrigerator Vent Door; Black; Single MFR # 617772
7. #Refrigerator Vent; Replacement For Dometic Refrigerators; 16 Inch Height x 24 Inch Width/ Cutout Dimensions 14 Inch Height x 22 Inch Width; Rectangular; Mende White MFR # 3109350045
8. #NO GENERIC NAME; DOOR,VNT REFR LWR SIW FR MT + MFR # 3316941000
9. #Refrigerator Vent; Lower/ Upper Side Vent; 16 Inch Height x 24 Inch Width/ Cutout Dimensions 14 Inch Height x 22 Inch Width; Polar White; Plastic MFR # 3109350011
10. #Refrigerator Vent; Lower Side Vent; 16 Inch Height x 24 Inch Width/ Cutout Dimensions 14 Inch Height x 22 Inch Width; Colonial White MFR # 3109350029
11. #VENT ASM F/DOUBLE DOOR COL.WHITE MFR # 3109349013
12. #VENT ASM,MENDE WHITE DBL DOOR MFR # 3109349047
13. #APPLIANCE COMPONENTS RV; VENT ASM F/DOUBLE DOOR,PW MFR # 3109349005
14. #Refrigerator Vent; Use With Americana Series Refrigerators; Upper/ Lower Side Vent; 13-5/8 Inch x 28-5/8 Inch Cutout; Bright White; Plastic MFR # 3109349039 Superseded: see description
15. #APPLIANCE COMPONENTS RV; VENT ASM,POLAR WHITE MFR # 3109492003
16. #APPLIANCE COMPONENTS RV; VENT ASM,20"SIDE BLACK MFR # 3109492004
