Dexter Roof V2092SP-29 Parts Diagram · Exploded View

Roof Vent · 2 assemblies · 6 diagram sheets · 11 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dexter Roof V2092SP-29 roof vent fan: 2 assemblies (Exploded View, Replacement) and 11 manufacturer part numbers.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

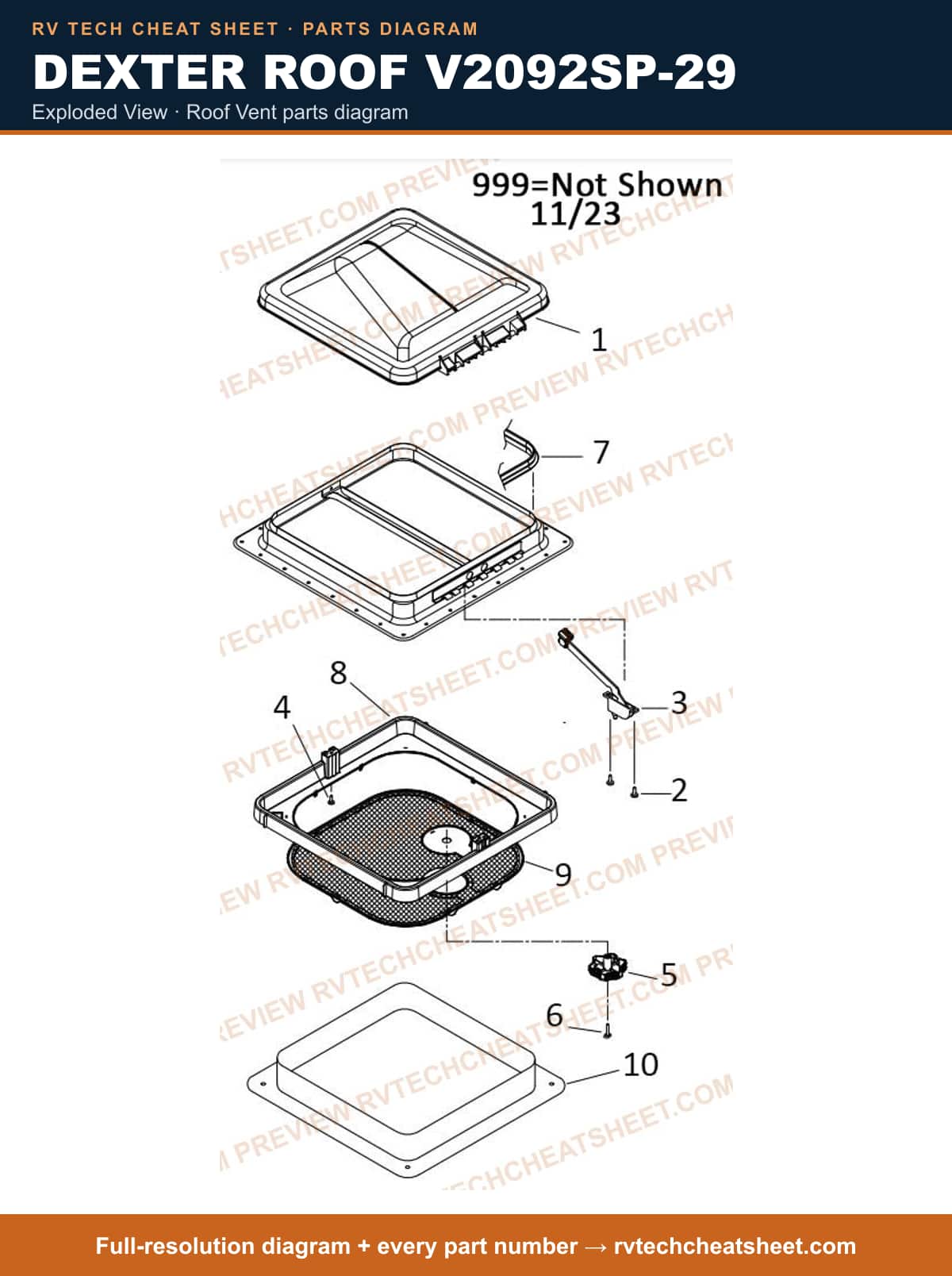

Exploded View

Components

10 items

1. #WHITE DOME ASSEMBLY MFR # VD0449-A01
2. ##10-32 MACHINE SCREW MFR # VD0452-00
3. #OPERATOR MFR # VD0462-00
4. #Roof Vent Screw; Replacement For Ventline Roof Vent Screen Frame Screw; Fits Ventline V2092/ V2094/ V2110/ V2119/ V2128; #8-18 Thread x 5/8 Inch MFR # VA0262-00
5. #PLASTIC OPERATOR KNOB MFR # VD0421-00
6. ##8-32 MACHINE SCREW MFR # V0423-01
7. #DOME SEAL MFR # VD0455-01
8. #BIRCH WHITE SCREEN BASE MFR # VD0433-31
9. #BIRCH WHITE SCREEN MFR # VD0434-31
10. #CEILING GARNISH MFR # VA0445TAB

Replacement

Components

1 item

1. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; Polypropylene; With Smoke Lid/ Polar White Screen Frame/ Polar White Trim Ring MFR # V2092SP29
