Dexter Roof V3092-601-00 Parts Diagram · Replacement

Roof Vent · 2 assemblies · 6 diagram sheets · 9 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dexter Roof V3092-601-00 roof vent fan: 2 assemblies (Replacement, Exploded View) and 9 manufacturer part numbers.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

Replacement

Components

1 item

1. #NON POWERED ROOF VENT - N MFR # V309260100

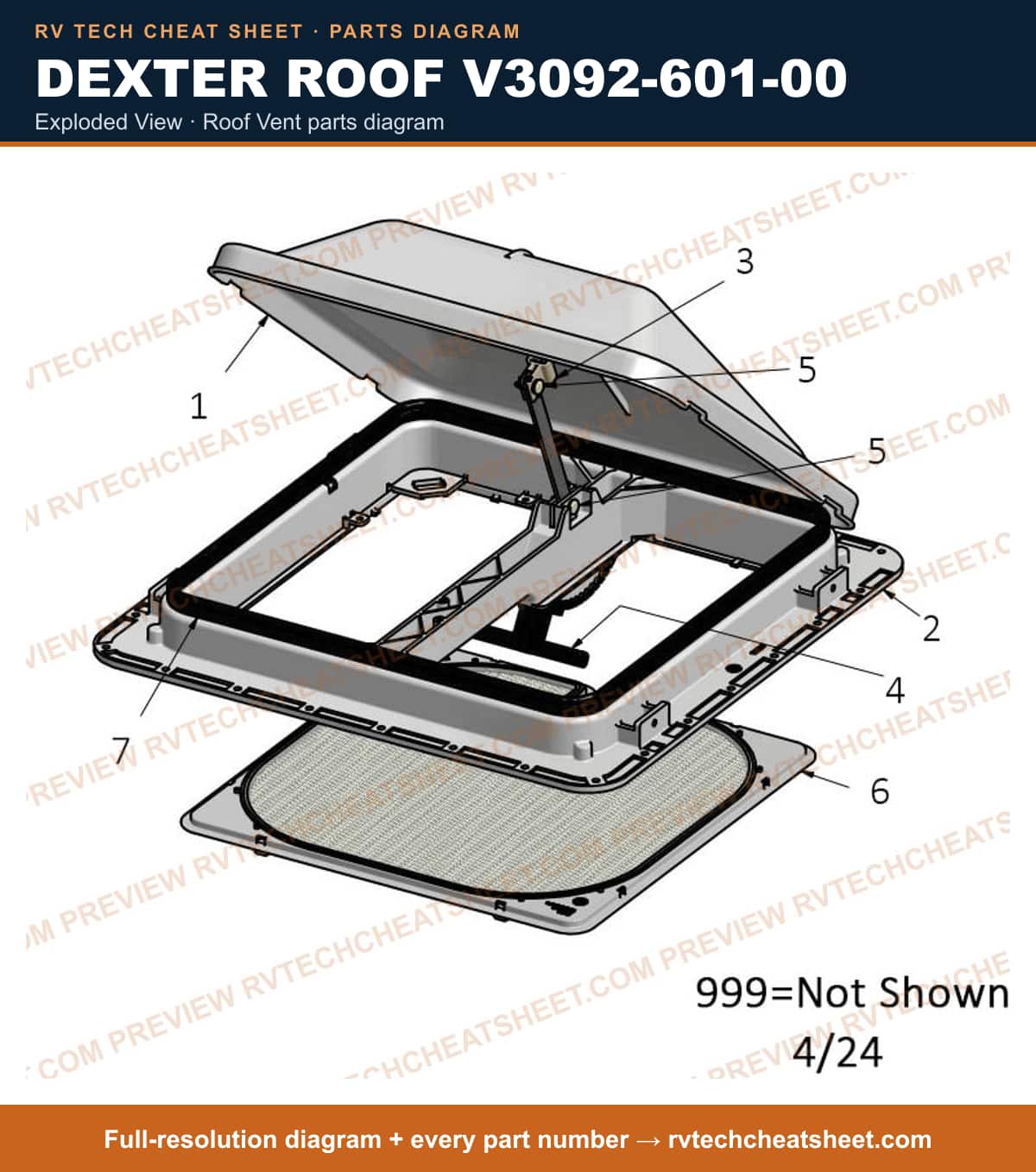

Exploded View

Components

8 items

1. #WHITE PLASTIC DOME MFR # VE0108-00
2. #ROOF FLANGE MFR # VE0107-00
3. #DOME SLIDER CLIP MFR # VE0102-00
4. #OPERATOR HANDLE ASSEMBLY MFR # VC0580-00
5. #SNAP-IN CLIP MFR # VE0103-00
6. #WHITE SCREEN FRAME MFR # VE0106-01
7. #EPDM DOME SEAL MFR # VE0127-00
8. #CEILING GARNISH MFR # VA0445TAB
