Dexter Roof VP-543 Parts Diagram

Roof Vent · 3 diagram sheets · 14 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dexter Roof VP-543 roof vent fan: 14 manufacturer part numbers.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

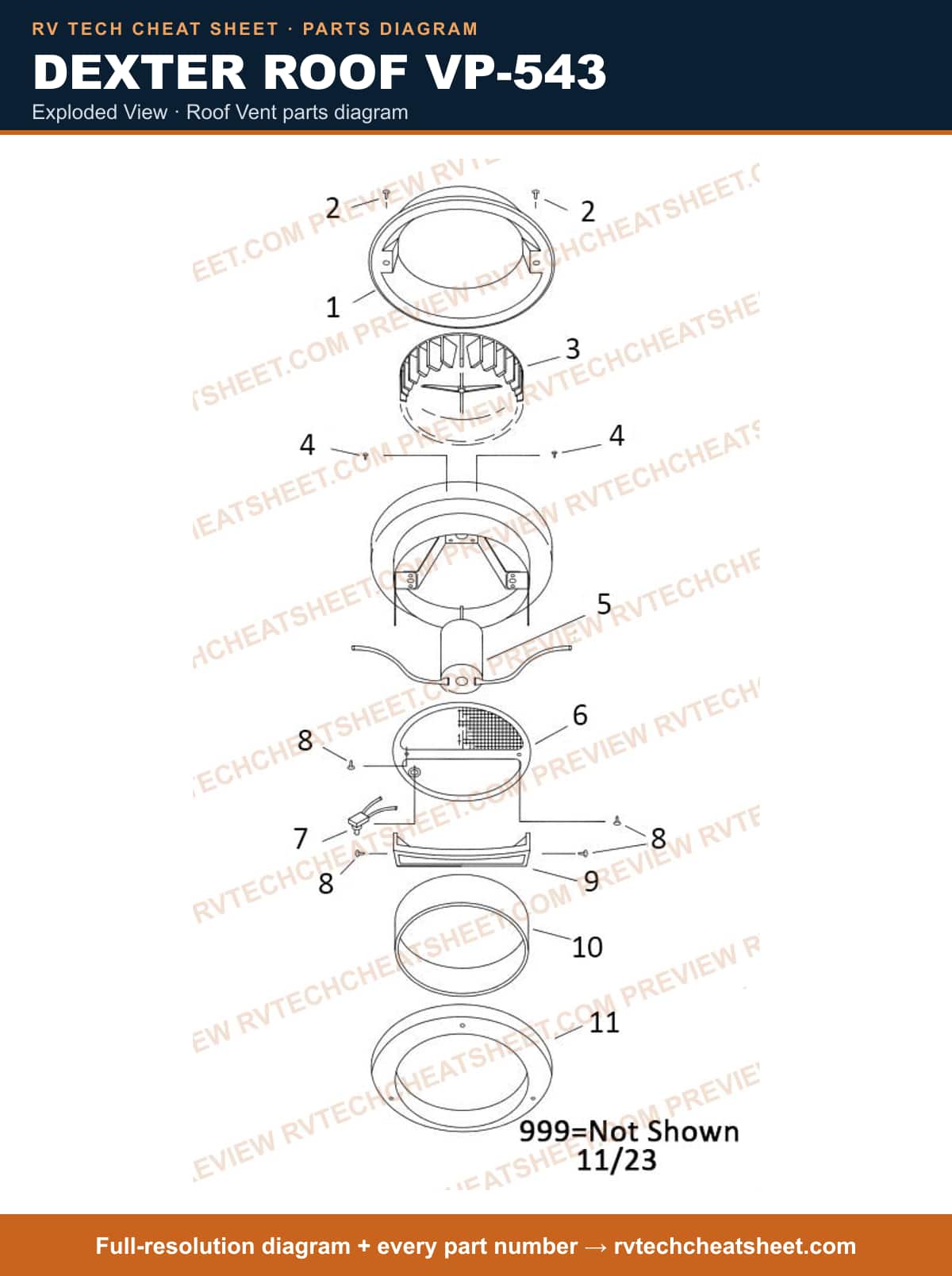

Exploded View

Components

14 items

1. #SMOKE PLASTIC DOME MFR # VA0502-03
2. ##8 SHEET METAL SCREW MFR # C0119-00
3. #BLOWER WHEEL MFR # BLOWER WHEEL
4. ##4-40/ M2.6 MACHINE SCREW MFR # MACHINE SCREW
5. #12 VDC MOTOR MFR # VD0218-00
6. #MOTOR MFR # VA0164-00
7. #MOTOR MFR # VC0468-00
8. #SCREEN FRAME MFR # VC0515-05
9. #NO GENERIC NAME; PUSH BUTTON RED, ON-OFF SWITCH MFR # V0199-03
10. ##6 X 7/16 C'SUNK SCREW MFR # VA0212-00
11. #PLASTIC HANDLE MFR # VA0207-05
12. #GARNISH EXTENSION RING MFR # VA0228TAB
13. #CEILING GARNISH MFR # VA0205-07
14. #NOT AVAILABLE AS INDIVIDUAL PART. MFR # ******
