Fan-Tastic / Dometic 6300 Power Lift Parts Diagram

Roof Vent · 2 diagram sheets · 33 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Fan-Tastic / Dometic 6300 Power Lift roof vent fan: 33 manufacturer part numbers. 6 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

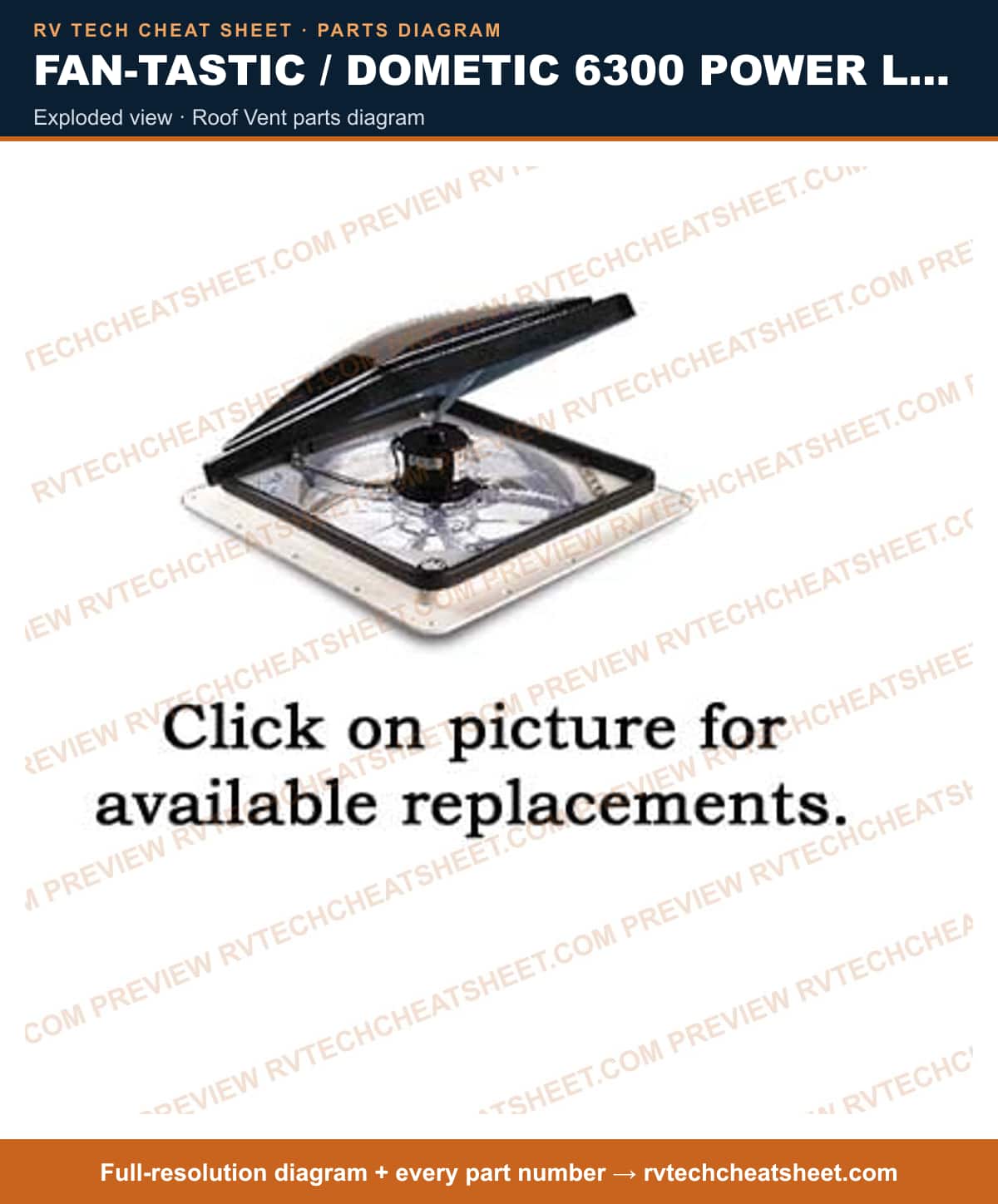

Fan-Tastic / Dometic 6300 Power Lift exploded view

Components

33 items

1. #Roof Vent Lid; Fan-Tastic ™; Hinge With Rivets; Smoke; Polycarbonate MFR # 102019
2. #TRANS OIL COOLER MFR # 113800
3. #MOTOR, PANCAKE STYLE W/BLADE USE 401781 MFR # K801703 Superseded: see description
4. #MOTOR, CAN STYLE W/BLADE USE 401981 MFR # K401709 Superseded: see description
5. #Roof Vent Motor; For 6600/ 8000/ 6000 Series Fan-Tastic Roof Vent; With Blade And Bowtie MFR # K801700
6. #Roof Vent Motor; Fan-Tastic Vent; Motor Assembly; Can Style; Also Use New Number K801700 MFR # 401981 Superseded: see description
7. #Roof Vent Motor; Fan-Tastic Vent; Motor Assembly; Pancake Style; White Blade; White Bowtie; Also Use Number K4017-81 MFR # 401781 Superseded: see description
8. #Roof Vent Lid Seal; Fan-Tastic ™; 4-1/2 Foot Length; Black; Ribbed EPDM (Ethylene Propylene Diene Monomer); Tube Geocel 1250; Use To Hold Seal To Base MFR # K114409 Superseded: see description
9. #RUBBER DOME SEAL - 4.5FT LONG MFR # 114409
10. #BASE KIT, LOW PROFILE MFR # K401081
11. #Roof Vent Switch; For 5000 RBT/ 6600/ 8000/ 4000R/ 6000 Series Fan-Tastic Roof Vent; Dome Switch MFR # K112205
12. #AWNING-ACCESSORIES RV; MANUAL LIFT ARM MFR # K201105
13. #INTERIOR ASM KIT, OFF WHITE MFR # K103080
14. #Roof Vent Screen Frame; For Fantastic Roof Vent; Screen Ring; Off-White; With 8 Screws MFR # 103080
15. #Roof Vent Switch; For Use With 5000 RBT/ 8000/ 4000R/ 6000 Series Fan-Tastic Roof Vent; 3-Speed Switch; With Hex Nut And Schematic MFR # K103105 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Label - 3 Speed MFR # 103309
17. #APPLIANCE COMPONENTS RV; Set Nut- 3 Speed - 9/16" MFR # 103205F
18. #Our slide-out wear tabs will help you get your RV's inboard or outboard electric/hydraulic slide-out system back in operation. This easy-to-install replacement wear tab is exactly like your RV's original equipment, helping you take the guesswork out of finding the right parts for your rig. MFR # 103480
19. #SLOW BURN FUSE - 4 AMP - OPTIO MFR # 894800
20. #REVERSING SWITCH - DPDT W/ B MFR # 900109
21. #BC CONVERSION 7RPM WH/RED, (REPLACEMENT OF BC) OFF WHITE MFR # K605080
22. #Roof Vent Motor; For 6000 Series Fan-Tastic Roof Vent; 7 RPM; Autotrol Motor Assembly Kit; White; With White And Red Leads/ Cap/ Screws MFR # K605081
23. #Roof Vent Screen Frame; For 6000 Series Fan-Tastic Roof Vent; Pop N Lock Screen Ring; Off-White; With Aluminum Epoxy Screen MFR # K203580
24. #APPLIANCE COMPONENTS RV; Thermostat Bulb 22-120F MFR # 900605
25. #NO GENERIC NAME; Thermostat Label - Blue T MFR # 995709
26. #BOARD,CIRCUIT & RAIN SENSOR ONLY MFR # 902590
27. #LABEL, MINI UP/DOWN MFR # K903109
28. #MINI UP/DOWN SWITCH W/LABEL MFR # K903309
29. #Roof Vent Trim Ring; Fan-Tastic ™; For 14 Inch x 14 Inch Openings; 6 Inch; With Cut Square Corners; White MFR # 106081
30. #GARNISH,6" F/DEEP ROOF OFF WHITE MFR # 106080
31. #VENTILATION RV; 12 Volt Ceiling Vent MFR # 6000RBT
32. #VENT, COMPLETE 12V RVRSNG WHT W/T-STAT 3 SPEED MFR # 6000RBTAN
33. #Roof Vent; Fan-Tastic Vent; Automatic Opening; For 14 Inch x 14 Inch; With Screen; With 13 Speed Fan; Smoke Dome/ White High Profile Base; Polycarbonate Dome; With Rain Sensor/ Reverse Air Flow MFR # 6000RBTA
