Fan-Tastic / Dometic 8000 Create-a-breeze Parts Diagram

Roof Vent · 2 diagram sheets · 29 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Fan-Tastic / Dometic 8000 Create-a-breeze roof vent fan: 29 manufacturer part numbers. 6 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

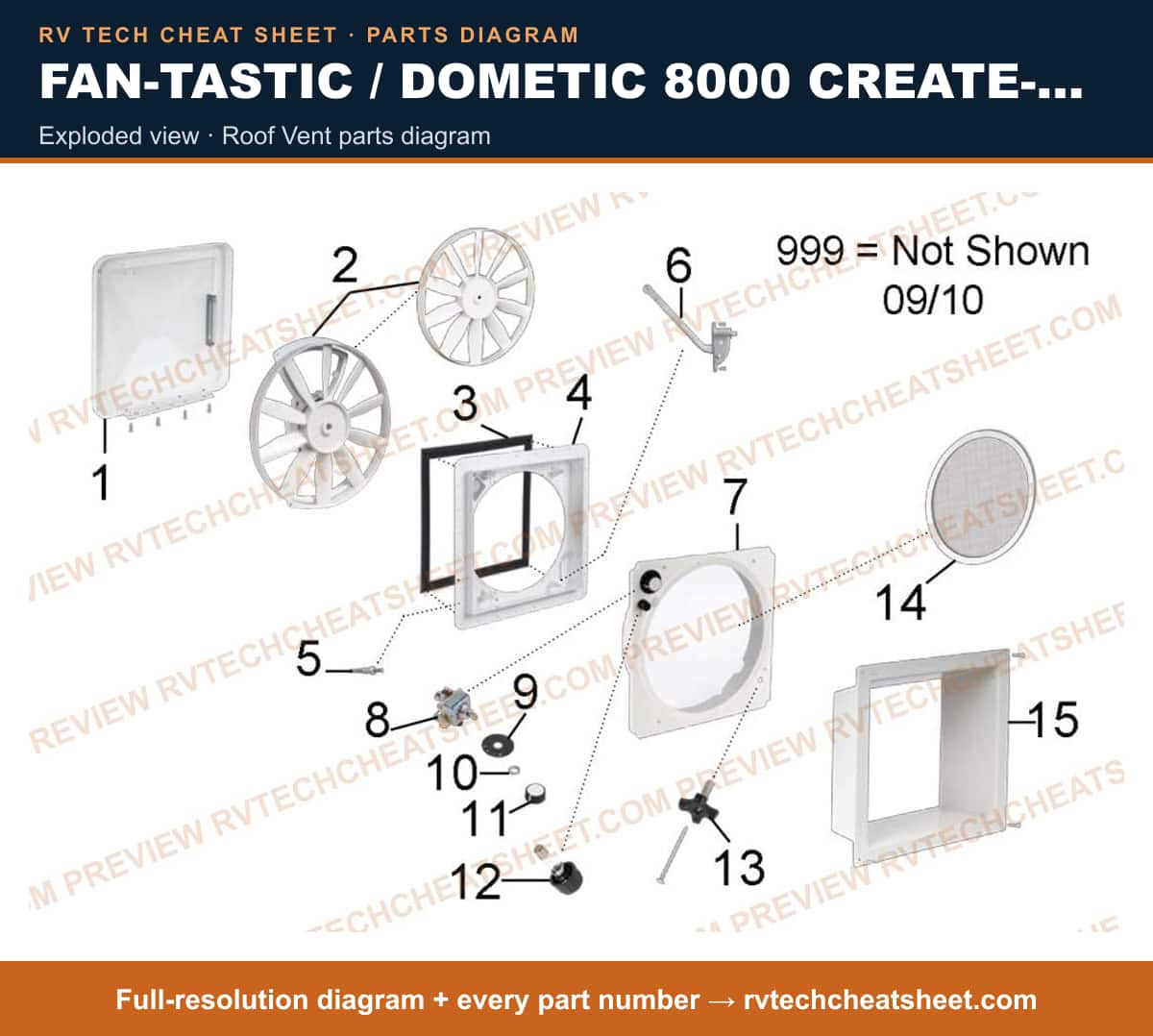

Fan-Tastic / Dometic 8000 Create-a-breeze exploded view

Components

29 items

1. #Roof Vent Lid; Fan-Tastic ™; Hinge With Rivets; White MFR # K802081
2. #Roof Vent Lid; Fan-Tastic ™; Hinge With Rivets; White MFR # K102081
3. #Roof Vent Motor; For 6600/ 8000/ 6000 Series Fan-Tastic Roof Vent; With Blade And Bowtie MFR # K801700
4. #Roof Vent Motor; Fan-Tastic Vent; Motor Assembly; Can Style; Also Use New Number K801700 MFR # 401981 Superseded: see description
5. #Roof Vent Motor; Fan-Tastic Vent; Motor Assembly; Pancake Style; White Blade; White Bowtie; Also Use Number K4017-81 MFR # 401781 Superseded: see description
6. #BLADE, FAN WHITE OPAQUE 12" 10 BLADE MFR # 813881
7. #MOTOR, PANCAKE STYLE W/BLADE USE 401781 MFR # K801703 Superseded: see description
8. #MOTOR, CAN STYLE W/BLADE USE 401981 MFR # K401709 Superseded: see description
9. #RUBBER DOME SEAL - 4.5FT LONG MFR # 114409
10. #Roof Vent Lid Seal; Fan-Tastic ™; 4-1/2 Foot Length; Black; Ribbed EPDM (Ethylene Propylene Diene Monomer); Tube Geocel 1250; Use To Hold Seal To Base MFR # K114409 Superseded: see description
11. #BASE KIT, HI PROFILE MFR # K801081
12. #Roof Vent Switch; For 5000 RBT/ 6600/ 8000/ 4000R/ 6000 Series Fan-Tastic Roof Vent; Dome Switch MFR # K112205
13. #Roof Vent Opening Handle; For 8000 Series Fan-Tastic Roof Vent; Lift Arm For Dome Lids; With Screws MFR # K801105
14. #HOUSING, INTERIOR WHITE MFR # K103081
15. #HOUSING, INTERIOR WHITE MFR # 803081
16. #Roof Vent Switch; For Use With 5000 RBT/ 8000/ 4000R/ 6000 Series Fan-Tastic Roof Vent; 3-Speed Switch; With Hex Nut And Schematic MFR # K103105 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Label - 3 Speed MFR # 103309
18. #APPLIANCE COMPONENTS RV; Set Nut- 3 Speed - 9/16" MFR # 103205F
19. #APPLIANCE COMPONENTS RV; 3 Speed Knob Rogan Wh MFR # 103481
20. #SLOW BURN FUSE - 4 AMP - OPTIO MFR # 894800
21. #Roof Vent Lift Arm Knob; For 4000R/ 5000 RBT/ 8000 Series Fan-Tastic Roof Vent; For Manual Lift System; Black; With Knob MFR # K114009
22. #Roof Vent Screen Frame; For 6600/ 8000 Series Fan-Tastic Roof Vent; Pop N Lock Screen Ring; White; With Aluminum Epoxy Screen MFR # K203581
23. #POP 'N LOCK SCREEN RING WHITE MFR # 203581
24. #Roof Vent Trim Ring; Fan-Tastic ™; For 14 Inch x 14 Inch Openings; 6 Inch; With Cut Square Corners; White MFR # 106081
25. #GARNISH,6" F/DEEP ROOF OFF WHITE MFR # 106080
26. #Roof Vent Trim Ring; Fan-Tastic ™; For 14 Inch x 14 Inch Openings; 4-1/2 Inch; White MFR # 204081
27. #GARNISH 1-7/8" F/THIN OFF WHT MFR # 104080
28. #APPLIANCE COMPONENTS RV; 1 7/8" Whithe Garnish MFR # 104081
29. #Roof Vent Trim Ring; Fan-Tastic ™; For 14 Inch x 14 Inch Openings; 4-1/2 Inch; Off-White MFR # 204080
