Fan-Tastic / Dometic Ez-breeze Parts Diagram · Power Vent

Roof Vent · 3 assemblies · 3 diagram sheets · 20 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Fan-Tastic / Dometic Ez-breeze roof vent fan: 3 assemblies (Power Vent, Exploded View - Static Vent) and 20 manufacturer part numbers.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

Power Vent

Components

12 items

1. #EZ-BREEZE FAN BASE ASM KIT MFR # K551081
2. #FAN BLADE 6" MFR # 553881
3. #EZ-BREEZE FAN MOTOR & BLADE ASM KIT MFR # K551781
4. #EZ FAN MOTOR MFR # 551703
5. #EZ FLAPS MFR # 554481
6. #POWER SCREEN ASM, SMOKE MFR # K553019
7. #EZ-BREEZE SCREEN ASM POWER KIT MFR # K553081
8. #POWER SCREEN ASM MFR # 553181
9. #EZ-BREEZE FLAP LATCH KNOB KIT MFR # K114309
10. #BLACK KNOB MFR # 114309
11. #ON/OFF POWER BUTTON MFR # 555388
12. #EZ-BREEZE 6" POP N'LOCK SCREEN RING ASM MFR # 553481

Fan-Tastic / Dometic Ez-breeze exploded view

Components

5 items

1. #Roof Vent;Fan-Tastic Vent;EZ Breeze; Fixed Dome With Side Vents; 12 Volt; For 14 Inch x 14 Inch Ope MFR # DMT800600
2. #Roof Vent;Fan-Tastic Vent;EZ Breeze; Fixed Dome With Side Vents; 12 Volt; For 14 Inch x 14 Inch Ope MFR # DMT800601
3. #Roof Vent;Fan-Tastic Vent;EZ-Breeze; Manual Opening Side Vents; Non-Powered; For 14 Inch x 14 Inch MFR # DMT800500
4. #Roof Vent;Fan-Tastic Vent;EZ-Breeze; Manual Opening Side Vents; Non-Powered; For 14 Inch x 14 Inch MFR # DMT800501
5. #EZ-BREEZE; MANUAL OPENING SIDE VENTS; NON-POWERED; FOR 14 INCH X 14 INCH OPENINGS MFR # 800501

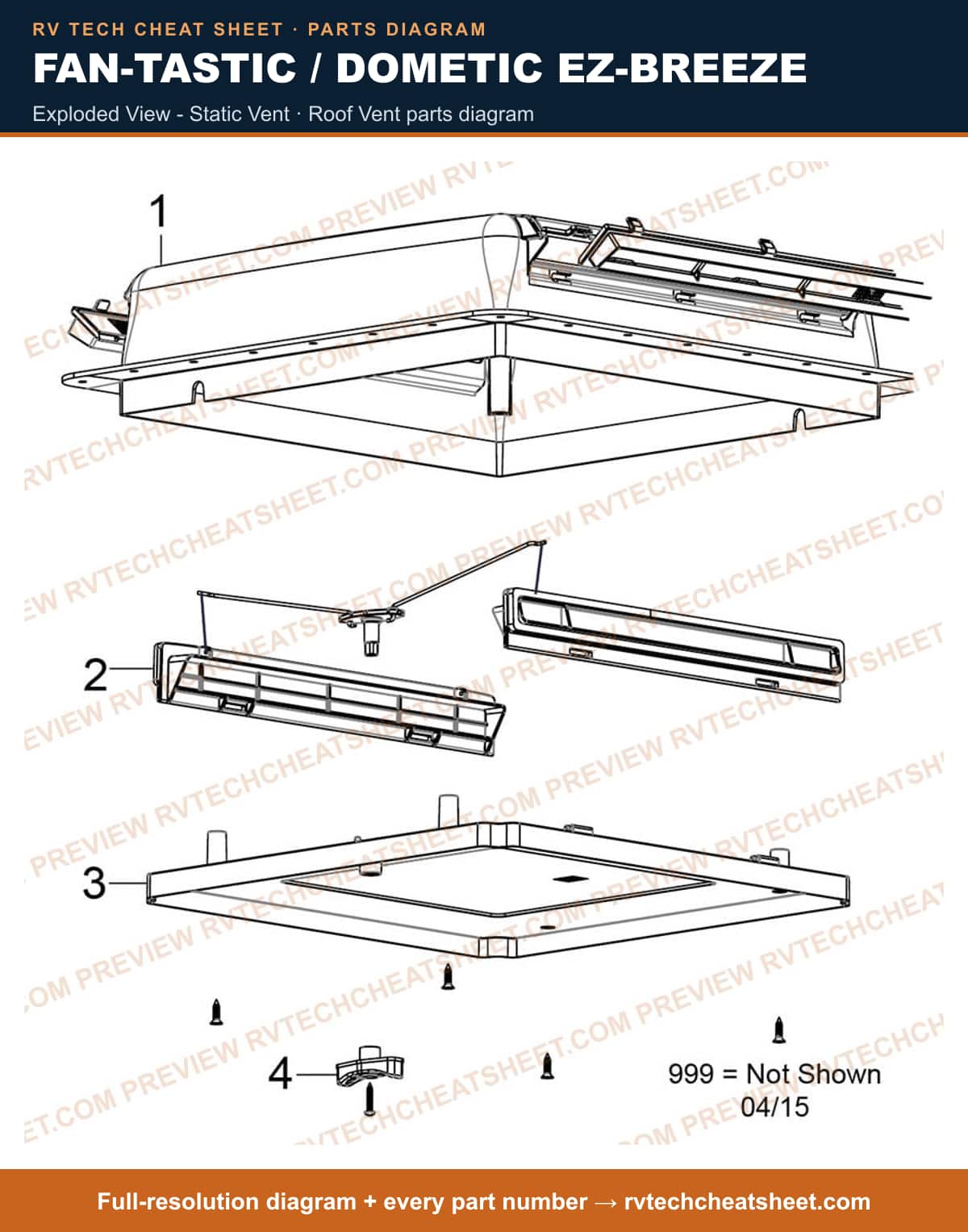

Exploded View - Static Vent

Components

7 items

1. #EZ-BREEZE FAN BASE ASM KIT MFR # K551081
2. #EZ FLAPS MFR # 554481
3. #STATIC SCREEN ASM MFR # 552981
4. #STATIC SCREEN ASM, SMOKE MFR # K552919
5. #EZ BREEZE SCREEN ASM KIT MFR # K552981
6. #EZ-BREEZE FLAP LATCH KNOB KIT MFR # K114309
7. #BLACK KNOB MFR # 114309
