Fan-Tastic / Dometic FV4100 Powered Parts Diagram

Roof Vent · 2 diagram sheets · 15 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Fan-Tastic / Dometic FV4100 Powered roof vent fan: 15 manufacturer part numbers.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

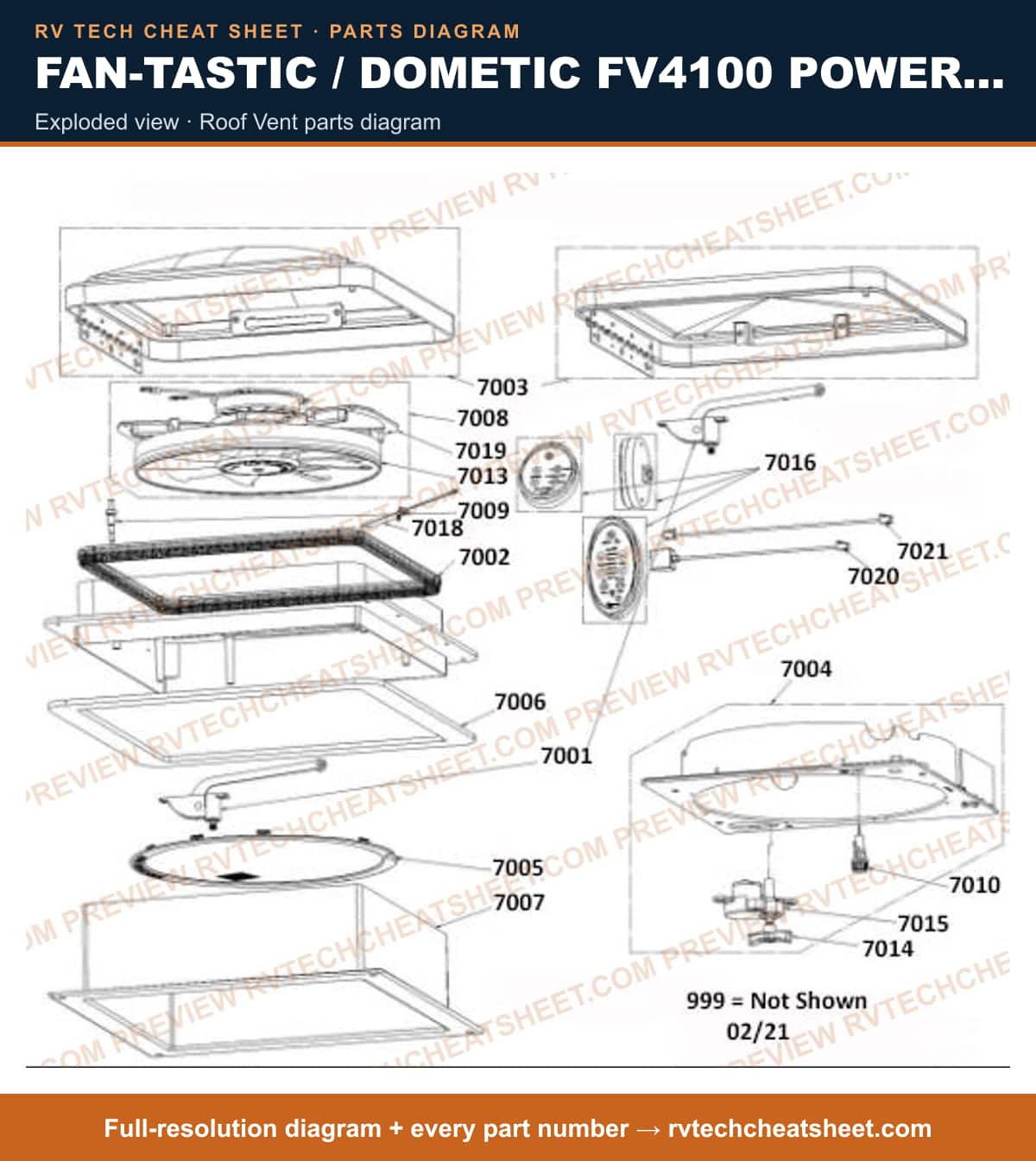

Fan-Tastic / Dometic FV4100 Powered exploded view

Components

15 items

1. #Roof Vent Opening Handle; For 8000 Series Fan-Tastic Roof Vent; Lift Arm For Dome Lids; With Screws MFR # K801105
2. #Roof Vent Installation Kit; Replacement For Roof Vents; 53 Inch Length; Black MFR # K114509
3. #Roof Vent Lid; Fan-Tastic ™; Hinge With Rivets; White MFR # K102081
4. #Roof Vent Screen; Fan-Tastic ™; Replacement For Fan-Tastic FV5300 Series Roof Vent MFR # 810129
5. #Roof Vent Screen Frame; For Fantastic Roof Vent; Pop N Lock Screen; Off-White MFR # K203480
6. #NOT AVAILABLE AS INDIVIDUAL PART. MFR # ******
7. #Roof Vent Motor; For 6600/ 8000/ 6000 Series Fan-Tastic Roof Vent; With Blade And Bowtie MFR # K801700
8. #Roof Vent Switch; For 5000 RBT/ 6600/ 8000/ 4000R/ 6000 Series Fan-Tastic Roof Vent; Dome Switch MFR # K112205
9. #Fuse Holder; Replacement For Fantastic Roof Vent; 1/4 Turn Cap; With 4 Amp Slow-Blow Fuse MFR # K901809
10. #11.5' CLEAR FAN BLADE 8M MFR # K113700
11. #KNOB KIT,WITH SCREW MFR # K1142-09
12. #Dometic 600 Series Refrigerator Main Control Board MFR # K601080
13. #MOTOR MOUNT - CLEAR POLYCARB MFR # K8015-00
14. #CIRCUIT BOARDS & TESTERS RV; PCB BOARD JUMPER MFR # K605208
15. #Roof Vent; Fan-Tastic ™; Model 4100; Automatic Closing; For 14 Inch x 14 Inch; With Fan; Off White MFR # 810167
