Diagrams › Fan-Tastic › 3350 Powered Fan-Tastic 3350 Powered Parts Diagram
Roof Vent · 3 diagram sheets · 21 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Fan-Tastic 3350 Powered roof vent fan: 21 manufacturer part numbers. 1 part is marked as superseded — the description gives the replacement number to order instead.
Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.
Exploded View
Fan-Tastic 3350 Powered exploded view — exploded parts diagram 1 of 3 Full-resolution diagram + every part number →

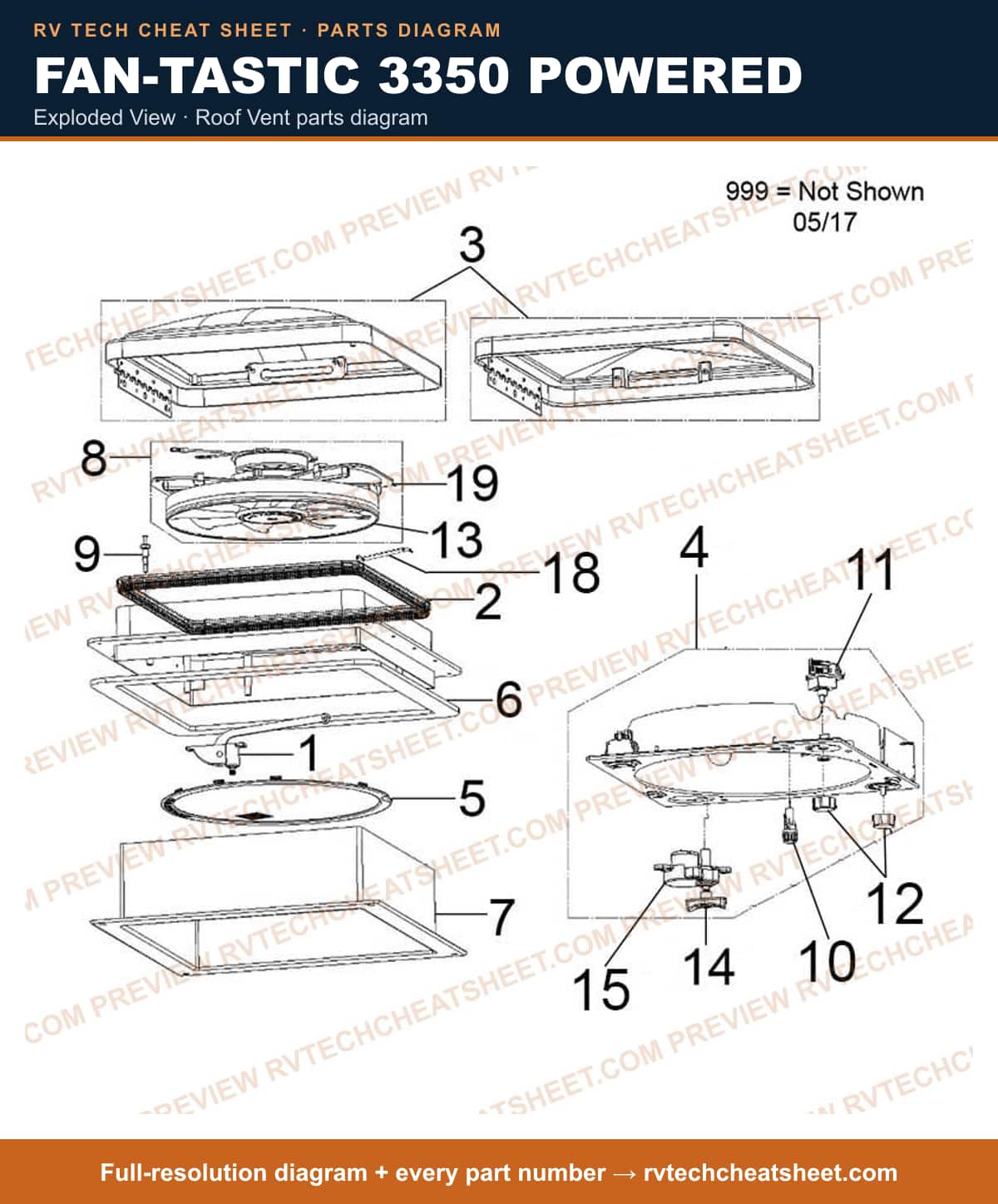

Fan-Tastic 3350 Powered exploded view — exploded parts diagram 2 of 3 Full-resolution diagram + every part number →
Fan-Tastic 3350 Powered exploded view — exploded parts diagram 3 of 3 Full-resolution diagram + every part number →
Components 21 items # Roof Vent Opening Handle; For 8000 Series Fan-Tastic Roof Vent; Lift Arm For Dome Lids; With Screws MFR # K801105 # Roof Vent Installation Kit; Replacement For Roof Vents; 53 Inch Length; Black MFR # K114509 # Roof Vent Lid; Fan-Tastic ™; Hinge With Rivets; Smoke; Polycarbonate MFR # K102019 # S3350-80 SCREEN ASM, OFF-WHITE MFR # 810118 # S3350-81 SCREEN ASM, WHITE MFR # 810119 # Roof Vent Screen Frame; For Fantastic Roof Vent; Pop N Lock Screen; Off-White MFR # K203480 # POP 'N LOCK SERVICE KIT, WHITE MFR # K203481 # INSTALLATION GASKET MFR # K104781 # GARNISH KIT, WHITE, 4.5' W/SCREWS MFR # K204081 # GARNISH KIT, OFF WHITE, 4.5" W/SCREWS MFR # K204080 # Roof Vent Motor; For 6600/ 8000/ 6000 Series Fan-Tastic Roof Vent; With Blade And Bowtie MFR # K801700 # Roof Vent Switch; For 5000 RBT/ 6600/ 8000/ 4000R/ 6000 Series Fan-Tastic Roof Vent; Dome Switch MFR # K112205 # Fuse Holder; Replacement For Fantastic Roof Vent; 1/4 Turn Cap; With 4 Amp Slow-Blow Fuse MFR # K901809 # Roof Vent Switch; For Use With 5000 RBT/ 8000/ 4000R/ 6000 Series Fan-Tastic Roof Vent; 3-Speed Switch; With Hex Nut And Schematic MFR # K103105 Superseded: see description # PUSH-ON KNOB, BLACK MFR # K103409 # 11.5' CLEAR FAN BLADE 8M MFR # K113700 # Roof Vent Lift Arm Knob; Replacement For Fantastic Roof Vent Automatic Lift System; Small; Black; With T-Knob/ Screw MFR # K114209 # Dometic 600 Series Refrigerator Main Control Board MFR # K601080 # NEW AUTOTROL MFR # K601081 # APPLIANCE COMPONENTS RV; RAIN SENSOR ASSMEBLY MFR # K905042 # MOTOR MOUNT, CLEAR POLYCARB MFR # K801500
