Roof Vent · 3 diagram sheets · 27 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Fan-Tastic 6600 Powered roof vent fan: 27 manufacturer part numbers. 5 parts are marked as superseded — the description gives the replacement number to order instead.
Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.
Exploded View

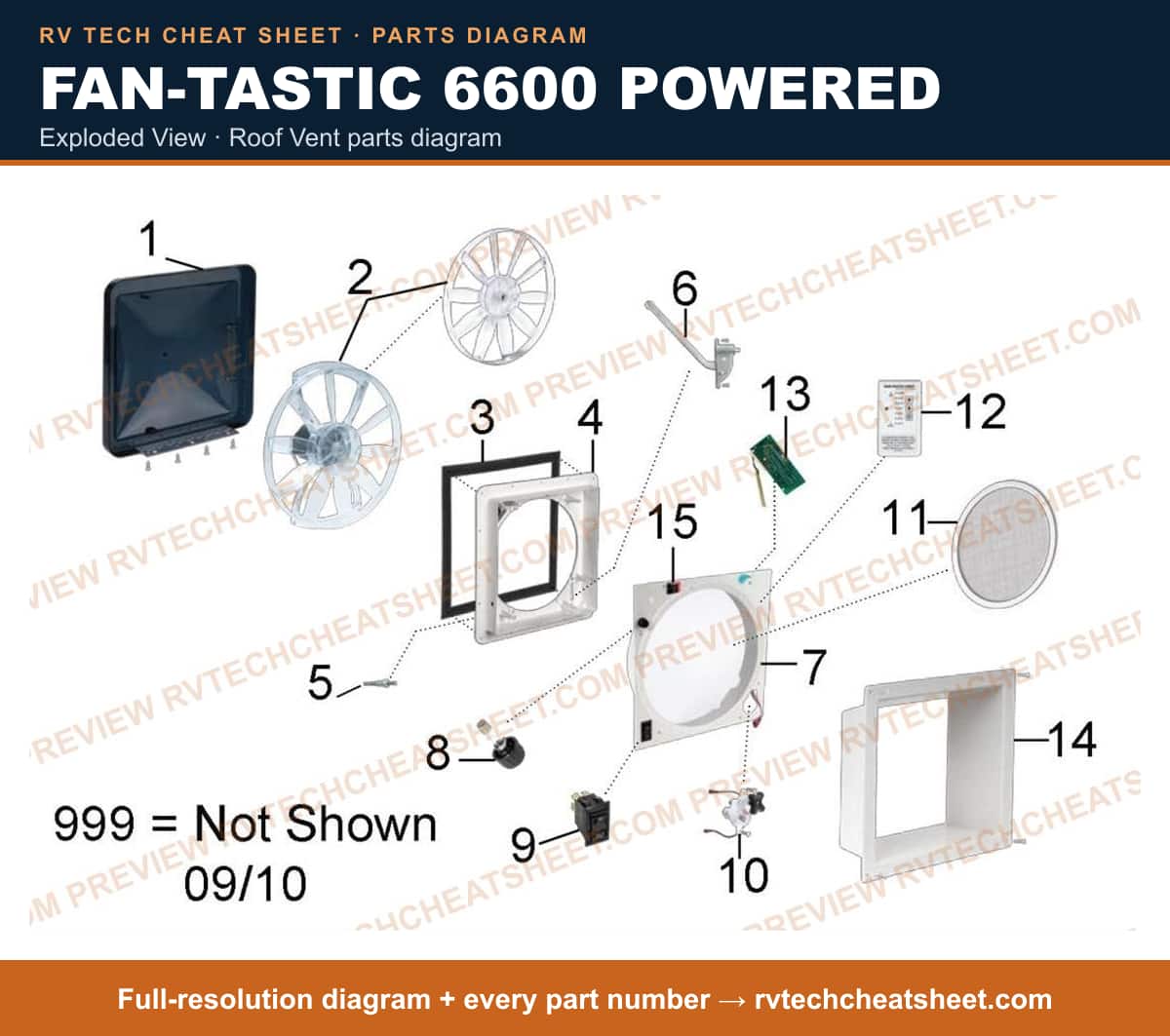

Fan-Tastic 6600 Powered exploded view — exploded parts diagram 1 of 3 Full-resolution diagram + every part number →
Fan-Tastic 6600 Powered exploded view — exploded parts diagram 2 of 3 Full-resolution diagram + every part number →
Fan-Tastic 6600 Powered exploded view — exploded parts diagram 3 of 3 Full-resolution diagram + every part number →
Components 27 items # Roof Vent Lid; Fan-Tastic ™; Hinge With Rivets; Smoke; Polycarbonate MFR # 102019 # Roof Vent Motor; For 6600/ 8000/ 6000 Series Fan-Tastic Roof Vent; With Blade And Bowtie MFR # K801700 # MOTOR, PANCAKE STYLE W/BLADE USE 401781 MFR # K801703 Superseded: see description # TRANS OIL COOLER MFR # 113800 # Roof Vent Motor; Fan-Tastic Vent; Motor Assembly; Can Style; Also Use New Number K801700 MFR # 401981 Superseded: see description # Roof Vent Motor; Fan-Tastic Vent; Motor Assembly; Pancake Style; White Blade; White Bowtie; Also Use Number K4017-81 MFR # 401781 Superseded: see description # MOTOR, CAN STYLE W/BLADE USE 401981 MFR # K401709 Superseded: see description # Roof Vent Lid Seal; Fan-Tastic ™; 4-1/2 Foot Length; Black; Ribbed EPDM (Ethylene Propylene Diene Monomer); Tube Geocel 1250; Use To Hold Seal To Base MFR # K114409 Superseded: see description # RUBBER DOME SEAL - 4.5FT LONG MFR # 114409 # BASE KIT, LOW PROFILE MFR # K401081 # Roof Vent Switch; For 5000 RBT/ 6600/ 8000/ 4000R/ 6000 Series Fan-Tastic Roof Vent; Dome Switch MFR # K112205 # AWNING-ACCESSORIES RV; MANUAL LIFT ARM MFR # K201105 # INTERIOR ASM KIT, WHITE MFR # K6600R81 # SLOW BURN FUSE - 4 AMP - OPTIO MFR # 894800 # REVERSING SWITCH - DPDT W/ B MFR # 900109 # Roof Vent Motor; For 6000 Series Fan-Tastic Roof Vent; 7 RPM; Autotrol Motor Assembly Kit; White; With White And Red Leads/ Cap/ Screws MFR # K605081 # Roof Vent Screen Frame; For 6600/ 8000 Series Fan-Tastic Roof Vent; Pop N Lock Screen Ring; White; With Aluminum Epoxy Screen MFR # K203581 # POP 'N LOCK SCREEN RING WHITE MFR # 203581 # REMOTE W/WALL CRADLE, HAND HELD MFR # K41781 # BOARD,CIRCUIT & RAIN SENSOR ONLY MFR # 902590 # GARNISH,6" F/DEEP ROOF OFF WHITE MFR # 106080 # Roof Vent Trim Ring; Fan-Tastic ™; For 14 Inch x 14 Inch Openings; 6 Inch; With Cut Square Corners; White MFR # 106081 # Roof Vent Trim Ring; Fan-Tastic ™; For 14 Inch x 14 Inch Openings; 4-1/2 Inch; Off-White MFR # 204080 # GARNISH 1-7/8" F/THIN OFF WHT MFR # 104080 # APPLIANCE COMPONENTS RV; 1 7/8" Whithe Garnish MFR # 104081 # Roof Vent Trim Ring; Fan-Tastic ™; For 14 Inch x 14 Inch Openings; 4-1/2 Inch; White MFR # 204081 # SWITCH, RAIN OVERRIDE SPST MINI ROCKER MFR # 903309
