Fan-Tastic 7350 Powered Parts Diagram

Roof Vent · 3 diagram sheets · 16 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Fan-Tastic 7350 Powered roof vent fan: 16 manufacturer part numbers.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

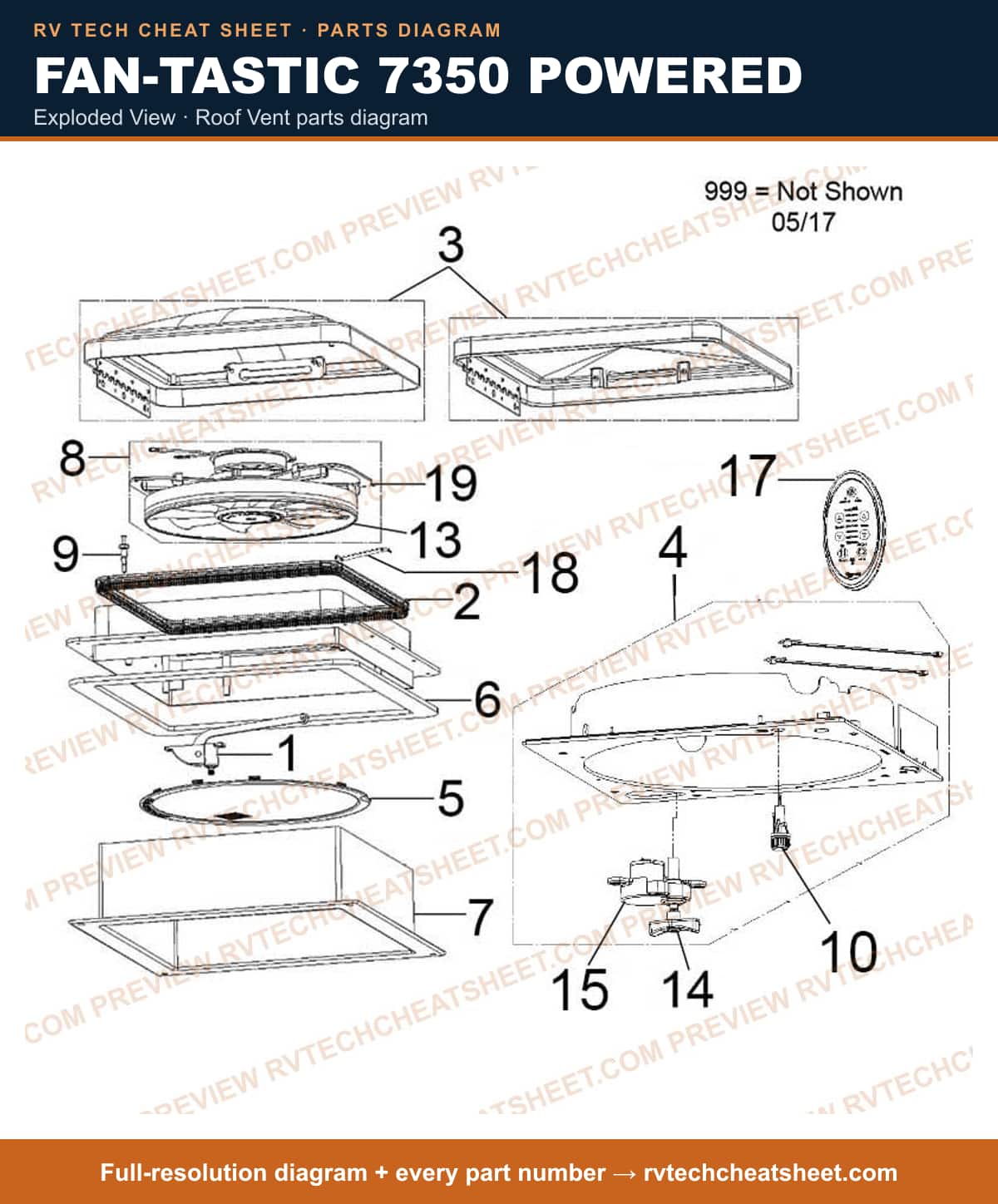

Exploded View

Components

16 items

1. #Roof Vent Opening Handle; For 8000 Series Fan-Tastic Roof Vent; Lift Arm For Dome Lids; With Screws MFR # K801105
2. #Roof Vent Installation Kit; Replacement For Roof Vents; 53 Inch Length; Black MFR # K114509
3. #Roof Vent Lid; Fan-Tastic ™; Hinge With Rivets; Smoke; Polycarbonate MFR # K102019
4. #S7300-80 SCREEN ASM, OFF-WHITE MFR # 810132
5. #Roof Vent Screen Frame; For Fantastic Roof Vent; Pop N Lock Screen; Off-White MFR # K203480
6. #INSTALLATION GASKET MFR # K104781
7. #GARNISH KIT, OFF WHITE, 4.5" W/SCREWS MFR # K204080
8. #Roof Vent Motor; For 6600/ 8000/ 6000 Series Fan-Tastic Roof Vent; With Blade And Bowtie MFR # K801700
9. #Roof Vent Switch; For 5000 RBT/ 6600/ 8000/ 4000R/ 6000 Series Fan-Tastic Roof Vent; Dome Switch MFR # K112205
10. #Fuse Holder; Replacement For Fantastic Roof Vent; 1/4 Turn Cap; With 4 Amp Slow-Blow Fuse MFR # K901809
11. #11.5' CLEAR FAN BLADE 8M MFR # K113700
12. #Roof Vent Lift Arm Knob; Replacement For Fantastic Roof Vent Automatic Lift System; Small; Black; With T-Knob/ Screw MFR # K114209
13. #Dometic 600 Series Refrigerator Main Control Board MFR # K601080
14. #Roof Vent Remote Control; Fan-Tastic Vent; Remote For 7350 Fans; Black; With Batteries MFR # 906809
15. #APPLIANCE COMPONENTS RV; RAIN SENSOR ASSMEBLY MFR # K905042
16. #MOTOR MOUNT, CLEAR POLYCARB MFR # K801500
