Fan-Tastic Garnishes,domes & Parts Parts Diagram

Roof Vent · 3 diagram sheets · 15 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Fan-Tastic Garnishes,domes & Parts roof vent fan: 15 manufacturer part numbers.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

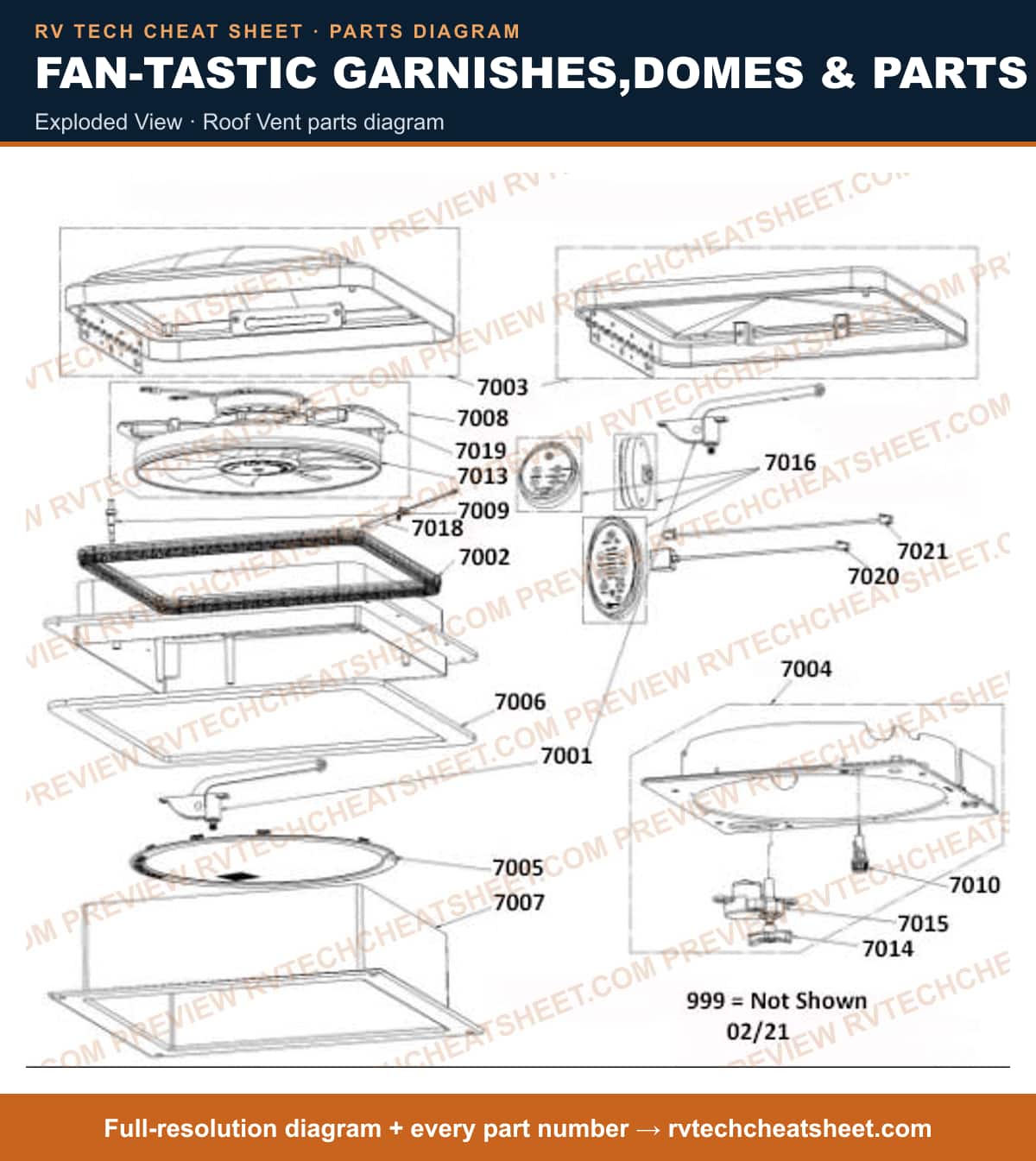

Exploded View

Components

15 items

1. #Roof Vent Opening Handle; For 8000 Series Fan-Tastic Roof Vent; Lift Arm For Dome Lids; With Screws MFR # K801105
2. #Roof Vent Installation Kit; Replacement For Roof Vents; 53 Inch Length; Black MFR # K114509
3. #Roof Vent Lid; Fan-Tastic ™; Hinge With Rivets; White MFR # K102081
4. #Roof Vent Screen; Fan-Tastic ™; Replacement For Fan-Tastic FV5300 Series Roof Vent MFR # 810129
5. #POP 'N LOCK SERVICE KIT MFR # K2034-81
6. #Roof Vent Motor; For 6600/ 8000/ 6000 Series Fan-Tastic Roof Vent; With Blade And Bowtie MFR # K801700
7. #Roof Vent Switch; For 5000 RBT/ 6600/ 8000/ 4000R/ 6000 Series Fan-Tastic Roof Vent; Dome Switch MFR # K112205
8. #Fuse Holder; Replacement For Fantastic Roof Vent; 1/4 Turn Cap; With 4 Amp Slow-Blow Fuse MFR # K901809
9. #11.5' CLEAR FAN BLADE 8M MFR # K113700
10. #KNOB KIT,WITH SCREW MFR # K1142-09
11. #NEW AUTOTROL MFR # K601081
12. #APPLIANCE COMPONENTS RV; RAIN SENSOR ASSMEBLY MFR # K905042
13. #MOTOR MOUNT - CLEAR POLYCARB MFR # K8015-00
14. #CIRCUIT BOARDS & TESTERS RV; PCB BOARD JUMPER MFR # K605208
15. #RJ-11 WIRE HARNESS 25' MFR # K6040-08
