Heng's Escape Hatch Parts Diagram

Roof Vent · 3 diagram sheets · 11 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Heng's Escape Hatch roof vent fan: 11 manufacturer part numbers. 1 part is marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

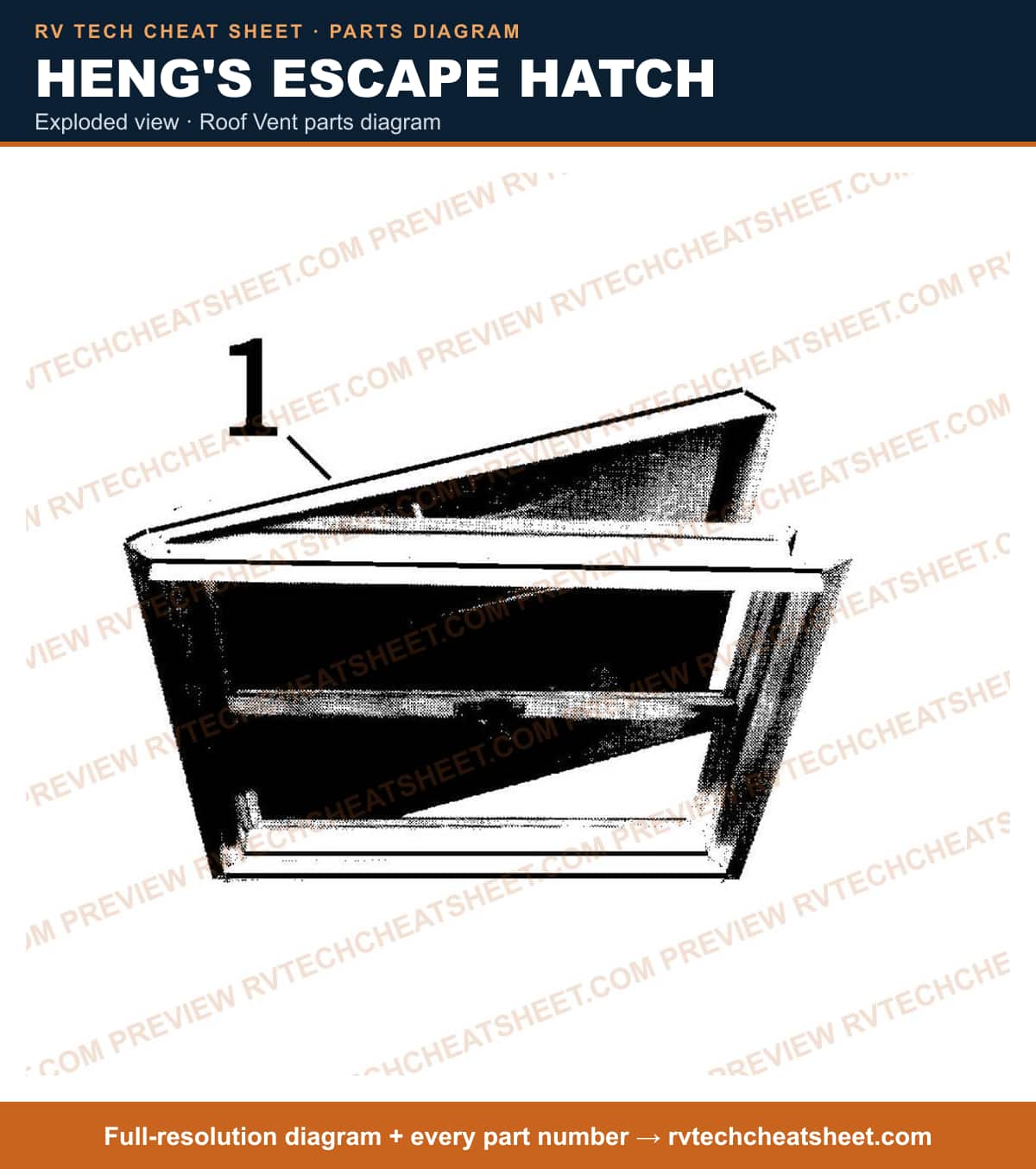

Heng's Escape Hatch exploded view

Components

11 items

1. #Roof Vent Latch; Replacement For Hengs/ Jensen Escape Hatches; Spring Loaded; Red MFR # JRP2115B
2. #Roof Vent Operator; Roof Vent Crank Assembly; Replacement For All Hengs/ Elixir And Jensen 14 Inch x 14 Inch Roof Vents And All Hengs/ Elixir Escape Hatches; Metal; Retail Package MFR # JRP1000R
3. #RANGES COOKTOPS MICROWAVES RV; Operator Crank Handle S MFR # JRP2160B
4. #LATCH,RED(10)USE JRP2115B ELIXIR ESCAPE HATCH ONLY MFR # 90025E Superseded: see description
5. #Escape Hatch Lid; Replacement For Hengs/ Elixir 17 Inch x 24 Inch Escape Hatches; White; Plastic MFR # 900881
6. #Roof Vent Trim Ring; For Hengs/ Elixir 17 Inch x 24 Inch Opening Escape Hatches; 2 Inch Depth; With Radius Corners; White; Metal; 4 Piece MFR # 90089
7. #Roof Vent Screen; Replacement For Hengs/ Elixir 22 Inch x 22 Inch Escape Hatches MFR # 90130E
8. #Roof Vent Lid Seal; For All Hengs And Elixir Escape Hatch/ Exit Vents MFR # 90049
9. #Roof Vent Trim Ring; For Hengs/ Elixir 13 Inch x 20 Inch Opening Escape Hatches; 2-3/8 Inch Depth; With Radius Corners; White; Plastic; 4 Piece MFR # 90035
10. #Roof Vent Trim Ring; For Hengs/ Elixir 26 Inch x 26 Inch Opening Escape Hatches; 2 Inch Depth; With Radius Corners; White; Metal; 4 Piece MFR # 90015
11. #Roof Vent Trim Ring; For Hengs/ Elixir 15 Inch x 22 Inch Opening Escape Hatches; 2 Inch Depth; With Radius Corners; White; Metal; 4 Piece MFR # 90039
