Heng's Garnish Parts Diagram

Roof Vent · 3 diagram sheets · 11 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Heng's Garnish roof vent fan: 11 manufacturer part numbers.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

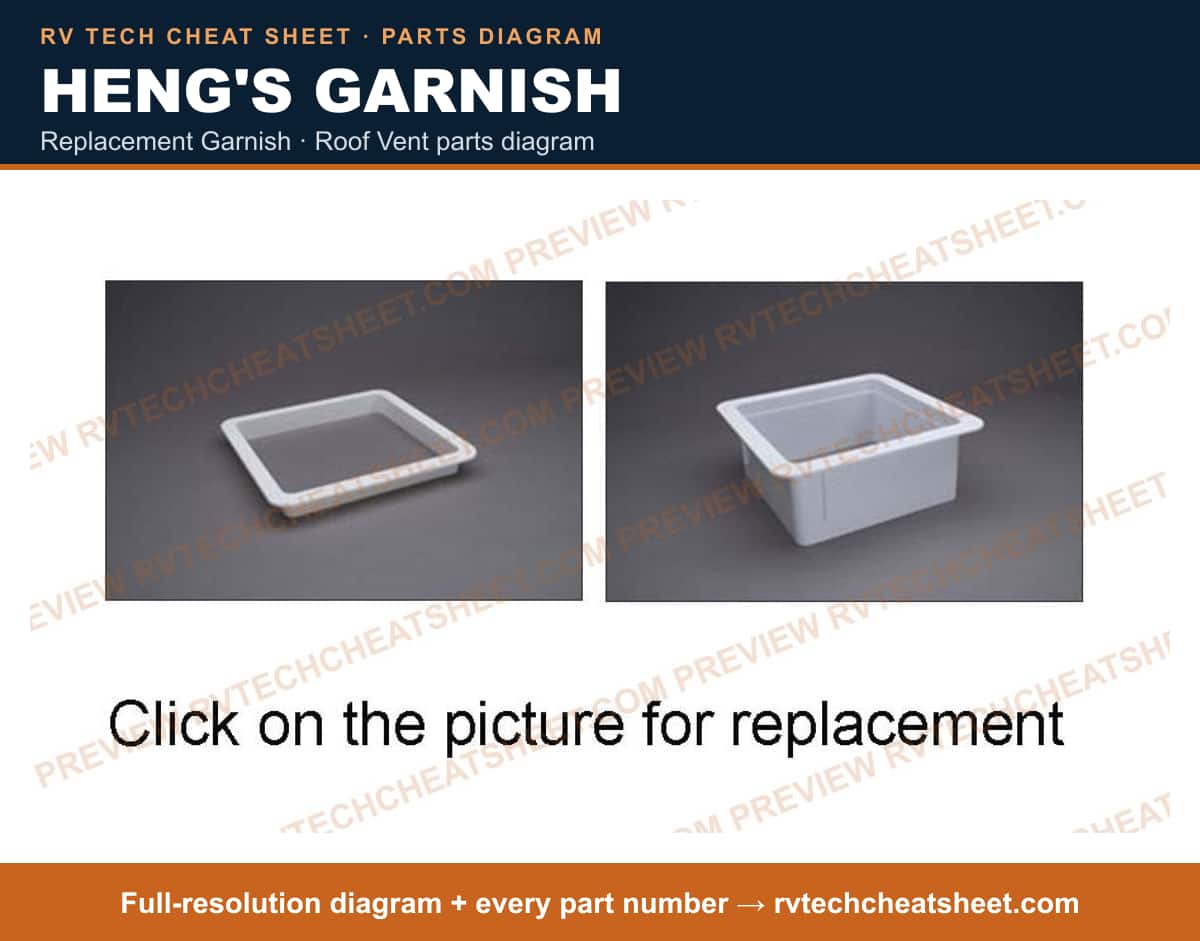

Replacement Garnish

Components

11 items

1. #Roof Vent Trim Ring; For 14 Inch x 14 Inch Openings; 3 Inch Telescoping Vertical Leg; With Radius Corners; Off White MFR # JRP1121B
2. #Roof Vent Trim Ring; For 14 Inch x 14 Inch Openings; 1-1/2 Inch Telescoping Vertical Leg; With Radius Corners; White MFR # JRP1118B
3. #NO GENERIC NAME; Garnish Col. Wht 1 1/8" M MFR # 90096B
4. #Roof Vent Trim Ring; For 14 Inch x 14 Inch Openings; 4-1/2 Inch Telescoping Vertical Leg; With Radius Corners; White; EZ Mount MFR # JRP2105B
5. #ELIXIR VENT GARNISH WHITE MFR # 90091B
6. #Roof Vent Trim Ring; For 14 Inch x 14 Inch Openings; 5-1/4 Inch Vertical Leg; With Radius Corners; White MFR # 90144
7. #GARNISH, COL WHT 1 1/4" MOUNT, 6" LEG MFR # 90147
8. #GARNISH,COL WHT 1 1/4" MOUNT, 7" LEG MFR # 90148
9. #Roof Vent Trim Ring; For 14 Inch x 14 Inch Openings; 3 Inch Telescoping Vertical Leg; With Radius Corners; White; EZ Mount MFR # JRP2103B
10. #Roof Vent Trim Ring; For 14 Inch x 14 Inch Openings; 4-1/2 Inch Telescoping Vertical Leg; With Radius Corners; Off White; EZ Mount MFR # JRP2106B
11. #GARNISH,WHITE 1 1/4" MOUNT, 8" LEG MFR # 90102H
