Heng's Replacement Vent Lids Replacement Parts Diagram · Replacement LIDS-20000 Series

Roof Vent · 3 assemblies · 9 diagram sheets · 13 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Heng's Replacement Vent Lids Replacement roof vent fan: 3 assemblies (Replacement LIDS-20000 Series, Thermal Pane Vent Cap, Replacement Vent Lids) and 13 manufacturer part numbers. 3 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

Replacement LIDS-20000 Series

Components

4 items

1. #CUSTOMER CAN GET A 5% DISCOUNT IF THEY ORDER CASE QUANTITY IS A USE # FOR 90085 MFR # 900851 Superseded: see description
2. #Roof Vent Lid; Replacement For Hengs/ Elixir Old Style Series 20000; White; Bulk Package MFR # 900821
3. #CUSTOMER CAN GET A 5% DISCOUNT IF THEY ORDER CASE QUANTITY IS A USE # FOR 90084 MFR # 900841 Superseded: see description
4. #Roof Vent Cross Bar; For Hengs/ Elixir Standard Vent Manufactured Prior To 1994 MFR # 90050

Thermal Pane Vent Cap

Components

1 item

1. #Roof Vent Lid; Replacement For 14 Inch x 14 Inch Vents; Thermal Pane Roof Vent Cap; White; With Slide Bar; Bulk Package MFR # 90110CIDL

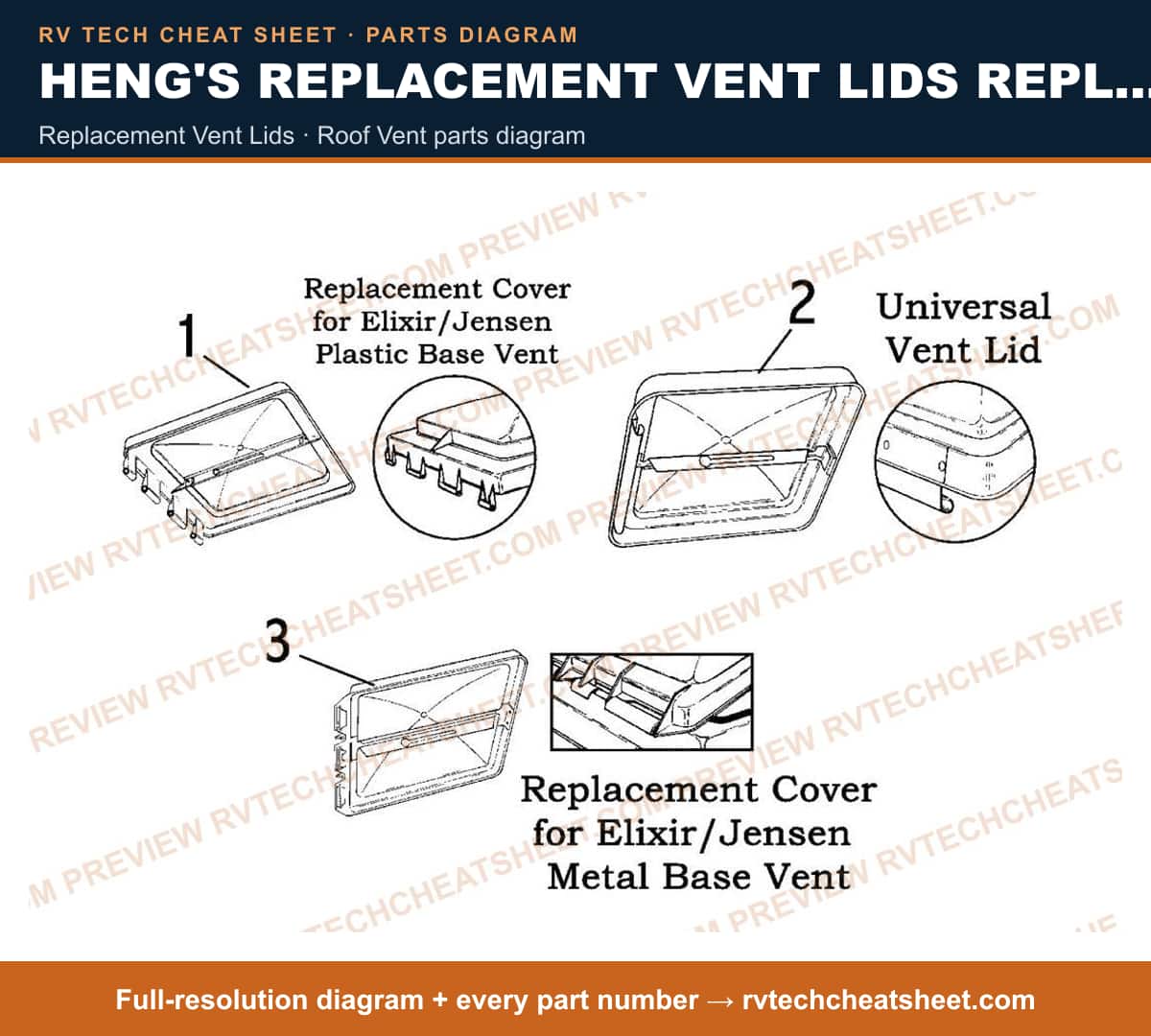

Replacement Vent Lids

Components

8 items

1. #Roof Vent Lid; Jensen With Pin Hinge; White; Four Color Retail Box MFR # 291RWH
2. #Roof Vent Lid; Jensen With Pin Hinge; White MFR # J291RWHC
3. #Roof Vent Lid; Jensen With Pin Hinge; Smoke; Four Color Retail Box MFR # 291RSM
4. #Roof Vent Lid; Replacement For Hengs/ Elixir Universal And Ventline Vents; White; With Slide Bar; Bulk Package MFR # 90110C1
5. #VENTLINE/ELIXIR LID-WHITE MFR # 901101
6. #Roof Vent Lid; Jensen Without Pin Hinge; Smoke; Four Color Retail Box MFR # J7291SMR
7. #USE 31-1780 MFR # 7291RSM Superseded: see description
8. #Roof Vent Lid; Jensen Without Pin Hinge; White MFR # J7291RWHC
