Heng's V97 Ez Mount Metal Base Vent Parts Diagram · Exploded view

Roof Vent · 2 assemblies · 2 diagram sheets · 50 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Heng's V97 Ez Mount Metal Base Vent roof vent fan: 2 assemblies (Vent Asm) and 50 manufacturer part numbers. 10 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

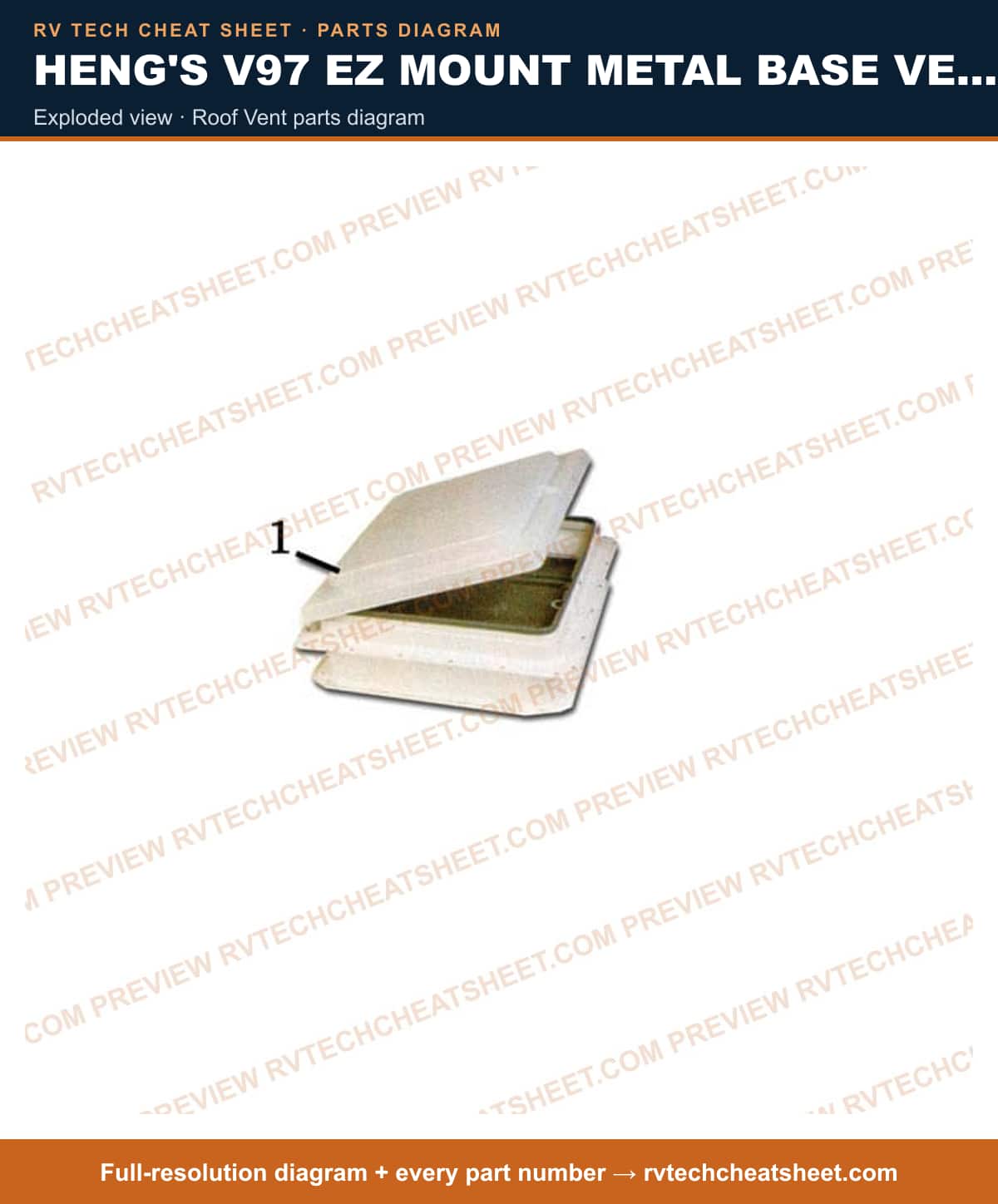

Heng's V97 Ez Mount Metal Base Vent exploded view

Components

10 items

1. #NO GENERIC NAME; Vent E-Z Mt MFR # V973402G1
2. #VENTILATION RV; Vent Ez Mt Fan Only 12V MFR # V9712021G1
3. #NO GENERIC NAME; Vent E-Z Mt Col.Wht MFR # V971502G4
4. #VENT,E-Z MT C.W. METAL BASE MFR # V971401G2
5. #NO GENERIC NAME; Vent E-Z Mt.Mtl C.W. Base MFR # V974402G1
6. #VENTILATION RV; VENT,14X14 W/ GARNISH MFR # V9712011G1
7. #NO GENERIC NAME; Vent E-Z Mt MFR # V971502G5
8. #VENT,E-Z MT MTL BASE MFR # V971201C1G1
9. #NO GENERIC NAME; Vent Std Mt C.W. Base MFR # V971412G1
10. #VENTILATION RV; Vent E-Z Mt MFR # 971401C1G1

Vent Asm

Components

40 items

1. #Roof Vent Lid; Jensen Without Pin Hinge; Bronze; Four Color Retail Box MFR # J7291BZR
2. #Roof Vent Lid; Jensen With Pin Hinge; White MFR # J291RWHC
3. #Roof Vent Lid; Jensen Without Pin Hinge; White MFR # J7291RWHC
4. #LID,VENT BRONZE USE J291RBZ MFR # 291RAM Superseded: see description
5. #Roof Vent Lid; Jensen With Pin Hinge; Smoke; Four Color Retail Box MFR # 291RSM
6. #Roof Vent Lid; Jensen With Pin Hinge; Bronze; Four Color Retail Box MFR # J291RBZ
7. #NO GENERIC NAME; Lid Jensen MFR # J7291R
8. #Roof Vent Lid Seal; 48 Inch; Black; For Jensen Metal 14 Inch x 14 Inch Vents MFR # JRP2111B
9. #Roof Vent Motor; Replacement For Hengs/ Jensen And Ventline 12 Volt Power Vents; CSA Certified MFR # 90048
10. #Roof Vent Motor; Replacement For Hengs/ Jensen/ Ventline 12 Volt Power Vents; 12 Volt DC/ 1.6 Amp; Retail Package MFR # 900371
11. #GEAR,PINION SM. USE JRP1099B 1/2" SHAFT MFR # JRP1025B Superseded: see description
12. #Roof Vent Motor; Use To Repair All Horizontally Shaft Mounted Motors Of Hengs Vents; 3/16 Inch Shaft Length; With Motor/ Pinion Gear/ Mounting Bracket And Gear Holder MFR # JRP1099B Superseded: see description
13. #Roof Vent Motor; Replacement For Hengs/ Jensen And Ventline 12 Volt Power Vents; Also Use New Part Number 90037-C MFR # 90037 Superseded: see description
14. #Roof Vent Operator; Roof Vent Crank Assembly; Replacement For All Hengs/ Elixir And Jensen 14 Inch x 14 Inch Roof Vents And All Hengs/ Elixir Escape Hatches; Metal; Retail Package MFR # JRP1000R
15. #Roof Vent Operator; Roof Vent Crank Assembly; Replacement For All Hengs/ Elixir And Jensen 14 Inch x 14 Inch Roof Vents And All Hengs/ Elixir Escape Hatches; Metal MFR # JRP1000B
16. #CRANK,VENT USE JRP1000B MFR # RP1000R Superseded: see description
17. #PURCHASE LOCALLY MFR # ///
18. #BLADE,FAN USE JRP1002R FOR ALL 12V MFR # JRP1002B Superseded: see description
19. #Fan Blade; Replacement For All 12 Volt Power Vents; Clockwise Rotation; Retail Package MFR # 90038
20. #Fan Blade; Replacement For All 12 Volt Power Vents; Counter Clockwise Rotation; D Shaped Bore; Retail Package MFR # JRP1002R
21. #Roof Vent Screen Frame; Replacement For Jensen Roof Vents; 14 Inch Length x 14 Inch Width; Off White; With Radius Corners MFR # JRP1125B
22. #Roof Vent Screen Frame; Replacement For Jensen Roof Vents; 14 Inch Length x 14 Inch Width; Off White; With Radius Corners; Retail Package MFR # JRP1125R
23. #Roof Vent Screen Frame; Replacement For Jensen Roof Vents; 14 Inch Length x 14 Inch Width; White; With Radius Corners; Retail Package MFR # JRP1124R
24. #Roof Vent Screen Frame; Replacement For Jensen Roof Vents; 14 Inch Length x 14 Inch Width; White; With Radius Corners MFR # JRP1124B
25. #Push Button Switch; Replacement For Hengs/ Elixir/ Jensen And Ventline 12 Volt Fan Vents; Black MFR # JRP1041B
26. #HANDLE,CRANK OFF WHTE JENSEN 14X14 ROOF VENTS MFR # JRP1031B
27. #RANGES COOKTOPS MICROWAVES RV; Operator Crank Handle S MFR # JRP2160B
28. #Roof Vent Crank Handle; Fits All Hengs/ Jensen/ Ventline 14 Inch x 14 Inch Roof Vents; Metal; Retail Package MFR # JRP2160R
29. #OPERATOR,CRANK USE JRP2160B MFR # 90128 Superseded: see description
30. #Roof Vent Trim Ring; For 14 Inch x 14 Inch Openings; 3 Inch Telescoping Vertical Leg; With Radius Corners; Off White; EZ Mount MFR # JRP2104B
31. #Roof Vent Trim Ring; For 14 Inch x 14 Inch Openings; 4-1/2 Inch Telescoping Vertical Leg; With Radius Corners; White; EZ Mount MFR # JRP2105B
32. #Roof Vent Trim Ring; For 14 Inch x 14 Inch Openings; 3 Inch Telescoping Vertical Leg; With Radius Corners; White; EZ Mount MFR # JRP2103B
33. #Roof Vent Trim Ring; For 14 Inch x 14 Inch Openings; 1-1/2 Inch Telescoping Vertical Leg; With Radius Corners; White; EZ Mount MFR # JRP2101B
34. #Roof Vent Trim Ring; For 14 Inch x 14 Inch Openings; 1-1/2 Inch Telescoping Vertical Leg; With Radius Corners; Off White; EZ Mount MFR # JRP2102B
35. #Roof Vent Trim Ring; For 14 Inch x 14 Inch Openings; 4-1/2 Inch Telescoping Vertical Leg; With Radius Corners; Off White; EZ Mount MFR # JRP2106B
36. #SCREEN,VENT USE JRP1125B W/ LIGHT LENS MFR # J2967002A Superseded: see description
37. #Roof Vent Cross Bar; For Jensen Pin Hinge Style Lids MFR # JRP1001B
38. #Roof Vent Switch; Use To Function Fan/ Power Lift And Light; Replacement For Jensen Roof Vents MFR # JRP2134B Superseded: see description
39. #Roof Vent Cross Bar; For Jensen Lids Without Hinge Pin MFR # JRP1291B
40. #Roof Vent Switch; Use To Function Fan And Power Lift; Replacement For Jensen Roof Vents MFR # JRP2133B Superseded: see description
