Heng's Venturi Vent Replacement Parts Diagram

Roof Vent · 3 diagram sheets · 8 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Heng's Venturi Vent Replacement roof vent fan: 8 manufacturer part numbers.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

Replacement Vent

Components

8 items

1. #Roof Vent Trim Ring; For 14 Inch x 14 Inch Openings; 3 Inch Vertical Leg; With Radius Corners; White MFR # 90092
2. #Roof Vent Screen Frame; Replacement For Hengs/ Elixir Universal Roof Vents; White; With Telescopic Garnish; Retail Package MFR # 90106
3. #Roof Vent Trim Ring; For 14 Inch x 14 Inch Openings; 1-1/8 Inch Vertical Leg; With Radius Corners; White; Does Not Fit Jensen Vents MFR # 90090
4. #Roof Vent Crank Handle; Fits Hengs/ Elixir And Jensen Vents; Butterfly Style; Off White MFR # 90040
5. #NO GENERIC NAME; Operator Assembly Set El MFR # 90027
6. #NO GENERIC NAME; Lid Smoke Venturi Vent MFR # 90028S1
7. #Roof Vent Trim Ring; For 14 Inch x 14 Inch Openings; 2-1/8 Inch Vertical Leg; With Radius Corners; White MFR # 90091

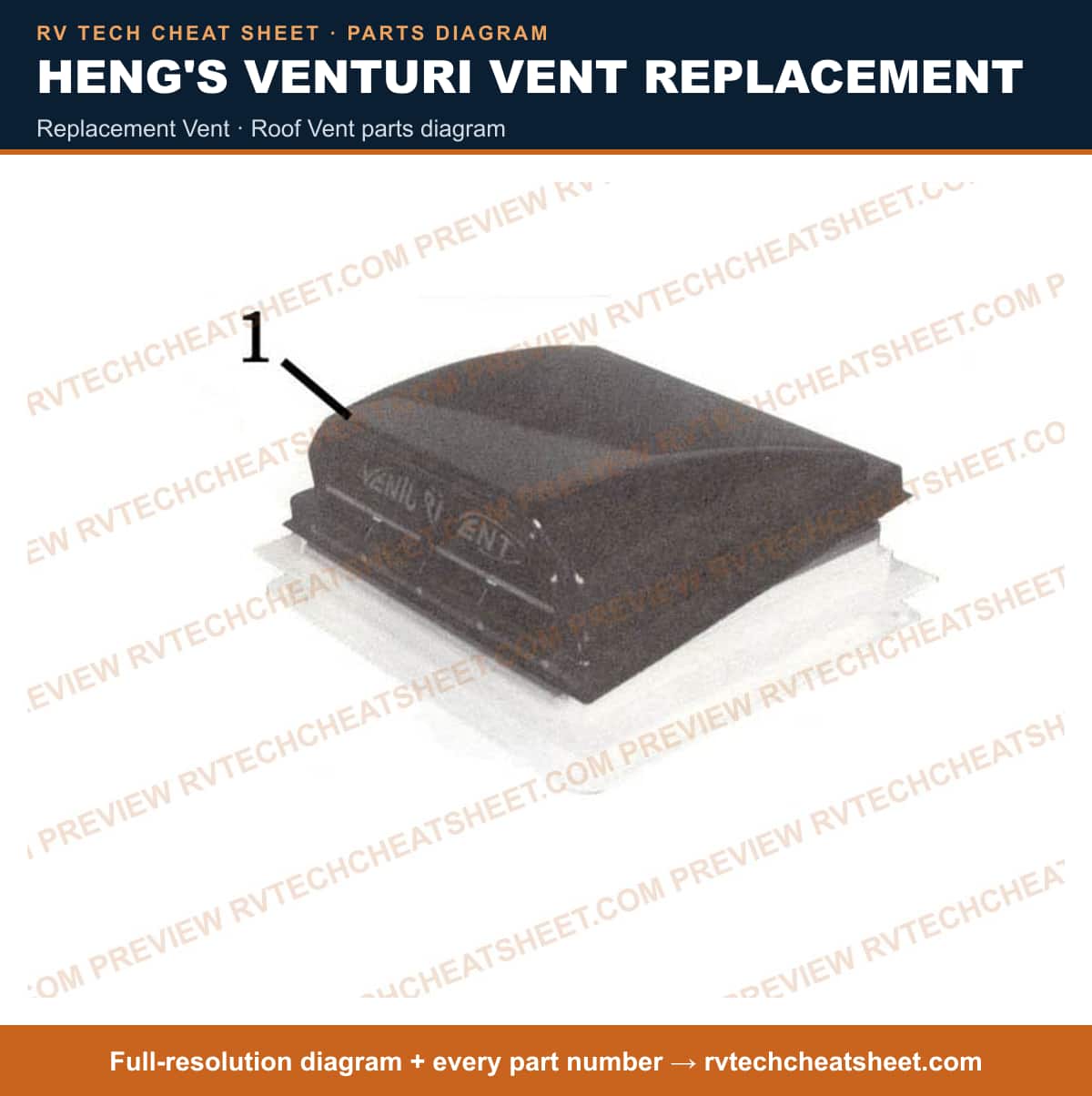

8. #VENTILATION RV; VENTURI VENT GRAY MFR # 841511
