Diagrams › MaxxAir › Maxxfan Deluxe MaxxAir Maxxfan Deluxe Parts Diagram · Maxxfan, Smoke
Roof Vent · 11 assemblies · 16 diagram sheets · 87 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the MaxxAir Maxxfan Deluxe roof vent fan: 11 assemblies (Maxxfan, Smoke, Garnish & Remote, Maxxfan, White, Maxxfan Plus, Smoke, Maxxfan Plus, White and more) and 87 manufacturer part numbers. 21 parts are marked as superseded — the description gives the replacement number to order instead.
Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.
Maxxfan, Smoke
MaxxAir Maxxfan Deluxe maxxfan, smoke — exploded parts diagram Full-resolution diagram + every part number →
Components 1 item # Roof Vent; MaxxFan ®; Manual Opening; For 14 Inch x 14 Inch; Fits 1-1/8 Inches To A Maximum Of 6-1/2 Inches; With Screen; With 4-Speed Fan; Smoke MFR # 00A04401K
Garnish & Remote
MaxxAir Maxxfan Deluxe garnish & remote — exploded parts diagram 1 of 6 Full-resolution diagram + every part number →
MaxxAir Maxxfan Deluxe garnish & remote — exploded parts diagram 2 of 6 Full-resolution diagram + every part number →
MaxxAir Maxxfan Deluxe garnish & remote — exploded parts diagram 3 of 6 Full-resolution diagram + every part number →
MaxxAir Maxxfan Deluxe garnish & remote — exploded parts diagram 4 of 6 Full-resolution diagram + every part number →
MaxxAir Maxxfan Deluxe garnish & remote — exploded parts diagram 5 of 6 Full-resolution diagram + every part number →
MaxxAir Maxxfan Deluxe garnish & remote — exploded parts diagram 6 of 6 Full-resolution diagram + every part number →
Components 11 items # VENTILATION RV; GARNISH RING MFR # 10-20209 # WHITE REPLACEMENT LID 4301K MAXXFAN MFR # 10A40002K # VENT LID COVER ONLY MFR # 10A40009K # Garnish Ring Interior; Use With MAXXFAN, MAXXFAN PLUS And MAXXFAN DELUXE Model Roof Vents; White MFR # 10-20211-5.3 Superseded: see description # HAND HELD REMOTE BLACK MFR # 00A01151K # VENTILATION RV; 10-20211-B-5.3 BEIGE GARNISH RING MFR # 10-20211-B-5.3 # HAND HELD REMOTE BLACK EXHAUST ONLY MFR # 00A01150K # VENT LIDS RV; LID ASSEMBLY - CLEAR MFR # 12-00075 # VENT LIDS RV; LID ASSEMBLY - TINT MFR # 12-00076 # Roof Vent Lid; MaxxFan® Plus; Replacement For MAXXFAN ® Plus Model Roof Vents; White MFR # 12-00056 # VENT LIDS RV; LID ASSEMBLY - SMOKE MFR # 12-00057
Maxxfan, White
MaxxAir Maxxfan Deluxe maxxfan, white — exploded parts diagram Full-resolution diagram + every part number →
Components 4 items # Roof Vent; MaxxFan® Mini; Manual Opening; For 1 Inch Thick Roofs; 4 Speed; White MFR # 0004301M # Roof Vent; MaxxFan ®; Manual Opening; For 14 Inch x 14 Inch; 4 Speed; White MFR # 00A04301K # Roof Vent; Remote Control Powered Opening; For 14 Inch x 14 Inch Vent; With Fan; White MFR # 00-04700KX # Roof Vent; MaxxFan ®; Manual Opening; 14 Inch x 14 Inch; With Screen; With 4 Speed Fan; White; Exhaust Only; Controls At Ceiling; With Mounting Hardware MFR # 0004301K
Maxxfan Plus, Smoke
MaxxAir Maxxfan Deluxe maxxfan plus, smoke — exploded parts diagram Full-resolution diagram + every part number →
Components 2 items # Roof Vent; MaxxFan® Plus; Power Lift Opening; For 14 Inch x 14 Inch Vent; Fits Roof Depth 2 Inch to 6-1/2 Inch Thick; With Screen; With 4 Speed Fan; Smoke; UV Resistant ABS Plastic Mounting Flange; With Thermostat/ White Interior Garnish/ Mounting Hardware; With Flush Mount Keypad Control/ Thermostat; Without Optional Remote Control; Single MFR # 00-04951KSX # Roof Vent; MaxxFan® Plus; Remote Control Powered Opening; For 14 Inch x 14 Inch Vent; With Fan; Smoke; With Thermostat/ Hand Held Remote Control/ Mounting Hardware MFR # 0004500K
Maxxfan Plus, White
MaxxAir Maxxfan Deluxe maxxfan plus, white — exploded parts diagram Full-resolution diagram + every part number →
Components 4 items # Roof Vent; MaxxFan® Plus; Power Lift Opening; For 14 Inch x 14 Inch Vent; Fits Roof Depth 2 Inch to 6-1/2 Inch Thick; With Screen; With 4 Speed Fan; White Lid; UV Resistant ABS Plastic Mounting Flange With EZ Clip Tabs; Without Garnish; With Rain Sensor/ Flush Mount Keypad Control/ Thermostat/ Mounting Hardware; Single MFR # 0004751KSX # Roof Vent; MaxxFan® Plus; Manual Opening; For 14 Inch x 14 Inch Vent; With Fan; White; With Thermostat/ Controls At Ceiling/ Mounting Hardware MFR # 0004000K # Roof Vent; MaxxFan® Plus; Manual Lift Opening; For 14 Inch x 14 Inch Vent; Fits Roof Depth 2 Inch to 6-1/2 Inch Thick; With Screen; With Fan; White; UV Resistant ABS Plastic Mounting Flange; With Thermostat/ White Interior Garnish/ Mounting Hardware; With Flush Mount Keypad Control/ Thermostat MFR # 0004002K # Roof Vent; MaxxFan® Plus; Power Lift Opening; For 14 Inch x 14 Inch Vent; Fits Roof Depth 2 Inch to 6-1/2 Inch Thick; With Screen; With 4 Speed Fan; White Lid; UV Resistant ABS Plastic Mounting Flange With EZ Clip Tabs; Without Garnish; With Rain Sensor/ Flush Mount Keypad Control/ Thermostat/ Mounting Hardware; Also Use New Number 00-04751KSX MFR # 00-04751KS Superseded: see description

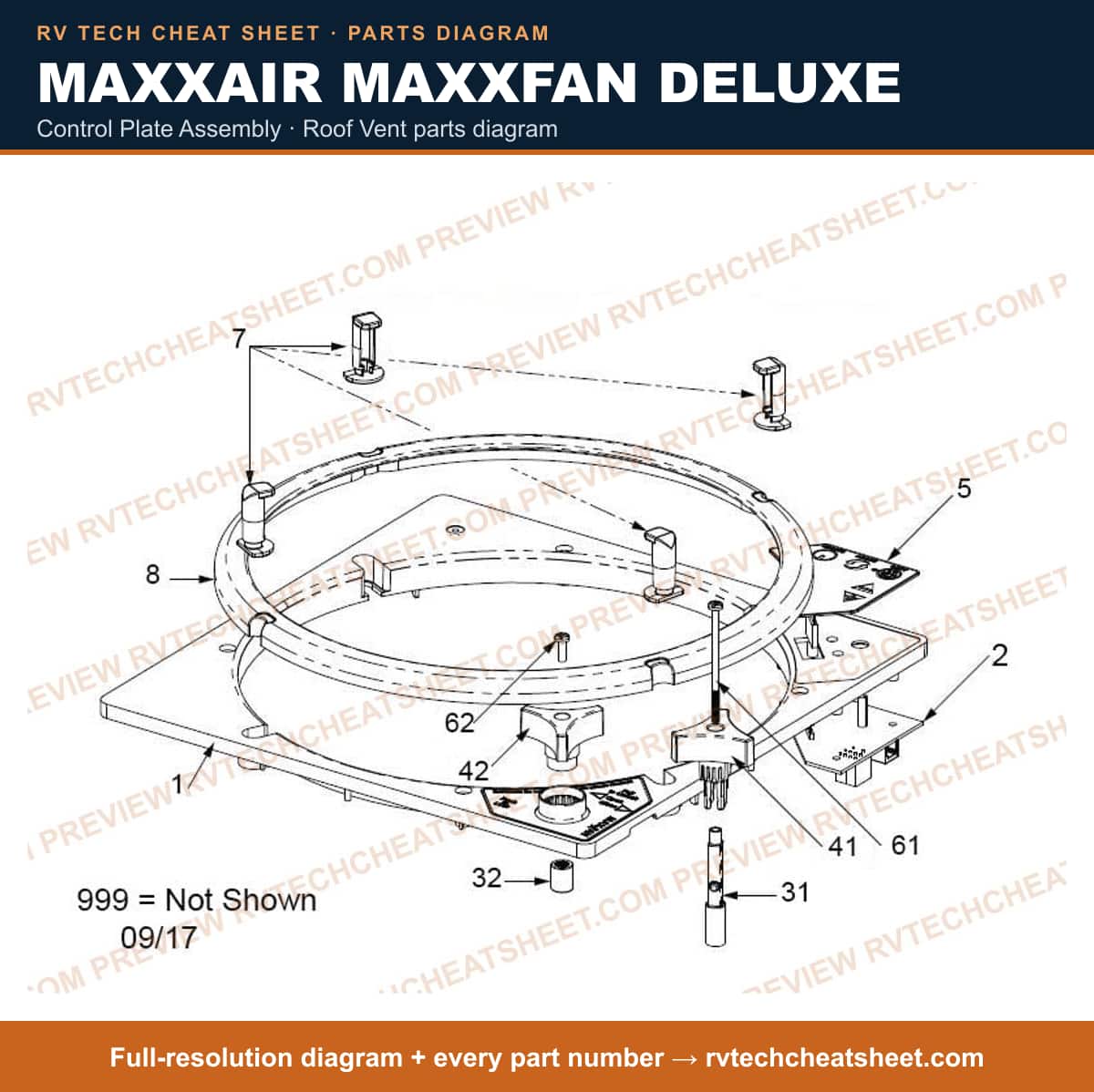

Control Plate Assembly
MaxxAir Maxxfan Deluxe control plate assembly — exploded parts diagram Full-resolution diagram + every part number →
Components 28 items # Roof Vent Housing; Replacement For MaxxFan/ MaxxFan Plus/ MaxxFan Deluxe Models; Control Plate MFR # 05-20226K # Roof Vent Control Circuit Board; For Use With Maxxair 4700N/ 4900N/ 8700N/ 8900N Roof Vents MFR # 10A21275N Superseded: see description # Printed Circuit Board MFR # 10-21275K-V3.9 # Printed Circuit Board MFR # 10-21276K-V3.9 # NO GENERIC NAME;;PC BOARD MFR # M1B10B04751KS # Roof Vent Control Circuit Board;;For Use With MaxxFan Plus 4751KS/ 4761KS/ 4951KS Roof Vents; Circu MFR # MXX10A04751KS Superseded: see description # Printed Circuit Board MFR # 10-21276KE # Roof Vent Control Circuit Board; For Use With MaxxFan Plus 4751KS/ 4761KS/ 4951KS Roof Vents; Circuit Board With Wiring MFR # 10C04751KS Superseded: see description # Roof Vent Lift Arm Knob Shaft; Replacement For MAXXFAN ® Deluxe Key Pad Models 5100K/ 6201K MFR # 10-21232K # Roof Vent Control Circuit Board; For Use With Maxxair 8751K/ 8951K Roof Vents MFR # 10-04751K Superseded: see description # Printed Circuit Board MFR # 10-21275KE # Roof Vent Control Circuit Board; Replacement For MaxxAir Roof Vent MFR # 10-04301K-V1.6 # Printed Circuit Board MFR # 10-21275NZ # APPLIANCE COMPONENTS RV; Keypad - 8 Pin - Intake/E MFR # 10-40005K # Keypad, Blank Label With IR MFR # 11-00001K # Roof Vent Control Circuit Board; Replacement Key Pad For MaxxAir 4301K/ 4401K Series Roof Vent MFR # 10-43010K # APPLIANCE COMPONENTS RV; Label Control Plate Wal MFR # 10-40209 # Roof Vent Control Circuit Board; For Use With MaxxFan Deluxe 5100K And 6200K Roof Vents; 8 Pin Keypad; With Fan On And Power Off/ Vent Lid Position/ Air Exhaust And Intake/ Fan Auto Mode And Thermostat Set Temperature MFR # 10-21299K Superseded: see description # NO GENERIC NAME; KEYPAD 8-PIN, EXHAUST ONLY MFR # 10-40006K # Keypad MFR # 10-21306K # APPLIANCE COMPONENTS RV; Keypad - 8 Pin - Exhaust MFR # 10-21300K # Roof Vent Screen Frame; Screen Finger/ Retainer Only For Frame; Replacement For MaxxFan Deluxe 5100K To 8951K/ 8700N/ 8900 N Models; Plastic MFR # 05-21233 # Roof Vent Screen; MaxxFan ®; Replacement For MaxxFan ® Deluxe 5100K Through 8951K/ 8700N/ 8900N Model Roof Vents; White MFR # 0530925 # Roof Vent Lift Arm End Bushing; Replacement For Manual Opening MaxxFan/ MaxxFan Plus 4500K To 4900K Models And MaxxFan Deluxe 7000K To 8951K/ 8700N/ 8900K Models; Lift Motor Coupler MFR # 10-20277 # Roof Vent Lift Arm Knob; Replacement For Manual Opening MaxxFan/ MaxxFan Plus 4000K To 4001K And MaxxFan Deluxe 5100K To 6201K Models; White; Plastic MFR # 05-21236K # Roof Vent Lift Arm Knob; Replacement For Automatic/ Remote MaxxFan/ MaxxFan Plus 4500K To 4900K Models And MaxxFan Deluxe 7000K To 8951K/ 8700N/ 8900N Models; 3 Wing Knob; White MFR # 10-20223 # Roof Vent Screw; Replacement For Manual Opening MaxxFan/ MaxxFan Plus 4000K To 4001K Models And MaxxFan Deluxe 5100K To 6401K Models; Locking Knob Screw MFR # 10-21241K # APPLIANCE COMPONENTS RV; Screw 8-32 X 1/2 Phil P MFR # 10-20265K

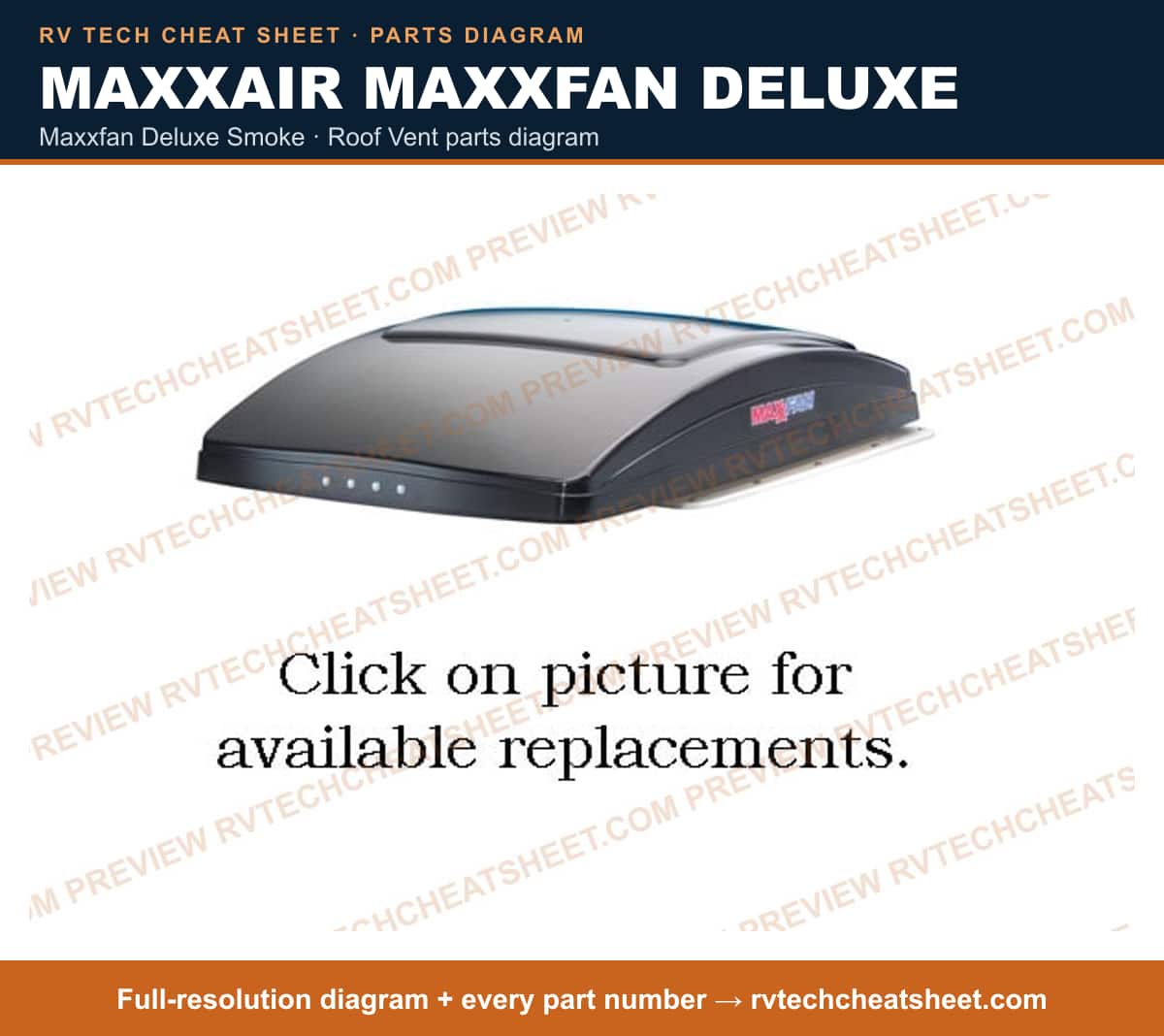

Maxxfan Deluxe Smoke
MaxxAir Maxxfan Deluxe maxxfan deluxe smoke — exploded parts diagram Full-resolution diagram + every part number →
Components 10 items # Roof Vent; MaxxFan® Deluxe; Powered Opening; For 14 Inch x 14 Inch Vent; With Fan; Exhaust Only; Smoke; With Built In Rain Cover/ Mounting Hardware MFR # 0008500K # VENTILATION RV; Maxxfan Smoke Use 31-213 MFR # 75000 Superseded: see description # MAXXFAN,SMOKE 2 SWITCH MFR # 64000 # Roof Vent; MaxxFan® Deluxe; Manual Opening; For 14 Inch x 14 Inch Vent; With Fan; Smoke; With Thermostat/ Built In Rain Cover/ Mounting Hardware; With Flush Mount Keypad Control/ Thermostat MFR # 0006200K # VENTILATION RV;;Maxfan W/Lcd Control Smo MFR # M1B00066000 # MAXXFAN SMOKE use 31-2167 MFR # 62000 Superseded: see description # MAXXFAN,SMOKE 4 SWITCH MFR # 69000 # MAXXFAN,SMOKE USE 62000 MFR # 52000 Superseded: see description # Roof Vent; MaxxFan® Deluxe; Remote Control Powered Opening; For 14 Inch x 14 Inch Vent; With Fan; Smoke; With Thermostat/ Built In Rain Cover/ Hand Held Remote Control/ Mounting Hardware; With Thermostat/ Remote Control Keypad/ Hand Held Remote Control MFR # 0007500K # Roof Vent; MaxxFan® Deluxe; Manual Opening; For 14 Inch x 14 Inch; Fits 1-1/8 Inches To A Maximum Of 6-1/2 Inches; With Screen; With 4-Speed Fan; Smoke; Built In Rain Cover MFR # 0006401K

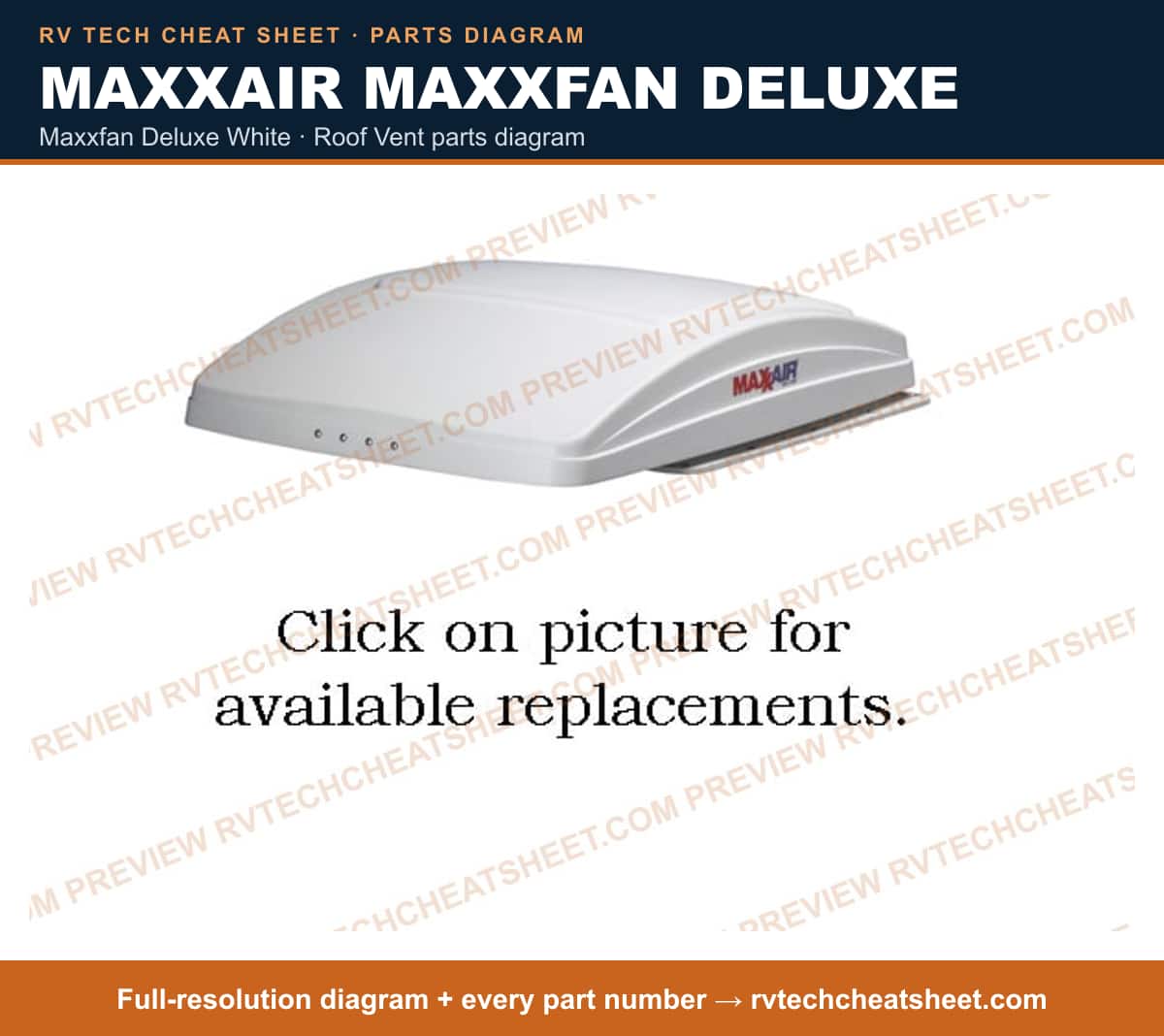

Maxxfan Deluxe White
MaxxAir Maxxfan Deluxe maxxfan deluxe white — exploded parts diagram Full-resolution diagram + every part number →
Components 8 items # Roof Vent; MaxxFan® Deluxe; Manual Opening; For 14 Inch x 14 Inch; Fits 1-1/8 Inches To A Maximum Of 6-1/2 Inches; With Screen; With 3-Speed Fan; White; Built In Rain Cover MFR # 0005301K # VENTILATION RV; Fan Roof W/ Wall- Lcd MFR # 0055000 # MAXXFAN REMOTE WHT USE 31-2168 MFR # 70000M Superseded: see description # VENTILATION RV; Maxxfan White W/2 Switch MFR # 0053000 # Roof Vent; MaxxFan® Deluxe; Manual Opening; For 14 Inch x 14 Inch Vent; With Fan; White; With Thermostat/ Built In Rain Cover/ Mounting Hardware; With Flush Mount Keypad Control/ Thermostat MFR # 0005100K # MAXXFAN WHITE USE 31-2166 MFR # 51000M Superseded: see description # Roof Vent; MaxxFan® Deluxe; Remote Control Powered Opening; For 14 Inch x 14 Inch Vent; With Fan; White; With Thermostat/ Built In Rain Cover/ Hand Held Remote Control/ Mounting Hardware; With Thermostat/ Remote Control Keypad/ Hand Held Remote Control MFR # 0007000K # FAN, WHITE W/4 BUTTON CONTROL MFR # 59000

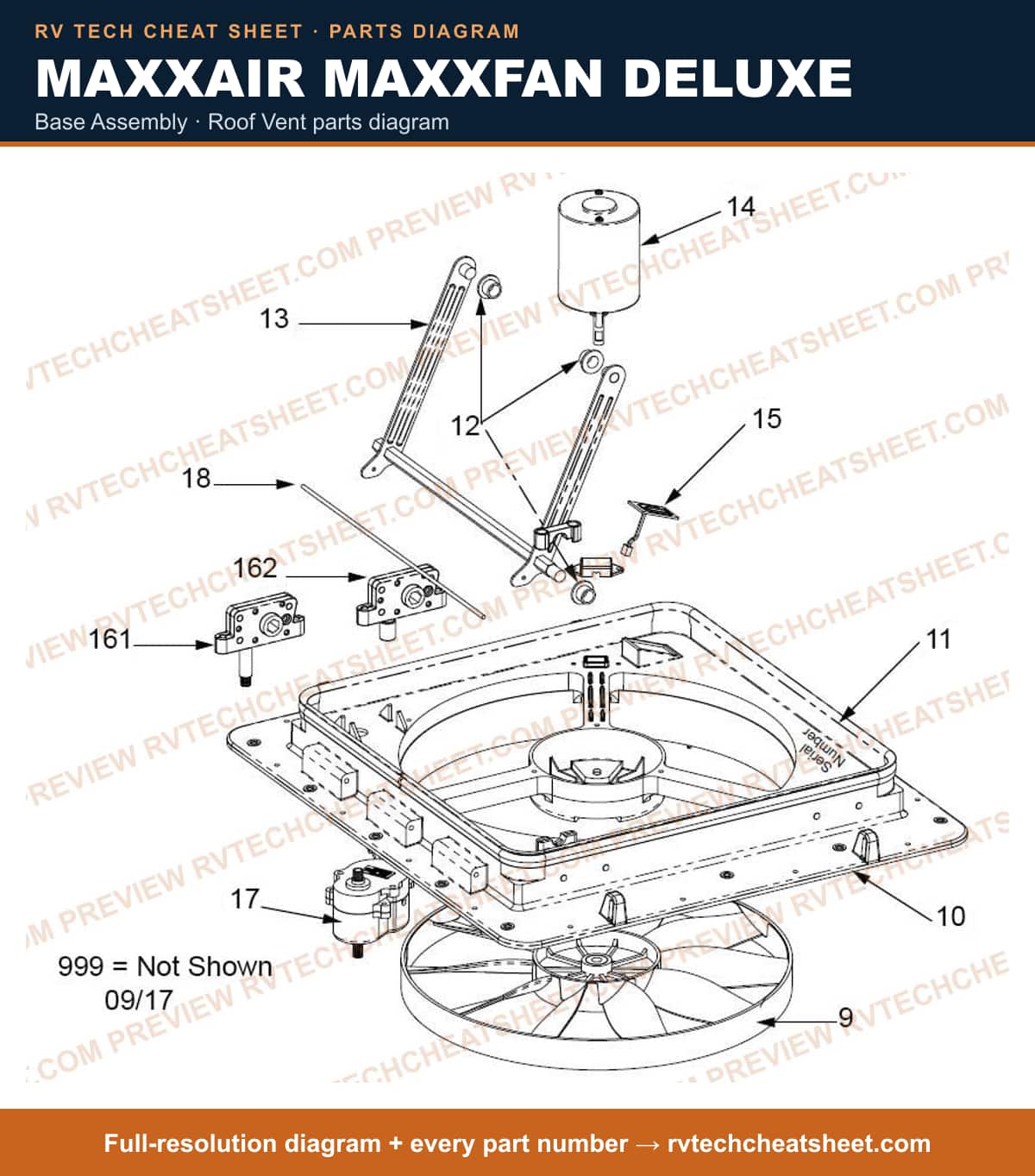

Base Assembly
MaxxAir Maxxfan Deluxe base assembly — exploded parts diagram Full-resolution diagram + every part number →
Components 11 items # VENTILATION RV; Fan Blade Pkg. MFR # 1020258KS # Base; Use With All MAXXFAN And MAXXFAN PLUS Model Roof Vents MFR # 10A40012K Superseded: see description # Rubber Seal; Use With All MAXXFAN And MAXXFAN PLUS Model Roof Vents MFR # 10-20233K Superseded: see description # BUSHING MFR # 1020287 # Roof Vent Lift Arm; For Use With Maxxfan/ Maxxfan Plus 4000K Through 4951K And Maxxfan Deluxe 5100K Through 8951K Roof Vent Models; Single Straight Arm (Hexagonal); Steel MFR # 1020222KS Superseded: see description # Roof Vent Motor; MaxxFan ®; Replacement For MaxxFan/ MaxxFan Plus/ MaxxFan Deluxe K Model Fans Manufactured After February 2012; 12 Volt DC MFR # 10-20968 # Roof Vent Rain Sensor Circuit Board; Replacement For Maxxair 4500K/ 4900K/ 4700N/ 4900N MFR # 10-40007K # Roof Vent Motor; For Use With Maxxfan ® 7000K To 8951K/ 4500K To 4900K Model Roof Vent; Lift Motor MFR # 1020270 Superseded: see description # APPLIANCE COMPONENTS RV; Lid Pin Hinge MFR # 10-40003K # Operator Mechanism; Manual Lift MFR # 10-20281K-3CF # Roof Vent Operator; Replacement Vent Operator For MAXXFAN Deluxe Keypad Models 5100K/ 8951K; Automatic Lift MFR # 020281K1AF

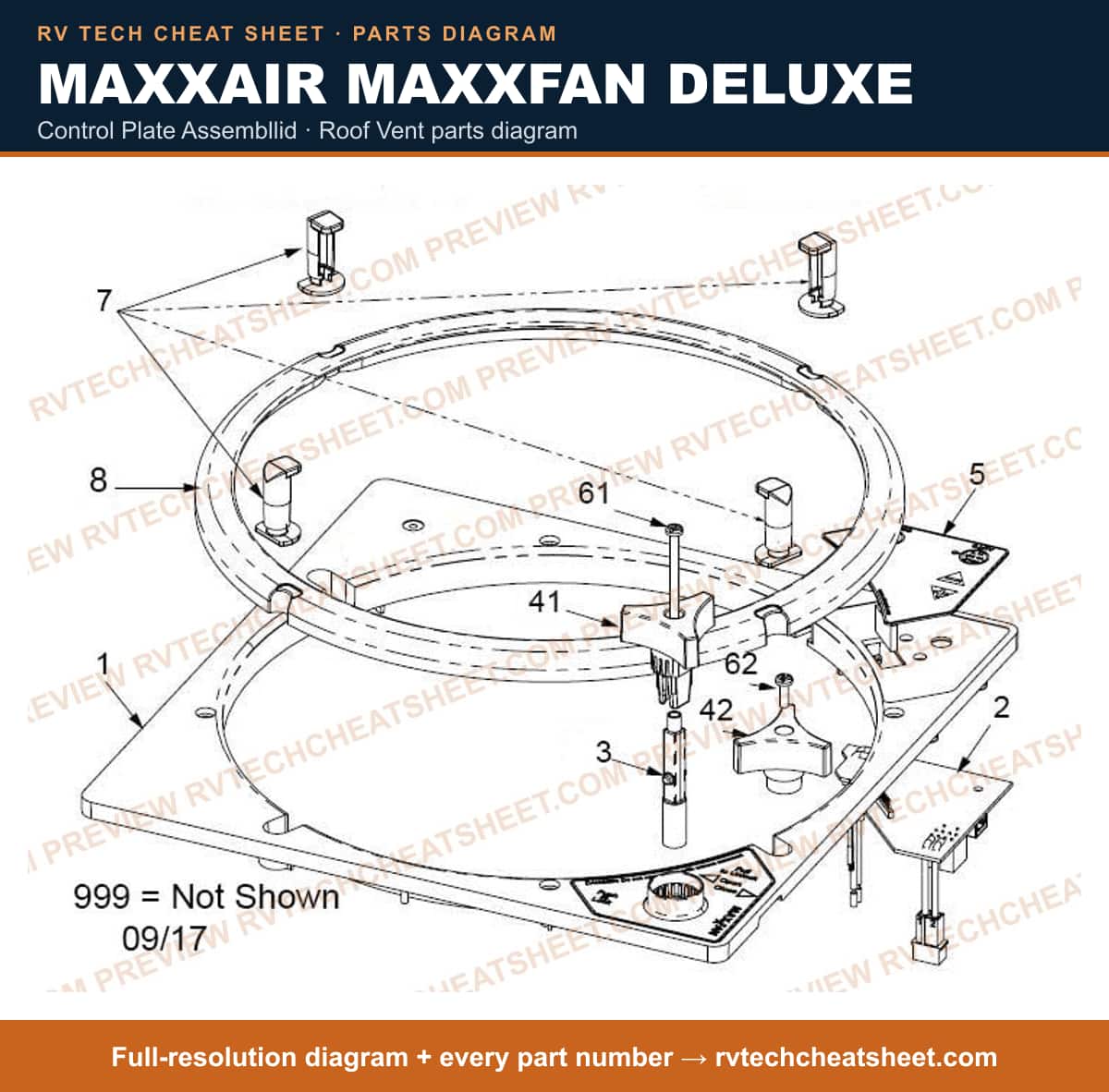

Control Plate Assembllid
MaxxAir Maxxfan Deluxe control plate assembllid — exploded parts diagram Full-resolution diagram + every part number →
Components 25 items # Roof Vent Housing; Replacement For MaxxFan/ MaxxFan Plus/ MaxxFan Deluxe Models; Control Plate MFR # 05-20226K # Roof Vent Control Circuit Board; For Use With MaxxFan Plus 4751KS/ 4761KS/ 4951KS Roof Vents; Circuit Board With Wiring MFR # 10C04751KS Superseded: see description # Roof Vent Control Circuit Board; For Use With Maxxair 8751K/ 8951K Roof Vents MFR # 10-04751K Superseded: see description # Printed Circuit Board MFR # 10-21276KE # Printed Circuit Board MFR # 10-21275KE # Printed Circuit Board MFR # 10-21275K-V3.9 # Roof Vent Control Circuit Board; For Use With MaxxFan Plus 4751KS/ 4761KS/ 4951KS Roof Vents; Circuit Board With Wiring; Also Use New Number 10C04751KS MFR # 10B04751KS Superseded: see description # Printed Circuit Board MFR # 10-21276K-V3.9 # Roof Vent Control Circuit Board; For Use With MaxxFan Plus 4751KS/ 4761KS/ 4951KS Roof Vents; Circuit Board With Wiring; Also Use New Number 10B04751KS MFR # 10A04751KS Superseded: see description # Printed Circuit Board MFR # 10-21275NZ # Roof Vent Control Circuit Board; Replacement For MaxxAir Roof Vent MFR # 10-04301K-V1.6 # Roof Vent Lift Arm Knob Shaft; Replacement For MAXXFAN ® Deluxe Key Pad Models 5100K/ 6201K MFR # 10-21232K # Roof Vent Control Circuit Board; Replacement Key Pad For MaxxAir 4301K/ 4401K Series Roof Vent MFR # 10-43010K # Roof Vent Control Circuit Board; For Use With MaxxFan Deluxe 5100K And 6200K Roof Vents; 8 Pin Keypad; With Fan On And Power Off/ Vent Lid Position/ Air Exhaust And Intake/ Fan Auto Mode And Thermostat Set Temperature MFR # 10-21299K Superseded: see description # Roof Vent Control Circuit Board; For Use With 7001K/ 7501K/ 8001K And 8501K Roof Vent Control Circuit Board; 8-Pin; Exhaust Keypad Only MFR # 10-21305K Superseded: see description # APPLIANCE COMPONENTS RV; Label Control Plate Wal MFR # 10-40209 # APPLIANCE COMPONENTS RV; Keypad - 8 Pin - Intake/E MFR # 10-21304K # APPLIANCE COMPONENTS RV; Keypad - 8 Pin - Exhaust MFR # 10-21300K # Keypad, Blank Label With IR MFR # 11-00001K # Roof Vent Screen Frame; Screen Finger/ Retainer Only For Frame; Replacement For MaxxFan Deluxe 5100K To 8951K/ 8700N/ 8900 N Models; Plastic MFR # 05-21233 # Roof Vent Screen; MaxxFan ®; Replacement For MaxxFan ® Deluxe 5100K Through 8951K/ 8700N/ 8900N Model Roof Vents; White MFR # 05-30925 # Roof Vent Lift Arm Knob; Replacement For Manual Opening MaxxFan/ MaxxFan Plus 4000K To 4001K And MaxxFan Deluxe 5100K To 6201K Models; White; Plastic MFR # 05-21236K # Roof Vent Lift Arm Knob; Replacement For Automatic/ Remote MaxxFan/ MaxxFan Plus 4500K To 4900K Models And MaxxFan Deluxe 7000K To 8951K/ 8700N/ 8900N Models; 3 Wing Knob; White MFR # 10-20223 # Roof Vent Screw; Replacement For Manual Opening MaxxFan/ MaxxFan Plus 4000K To 4001K Models And MaxxFan Deluxe 5100K To 6401K Models; Locking Knob Screw MFR # 10-21241K # APPLIANCE COMPONENTS RV; Screw 8-32 X 1/2 Phil P MFR # 10-20265K
Vent Frame Assembly
MaxxAir Maxxfan Deluxe vent frame assembly — exploded parts diagram Full-resolution diagram + every part number →
Components 11 items # VENTILATION RV; Fan Blade Pkg. MFR # 1020258KS # Vent Frame; Use With All MAXXFAN DELUXE Model Roof Vents MFR # 10-21217K Superseded: see description # APPLIANCE COMPONENTS RV; Vent Seal MFR # 10-20233 # BUSHING MFR # 1020287 # Roof Vent Lift Arm; For Use With Maxxfan/ Maxxfan Plus 4000K Through 4951K And Maxxfan Deluxe 5100K Through 8951K Roof Vent Models; Single Straight Arm (Hexagonal); Steel MFR # 1020222KS Superseded: see description # Roof Vent Motor; MaxxFan ®; Replacement For MaxxFan/ MaxxFan Plus/ MaxxFan Deluxe K Model Fans Manufactured After February 2012; 12 Volt DC MFR # 10-20968 # Lid Spring; Use With MAXXFAN DELUXE Model Roof Vents MFR # 10-20243K Superseded: see description # Roof Vent Lift Arm End Bushing; Replacement For Manual Opening MaxxFan/ MaxxFan Plus 4500K To 4900K Models And MaxxFan Deluxe 7000K To 8951K/ 8700N/ 8900K Models; Lift Motor Coupler MFR # 10-20277 # Roof Vent Motor; For Use With Maxxfan ® 7000K To 8951K/ 4500K To 4900K Model Roof Vent; Lift Motor MFR # 1020270 Superseded: see description # Operator Mechanism; Manual Lift MFR # 10-20281K-3CF # Roof Vent Operator; Replacement Vent Operator For MAXXFAN Deluxe Keypad Models 5100K/ 8951K; Automatic Lift MFR # 020281K1AF
