MaxxAir Maxxfan Dome Plus Parts Diagram · Replacement

Roof Vent · 2 assemblies · 5 diagram sheets · 13 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the MaxxAir Maxxfan Dome Plus roof vent fan: 2 assemblies (Replacement) and 13 manufacturer part numbers.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

Replacement

Components

2 items

1. #MAXXFAN DOME +6' FAN WHITE W/LED MFR # 0003810W
2. #MAXXFAN DOME+ 6' FAN BLACK MFR # 0003810B

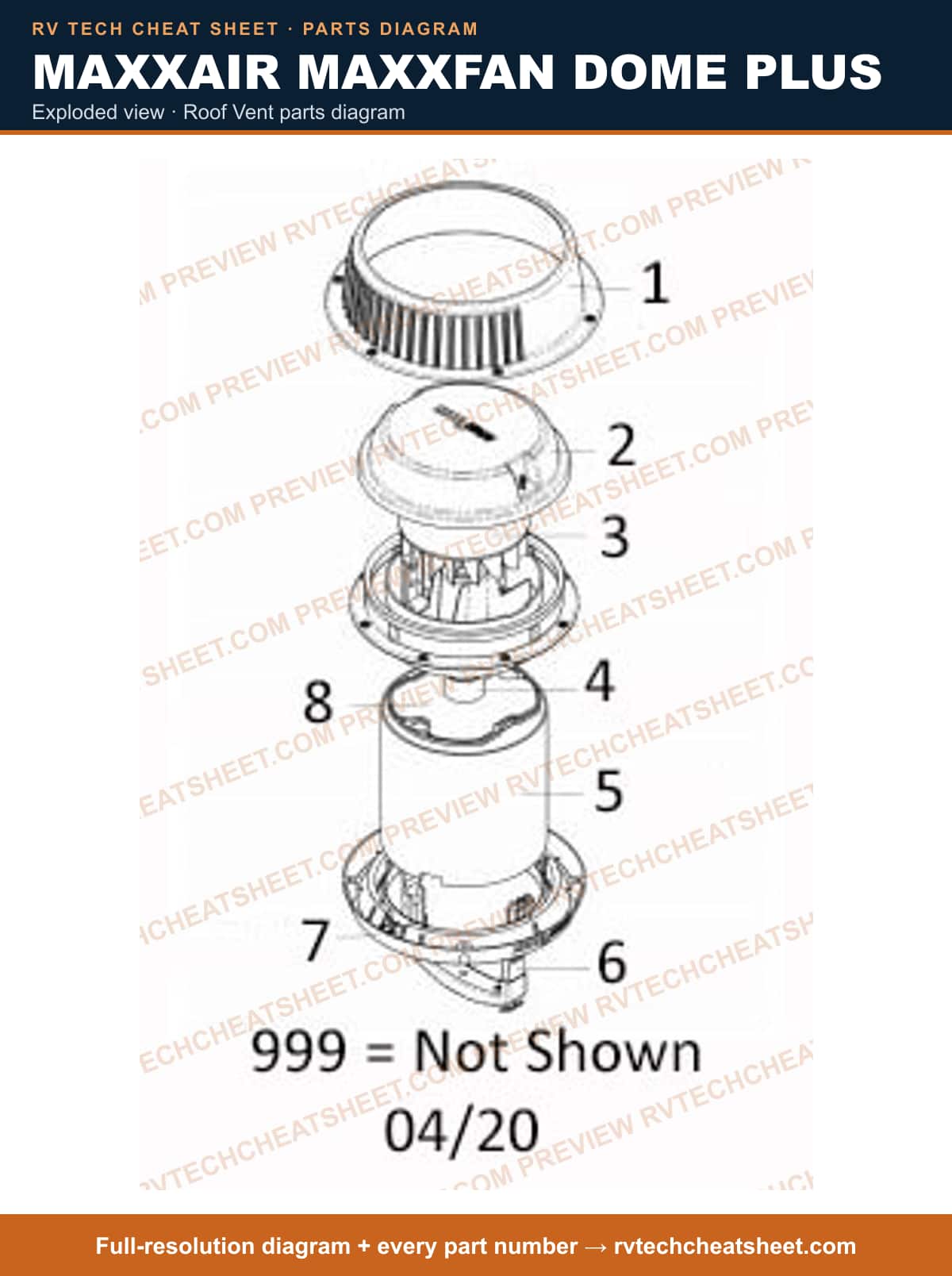

MaxxAir Maxxfan Dome Plus exploded view

Components

11 items

1. #A/C COMPONENTS RV; RAIN SHIELD WHT PKG MFR # 11-03846
2. #A/C COMPONENTS RV; RAIN SHIELD BLK PKG MFR # 11-03847
3. #VENT LIDS RV; LID BLACK PKG MFR # 11-03812
4. #VENT LIDS RV; LID WHITE PKG MFR # 11-03811
5. #APPLIANCE COMPONENTS RV; FAN BLADE PKG MFR # 11-03804
6. #FAN MOTOR MFR # 11-03817
7. #SLEEVE MFR # 11-03816
8. #Roof Vent Crank Handle; MAXXFAN DOME; Replacement For MaxxFan® Dome 3812B/ 3812W/ 3813B/ 3813W And MaxxFan® Dome Plus 3810B/ 3810W Roof Vent; Handle Assembly MFR # 05-03820
9. #GARNISH RING LED MFR # 05-03825
10. #APPLIANCE COMPONENTS RV; SCREEN FRAME PKG MFR # 05-03805
11. #APPLIANCE COMPONENTS RV; SMALL PARTS (LED) PKG MFR # 05-03810
