MaxxAir Maxxfan Mini Parts Diagram · Control Plate Assembly

Roof Vent · 5 assemblies · 14 diagram sheets · 24 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the MaxxAir Maxxfan Mini roof vent fan: 5 assemblies (Control Plate Assembly, Base Assembly, Exploded View, Maxxfan Mini, Smoke, Maxxfan Mini, White) and 24 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

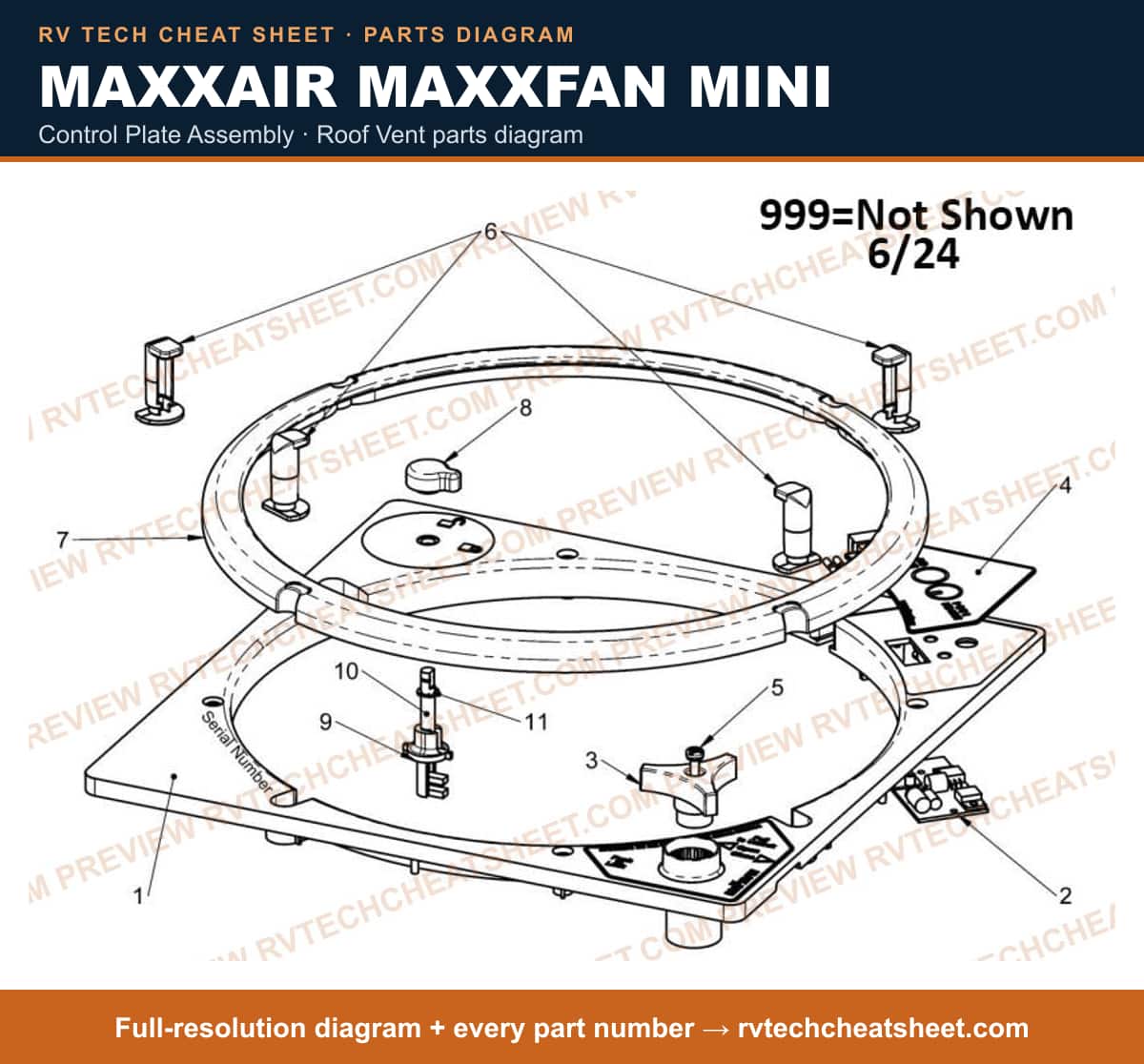

Control Plate Assembly

Components

11 items

1. #CONTROL PLATE ASSEMBLY MFR # 10-04060
2. #FULL PN 10B04301K MFR # 10B04301K
3. #NO GENERIC NAME; KNOB-THIN, 3 WING MFR # 10-04055
4. #Roof Vent Control Circuit Board; Replacement Key Pad For MaxxAir 4301K/ 4401K Series Roof Vent MFR # 10-43010K
5. #APPLIANCE COMPONENTS RV; Screw 8-32 X 1/2 Phil P MFR # 10-20265K
6. #Roof Vent Screen Frame; Screen Finger/ Retainer Only For Frame; Replacement For MaxxFan Deluxe 5100K To 8951K/ 8700N/ 8900 N Models; Plastic MFR # 05-21233
7. #Roof Vent Screen; MaxxFan ®; Replacement For MaxxFan ® Deluxe 5100K Through 8951K/ 8700N/ 8900N Model Roof Vents; White MFR # 05-30925
8. #KNOB, LID LOCK MFR # 10-04052
9. #LID LOCK PAWL MFR # 10-04054
10. #LID LOCK SHAFT MFR # 10-04053
11. #E-CLIP MFR # 10-04066

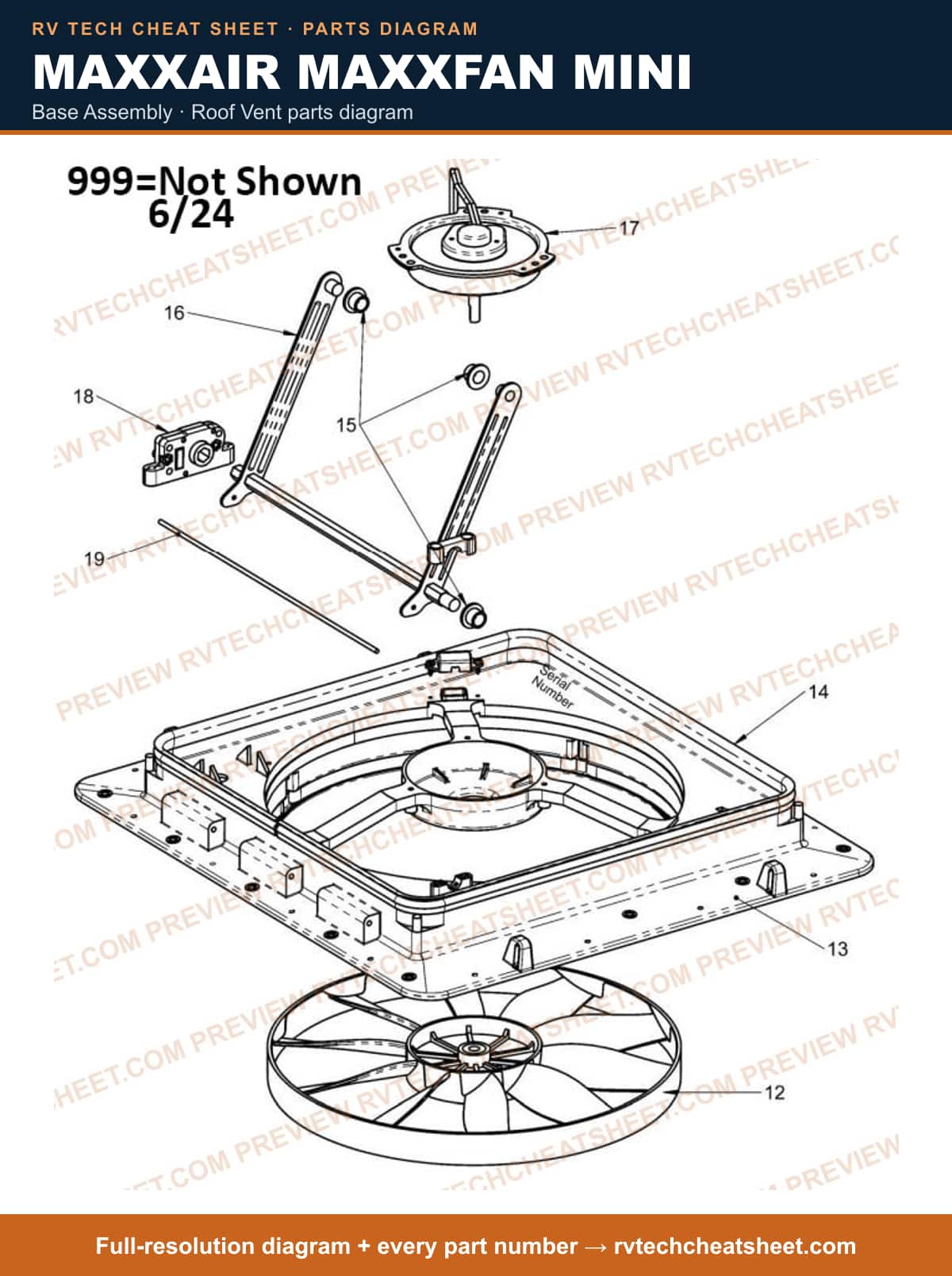

Base Assembly

Components

8 items

1. #FAN ACCESSORIES ELECTRIC; FAN BLADE PKG (LOW PROFILE) MFR # 11-00058
2. #BASE MFR # 11-04023
3. #APPLIANCE COMPONENTS RV; Vent Seal MFR # 10-20233
4. #Roof Vent Lift Arm End Bushing; MaxxFan ®; Replacement For MAXXFAN ® Deluxe Key Pad Models 5100K Through 8951K MFR # 10-20287
5. #Roof Vent Lift Arm; For Use With Maxxfan/ Maxxfan Plus 4000K Through 4951K And Maxxfan Deluxe 5100K Through 8951K Roof Vent Models; Single Straight Arm (Hexagonal); Steel MFR # 10-20222KS Superseded: see description
6. #FAN MOTOR MFR # 10-04024
7. #FAN ACCESSORIES ELECTRIC; MAXXFAN MINI OPERATOR MECHANISM MAN MFR # 10A04040
8. #APPLIANCE COMPONENTS RV; Lid Pin Hinge MFR # 10-40003K

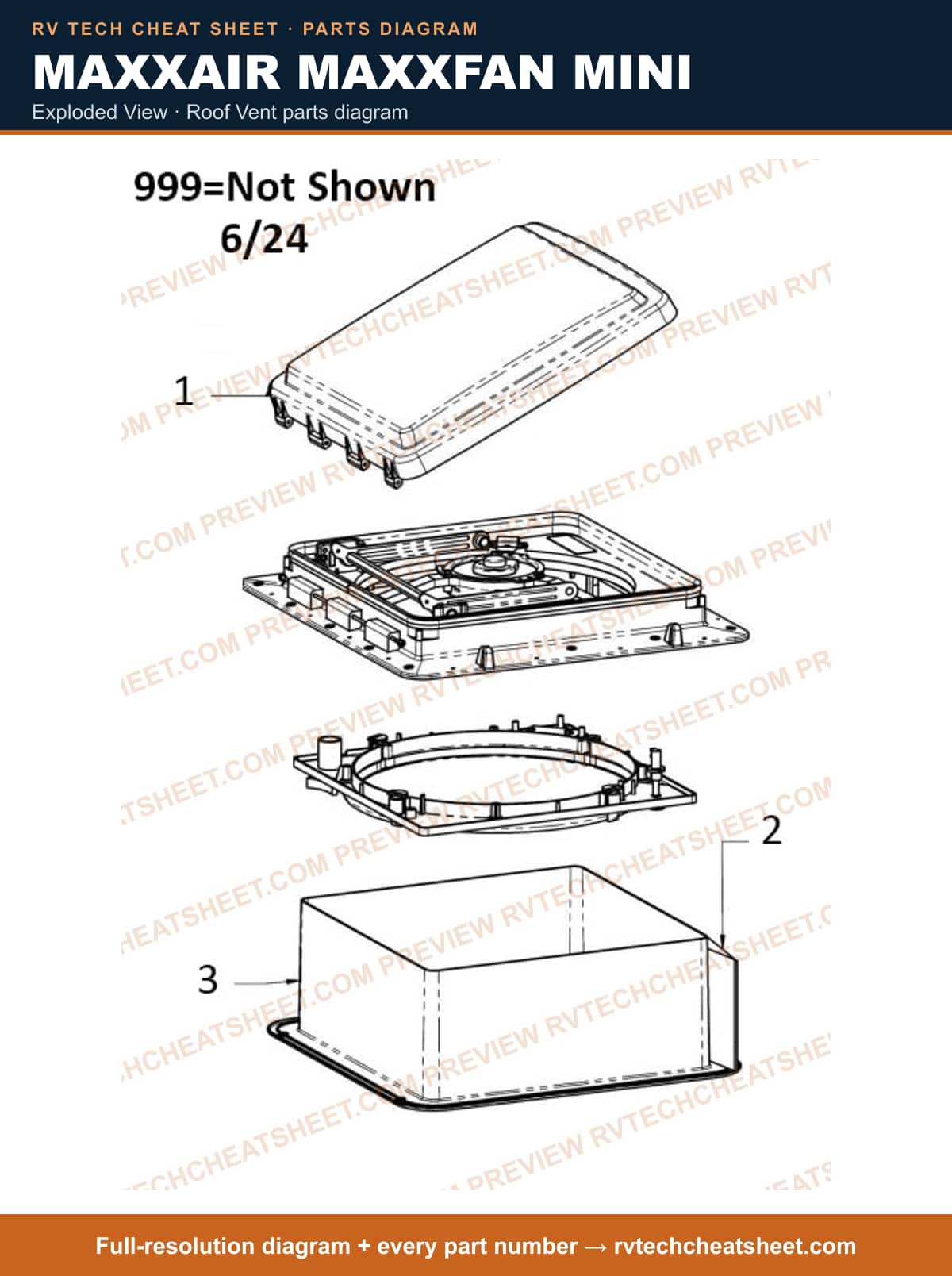

Exploded View

Components

3 items

1. #LID ASSEMBLY MFR # 05-04301
2. #APPLIANCE COMPONENTS RV; HARDWARE KIT MAXXFAN STA MFR # 11-00060
3. #Garnish Ring Interior; Use With MAXXFAN, MAXXFAN PLUS And MAXXFAN DELUXE Model Roof Vents; White MFR # 10-20211-5.3 Superseded: see description

Maxxfan Mini, Smoke

Components

1 item

1. #Roof Vent; MaxxFan® Mini; Manual Opening; For 1 Inch Thick Roofs; 4 Speed; Black MFR # 0004401M

Maxxfan Mini, White

Components

1 item

1. #Roof Vent; MaxxFan® Mini; Manual Opening; For 1 Inch Thick Roofs; 4 Speed; White MFR # 0004301M
