MaxxAir Maxxfan Mini Plus Parts Diagram · Exploded View

Roof Vent · 3 assemblies · 10 diagram sheets · 22 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the MaxxAir Maxxfan Mini Plus roof vent fan: 3 assemblies (Exploded View, Maxxfan Mini, White, Maxxfan Mini, Black) and 22 manufacturer part numbers.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

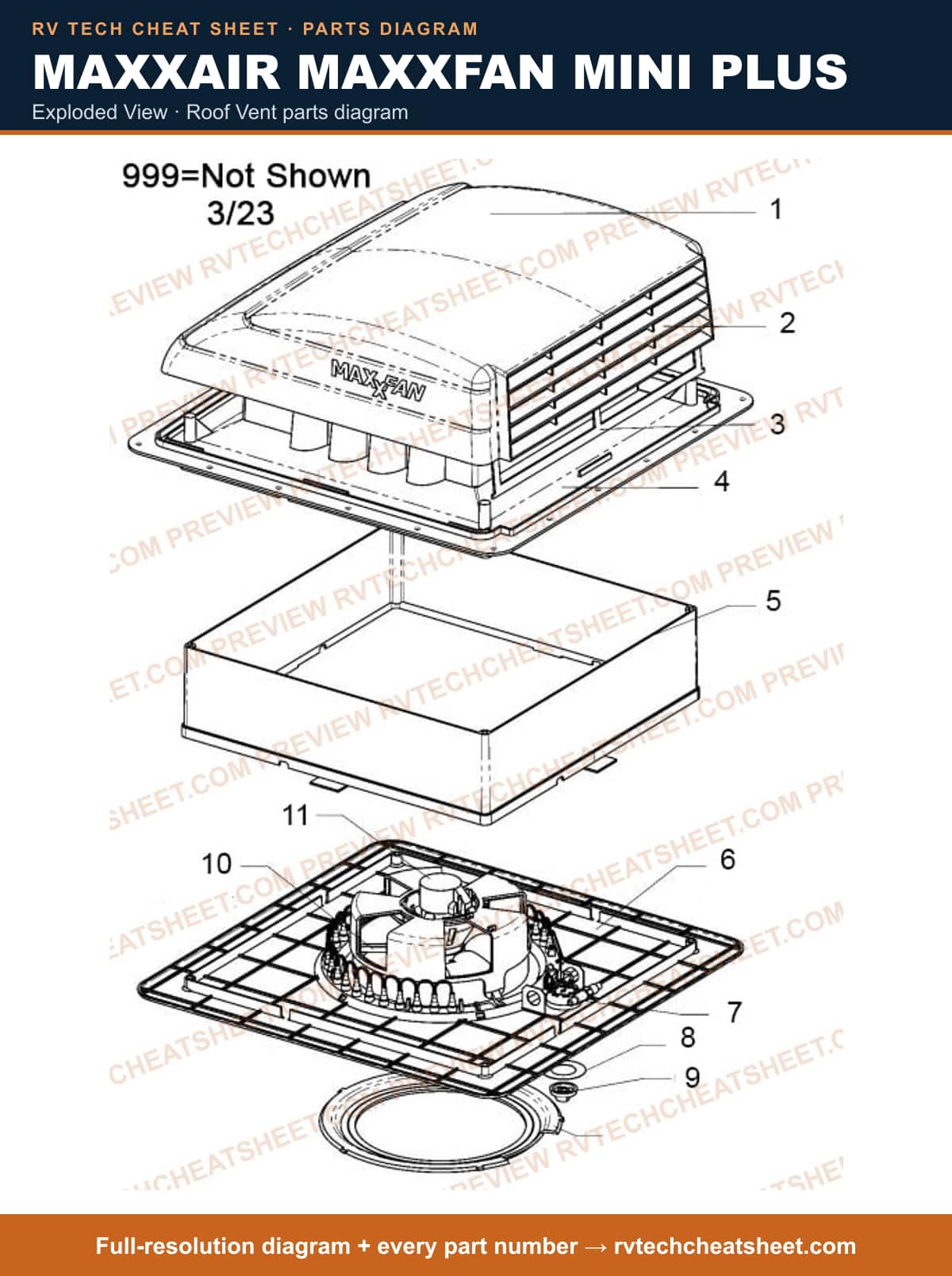

Exploded View

Components

20 items

1. #HOOD/ FILTER/ MOUNTING FLANGE; WHITE MFR # 05-03833
2. #HOOD; WHITE MFR # 10-03801Z
3. #FILTER MFR # 10-03809Z
4. #MOUNTING FLANGE MFR # 10-03803Z
5. #SLEEVE MFR # 00-03714-2.5
6. #SLEEVE MFR # 00-03714-2.0
7. #SLEEVE MFR # 00-03714-4.5
8. #VENTILATION RV; MINI VENT SLEEVE 3.5-4.0 MFR # 00-03714-3.5
9. #SLEEVE MFR # 00-03714-4.0
10. #ROOF VENT; 5" SLEEVE FOR MINI MFR # 00-03714-5.0
11. #SLEEVE MFR # 00-03714-3.0
12. #SLEEVE MFR # 00-03714-1.5
13. #INTERIOR PLATE ASSEMBLY MFR # 05-03809
14. #FUSE; FUSE 5A PKG MFR # 10-03816
15. #APPLIANCE COMPONENTS RV; DECAL PKG MFR # 10-03821
16. #APPLIANCE COMPONENTS RV; CONTROL KNOB PKG MFR # 10-03813
17. #FAN BLADE MFR # 10-03810Z
18. #MOTOR MFR # 10-03817Z
19. #APPLIANCE COMPONENTS RV; SMALL PARTS PKG MFR # 10-03823
20. #TOOLS & FASTENERS RV; MOUNT SCREW PKG MFR # 10-23201

Maxxfan Mini, White

Components

1 item

1. #Roof Vent; MaxxFan® Mini; Manual Opening; For 1 Inch Thick Roofs; 4 Speed; White MFR # 0004301M

Maxxfan Mini, Black

Components

1 item

1. #VENTILATION RV; MAXXAIR MINI VENT PLUS-BL MFR # 00003851
