MaxxAir Mini Vent Parts Diagram · Mini Vent, Black

Roof Vent · 2 assemblies · 4 diagram sheets · 22 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the MaxxAir Mini Vent roof vent fan: 2 assemblies (Mini Vent, Black, Mini Vent, White) and 22 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

Mini Vent, Black

Components

22 items

1. #Roof Vent; MAXXAIR® Mini Vent; Manual Opening; For 14 Inch x 14 Inch Opening; Fits 1 Inch To 4-1/2 Inch Roof Depth; With Screen; Without Fan; 10-1/2 Inch Vent Opening Diameter; White; With Installation Hardware MFR # 0003700
2. #ROOF VENT; BLACK; 14 INCH SIZE; PLASTIC BLADE MFR # 00-003851
3. #ROOF VENT; BLACK; ALSO USE NEW NUMBER 00-03750 MFR # 00-003750 Superseded: see description
4. #Roof Vent; MAXXAIR® Mini Vent; Manual Opening; For 14 Inch x 14 Inch Opening; Fits 1 Inch To 4-1/2 Inch Roof Depth; With Screen; Without Fan; 10-1/2 Inch Vent Opening Diameter; Black; With Installation Hardware MFR # 0003750
5. #MANUAL OPENING; 14 INCH X 14 INCH OPENING; WITH SCREEN/ FAN; WHITE; ALSO USE NEW NUMBER 00-03700 MFR # 00-003700 Superseded: see description
6. #VENTILATION RV; Maxxair Mini Vent-Blk MFR # 00003750
7. #HOOD/ FILTER/ MOUNTING FLANGE MFR # 05-03832
8. #HOOD/ FILTER/ MOUNTING FLANGE MFR # 05-03831
9. #HOOD; BLACK MFR # 10-03802Z
10. #HOOD; WHITE MFR # 10-03801Z
11. #FILTER MFR # 10-03809Z
12. #MOUNTING FLANGE MFR # 10-03803Z
13. #SLEEVE MFR # 00-03714-2.0
14. #SLEEVE MFR # 00-03714-4.5
15. #SLEEVE MFR # 00-03714-2.5
16. #VENTILATION RV; MINI VENT SLEEVE 3.5-4.0 MFR # 000371435
17. #SLEEVE MFR # 00-03714-3.0
18. #SLEEVE MFR # 00-03714-1.5
19. #SLEEVE MFR # 00-03714-4.0
20. #BAFFLE MFR # 10-03705Z
21. #Roof Vent Screen Frame; MAXXAIR® Mini Vent; Replacement For MaxxAir® Mini 00-03700/ 00-03750 Roof Vent; 14 Inch x 14 Inch; White; With Baffle MFR # 0503700
22. #VENTILATION RV; MINIVENT SCREEN WHT MFR # 1003706

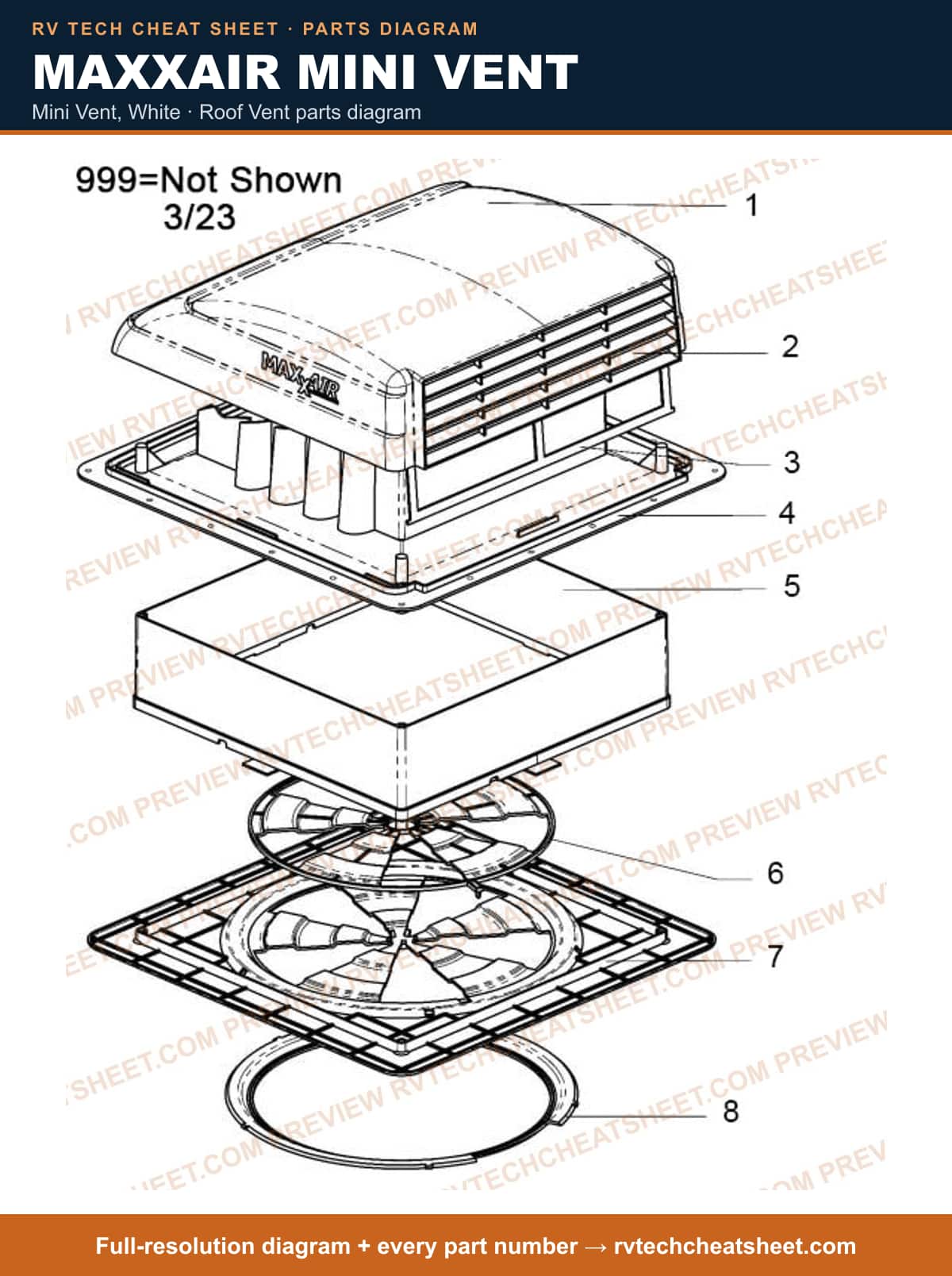

Mini Vent, White

Components

22 items

1. #VENTILATION RV; Maxxair Mini Vent-Blk MFR # 00003750
2. #MANUAL OPENING; 14 INCH X 14 INCH OPENING; WITH SCREEN/ FAN; WHITE; ALSO USE NEW NUMBER 00-03700 MFR # 00-003700 Superseded: see description
3. #Roof Vent; MAXXAIR® Mini Vent; Manual Opening; For 14 Inch x 14 Inch Opening; Fits 1 Inch To 4-1/2 Inch Roof Depth; With Screen; Without Fan; 10-1/2 Inch Vent Opening Diameter; Black; With Installation Hardware MFR # 0003750
4. #ROOF VENT; BLACK; ALSO USE NEW NUMBER 00-03750 MFR # 00-003750 Superseded: see description
5. #ROOF VENT; BLACK; 14 INCH SIZE; PLASTIC BLADE MFR # 00-003851
6. #Roof Vent; MAXXAIR® Mini Vent; Manual Opening; For 14 Inch x 14 Inch Opening; Fits 1 Inch To 4-1/2 Inch Roof Depth; With Screen; Without Fan; 10-1/2 Inch Vent Opening Diameter; White; With Installation Hardware MFR # 0003700
7. #HOOD/ FILTER/ MOUNTING FLANGE MFR # 05-03832
8. #HOOD/ FILTER/ MOUNTING FLANGE MFR # 05-03831
9. #HOOD; BLACK MFR # 10-03802Z
10. #HOOD; WHITE MFR # 10-03801Z
11. #FILTER MFR # 10-03809Z
12. #MOUNTING FLANGE MFR # 10-03803Z
13. #SLEEVE MFR # 00-03714-2.0
14. #SLEEVE MFR # 00-03714-4.0
15. #SLEEVE MFR # 00-03714-1.5
16. #VENTILATION RV; MINI VENT SLEEVE 3.5-4.0 MFR # 000371435
17. #SLEEVE MFR # 00-03714-2.5
18. #SLEEVE MFR # 00-03714-3.0
19. #SLEEVE MFR # 00-03714-4.5
20. #BAFFLE MFR # 10-03705Z
21. #Roof Vent Screen Frame; MAXXAIR® Mini Vent; Replacement For MaxxAir® Mini 00-03700/ 00-03750 Roof Vent; 14 Inch x 14 Inch; White; With Baffle MFR # 0503700
22. #VENTILATION RV; MINIVENT SCREEN WHT MFR # 1003706
