MaxxAir Mini Vent Deluxe Mini Vent Deluxe, Black Parts Diagram · Replacement

Roof Vent · 2 assemblies · 6 diagram sheets · 19 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the MaxxAir Mini Vent Deluxe Mini Vent Deluxe, Black roof vent fan: 2 assemblies (Replacement, Exploded View) and 19 manufacturer part numbers.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

Replacement

Components

1 item

1. #MINI VENT DELUXE LED BLACK MFR # 0003851

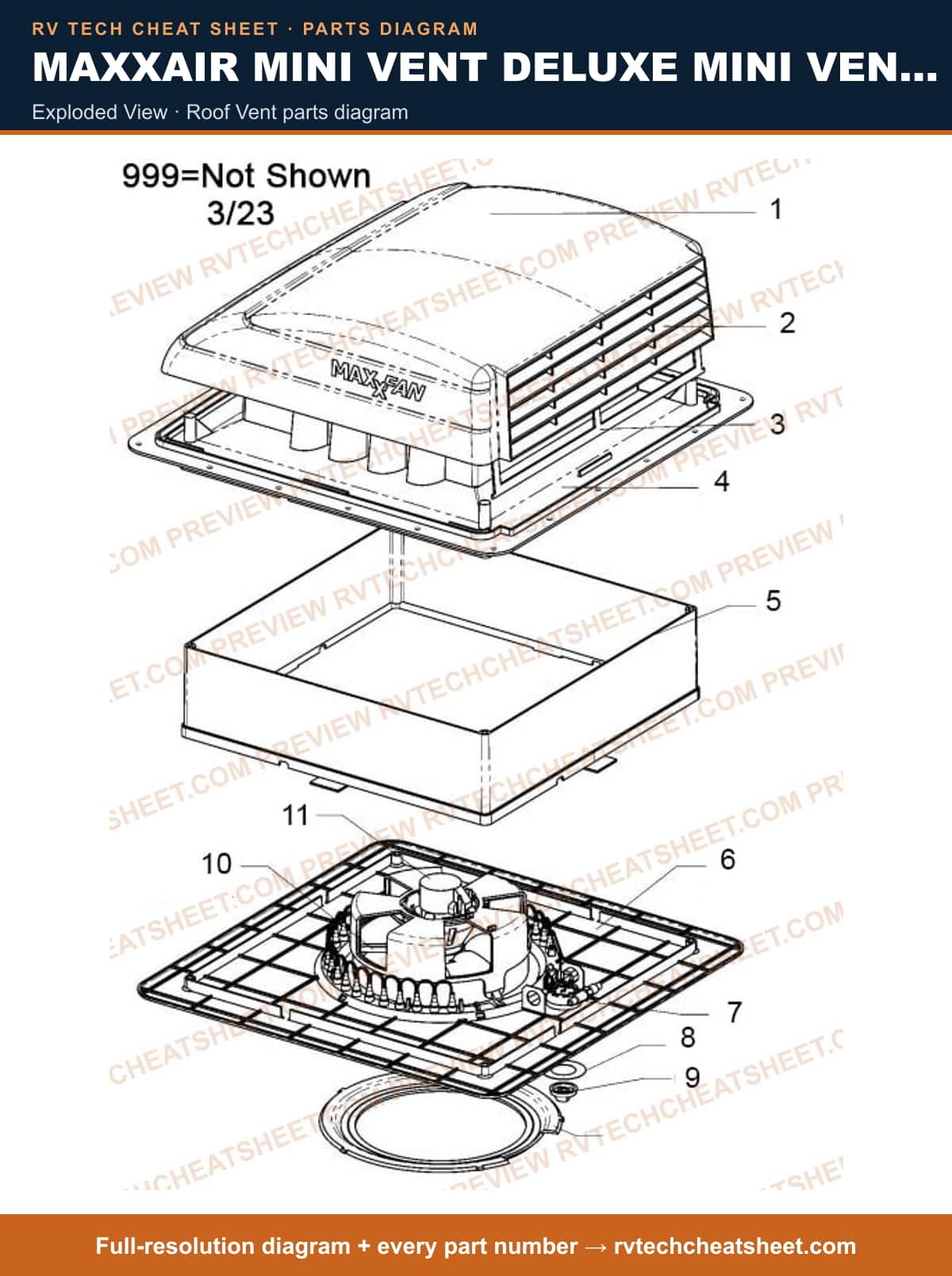

Exploded View

Components

18 items

1. #HOOD/ FILTER/ MOUNTING FLANGE; BLACK MFR # 05-03834
2. #HOOD; BLACK MFR # 10-03802Z
3. #FILTER MFR # 10-03809Z
4. #MOUNTING FLANGE MFR # 10-03803Z
5. #SLEEVE MFR # 00-03714-2.5
6. #SLEEVE MFR # 00-03714-2.0
7. #SLEEVE MFR # 00-03714-3.0
8. #ROOF VENT; 5" SLEEVE FOR MINI MFR # 000371450
9. #SLEEVE MFR # 00-03714-1.5
10. #VENTILATION RV; MINI VENT SLEEVE 3.5-4.0 MFR # 000371435
11. #SLEEVE MFR # 00-03714-4.5
12. #SLEEVE MFR # 00-03714-4.0
13. #INTERIOR PLATE ASSEMBLY MFR # 05-03809
14. #FUSE; FUSE 5A PKG MFR # 1003816
15. #APPLIANCE COMPONENTS RV; DECAL PKG MFR # 1003821
16. #VENTILATION RV; MINIVENT SCREEN CLEAR MFR # 1003808
17. #FAN BLADE MFR # 10-03810Z
18. #MOTOR MFR # 10-03817Z
