Ventline / Dexter Attic Fans V2246 Series Parts Diagram

Roof Vent · 3 diagram sheets · 18 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Attic Fans V2246 Series roof vent fan: 18 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

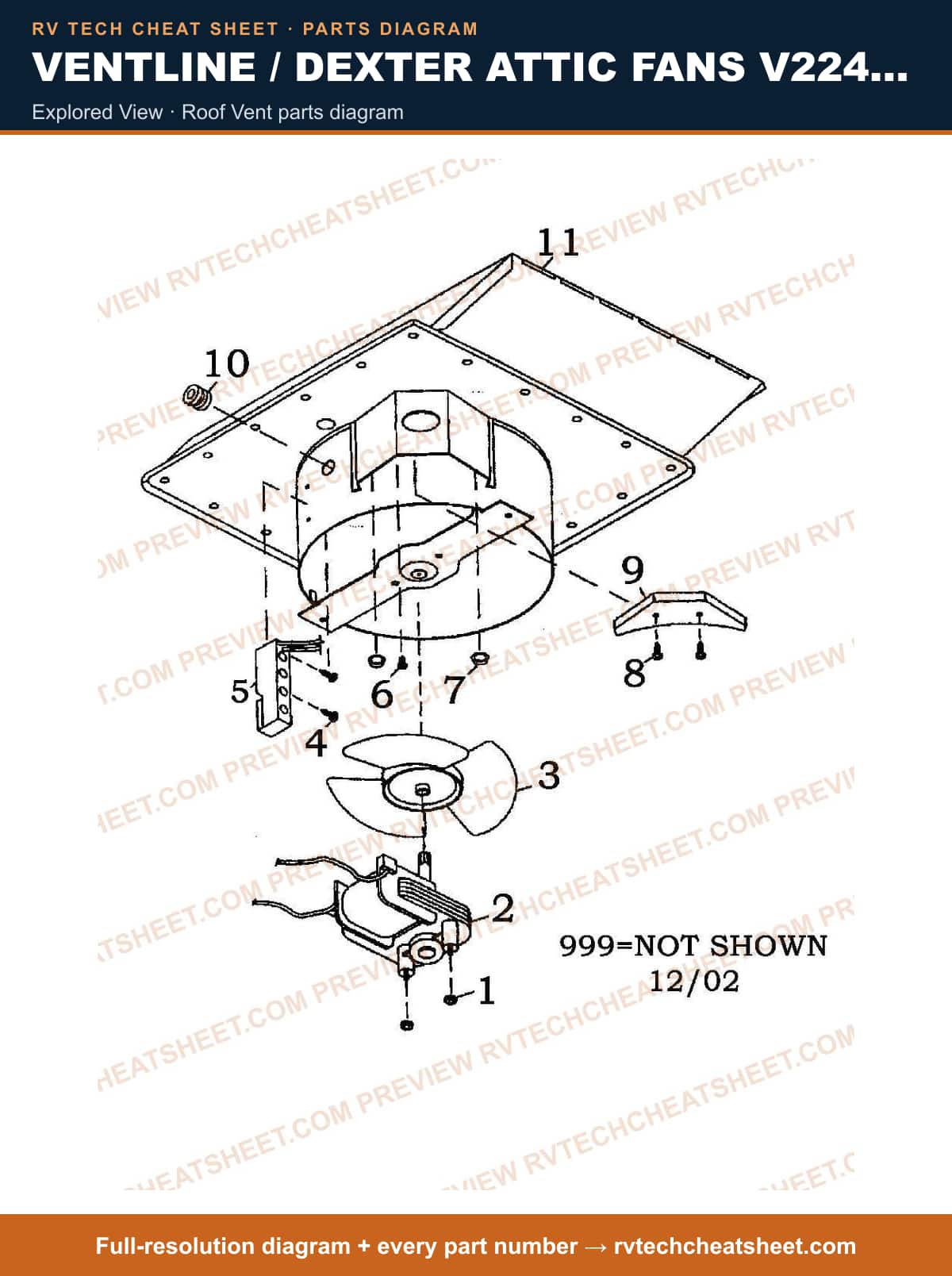

Explored View

Components

18 items

1. #Nut; For Ventline Stove Vent Hood Motor Mounting; #8-32 Inch Thread MFR # C015900
2. #Stove Vent Hood Fan Motor; For 2 Speed 100 CMF Stove Vent Hood; 110 Volt AC; CSA Listed MFR # BVD027800
3. #MOTOR,FAN USE 31-1765 For all 120V AC Range Hood Motors: The VD0278-00 2-Speed Motor has replaced all 120V AC Range Hood Motors used in the past such as CD0190-00, VD0275-0... MFR # CD019000 Superseded: see description
4. #VENTILATION RV; 110V Multi-Purpose Motor MFR # BVD027500
5. #Fan Blade; For Ventline 110 Volt 7 Inch Insert Fans; 6-1/2 Inch Diameter; Single MFR # BVA031200
6. #Fan Blade; For Ventline 12 Volt Standard Roof Ventadomes; Counter-Clockwise Rotation; 6 Inch Diameter x 1/8 Inch D Shaft; Single MFR # BVA016300
7. #SCREW,#6 X 7/16" MFR # VA021200
8. #HUMIDISTAT MFR # V029101
9. #Roof Vent Screw; Replacement For Ventline Stove Vent Hood Ground Screw; #8-32 Thread x 5/16 Inch MFR # C012000
10. #COLLAR,PLASTIC MFR # V048102
11. #SHEET METAL SCREW - #8 x ? MFR # C011900
12. #COVER,JUNCTION BOX MFR # V013601
13. #GROMMET MFR # V013800
14. #FLANGE ASM,BLACK MFR # VB050343
15. #FLANGE ASM,WHITE MFR # VB050346
16. #FLANGE ASM,MILL FINISH MFR # VB050302
17. #NO GENERIC NAME; Humidifan W/Humidistat MFR # V224646W
18. #Exhaust Fan; Use To Vent Attic; White; Plastic MFR # V224746 Superseded: see description
