Ventline / Dexter Bath Fans V2062 Series Parts Diagram

Roof Vent · 3 diagram sheets · 17 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Bath Fans V2062 Series roof vent fan: 17 manufacturer part numbers. 5 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

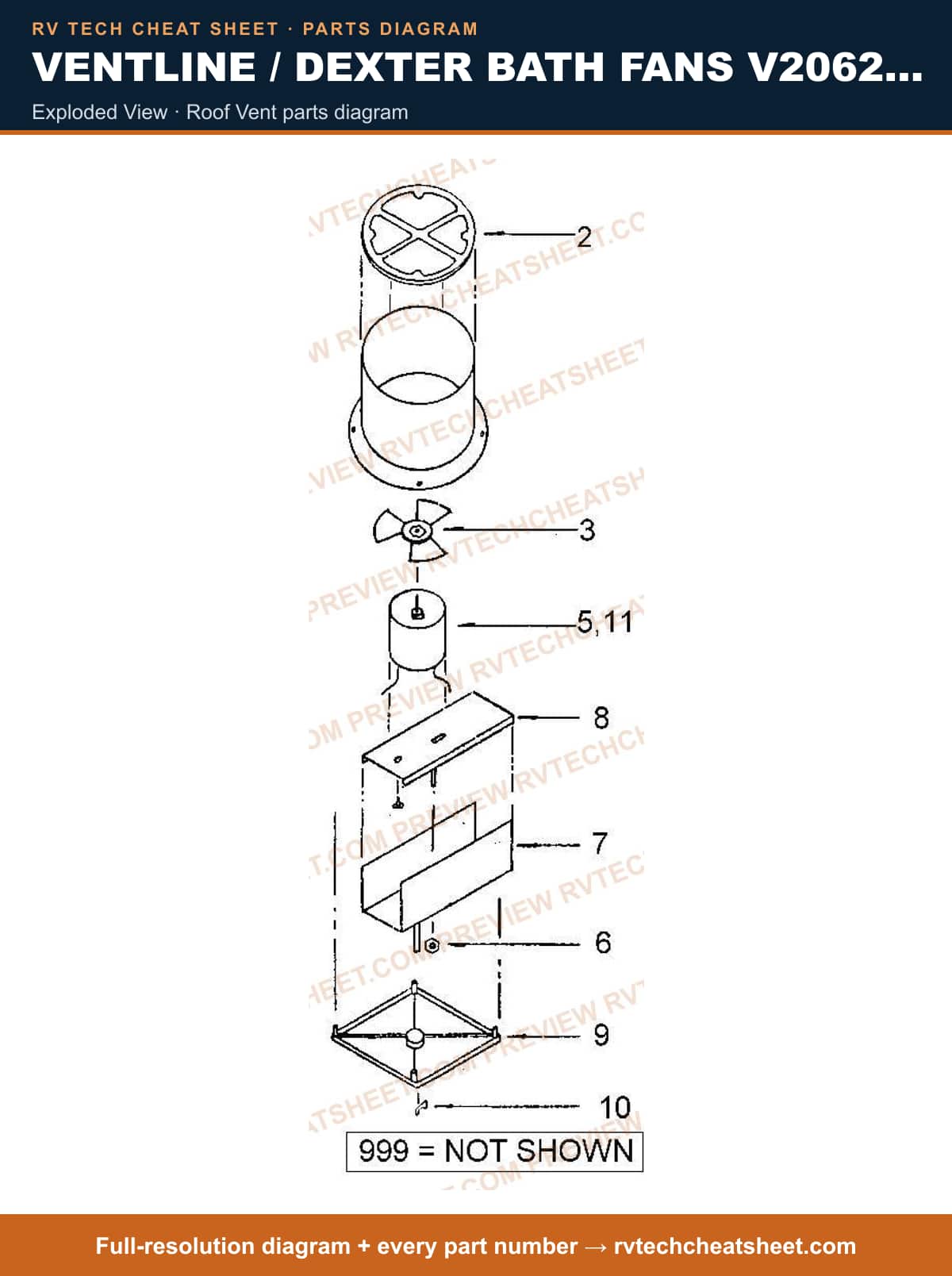

Exploded View

Components

17 items

1. #NO GENERIC NAME; Damper Asm For Pr Hoods MFR # V056900
2. #Fan Blade; For Ventline 110 Volt 7 Inch Insert Fans; 6-1/2 Inch Diameter; Single MFR # BVA031200
3. #Fan Blade; For Ventline 12 Volt Standard Roof Ventadomes; Counter-Clockwise Rotation; 6 Inch Diameter x 1/8 Inch D Shaft; Single MFR # BVA016300
4. #Stove Vent Hood Fan Motor; For 2 Speed 100 CMF Stove Vent Hood; 110 Volt AC; CSA Listed MFR # BVD027800
5. #MOTOR,115V USE CD018800 (V2025) MFR # CA36100 Superseded: see description
6. #VENTILATION RV; 110V Multi-Purpose Motor MFR # BVD027500
7. #MOTOR,FAN USE 31-1765 For all 120V AC Range Hood Motors: The VD0278-00 2-Speed Motor has replaced all 120V AC Range Hood Motors used in the past such as CD0190-00, VD0275-0... MFR # CD019000 Superseded: see description
8. #MOTOR,115V USE CD019000 MFR # CD018800 Superseded: see description
9. #Nut; For Ventline Stove Vent Hood Motor Mounting; #8-32 Inch Thread MFR # C015900
10. #NO GENERIC NAME; Cover Junction Box Assy. MFR # VA509
11. #BRACKET,MOTOR MFR # VA050400
12. #BRACKET,MOTOR USE VA050400 V2101 MFR # VA5041 Superseded: see description
13. #GRILLE USE VB542 MFR # VA506 Superseded: see description
14. #GRILLE & COVER MFR # VB542
15. #NUT,WING F/V2062 MFR # V47500
16. #Exhaust Fan Damper; For Bathroom Exhaust Fan Part Number V2065; With Retainer MFR # VA024500
17. #VENTILATION RV; Motor 220 Volt MFR # VA027700
