Diagrams › Ventline / Dexter › Bath Fans V2064 Series Ventline / Dexter Bath Fans V2064 Series Parts Diagram
Roof Vent · 3 diagram sheets · 18 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Ventline / Dexter Bath Fans V2064 Series roof vent fan: 18 manufacturer part numbers. 6 parts are marked as superseded — the description gives the replacement number to order instead.
Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.
Exploded View
Ventline / Dexter Bath Fans V2064 Series exploded view — parts list sheet 1 of 3 Full-resolution diagram + every part number →

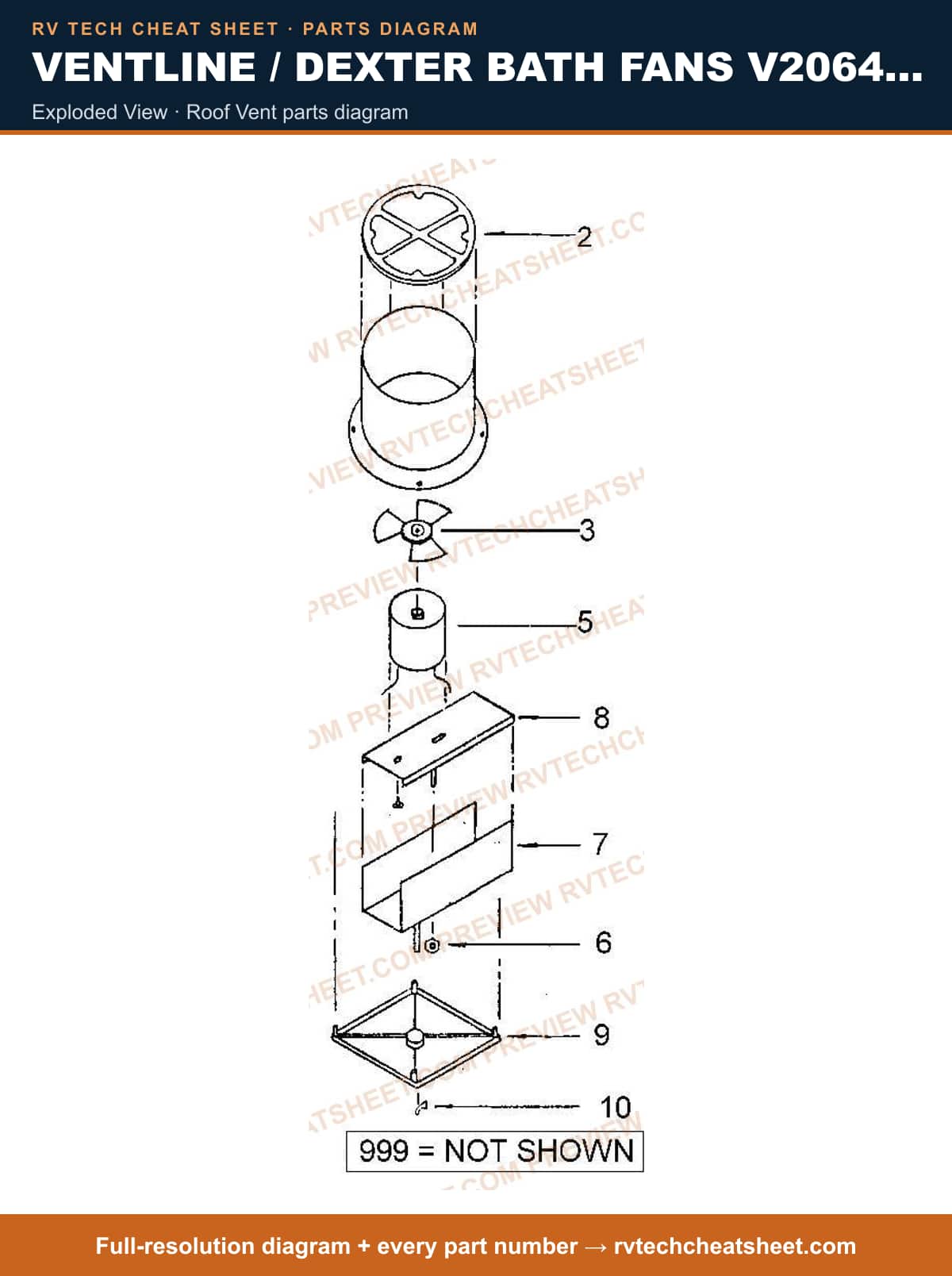

Ventline / Dexter Bath Fans V2064 Series exploded view — parts list sheet 2 of 3 Full-resolution diagram + every part number →
Ventline / Dexter Bath Fans V2064 Series exploded view — parts list sheet 3 of 3 Full-resolution diagram + every part number →
Components 18 items # NO GENERIC NAME; Damper Asm For Pr Hoods MFR # V056900 # Fan Blade; For Ventline 12 Volt Standard Roof Ventadomes; Counter-Clockwise Rotation; 6 Inch Diameter x 1/8 Inch D Shaft; Single MFR # BVA016300 # Fan Blade; For Ventline 110 Volt 7 Inch Insert Fans; 6-1/2 Inch Diameter; Single MFR # BVA031200 # MOTOR,12V USE BVC046802 MFR # VC046802 Superseded: see description # Roof Vent Motor; Replacement For Vanair V2094/ V2119/ VP-543; 13.6 Volt DC; With Motor/ Motor Lead Wires/ Screws; Single MFR # BVD021800 # MOTOR,12V USE VC046802 VANAIR ROOF VENT MFR # VA016402 Superseded: see description # MOTOR,12 VOLT VENT MFR # BVC046802 # MOTOR,12V USE BVC046801 MOTOR & FAN BLADE CHANGE AS OF 2-15-10 IF YOU HAVE A VA0164 MOTOR, IT IS NOW REPLACED BY THE BVD0218-00 MOTOR KIT. THIS CHANGE WILL REQUIRE A NE... MFR # VA016401 Superseded: see description # MOTOR - 12V USE 31-1935 BEFORE ORDERING: PLEASE VERIFY # STAMPED ON OLD MOTOR BEFORE ORDERING REPLACEMENT. IF ORIGINAL MOTOR HAS # VD021800 ON IT USE PART# BVD021800. IF ORI... MFR # BVC046801 Superseded: see description # Nut; For Ventline Stove Vent Hood Motor Mounting; #8-32 Inch Thread MFR # C015900 # NO GENERIC NAME; Cover Junction Box Assy. MFR # VA509 # BRACKET,MOTOR USE VA050400 V2101 MFR # VA5041 Superseded: see description # BRACKET,MOTOR MFR # VA050400 # GRILLE & COVER MFR # VB542 # GRILLE USE VB542 MFR # VA506 Superseded: see description # NUT,WING F/V2062 MFR # V47500 # VENTILATION RV; Motor 220 Volt MFR # VA027700 # Exhaust Fan Damper; For Bathroom Exhaust Fan Part Number V2065; With Retainer MFR # VA024500
