Ventline / Dexter Bath Fans V2065 Series Parts Diagram

Roof Vent · 3 diagram sheets · 18 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Bath Fans V2065 Series roof vent fan: 18 manufacturer part numbers. 6 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

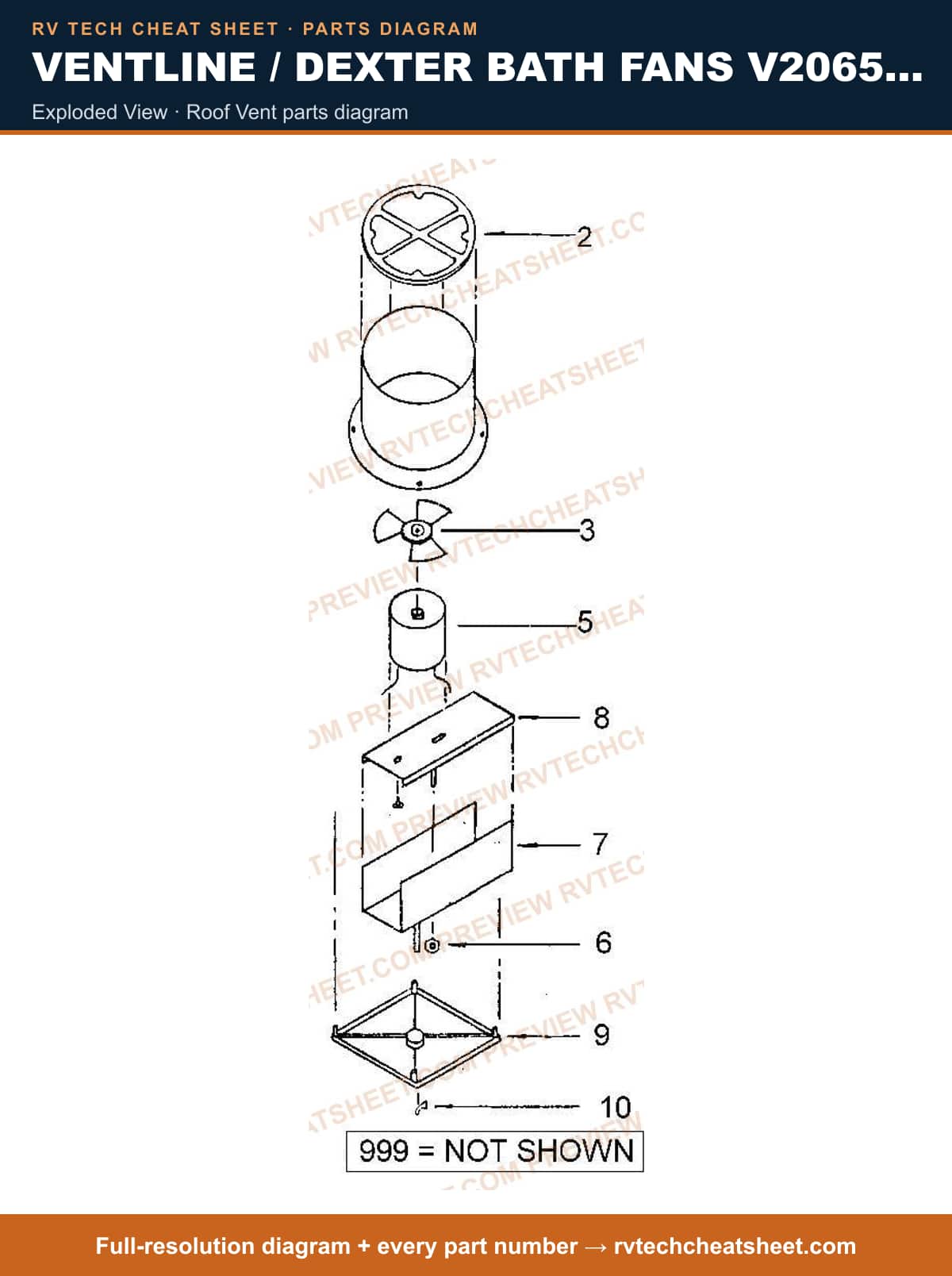

Exploded View

Components

18 items

1. #Exhaust Fan Damper; For Bathroom Exhaust Fan Part Number V2065; With Retainer MFR # VA024500
2. #Fan Blade; For Ventline 110 Volt 7 Inch Insert Fans; 6-1/2 Inch Diameter; Single MFR # BVA031200
3. #Fan Blade; For Ventline 12 Volt Standard Roof Ventadomes; Counter-Clockwise Rotation; 6 Inch Diameter x 1/8 Inch D Shaft; Single MFR # BVA016300
4. #Roof Vent Motor; Replacement For Vanair V2094/ V2119/ VP-543; 13.6 Volt DC; With Motor/ Motor Lead Wires/ Screws; Single MFR # BVD021800
5. #MOTOR,12V USE BVC046801 MOTOR & FAN BLADE CHANGE AS OF 2-15-10 IF YOU HAVE A VA0164 MOTOR, IT IS NOW REPLACED BY THE BVD0218-00 MOTOR KIT. THIS CHANGE WILL REQUIRE A NE... MFR # VA016401 Superseded: see description
6. #MOTOR - 12V USE 31-1935 BEFORE ORDERING: PLEASE VERIFY # STAMPED ON OLD MOTOR BEFORE ORDERING REPLACEMENT. IF ORIGINAL MOTOR HAS # VD021800 ON IT USE PART# BVD021800. IF ORI... MFR # BVC046801 Superseded: see description
7. #MOTOR,12V USE VC046802 VANAIR ROOF VENT MFR # VA016402 Superseded: see description
8. #VENTILATION RV; Motor 220 Volt MFR # VA027700
9. #Nut; For Ventline Stove Vent Hood Motor Mounting; #8-32 Inch Thread MFR # C015900
10. #NO GENERIC NAME; Cover Junction Box Assy. MFR # VA050900
11. #MOTOR BRACKET (V2062) MFR # VA050401
12. #GRILL & PLUG (V2062, V2064, V2065) MFR # VA050600
13. #NUT,WING F/V2062 MFR # V47500
14. #MOTOR,FAN USE 31-1765 For all 120V AC Range Hood Motors: The VD0278-00 2-Speed Motor has replaced all 120V AC Range Hood Motors used in the past such as CD0190-00, VD0275-0... MFR # CD019000 Superseded: see description
15. #Stove Vent Hood Fan Motor; For 2 Speed 100 CMF Stove Vent Hood; 110 Volt AC; CSA Listed MFR # BVD027800
16. #MOTOR,115V USE CD019000 MFR # CD018800 Superseded: see description
17. #VENTILATION RV; 110V Multi-Purpose Motor MFR # BVD027500
18. #MOTOR USE CD019000 MFR # CD19000 Superseded: see description
