Ventline / Dexter Bath Fans V2244 Series Parts Diagram

Roof Vent · 3 diagram sheets · 19 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Bath Fans V2244 Series roof vent fan: 19 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

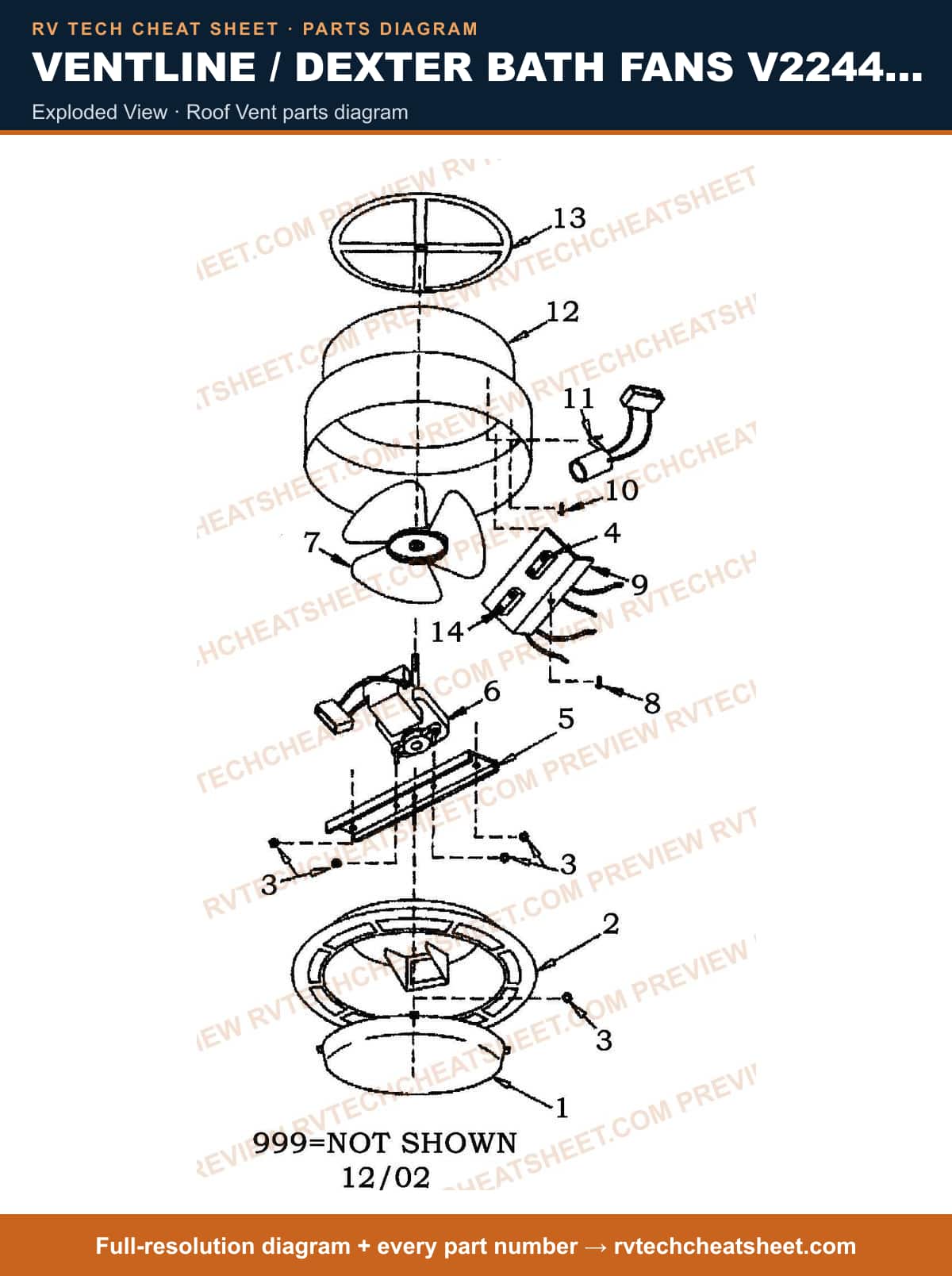

Exploded View

Components

19 items

1. #Exhaust Fan Light Lens; Replacement Lens For Ventline Exhaust Fan Light Part Number V2244; 7 Inch Diameter x 2-1/4 Inch Height; White MFR # VC013300
2. #Exhaust Fan Light Reflector; For Ventline Bathroom Exhaust Fan Light V2244; White MFR # VB050501
3. #Nut; For Ventline Stove Vent Hood Motor Mounting; #8-32 Inch Thread MFR # C015900
4. #RECEPTACLE,LAMP PIGTAIL MFR # L754100
5. #NO GENERIC NAME; Bracket Motor MFR # V059900
6. #Roof Vent Motor; Replacement For Ventline Bathroom Fan V2262-100/ V2244-100; 110 Volt AC; 100 CFM; Single MFR # CD031400
7. #Roof Vent Motor; Replacement For Ventline V2262-50/ V2244-50; 110 Volt AC; 50 CFM MFR # CD038800
8. #Roof Vent Motor; Replacement For Ventline V2262-75/ V2244-75/ V2215 Sidewall Fan; 110 Volt AC; 75 CFM; Single MFR # CD0390
9. #Fan Blade; For Ventline 12 Volt Standard Roof Ventadomes; Counter-Clockwise Rotation; 6 Inch Diameter x 1/8 Inch D Shaft; Single MFR # BVA016300
10. #Fan Blade; For Ventline 110 Volt 7 Inch Insert Fans; 6-1/2 Inch Diameter; Single MFR # BVA031200
11. #SHEET METAL SCREW - #8 x ? MFR # C011900
12. #JUNCTION BOX COVER MFR # VA018500
13. #Roof Vent Screw; Replacement For Ventline Stove Vent Hood Ground Screw; #8-32 Thread x 5/16 Inch MFR # C012000
14. #Exhaust Fan Light Socket; For Ventline Bathroom Exhaust Fan V2244 MFR # VB053200
15. #PIPE ASM,MOTOR MFR # V057100
16. #NO GENERIC NAME; Damper Asm For Pr Hoods MFR # V056900
17. #RECEPTACLE,MOTOR PIGTAIL MFR # L7626
18. #Exhaust Fan; Use To Vent Bathroom; 50 CFM; 7 Inch Diameter Round; 115 Volt AC; With Light; Straight Duct Connection; Plastic; With Mounting Hardware MFR # V2244 Superseded: see description
19. #Exhaust Fan; Use To Vent Bathroom; 100 CFM; 7 Inch Diameter Round; 115 Volt AC; With Light; Straight Duct Connection; Plastic; With Mounting Hardware MFR # V2244100 Superseded: see description
