Ventline / Dexter Bath Fans V2262 Series Parts Diagram

Roof Vent · 3 diagram sheets · 14 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Bath Fans V2262 Series roof vent fan: 14 manufacturer part numbers.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

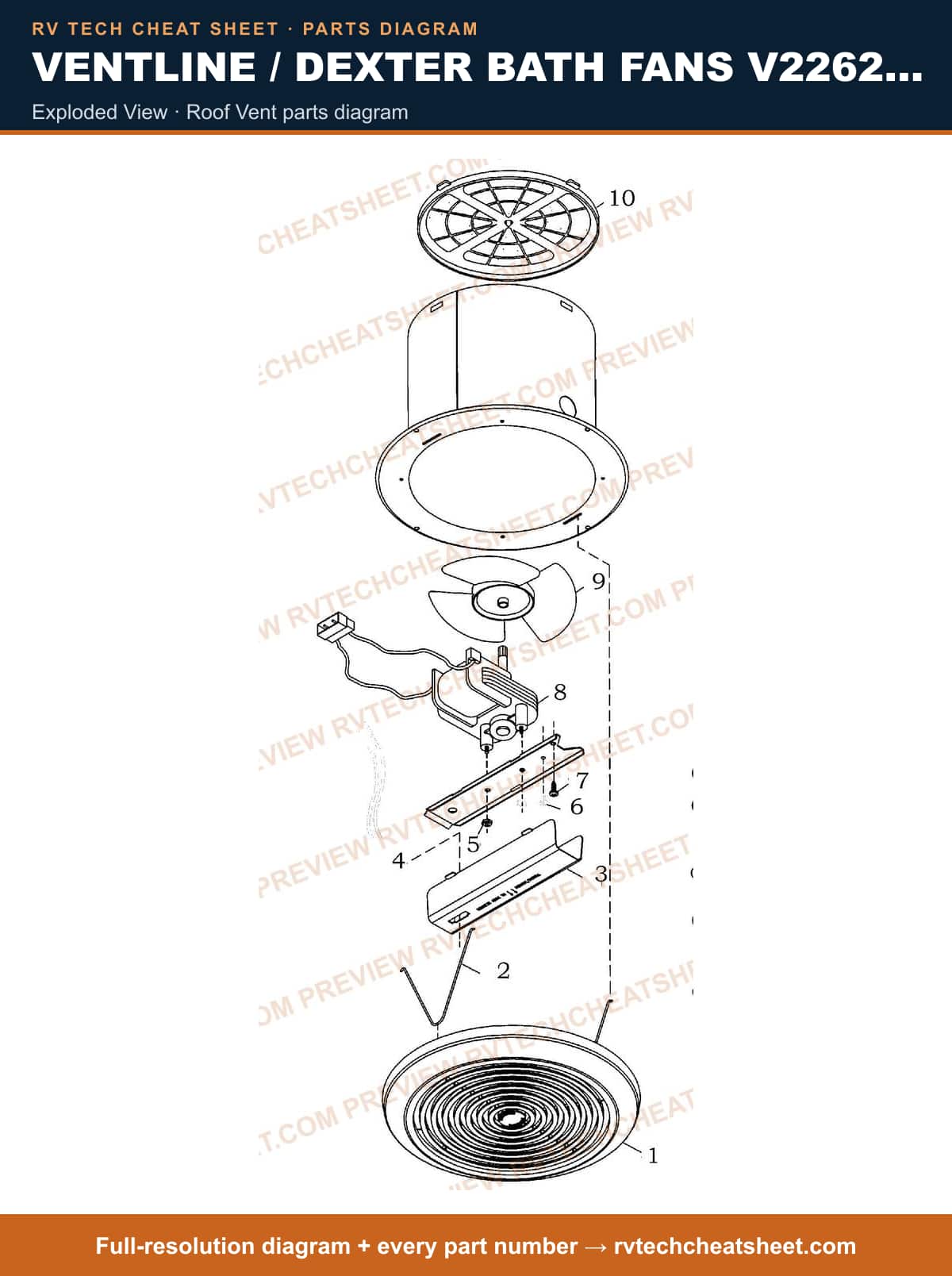

Exploded View

Components

14 items

1. #GRILLE,FAN MFR # VC032500
2. #SPING,WIRE MFR # VC031800
3. #COVER,JUNCTION BOX MFR # VC014100
4. #MOTOR,PLUG RECEPTACLE MFR # L762600
5. #Nut; For Ventline Stove Vent Hood Motor Mounting; #8-32 Inch Thread MFR # C015900
6. #Roof Vent Screw; Replacement For Ventline Stove Vent Hood Ground Screw; #8-32 Thread x 5/16 Inch MFR # C012000
7. #Roof Vent Screw; Replacement For Ventline Roof Vent Screen Frame Screw; Fits Ventline V2092/ V2094/ V2110/ V2119/ V2128; #8-18 Thread x 5/8 Inch MFR # VA026200
8. #Roof Vent Motor; Replacement For Ventline V2262-50/ V2244-50; 110 Volt AC; 50 CFM MFR # CD038800
9. #MOTOR,FAN 115V 75 CFM MFR # CD039000
10. #Roof Vent Motor; Replacement For Ventline Bathroom Fan V2262-100/ V2244-100; 110 Volt AC; 100 CFM; Single MFR # CD031400
11. #Fan Blade; For Ventline 12 Volt Standard Roof Ventadomes; Counter-Clockwise Rotation; 6 Inch Diameter x 1/8 Inch D Shaft; Single MFR # BVA016300
12. #Fan Blade; For Ventline 110 Volt 7 Inch Insert Fans; 6-1/2 Inch Diameter; Single MFR # BVA031200
13. #Exhaust Fan Damper; For 50/ 75/ 100 CFM Bathroom Exhaust Fan; 7 Inch Diameter Round; Foam; With Retainer MFR # V056901
14. #FOAM DAMPER FOR V2262-90 MFR # V026902
