Ventline / Dexter Bath Fans V2280 Series Parts Diagram · Replacement

Roof Vent · 2 assemblies · 6 diagram sheets · 19 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Bath Fans V2280 Series roof vent fan: 2 assemblies (Replacement, Exploded View) and 19 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

Replacement

Components

2 items

1. #Exhaust Fan; Use To Vent Bathroom; 75 CFM; 3 Inch Diameter Round; 115 Volt AC; With Light; Side Exhaust; Plastic; With Mounting Hardware MFR # V228075 Superseded: see description
2. #Exhaust Fan; Use To Vent Bathroom; 50 CFM; 3 Inch Diameter Round; 115 Volt AC; With Light; Side Exhaust; Plastic; With Mounting Hardware MFR # V228050 Superseded: see description

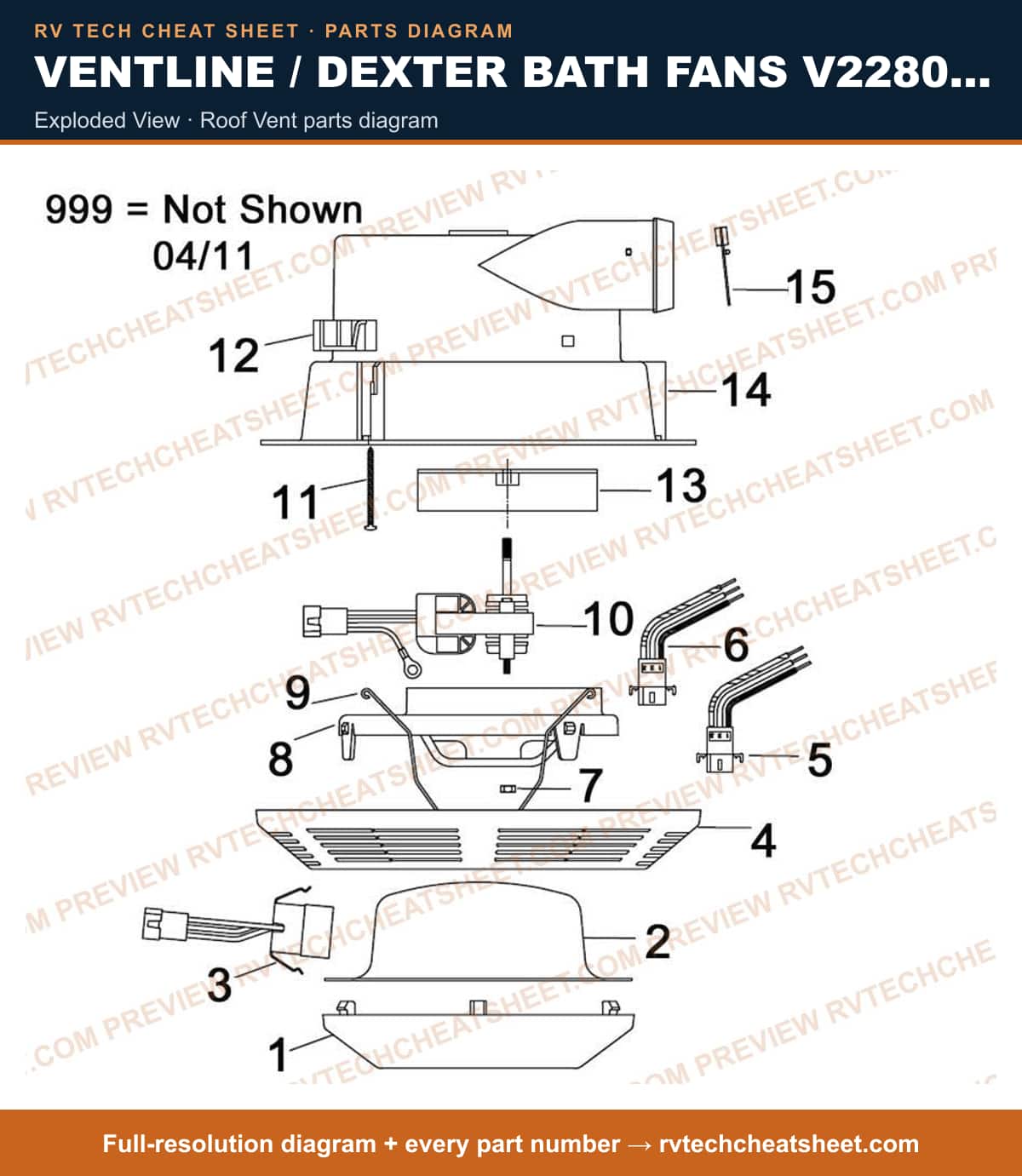

Exploded View

Components

17 items

1. #Exhaust Fan Light Lens; Replacement For Ventline Bathroom Exhaust Fan V2280 MFR # VC039200
2. #Exhaust Fan Light Reflector; For Ventline Bathroom Fan Light V2280; White MFR # VC039346
3. #Exhaust Fan Light Socket; Replacement Light Socket For Ventline Bathroom Exhaust Fan V2280 MFR # VB058700
4. #AIR INTAKE GRILLE MFR # VC039100
5. #Exhaust Fan Connector Pigtail; For Northern Breeze Bathroom Exhaust Fan Motor/ Light Model V2280/ V2270 MFR # VC032100
6. #Nut; For Ventline Stove Vent Hood Motor Mounting; #8-32 Inch Thread MFR # C015900
7. #MOTOR PLATE, 75 CFM MFR # VC031409
8. #MOTOR PLATE, 50 CFM MFR # VC031407
9. #GRILLE RETAINER SPRING MFR # VC039500
10. #VENTILATION RV; 110V Motor Used On: V2270 MFR # VC036700
11. #FAN MOTOR, 75 CFM MFR # VC036900
12. #Roof Vent Screw; Replacement For Ventline Exhaust Fan Screw; Fits Ventline V2119; #6-20 Thread x 2 Inch MFR # VC032402
13. #TOOLS & FASTENERS RV; MOUNTING CLIP V2270/V2280 MFR # VC031600
14. #Exhaust Fan Blade; For Northern Breeze Bathroom Exhaust Fan V2270-50/ V2280-50; 50 CFM MFR # VC032301
15. #Exhaust Fan Blade; For Northern Breeze Bathroom Exhaust Fan V2270-75/ V2280-75; 75 CFM MFR # VC035900
16. #HOUSING MFR # VC039000
17. #DAMPER MFR # VC045300
