Ventline / Dexter Exhaust Ventilator V2017 Series Parts Diagram

Roof Vent · 3 diagram sheets · 19 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Exhaust Ventilator V2017 Series roof vent fan: 19 manufacturer part numbers. 3 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

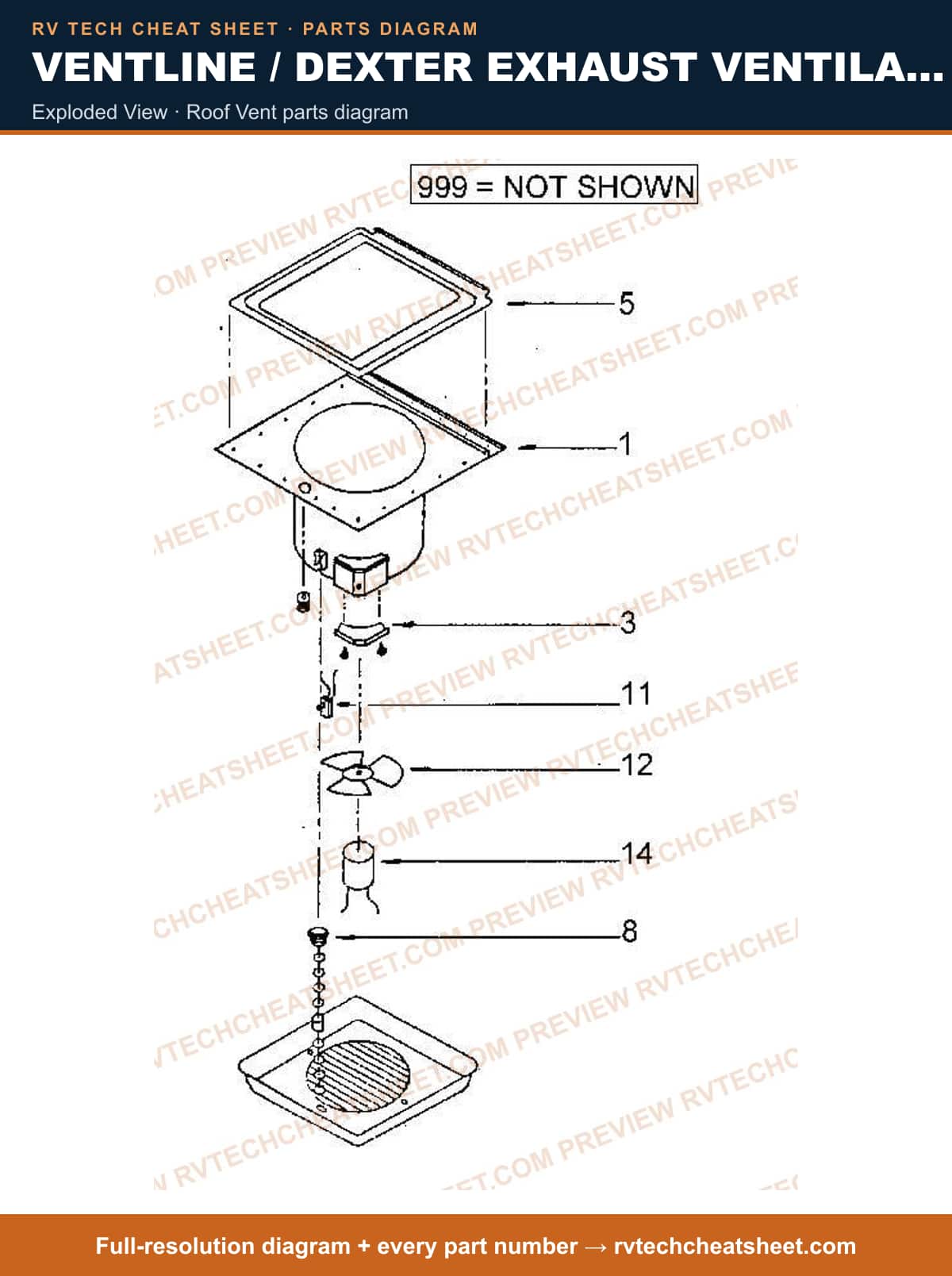

Exploded View

Components

19 items

1. #FLANGE &JUCT BOX F/2" TO 3" WALL THICKNESS MFR # V5011
2. #COVER,JUNCTION BOX WITH SCREWS MFR # V136
3. #DOOR W/GASKET & CHAIN ASY COLONIAL WHITE MFR # V50201
4. #APPLIANCE COMPONENTS RV; Door W/Gasket & Chain Asy MFR # V50202
5. #APPLIANCE COMPONENTS RV; Door W/Gasket & Chain Asy MFR # V50203
6. #Exhaust Fan Pull Chain; Used To Close And Open Exhaust Fan Dampers; Ball Type Chain; Silver Ball Handle; 2 Inch Length MFR # V14404
7. #SWITCH,PRESSURE FOR UL MFR # V14003
8. #Fan Blade; For Ventline 12 Volt Standard Roof Ventadomes; Counter-Clockwise Rotation; 6 Inch Diameter x 1/8 Inch D Shaft; Single MFR # BVA016300
9. #Fan Blade; For Ventline 110 Volt 7 Inch Insert Fans; 6-1/2 Inch Diameter; Single MFR # BVA031200
10. #115V MEDIUM MOTOR (V2015) MFR # CA036100
11. #GASKET FOR DOOR MFR # V014100
12. #Fan Blade; For Ventline Roof Vent V2017 MFR # VA17700
13. #FLANGE & J-BOX SUB-ASSY. 2 +" - 4" WALL THICKNESS MFR # V050102
14. #MOTOR - 12V USE 31-1935 BEFORE ORDERING: PLEASE VERIFY # STAMPED ON OLD MOTOR BEFORE ORDERING REPLACEMENT. IF ORIGINAL MOTOR HAS # VD021800 ON IT USE PART# BVD021800. IF ORI... MFR # BVC046801 Superseded: see description
15. #MOTOR,12V USE BVC046801 MOTOR & FAN BLADE CHANGE AS OF 2-15-10 IF YOU HAVE A VA0164 MOTOR, IT IS NOW REPLACED BY THE BVD0218-00 MOTOR KIT. THIS CHANGE WILL REQUIRE A NE... MFR # VA016401 Superseded: see description
16. #CHAIN, OUTER 16" LONG FOR ALL FANS MFR # V14403
17. #MOTOR,12V USE VA016401 MOTOR & FAN BLADE CHANGE AS OF 2-15-10 IF YOU HAVE A VA0164 MOTOR, IT IS NOW REPLACED BY THE BVD0218-00 MOTOR KIT. THIS CHANGE WILL REQUIRE A ... MFR # VA016400 Superseded: see description
18. #SWITCH,PRESSURE MFR # V14001
19. #Roof Vent Motor; Replacement For Vanair V2094/ V2119/ VP-543; 13.6 Volt DC; With Motor/ Motor Lead Wires/ Screws; Single MFR # BVD021800
