Ventline / Dexter Exit Vents V2047 Series Parts Diagram · Exploded View

Roof Vent · 2 assemblies · 6 diagram sheets · 20 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Exit Vents V2047 Series roof vent fan: 2 assemblies (Exploded View, Replacement Vent) and 20 manufacturer part numbers. 3 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

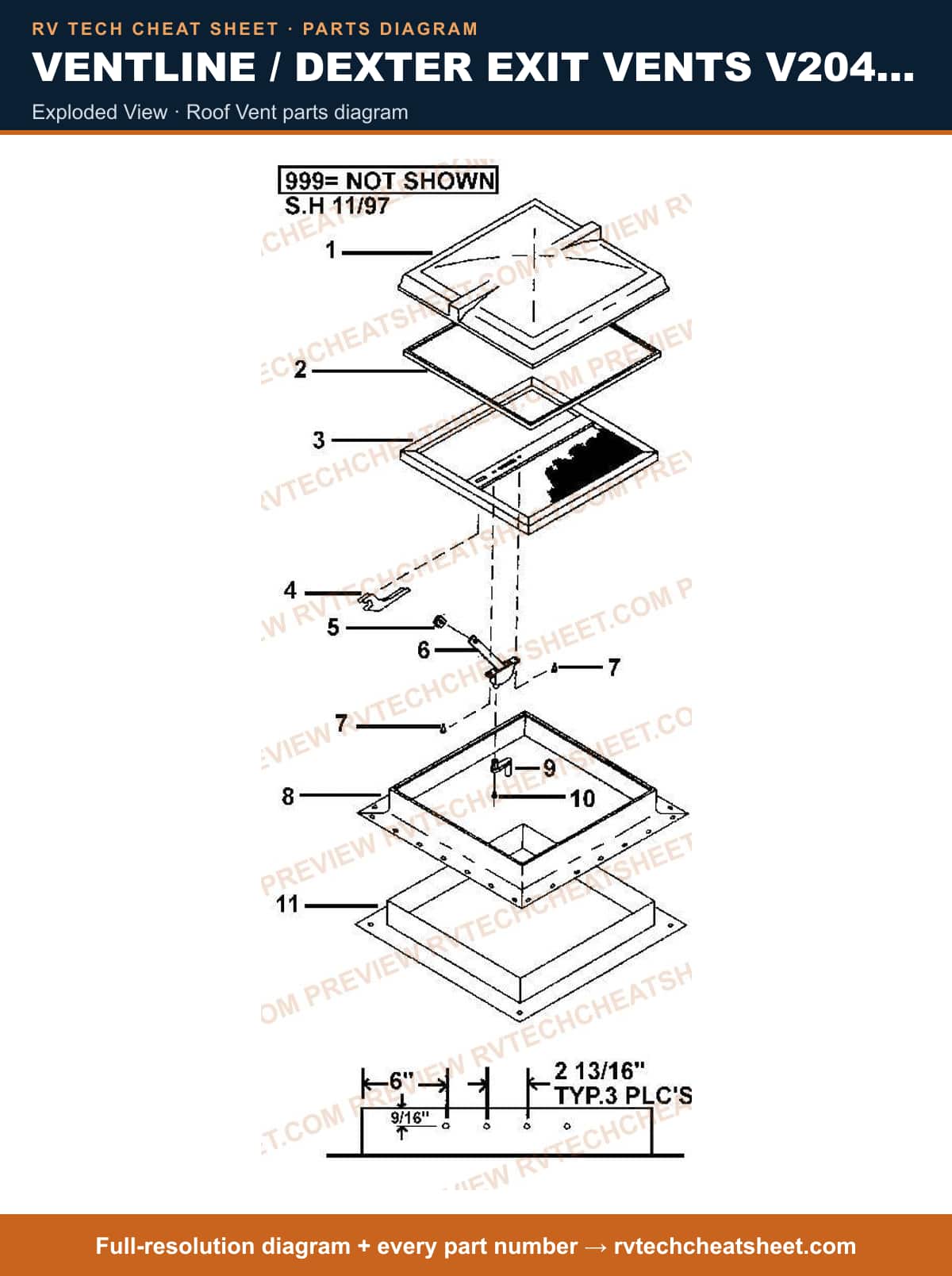

Exploded View

Components

18 items

1. #VENTILATION RV; 22" X 22" HATCH LID MFR # V058604
2. #LID, REPLACEMENT USE 49-6327 SMOKE MFR # V058606 Superseded: see description
3. #LID,REPLACEMENT USE 49-6329 SMOKE DOME-STYLE MFR # V058605 Superseded: see description
4. #VENTILATION RV; 22" X 22" HATCH LID MFR # BV058604
5. #SEAL,VENT MFR # VA439
6. #SCREEN,EXIT DOME V2047 MFR # V5852
7. #HANDLE,LATCH RED MFR # V403
8. #Escape Hatch Operator Roller; For 22 Inch Ventline Escape Hatch MFR # VA017800
9. #VENTILATION RV; VENTLINE EXIT VENT OPERAT MFR # VA17900
10. #Roof Vent Screw; Replacement For Ventline Roof Vent Crank Handel Mounting Screw; Fits V2110 Stove Vent Hood; #10-24 Thread x 7/16 Inch MFR # C013200
11. #NO GENERIC NAME; Frame Vent Escape MFR # VA052702
12. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle V2092/ V2110/ V2094/ V2128/ V2525; Black; Plastic; With Screw Camper MFR # BVD042115
13. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle; Black; Plastic; With Screw Camper; Single MFR # BVD042100
14. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle V2092/ V2110/ V2094/ V2128/ V2525; Black; Plastic; With Screw Camper MFR # VA467
15. #SCREW MFR # VA042301
16. #GARNISH,COLONIAL WHITE MFR # V5591CW
17. #GARNISH,WHITE LEG LENGTH 3 1/2" 14X14 SQUARE MFR # V10004
18. #APPLIANCE COMPONENTS RV; Garnish Col.White S MFR # V10012

Replacement Vent

Components

2 items

1. #22X22 ESCAPE HATCH ONLY 5 MFR # V2047
2. #VENTADOME,EXIT USE V2047 SMOKE COVER 22X22 MFR # V2047SM Superseded: see description
