Ventline / Dexter Non-powered Roof Vents V2012 Series Parts Diagram · Replacement Vent

Roof Vent · 2 assemblies · 6 diagram sheets · 24 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Non-powered Roof Vents V2012 Series roof vent fan: 2 assemblies (Replacement Vent, Exploded View) and 24 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

Replacement Vent

Components

2 items

1. #VENT,NONPOWERED SMOKE LID SQUARE CORNERS MFR # V20121W
2. #VENT,COMPLETE W/O GARNISH MFR # V20123SM

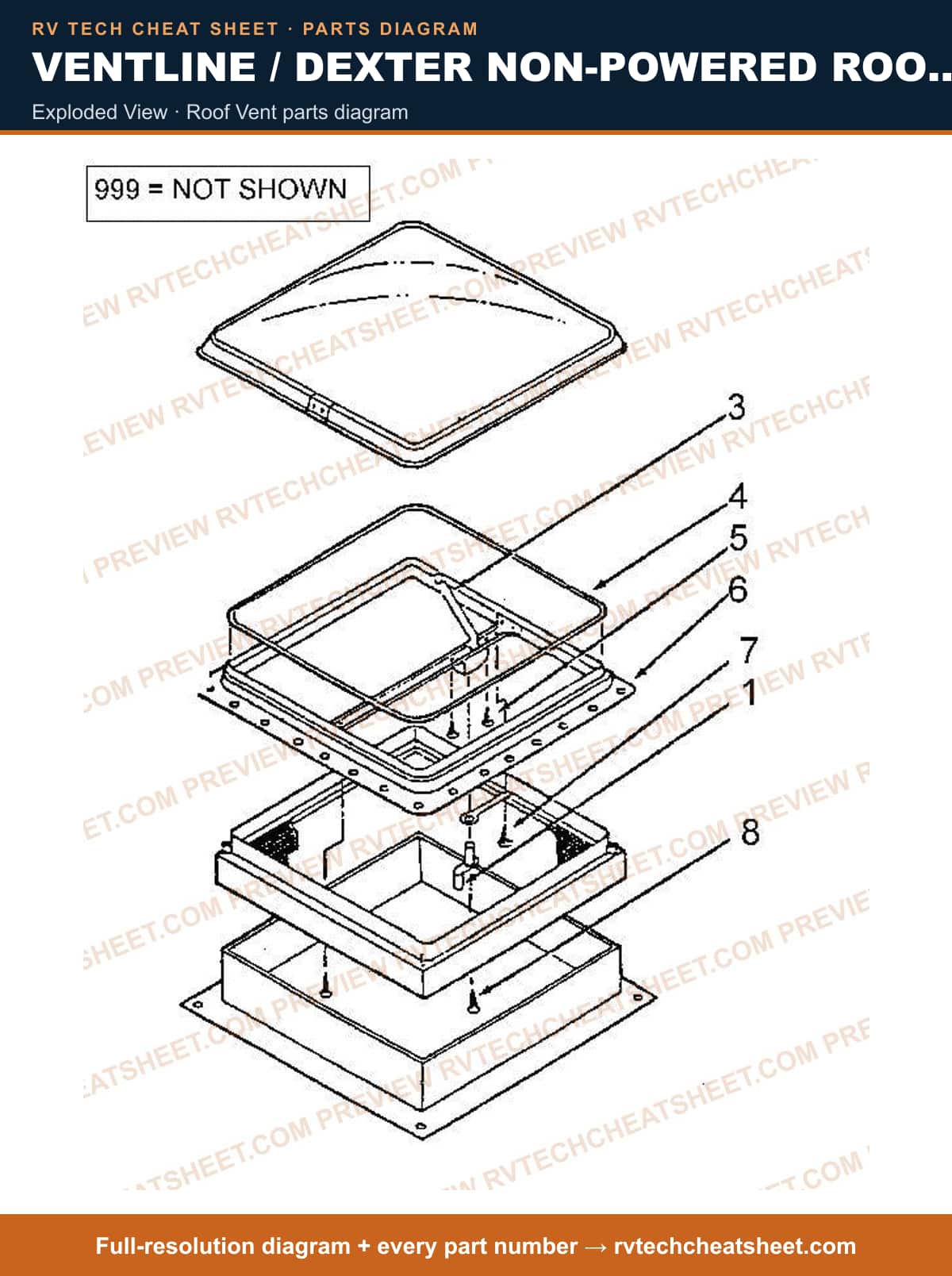

Exploded View

Components

22 items

1. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle; Black; Plastic; With Screw Camper; Single MFR # BVD042100
2. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle V2092/ V2110/ V2094/ V2128/ V2525; Black; Plastic; With Screw Camper MFR # VA467
3. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle V2092/ V2110/ V2094/ V2128/ V2525; Black; Plastic; With Screw Camper MFR # BVD042115
4. #Roof Vent Crank Handle; Replacement For Ventline Old Style Rounded Dome Roof Vents; Single Straight Arm; 6-5/8 Inch Arm Length; With Operator/ Knob/ Mounting Screw; Single MFR # BV011504
5. #Roof Vent Lid Seal; Fits Older Round Roof Vents; 51 Inch Length; Single MFR # BVD045501
6. #GASKET FOR VL ROOF VENT USE 31-8335 MFR # BVA010100 Superseded: see description
7. #Roof Vent Screw; Replacement For Ventline Roof Vent Crank Handel Mounting Screw; Fits V2110 Stove Vent Hood; #10-24 Thread x 7/16 Inch MFR # C013200
8. #APPLIANCE COMPONENTS RV; Flange MFR # V10201
9. ##8 X 1 7/8" SCREW (V2010-00, V2012-00) MFR # V033301
10. #Roof Vent Screw; Replacement For Ventline Roof Vent Knob Mounting Screw; Fits Ventline V2094/ V2110; #8-32 Thread x 3/4 Inch MFR # V042301
11. #Roof Vent Trim Ring; Replacement For V2010 And V2012 Roof Vent Models; 7/8 Inch Length; With Square Corners; White MFR # V10001
12. #Roof Vent Screen Frame; Replacement For Ventline 14 Inch x 14 Inch Roof Vent Models; Polar White Screen Frame MFR # BVA044441R
13. #Roof Vent Screen Frame; Replacement For Ventline Roof Vent 2-Piece Models V2092/ V2110/ V2119/ V2310/ V2392/ V2094; 14 Inch x 14 Inch; Polar White MFR # BVC057341
14. #SCREEN, WHITE MFR # BV054403
15. #Roof Vent Lid; For Ventline Trailer Roof Vent Part Number V2094 Made Before 2008; 14-1/4 Inch x 14-1/4 Inch; Continuous Hinge; White; Polypropylene; Old Style Round Profile; Single MFR # BV055401
16. #SCREEN, WHITE MD# V2100 MFR # BV054404
17. #Roof Vent Screen Frame; Replacement For Ventline Roof Vent 2-Piece Models V2092/ V2110/ V2119/ V2310/ V2392/ V2094; 14 Inch x 14 Inch; Polar White MFR # VA044421
18. #Roof Vent Screen Frame; Replacement For Ventline 14 Inch x 14 Inch Roof Vent Models; Polar White Screen Frame MFR # BVA044441
19. #GARNISH,2 1/2" LEG WHITE 14X14 SQUARE MFR # V10003
20. #GARNISH,WHITE LEG LENGTH 3 1/2" 14X14 SQUARE MFR # V10004
21. #VENTILATION RV; FRAME & SCREEN- BIRCH WHITE MFR # VA044401
22. #GARNISH RAD. USE VA044535 COACH WHITE 3 7/8" to 5 1/4" MFR # VA44519 Superseded: see description
