Ventline / Dexter Non-powered Roof Vents V2092 Series Parts Diagram · Pre 2008 Bubble Lid Style

Roof Vent · 3 assemblies · 9 diagram sheets · 54 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Non-powered Roof Vents V2092 Series roof vent fan: 3 assemblies (Pre 2008 Bubble Lid Style, 2008 Aerodynamic Lid Style, Replacement Vent) and 54 manufacturer part numbers. 4 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

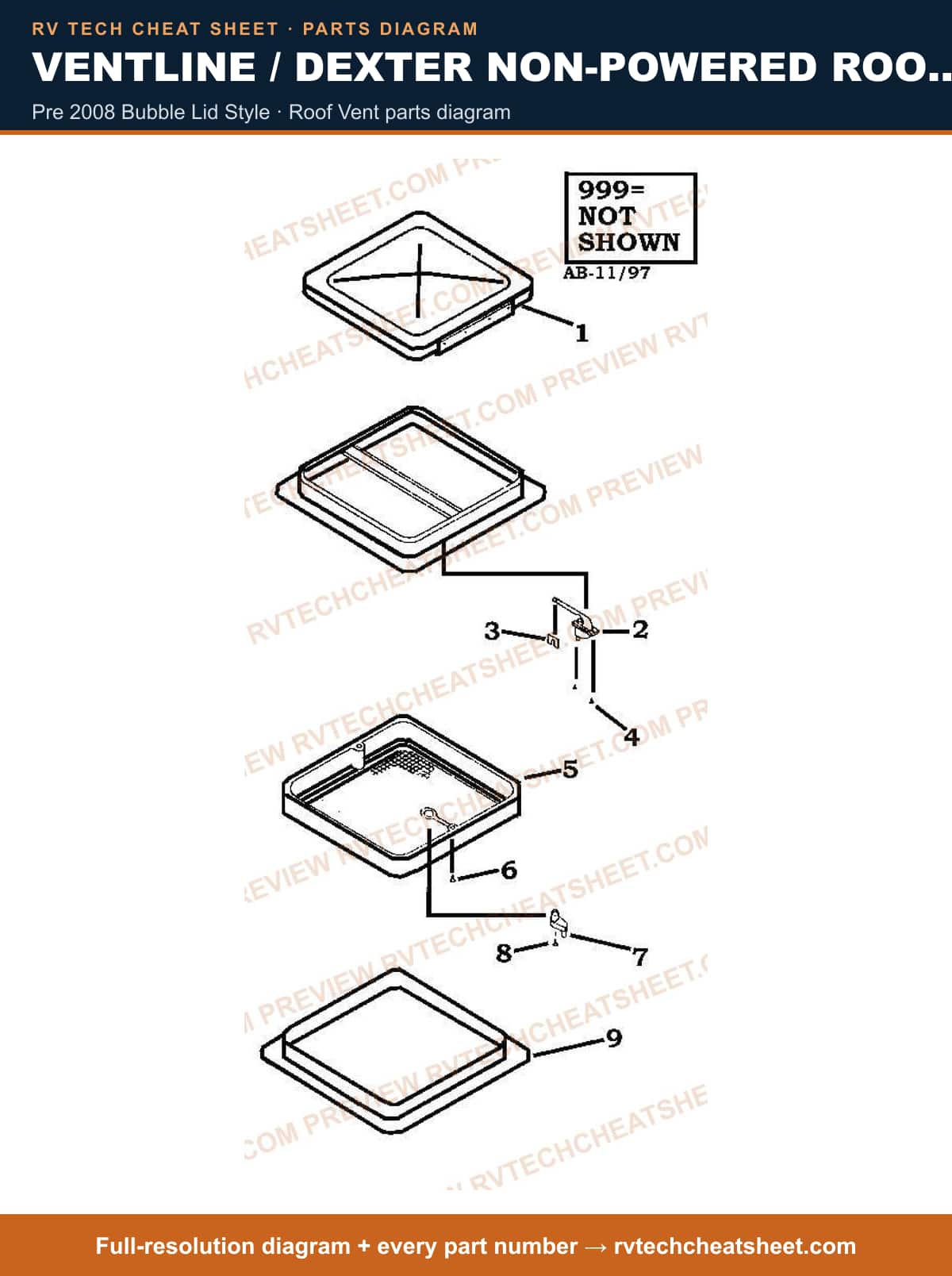

Pre 2008 Bubble Lid Style

Components

31 items

1. #Roof Vent Lid; For Ventline Trailer Roof Vent Part Number V2094 Made Before 2008; 14-1/4 Inch x 14-1/4 Inch; Continuous Hinge; White; Polypropylene; Old Style Round Profile; Single MFR # BV055401
2. #Roof Vent Lid; Fits 14 Inch x 14 Inch Standard Roof Vents; Low Profile Metal; Radius Cornered; Single MFR # BV053400
3. #Roof Vent Lid; For Ventline Trailer Roof Vent Part Number V2094 Made Before 2008; 14-1/4 Inch x 14-1/4 Inch; Continuous Hinge; Smoke; Polypropylene; Old Style Round Profile; Single MFR # BV055403
4. #Roof Vent Crank Handle; Replacement For Ventline Old Style Rounded Dome Roof Vents; Single Straight Arm; 6-5/8 Inch Arm Length; With Operator/ Knob/ Mounting Screw; Single MFR # BV011504
5. #Roof Vent Crank Handle; Replacement For Ventline Old Style Rounded Dome Roof Vents; Single Straight Arm; 6-5/8 Inch Arm Length; With Operator/ Knob/ Mounting Screw; Single MFR # VA0280
6. ##10-32 MACHINE SCREW * MFR # CO132
7. #SCREEN, ROOF VENT USE BVA044421 COLONIAL WHITE MFR # BVA044421 Superseded: see description
8. #VENTILATION RV; FRAME & SCREEN- BIRCH WHI MFR # BVA044431
9. #VENTILATION RV; FRAME & SCREEN- BIRCH WHITE MFR # VA044401
10. #Roof Vent Screen Frame; Replacement For Ventline 14 Inch x 14 Inch Roof Vent Models; Polar White Screen Frame MFR # BVA044441
11. #Roof Vent Screen Frame; Replacement For Ventline 14 Inch x 14 Inch Roof Vent Models; Polar White Screen Frame MFR # BVA044441R
12. #Roof Vent Screen Frame; Replacement For Ventline Roof Vent 2-Piece Models V2092/ V2110/ V2119/ V2310/ V2392/ V2094; 14 Inch x 14 Inch; Polar White MFR # VA044421
13. #Roof Vent Screen Frame; Replacement For Ventline Roof Vent 2-Piece Models V2092/ V2110/ V2119/ V2310/ V2392/ V2094; 14 Inch x 14 Inch; Polar White MFR # BVC057341
14. #RAD CORN SCRN FRM POLAR WHITE USE 31-2201 MFR # VA0262 Superseded: see description
15. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle; Black; Plastic; With Screw Camper; Single MFR # BVD042100
16. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle V2092/ V2110/ V2094/ V2128/ V2525; Black; Plastic; With Screw Camper MFR # BVD042115
17. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle V2092/ V2110/ V2094/ V2128/ V2525; Black; Plastic; With Screw Camper MFR # VA467
18. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle; Black; Plastic; With Screw Camper; Single MFR # V042302
19. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 2-1/8 Inch Depth; With Radius Corner; Polar White MFR # VA044534
20. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 4-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044528
21. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 5-1/8 Inch Depth; With Radius Corner; Polar White MFR # VA044537
22. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 4-1/8 Inch Depth; With Radius Corner; Polar White MFR # VA044536
23. #GARNISH, WHT 4-5/32" LEG 14X 14 RADIUS VENT MFR # VA44529
24. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 2-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044526
25. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 1-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044525
26. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 3-1/8 Inch Depth; With Radius Corner; Polar White MFR # VA044535
27. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 3-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044527
28. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 1-1/8 Inch Depth; With Radius Corner; Polar White MFR # VA044533
29. #VENT, NON-POWERED METAL COVER POL WHT SCREEN MFR # V209210146
30. #COVER, METAL USE 31-1647 W/TRACK & PAD MFR # BV053401 Superseded: see description
31. #VENT, NON-POWERED SMOKE COVER COACH WHT SCREEN MFR # V209210300

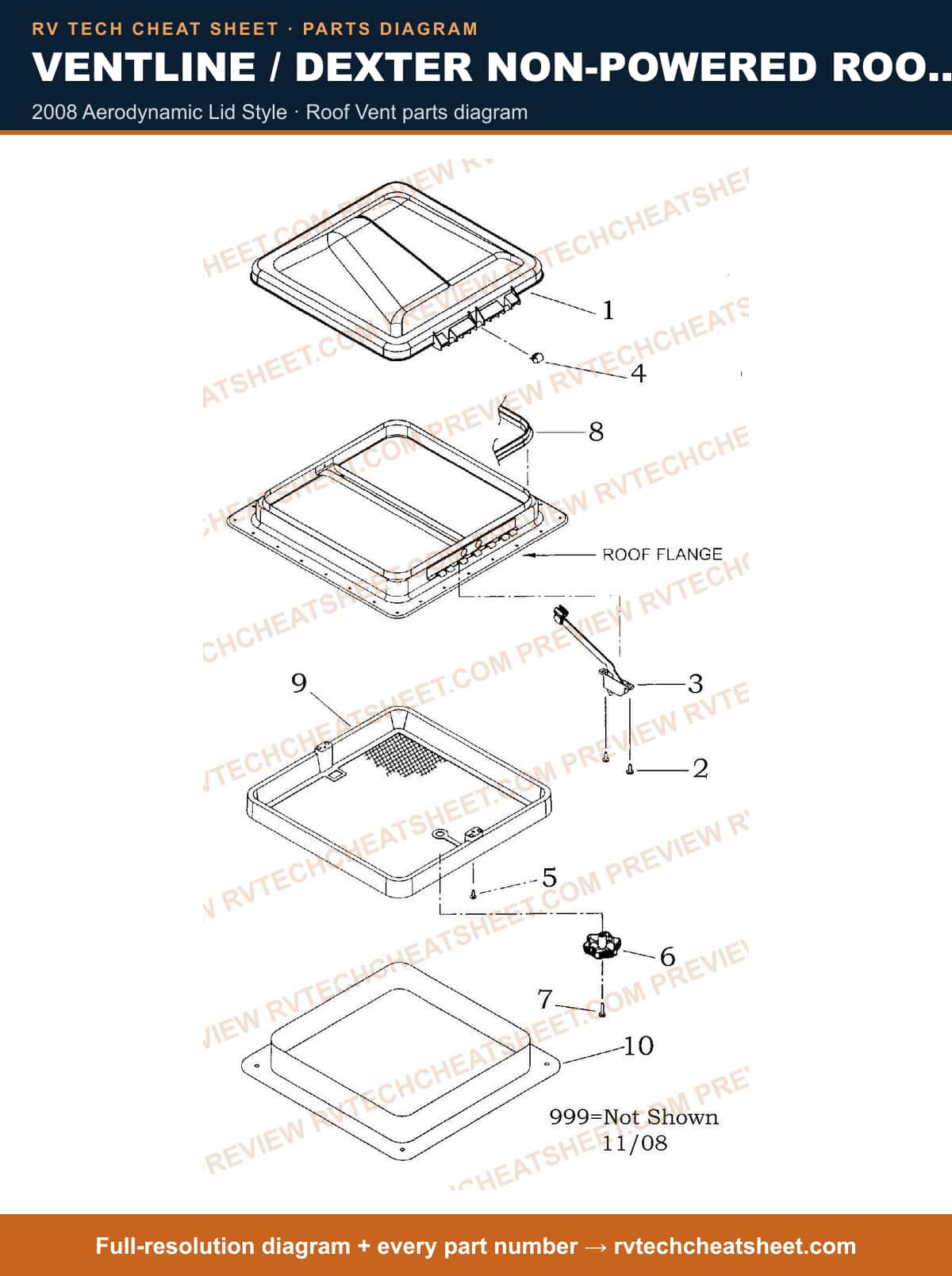

2008 Aerodynamic Lid Style

Components

15 items

1. #Roof Vent Lid; 14-1/4 Inch x 14-1/4 Inch; White; Polypropylene; Wedge Shape With Radius Corners MFR # BVD0449A01
2. #Roof Vent Lid; 14-1/4 Inch x 14-1/4 Inch; Smoke; Polypropylene; Metal Mounting Flange; Wedge Shape MFR # BVD0449A03
3. #Roof Vent Screw; Replacement For Ventline Roof Vent Crank Handel Mounting Screw; Fits V2110 Stove Vent Hood; #10-24 Thread x 7/16 Inch MFR # C013200
4. #Roof Vent Operator; Roof Vent Crank Assembly; Arm Size; With Crank Handle/ Knob/ Screw MFR # BVD046200
5. #Roof Vent Lid Retaining Clip; For Ventline Roof Vent V2092/ V2094/ V2119/ V2128 MFR # VD045300
6. #Roof Vent Screw; Replacement For Ventline Roof Vent Screen Frame Screw; Fits Ventline V2092/ V2094/ V2110/ V2119/ V2128; #8-18 Thread x 5/8 Inch MFR # VA026200
7. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle; Black; Plastic; With Screw Camper; Single MFR # BVD042100
8. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle V2092/ V2110/ V2094/ V2128/ V2525; Black; Plastic; With Screw Camper MFR # BVD042115
9. #Roof Vent Screw; Replacement For Ventline Roof Vent Knob Mounting Screw; Fits Ventline V2094/ V2110; #8-32 Thread x 3/4 Inch MFR # V042301
10. #SEAL, DOME MFR # VD045501
11. #SCREEN, ROOF VENT WHITE USE 31-1931 MFR # VA044441 Superseded: see description
12. #Roof Vent Screen Frame; Replacement For Ventline Roof Vent 2-Piece Models V2092/ V2110/ V2119/ V2310/ V2392/ V2094; 14 Inch x 14 Inch; Polar White MFR # BVC057341
13. #Roof Vent Screen Frame; Replacement For Ventline 14 Inch x 14 Inch Roof Vent Models; Polar White Screen Frame MFR # BVA044441
14. #Roof Vent Screen Frame; For Ventline Roof Vent V2092/ V2099/ V2392/ V2399; Birch White MFR # VA044431
15. #CEILING GARNISH MFR # VA0445TAB

Replacement Vent

Components

12 items

1. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; Without Fan; Polypropylene And Low Profile Metal; With White Lid/ Two Piece Birch White Removable Screen Frame/ Screw In Mill Finished Flange/ Birch White Ceiling Trim Ring 2-1/8 Leg Length MFR # V2092SP25
2. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; Without Fan; Polypropylene And Low Profile Metal; With Smoke Lid/ Two Piece Polar White Removable Screen Frame/ Screw In Mill Finish Flange MFR # V209260300
3. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; Without Fan; Polypropylene And Low Profile Metal; With Smoke Lid/ Two Piece Birch White Removable Screen Frame/ Painted White Flange MFR # V2092-503-46
4. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; Without Fan; Polypropylene And Low Profile Metal; With White Lid/ Two Piece Polar White Removable Screen Frame/ Painted White Flange MFR # V2092-601-46
5. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; Without Fan; Polypropylene And Low Profile Metal; With White Lid/ Two Piece Birch White Removable Screen Frame/ Painted White Flange MFR # V2092-501-46
6. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; Without Fan; Polypropylene And Low Profile Metal; With Smoke Lid/ Two Piece Polar White Removable Screen Frame/ Screw In Mill Finish Flange MFR # V2092-603-00
7. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; Without Fan; Polypropylene And Low Profile Metal; With White Lid/ Two Piece Birch White Removable Screen Frame/ Screw In Mill Finish Flange/ Birch White Ceiling Trim Ring 3-1/8 Leg Length MFR # V2092SP-26
8. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; Without Fan; Polypropylene And Low Profile Metal; With Smoke Lid/ Two Piece Polar White Removable Screen Frame/ Painted White Flange MFR # V2092-603-46
9. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; Without Fan; Polypropylene And Low Profile Metal; With Smoke Lid/ Two Piece Birch White Removable Screen Frame/ Screw In Mill Finish Flange MFR # V209250300
10. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; Without Fan; Polypropylene And Low Profile Metal; With White Lid/ Two Piece Birch White Removable Screen Frame/ Screw In Mill Finish Flange MFR # V209250100
11. #VENT,ROOF NONPWRD (5) MFR # V209230300
12. #VENT,ROOF NONPWRD (5) MFR # V209230100
