Ventline / Dexter Non-powered Roof Vents V2392 Series Parts Diagram · Replacement Vent

Roof Vent · 2 assemblies · 6 diagram sheets · 36 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Non-powered Roof Vents V2392 Series roof vent fan: 2 assemblies (Replacement Vent, Exploded View) and 36 manufacturer part numbers. 5 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

Replacement Vent

Components

8 items

1. #VENT, NONPOWERED SMOKE LID RADIUS CORNER SMOKE LID MFR # V239210300
2. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; Without Fan; Polypropylene; With White Lid/ Two Piece Birch White Clamp-In Screen Frame/ Painted White Flange MFR # V2392-501-46
3. #VENT-CLAMP IN-SMOKE COVER-BIRC MFR # V239220300
4. #VENT, NON-POWERED WHITE COVER MFR # V239210100
5. #VENT-CLAMP IN-WHITE COVER-BIRC MFR # V239220100
6. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; Without Fan; Polypropylene; With White Lid/ Two Piece Birch White Clamp-In Screen Frame/ Screw In Mill Finish Flange MFR # V2392-501-00
7. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; Without Fan; Polypropylene; With White Lid/ Two Piece Polar White Clamp-In Screen Frame/ Painted White Flange MFR # V2392-601-46
8. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; Without Fan; Polypropylene; With White Lid/ Two Piece Polar White Clamp-In Screen Frame/ Screw In Mill Finish Flange MFR # V239260100

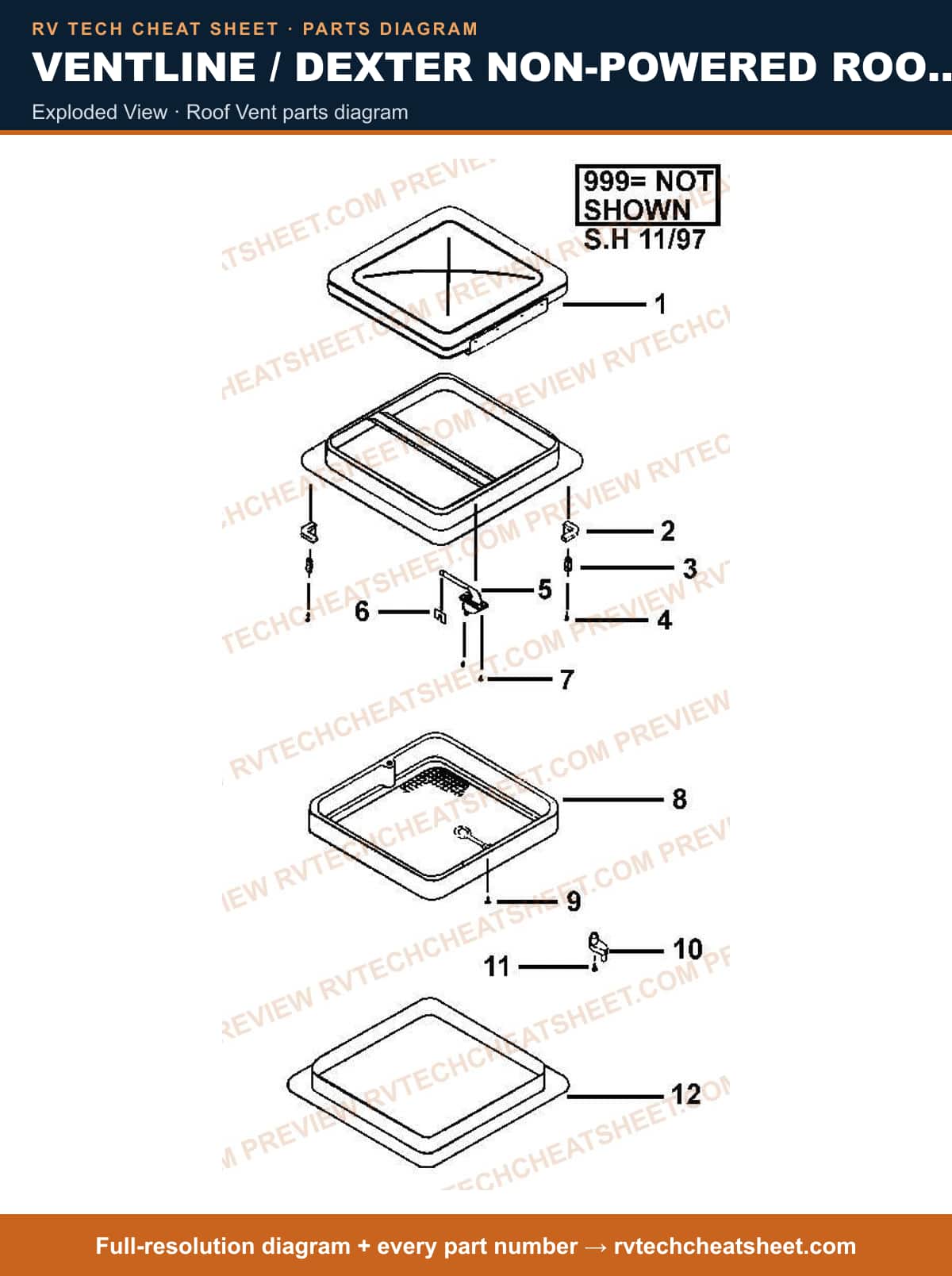

Exploded View

Components

28 items

1. #COVER, DOME ASSM WHITE LOW PROFILE MFR # VA053003
2. #BVA05301 MFR # BVA05301
3. #SMOKE DOME ASS'Y MFR # VA053001
4. #DOME, PLASTIC USE BVA05301 MFR # VB0492 Superseded: see description
5. #MOUNTING CLIP (4 REQ.) MFR # VB048801
6. #SPACER (4 REQ'D) (V2399, 2394, 2392, 2310) MFR # VB049101
7. #Roof Vent Crank Handle; Replacement For Ventline Old Style Rounded Dome Roof Vents; Single Straight Arm; 6-5/8 Inch Arm Length; With Operator/ Knob/ Mounting Screw; Single MFR # BV011504
8. #Roof Vent Crank Handle; Replacement For Ventline Old Style Rounded Dome Roof Vents; Single Straight Arm; 6-5/8 Inch Arm Length; With Operator/ Knob/ Mounting Screw; Single MFR # VA0280
9. #FRICTION CLIP MFR # C0132
10. #Roof Vent Screen Frame; Replacement For Ventline 14 Inch x 14 Inch Roof Vent Models; Polar White Screen Frame MFR # BVA044441R
11. #Roof Vent Screen Frame; Replacement For Ventline 14 Inch x 14 Inch Roof Vent Models; Polar White Screen Frame MFR # BVA044441
12. #VENTILATION RV; FRAME & SCREEN- BIRCH WHITE MFR # VA044401
13. #Roof Vent Screen Frame; Replacement For Ventline Roof Vent 2-Piece Models V2092/ V2110/ V2119/ V2310/ V2392/ V2094; 14 Inch x 14 Inch; Polar White MFR # VA044421
14. #SCREEN, ROOF VENT USE BVA044421 COLONIAL WHITE MFR # BVA044421 Superseded: see description
15. #Roof Vent Screen Frame; Replacement For Ventline Roof Vent 2-Piece Models V2092/ V2110/ V2119/ V2310/ V2392/ V2094; 14 Inch x 14 Inch; Polar White MFR # BVC057341
16. #VENTILATION RV; FRAME & SCREEN- BIRCH WHI MFR # BVA044431
17. #RAD CORN SCRN FRM POLAR WHITE USE 31-2201 MFR # VA0262 Superseded: see description
18. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle; Black; Plastic; With Screw Camper; Single MFR # BVD042100
19. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle V2092/ V2110/ V2094/ V2128/ V2525; Black; Plastic; With Screw Camper MFR # BVD042115
20. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle V2092/ V2110/ V2094/ V2128/ V2525; Black; Plastic; With Screw Camper MFR # VA467
21. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle; Black; Plastic; With Screw Camper; Single MFR # V042302
22. #GARNISH, WHT 4-5/32" LEG 14X 14 RADIUS VENT MFR # VA44529
23. #GARNISH USE VA44517 RADIUS CORNER CW 1 1/8 MFR # VA44526 Superseded: see description
24. #1 7/8" TO 3" GARNISH BIRCH WH 6 MFR # VA44517
25. #Roof Vent Screw; Replacement For Ventline Roof Vent Knob Mounting Screw; #8-32 Thread x 1-1/2 Inch MFR # VA44520
26. #GARNISH, COACHWHITE 1 5/32" 14"X14" RADIUS VENT MFR # VA44518
27. #GARNISH RAD. USE VA044535 COACH WHITE 3 7/8" to 5 1/4" MFR # VA44519 Superseded: see description
28. #CEILING GARNISH, RADIUS BIRCH WHITE 5/1/8" MFR # VA044509
