Ventline / Dexter Powered Roof Vents / Outlet Fans & Vents V2094 Series Parts Diagram · What Your Motor Looks Like

Roof Vent · 4 assemblies · 12 diagram sheets · 54 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Powered Roof Vents / Outlet Fans & Vents V2094 Series roof vent fan: 4 assemblies (What Your Motor Looks Like, 2008 Aerodynamic Lid Style, Replacement Vent, Pre 2008 Bubble Lid Style) and 54 manufacturer part numbers. 10 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

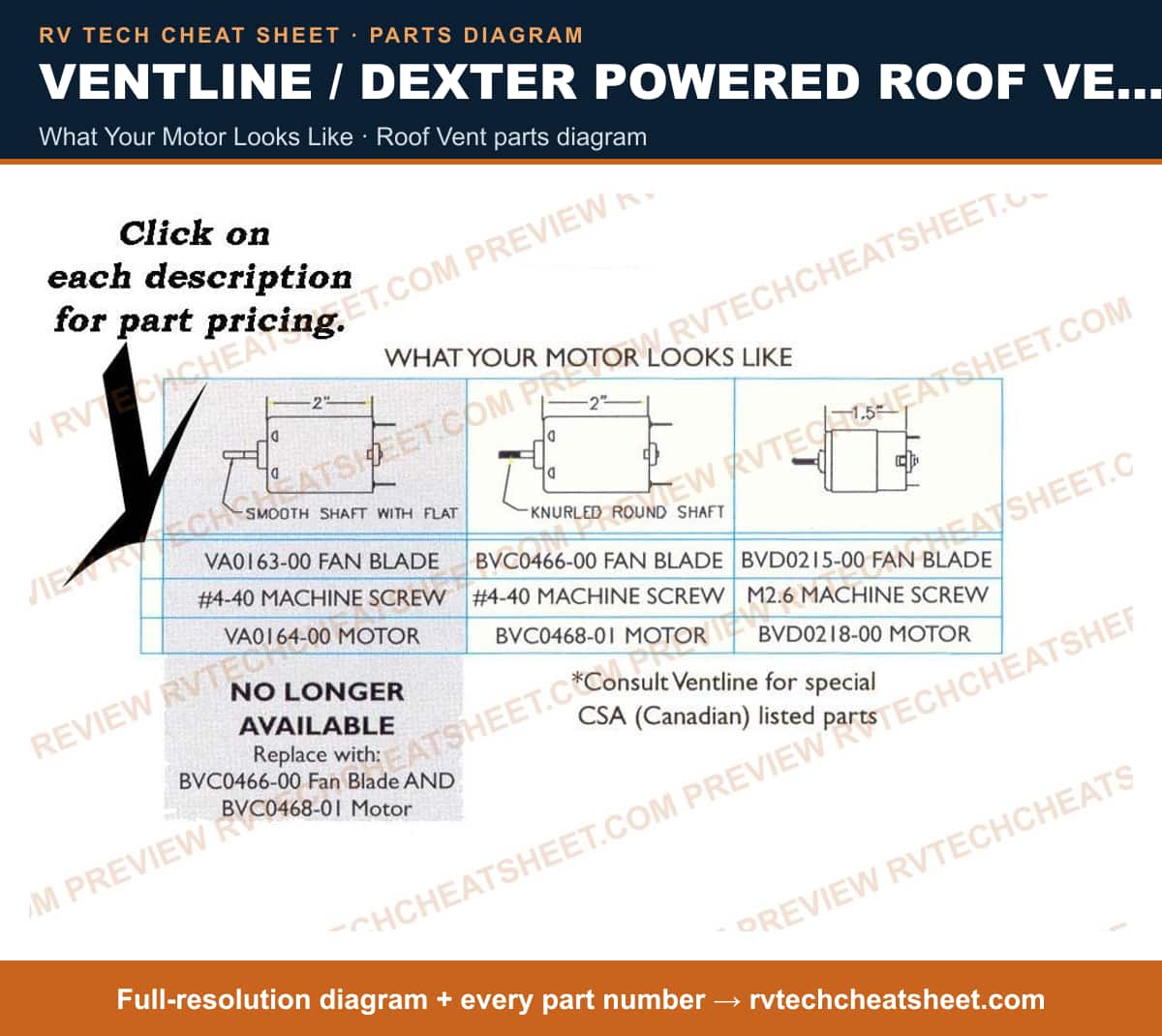

What Your Motor Looks Like

Components

10 items

1. #Fan Blade; For Ventline 12 Volt Ventline Ventdome; 6 Inch Diameter x 1/8 Inch Diameter Shaft IS A USE # FOR BVA016300 12V MOTORS AND FAN BLADES HAVE BEEN CHANGED FROM A "D" SHAFT AND BORE TO A ROUND SPLINED SHAFT & ROUND BORE FOR VENTLINE... MFR # BVC046600 Superseded: see description
2. #Fan Blade; For Ventline 12 Volt Standard Roof Ventadomes; Counter-Clockwise Rotation; 6 Inch Diameter x 1/8 Inch D Shaft; Single MFR # BVA016300
3. #MOTOR,12V USE BVC046801 MOTOR & FAN BLADE CHANGE AS OF 2-15-10 IF YOU HAVE A VA0164 MOTOR, IT IS NOW REPLACED BY THE BVD0218-00 MOTOR KIT. THIS CHANGE WILL REQUIRE A NE... MFR # VA016401 Superseded: see description
4. #Roof Vent Motor; Replacement For Vanair V2094/ V2119/ VP-543; 13.6 Volt DC; With Motor/ Motor Lead Wires/ Screws; Single MFR # BVD021800
5. #Fan Blade; For Ventline Roof Vent V2094/ V2119; 3/32 Inch Diameter MFR # BVD021500
6. #MOTOR,12V USE VA016401 MOTOR & FAN BLADE CHANGE AS OF 2-15-10 IF YOU HAVE A VA0164 MOTOR, IT IS NOW REPLACED BY THE BVD0218-00 MOTOR KIT. THIS CHANGE WILL REQUIRE A ... MFR # VA016400 Superseded: see description
7. #MOTOR - 12V USE 31-1935 BEFORE ORDERING: PLEASE VERIFY # STAMPED ON OLD MOTOR BEFORE ORDERING REPLACEMENT. IF ORIGINAL MOTOR HAS # VD021800 ON IT USE PART# BVD021800. IF ORI... MFR # BVC046801 Superseded: see description
8. #BLADE,FAN MFR # BXD021500
9. #BLADE,FAN USE BVD021500 MFR # VD215 Superseded: see description
10. #Roof Vent Motor; Replacement For Vanair V2094/ V2119/ VP-543; 13.6 Volt DC; With Motor/ Motor Lead Wires/ Screws; Single MFR # BVD0

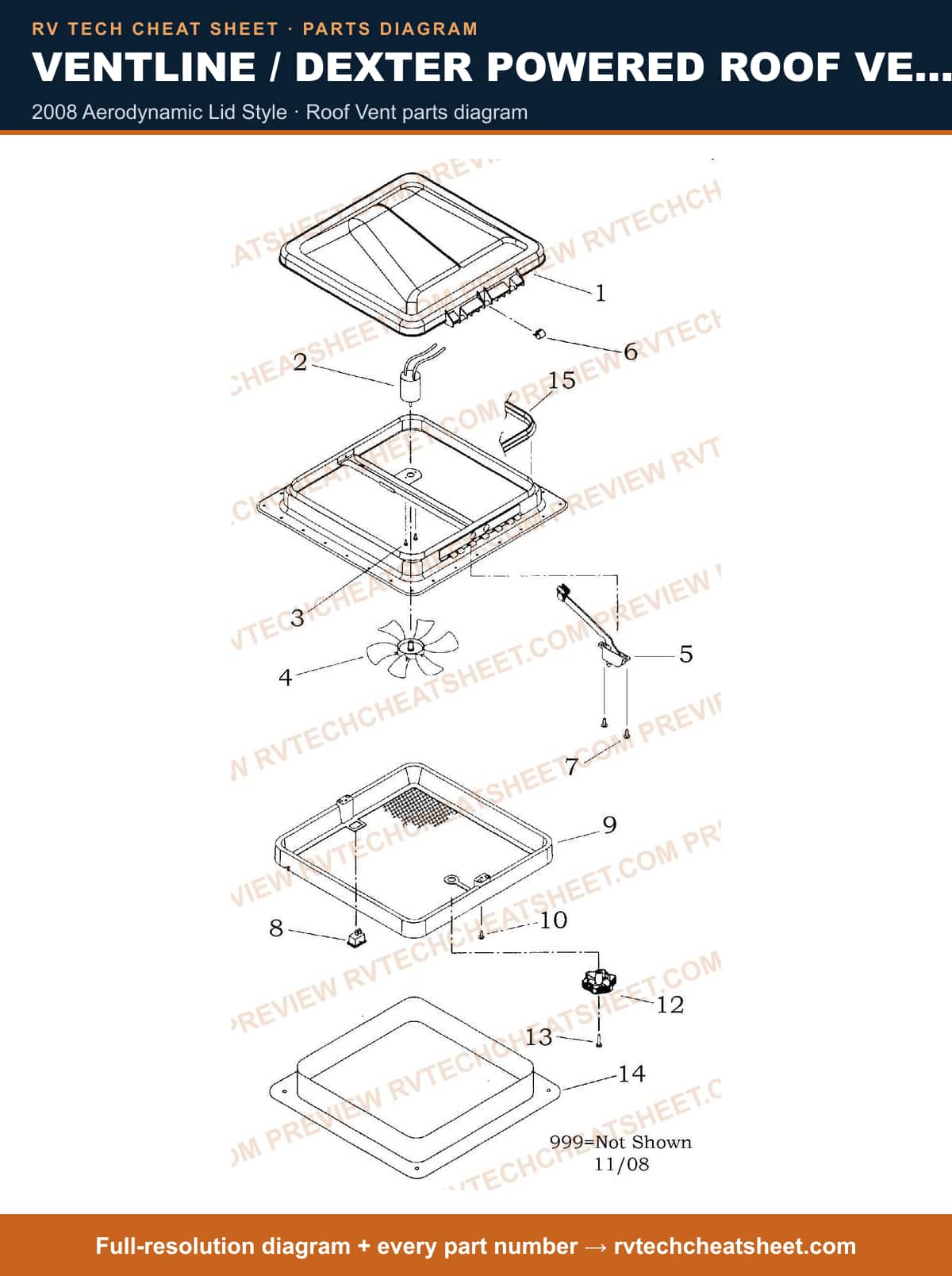

2008 Aerodynamic Lid Style

Components

22 items

1. #Roof Vent Lid; 14-1/4 Inch x 14-1/4 Inch; White; Polypropylene; Wedge Shape With Radius Corners MFR # BVD0449A01
2. #Roof Vent Lid; 14-1/4 Inch x 14-1/4 Inch; Smoke; Polypropylene; Metal Mounting Flange; Wedge Shape MFR # BVD0449A03
3. #MOTOR - 12V USE 31-1935 BEFORE ORDERING: PLEASE VERIFY # STAMPED ON OLD MOTOR BEFORE ORDERING REPLACEMENT. IF ORIGINAL MOTOR HAS # VD021800 ON IT USE PART# BVD021800. IF ORI... MFR # BVC046801 Superseded: see description
4. #Fan Blade; For Ventline Roof Vent V2094/ V2119; 3/32 Inch Diameter MFR # BVD021500
5. #Roof Vent Motor; Replacement For Vanair V2094/ V2119/ VP-543; 13.6 Volt DC; With Motor/ Motor Lead Wires/ Screws; Single MFR # BVD021800
6. #NO GENERIC NAME; Screw #4 X 1/4" (2) MFR # VA016600
7. #BLADE,FAN USE BVD021500 MFR # VD215 Superseded: see description
8. #Fan Blade; For Ventline 12 Volt Ventline Ventdome; 6 Inch Diameter x 1/8 Inch Diameter Shaft IS A USE # FOR BVA016300 12V MOTORS AND FAN BLADES HAVE BEEN CHANGED FROM A "D" SHAFT AND BORE TO A ROUND SPLINED SHAFT & ROUND BORE FOR VENTLINE... MFR # BVC046600 Superseded: see description
9. #Roof Vent Operator; Roof Vent Crank Assembly; Arm Size; With Crank Handle/ Knob/ Screw MFR # BVD046200
10. #Roof Vent Lid Retaining Clip; For Ventline Roof Vent V2092/ V2094/ V2119/ V2128 MFR # VD045300
11. #Roof Vent Screw; Replacement For Ventline Roof Vent Crank Handel Mounting Screw; Fits V2110 Stove Vent Hood; #10-24 Thread x 7/16 Inch MFR # C013200
12. #Stove Vent Hood Switch; Replacement Mini-Rocker Switch For Ventline Ventadome Trailer Roof Vents; Light/ Fan Motor On/ Off Switch; 12 Volt; Black; Single MFR # BL010800
13. #Roof Vent Screen Frame; Replacement For Ventline Roof Vent 2-Piece Models V2092/ V2110/ V2119/ V2310/ V2392/ V2094; 14 Inch x 14 Inch; Polar White MFR # BVC057341
14. #Roof Vent Screen Frame; For Ventline Roof Vent V2092/ V2099/ V2392/ V2399; Birch White MFR # VA044431
15. #SCREEN, ROOF VENT WHITE USE 31-1931 MFR # VA044441 Superseded: see description
16. #Roof Vent Screen Frame; Replacement For Ventline 14 Inch x 14 Inch Roof Vent Models; Polar White Screen Frame MFR # BVA044441
17. #Roof Vent Screw; Replacement For Ventline Roof Vent Screen Frame Screw; Fits Ventline V2092/ V2094/ V2110/ V2119/ V2128; #8-18 Thread x 5/8 Inch MFR # VA026200
18. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle V2092/ V2110/ V2094/ V2128/ V2525; Black; Plastic; With Screw Camper MFR # BVD042115
19. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle; Black; Plastic; With Screw Camper; Single MFR # BVD042100
20. #Roof Vent Screw; Replacement For Ventline Roof Vent Knob Mounting Screw; Fits Ventline V2094/ V2110; #8-32 Thread x 3/4 Inch MFR # V042301
21. #CEILING GARNISH MFR # VA0445TAB
22. #SEAL, DOME MFR # VD045501

Replacement Vent

Components

12 items

1. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With White Lid/ Two Piece Birch White Removable Screen Frame/ Screw In Mill Finish Flange/ Birch White Ceiling Trim Ring 2-1/8 Leg Length MFR # V2094SP28
2. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With Smoke Lid/ Two Piece Birch White Removable Screen Frame/ Screw In Mill Finish Flange MFR # V2094-503-00
3. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With White Lid/ Two Piece Polar White Removable Screen Frame/ Screw In Mill Finish Flange/ Radius Corner Ceiling Polar White Trim Ring Part Number VA0445-34 MFR # V2094SP30
4. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With White Lid/ Two Piece Polar White Removable Screen Frame/ Painted White Flange MFR # V2094-601-46
5. #Roof Vent; 14 Inch x 14 Inch; With 12 Volt Fan; White Lid; Plastic; Screw-In Mounting MFR # V2094SP10
6. #VENT-POWERED-RADIUS-SMOKE COVE MFR # V209420300
7. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With Smoke Lid/ Two Piece Polar White Removable Screen Frame/ Screw In Mill Finish Flange MFR # V2094-603-00
8. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With Smoke Lid/ Two Piece Birch White Removable Screen Frame/ Painted White Flange MFR # V2094-503-46
9. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With White Lid/ Two Piece Polar White Removable Screen Frame/ Screw In Mill Finish Flange MFR # V2094-601-00
10. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With White Lid/ Two Piece Birch White Removable Screen Frame/ Screw In Mill Finish Flange MFR # V2094SP-26
11. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With White Lid/ Two Piece Birch White Removable Screen Frame/ Painted White Flange MFR # V2094-501-46
12. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With Smoke Lid/ Two Piece Polar White Removable Screen Frame/ Painted White Flange MFR # V2094-603-46

Pre 2008 Bubble Lid Style

Components

31 items

1. #Roof Vent Lid; For Ventline Trailer Roof Vent Part Number V2094 Made Before 2008; 14-1/4 Inch x 14-1/4 Inch; Continuous Hinge; White; Polypropylene; Old Style Round Profile; Single MFR # BV055401
2. #Roof Vent Lid; For Ventline Trailer Roof Vent Part Number V2094 Made Before 2008; 14-1/4 Inch x 14-1/4 Inch; Continuous Hinge; Smoke; Polypropylene; Old Style Round Profile; Single MFR # BV055403
3. #MOTOR,12V USE VA016401 MOTOR & FAN BLADE CHANGE AS OF 2-15-10 IF YOU HAVE A VA0164 MOTOR, IT IS NOW REPLACED BY THE BVD0218-00 MOTOR KIT. THIS CHANGE WILL REQUIRE A ... MFR # VA016400 Superseded: see description
4. #Roof Vent Motor; Replacement For Vanair V2094/ V2119/ VP-543; 13.6 Volt DC; With Motor/ Motor Lead Wires/ Screws; Single MFR # BVD021800
5. #MOTOR - 12V USE 31-1935 BEFORE ORDERING: PLEASE VERIFY # STAMPED ON OLD MOTOR BEFORE ORDERING REPLACEMENT. IF ORIGINAL MOTOR HAS # VD021800 ON IT USE PART# BVD021800. IF ORI... MFR # BVC046801 Superseded: see description
6. #Fan Blade; For Ventline Roof Vent V2094/ V2119; 3/32 Inch Diameter MFR # BVD021500
7. #MOTOR,12V USE BVC046801 MOTOR & FAN BLADE CHANGE AS OF 2-15-10 IF YOU HAVE A VA0164 MOTOR, IT IS NOW REPLACED BY THE BVD0218-00 MOTOR KIT. THIS CHANGE WILL REQUIRE A NE... MFR # VA016401 Superseded: see description
8. #NO GENERIC NAME; Screw #4 X 1/4" (2) MFR # VA016600
9. #Fan Blade; For Ventline 12 Volt Standard Roof Ventadomes; Counter-Clockwise Rotation; 6 Inch Diameter x 1/8 Inch D Shaft; Single MFR # BVA016300
10. #Fan Blade; For Ventline 12 Volt Ventline Ventdome; 6 Inch Diameter x 1/8 Inch Diameter Shaft IS A USE # FOR BVA016300 12V MOTORS AND FAN BLADES HAVE BEEN CHANGED FROM A "D" SHAFT AND BORE TO A ROUND SPLINED SHAFT & ROUND BORE FOR VENTLINE... MFR # BVC046600 Superseded: see description
11. #BLADE,FAN USE BVD021500 MFR # VD215 Superseded: see description
12. #Roof Vent Crank Handle; Replacement For Ventline Old Style Rounded Dome Roof Vents; Single Straight Arm; 6-5/8 Inch Arm Length; With Operator/ Knob/ Mounting Screw; Single MFR # BV011504
13. #Roof Vent Lift Arm Clip; For Ventline Roof Vent V2110/ V2092/ V2094 MFR # VA280
14. #Roof Vent Screw; Replacement For Ventline Roof Vent Crank Handel Mounting Screw; Fits V2110 Stove Vent Hood; #10-24 Thread x 7/16 Inch MFR # C013200
15. #Push Button Switch; For Ventline Vanair Exhaust Fan VP-543; Black; Red Button MFR # V019903
16. #Roof Vent Screen Frame; For Ventline Roof Vent V2092/ V2099/ V2392/ V2399; Birch White MFR # VA044431
17. #Roof Vent Screen Frame; Replacement For Ventline 14 Inch x 14 Inch Roof Vent Models; Polar White Screen Frame MFR # BVA044441
18. #Roof Vent Screen Frame; Replacement For Ventline 14 Inch x 14 Inch Roof Vent Models; Polar White Screen Frame MFR # BVA044441R
19. #Roof Vent Screen Frame; Replacement For Ventline Roof Vent 2-Piece Models V2092/ V2110/ V2119/ V2310/ V2392/ V2094; 14 Inch x 14 Inch; Polar White MFR # BVC057341
20. #SCREEN, ROOF VENT WHITE USE 31-1931 MFR # VA044441 Superseded: see description
21. #RAD CORN SCRN FRM POLAR WHITE USE 31-2201 MFR # VA0262 Superseded: see description
22. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle V2092/ V2110/ V2094/ V2128/ V2525; Black; Plastic; With Screw Camper MFR # VA467
23. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle; Black; Plastic; With Screw Camper; Single MFR # BVD042100
24. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle V2092/ V2110/ V2094/ V2128/ V2525; Black; Plastic; With Screw Camper MFR # BVD042115
25. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle; Black; Plastic; With Screw Camper; Single MFR # V042302
26. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 4-1/8 Inch Depth; With Radius Corner; Polar White MFR # VA044536
27. #GARNISH USE VA044536 3 1/8" MFR # VA044512 Superseded: see description
28. #GARNISH USE VA04420 RADIUS CORNERS COL.WHITE MFR # VA044513 Superseded: see description
29. #GARNISH RADIUS CORNER COL.WHITE MFR # VA044510
30. #VENTADOME, 12V W/ FAN ONLY SMOKE COVER MFR # V209443SM
31. #COVER, METAL USE 31-1647 W/TRACK & PAD MFR # BV053401 Superseded: see description
