Ventline / Dexter Powered Roof Vents / Outlet Fans & Vents V2119 Series Parts Diagram · Replacement Vent

Roof Vent · 2 assemblies · 6 diagram sheets · 46 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Powered Roof Vents / Outlet Fans & Vents V2119 Series roof vent fan: 2 assemblies (Replacement Vent, Exploded View) and 46 manufacturer part numbers. 9 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

Replacement Vent

Components

8 items

1. #Roof Vent; Powered Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With White Lid/ Two Piece Polar White Removable Screen Frame/ Painted White Flange MFR # V2119-601-46
2. #Roof Vent; Powered Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With White Lid/ Two Piece Birch White Removable Screen Frame/ Screw In Mill Finish Flange MFR # V211950100
3. #Roof Vent; Powered Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With White Lid/ Two Piece Polar White Removable Screen Frame/ Screw In Mill Finish Flange MFR # V2119-601-00
4. #Roof Vent; Powered Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With Smoke Lid/ Two Piece Birch White Removable Screen Frame/ Screw In Mill Finish Flange MFR # V2119-503-00
5. #Roof Vent; 14-1/4 Inch x 14-1/4 Inch; Radius Corner Polar White Ceiling Trim Ring Part Number VA0445-34 MFR # V2119SP-20
6. #Roof Vent; Powered Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With Smoke Lid/ Two Piece Polar White Removable Screen Frame/ Screw In Mill Finish Flange MFR # V2119-603-00
7. #Roof Vent; Powered Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With Smoke Lid/ Two Piece Polar White Removable Screen Frame/ Screw In Mill Finish Flange; CSA (Canadian Standards Association) Listed MFR # V2119-603-00C
8. #Roof Vent; Powered Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With White Lid/ Two Piece Polar White Removable Screen Frame/ Screw In Mill Finish Flange; CSA (Canadian Standards Association) Listed MFR # V2119-601-00C

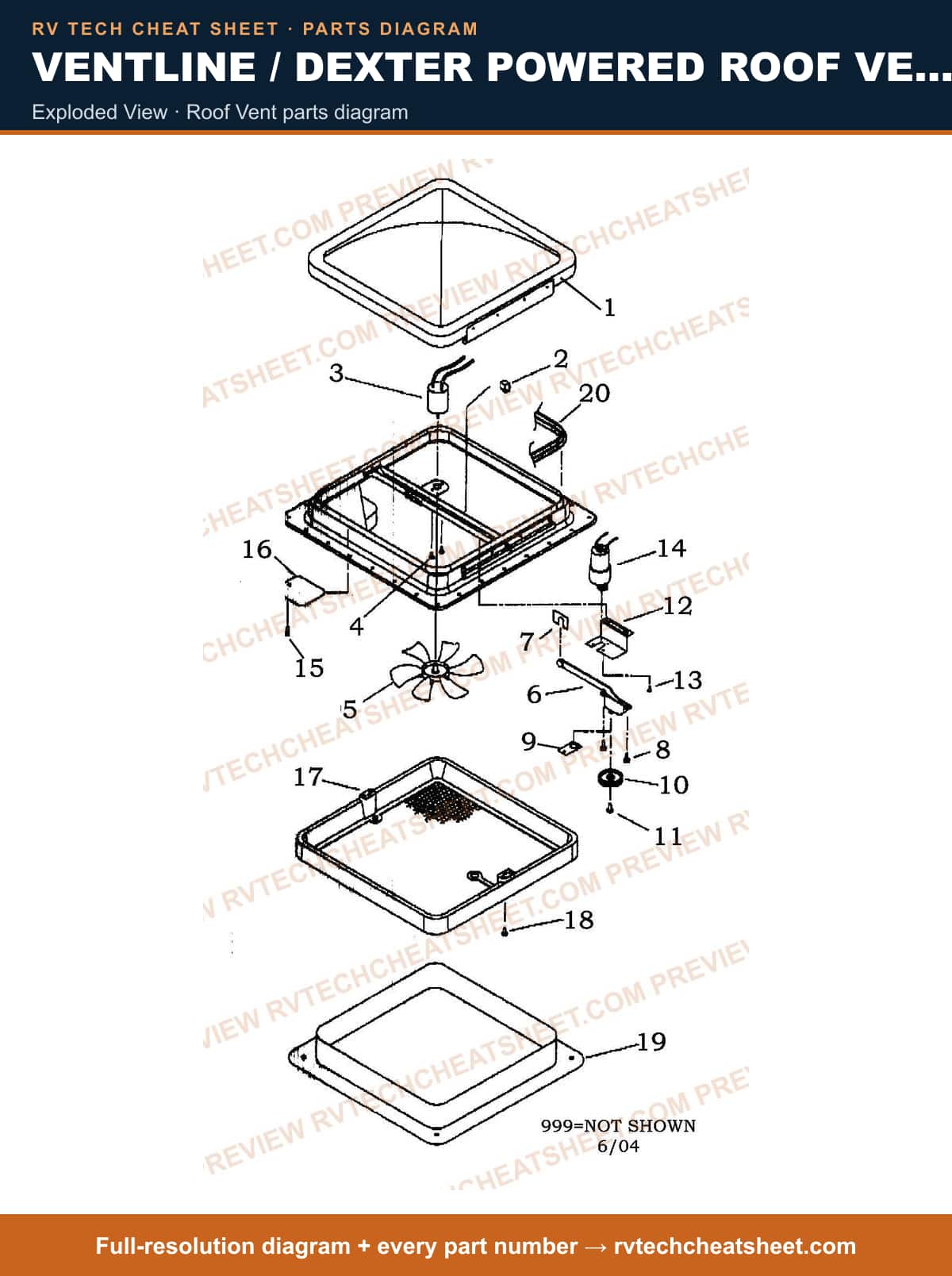

Exploded View

Components

38 items

1. #Roof Vent Lid; For Ventline Trailer Roof Vent Part Number V2094 Made Before 2008; 14-1/4 Inch x 14-1/4 Inch; Continuous Hinge; Smoke; Polypropylene; Old Style Round Profile; Single MFR # BV055403
2. #Roof Vent Lid; For Ventline Trailer Roof Vent Part Number V2094 Made Before 2008; 14-1/4 Inch x 14-1/4 Inch; Continuous Hinge; White; Polypropylene; Old Style Round Profile; Single MFR # BV055401
3. #RETAINER,WIRE MFR # VD011700
4. #Fan Blade; For Ventline Roof Vent V2094/ V2119; 3/32 Inch Diameter MFR # BVD021500
5. #MOTOR,12V USE BVC046801 MOTOR & FAN BLADE CHANGE AS OF 2-15-10 IF YOU HAVE A VA0164 MOTOR, IT IS NOW REPLACED BY THE BVD0218-00 MOTOR KIT. THIS CHANGE WILL REQUIRE A NE... MFR # VA016401 Superseded: see description
6. #MOTOR,12V 1-1/2" L MFR # VD021800
7. #Roof Vent Motor; Replacement For Vanair V2094/ V2119/ VP-543; 13.6 Volt DC; With Motor/ Motor Lead Wires/ Screws; Single MFR # BVD021800
8. #MOTOR - 12V USE 31-1935 BEFORE ORDERING: PLEASE VERIFY # STAMPED ON OLD MOTOR BEFORE ORDERING REPLACEMENT. IF ORIGINAL MOTOR HAS # VD021800 ON IT USE PART# BVD021800. IF ORI... MFR # BVC046801 Superseded: see description
9. #MOTOR,12V USE VA016401 MOTOR & FAN BLADE CHANGE AS OF 2-15-10 IF YOU HAVE A VA0164 MOTOR, IT IS NOW REPLACED BY THE BVD0218-00 MOTOR KIT. THIS CHANGE WILL REQUIRE A ... MFR # VA016400 Superseded: see description
10. #NO GENERIC NAME; Screw #4 X 1/4" (2) MFR # VA016600
11. #Fan Blade; For Ventline 12 Volt Ventline Ventdome; 6 Inch Diameter x 1/8 Inch Diameter Shaft IS A USE # FOR BVA016300 12V MOTORS AND FAN BLADES HAVE BEEN CHANGED FROM A "D" SHAFT AND BORE TO A ROUND SPLINED SHAFT & ROUND BORE FOR VENTLINE... MFR # BVC046600 Superseded: see description
12. #BLADE,FAN USE BVD021500 MFR # VD215 Superseded: see description
13. #Fan Blade; For Ventline 12 Volt Standard Roof Ventadomes; Counter-Clockwise Rotation; 6 Inch Diameter x 1/8 Inch D Shaft; Single MFR # BVA016300
14. #Roof Vent Crank Handle; Replacement For Ventline Old Style Rounded Dome Roof Vents; Single Straight Arm; 6-5/8 Inch Arm Length; With Operator/ Knob/ Mounting Screw; Single MFR # BV011504
15. #Roof Vent Crank Handle; Replacement For Ventline Old Style Rounded Dome Roof Vents; Single Straight Arm; 6-5/8 Inch Arm Length; With Operator/ Knob/ Mounting Screw; Single MFR # VA0280
16. #SCREW,MACHINE #10-32 MFR # C031200
17. #Roof Vent Crank Handle Gear Bracket; For Ventline Roof Vent V2119 Series MFR # VB038400
18. #Roof Vent Power Lift Gear; Use With Ventline Arctic Fan Model V2119 MFR # VD0121 Superseded: see description
19. #Roof Vent Screw; Replacement For Ventline Roof Vent Crank Handel Gear Mounting Screw; Fits V2119 Stove Vent Hood; #8-32 Thread x 3/8 Inch MFR # V038500
20. #Roof Vent Motor Bracket; For Ventline Line Roof Vent Gear Motor VR-Series/ V2119; White MFR # VA049546
21. #Roof Vent Screw; Replacement For Ventline Roof Vent Motor Screw; Fits Ventline V2119; M3 x 6 MFR # VC027000
22. #Roof Vent Motor; Replacement For Ventline Roof Vent V2119; 12 Volt DC; With Pinion Gear And Mounting Bracket MFR # BVB060100
23. #GEAR MOTOR WITH PINON GEAR USE 50-0185 IS A USE NUMBER FOR VA045200 MFR # VB020400 Superseded: see description
24. #SHEET METAL SCREW - #8 x ? MFR # C011900
25. #JUNCTION BOX, CSA (V2399) MFR # V049403
26. #FRAME,SCREEN BIRCH WHITE MFR # VA044434
27. #FRAME,SCREEN COLONIAL WHITE MFR # VA044424
28. #FRAME,SCREEN POLAR WHITE MFR # VA044444
29. #Roof Vent Screw; Replacement For Ventline Roof Vent Screen Frame Screw; Fits Ventline V2092/ V2094/ V2110/ V2119/ V2128; #8-18 Thread x 5/8 Inch MFR # VA026200
30. #GARNISH RADIUS CORNER COL.WHITE MFR # VA044510
31. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 4-1/8 Inch Depth; With Radius Corner; Polar White MFR # VA044536
32. #CEILING GARNISH, RADIUS BIRCH WHITE 5/1/8" MFR # VA044509
33. #1 7/8" TO 3" GARNISH BIRCH WH 6 MFR # VA44517
34. #GARNISH RAD. USE VA044535 COACH WHITE 3 7/8" to 5 1/4" MFR # VA44519 Superseded: see description
35. #GARNISH USE VA044536 3 1/8" MFR # VA044512 Superseded: see description
36. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 4-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044528
37. #NOT REPLACEABLE MFR # ***
38. #NO GENERIC NAME; Switch Wall Remote White MFR # VA053604
