Ventline / Dexter Powered Roof Vents / Outlet Fans & Vents V2128 Series Parts Diagram · Exploded View

Roof Vent · 2 assemblies · 6 diagram sheets · 43 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Powered Roof Vents / Outlet Fans & Vents V2128 Series roof vent fan: 2 assemblies (Exploded View, Replacement Vent) and 43 manufacturer part numbers. 4 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

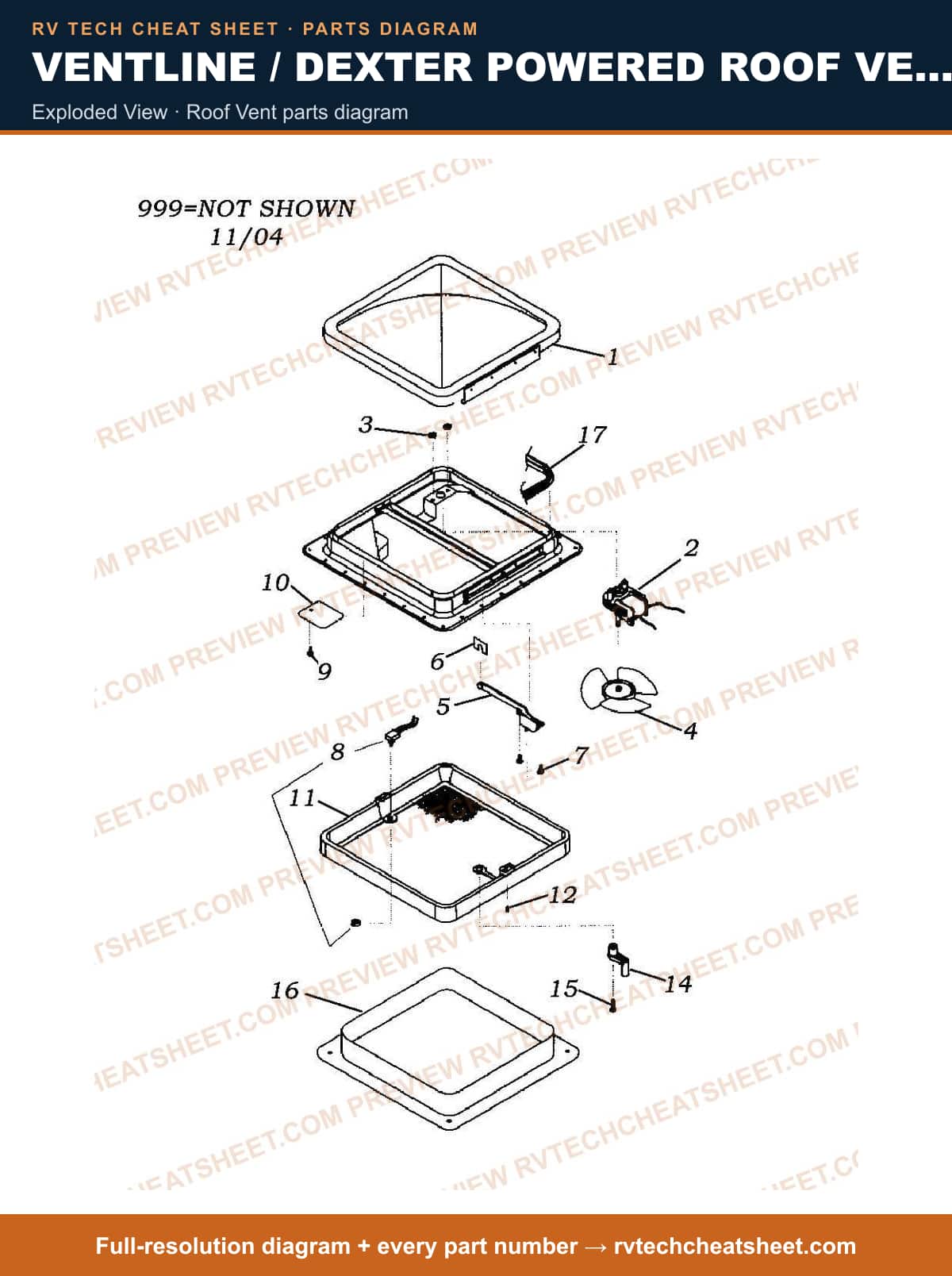

Exploded View

Components

33 items

1. #Roof Vent Lid; For Ventline Trailer Roof Vent Part Number V2094 Made Before 2008; 14-1/4 Inch x 14-1/4 Inch; Continuous Hinge; Smoke; Polypropylene; Old Style Round Profile; Single MFR # BV055403
2. #Roof Vent Lid; For Ventline Trailer Roof Vent Part Number V2094 Made Before 2008; 14-1/4 Inch x 14-1/4 Inch; Continuous Hinge; White; Polypropylene; Old Style Round Profile; Single MFR # BV055401
3. #MOTOR,FAN USE 31-1765 For all 120V AC Range Hood Motors: The VD0278-00 2-Speed Motor has replaced all 120V AC Range Hood Motors used in the past such as CD0190-00, VD0275-0... MFR # CD019000 Superseded: see description
4. #110V MOTOR USED ON: V2128 MFR # BCD039001
5. #Nut; For Ventline Stove Vent Hood Motor Mounting; #8-32 Inch Thread MFR # C015900
6. #Fan Blade; For Ventline V2128 Series Roof Vent; Counter-Clockwise Rotation; 7 Inch Diameter x 0.214 Inch Shaft; Single MFR # BVA031102
7. #Roof Vent Crank Handle; Replacement For Ventline Old Style Rounded Dome Roof Vents; Single Straight Arm; 6-5/8 Inch Arm Length; With Operator/ Knob/ Mounting Screw; Single MFR # BV011504
8. #Roof Vent Lift Arm Clip; For Ventline Roof Vent V2110/ V2092/ V2094 MFR # VA280
9. #SCREW,MACHINE #10-32 MFR # C031200
10. #Push Button Switch; For Ventline Vanair Exhaust Fan VP-543; Black; Red Button MFR # V019903
11. #SHEET METAL SCREW - #8 x ? MFR # C011900
12. #COVER,WIRING COMPARTMENT MFR # V049402
13. #Roof Vent Screen Frame; Replacement For Ventline Roof Vent Models V2128; 14 Inch x 14 Inch; Birch White; Single MFR # BVA044432
14. #Roof Vent Screen Frame; Replacement For Ventline Roof Vent 2-Piece Models V2092/ V2110/ V2119/ V2310/ V2392/ V2094; 14 Inch x 14 Inch; Birch White MFR # BVC057331
15. #Roof Vent Screen Frame; For Ventline Roof Vent V2128; Birch White MFR # VA044432
16. #Roof Vent Screen Frame; Replacement For Ventline Roof Vent Models V2128; 14 Inch x 14 Inch; Polar White; Single MFR # BVA044442
17. #Roof Vent Screw; Replacement For Ventline Roof Vent Screen Frame Screw; Fits Ventline V2092/ V2094/ V2110/ V2119/ V2128; #8-18 Thread x 5/8 Inch MFR # VA026200
18. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle V2092/ V2110/ V2094/ V2128/ V2525; Black; Plastic; With Screw Camper MFR # VA467
19. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle; Black; Plastic; With Screw Camper; Single MFR # BVD042100
20. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle V2092/ V2110/ V2094/ V2128/ V2525; Black; Plastic; With Screw Camper MFR # BVD042115
21. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 4-1/8 Inch Depth; With Radius Corner; Polar White MFR # VA044536
22. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 5-1/8 Inch Depth; With Radius Corner; Polar White MFR # VA044537
23. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 4-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044528
24. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 1-1/8 Inch Depth; With Radius Corner; Polar White MFR # VA044533
25. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 1-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044525
26. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 3-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044527
27. #GARNISH, WHT 4-5/32" LEG 14X 14 RADIUS VENT MFR # VA44529
28. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 3-1/8 Inch Depth; With Radius Corner; Polar White MFR # VA044535
29. #SCREW MFR # VA042301
30. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 2-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044526
31. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 2-1/8 Inch Depth; With Radius Corner; Polar White MFR # VA044534
32. #Roof Vent Lid Seal; Fits Older Round Roof Vents; 51 Inch Length; Single MFR # BVD045501
33. #GASKET FOR VL ROOF VENT USE 31-8335 MFR # BVA010100 Superseded: see description

Replacement Vent

Components

10 items

1. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 120 Volt Fan; Polypropylene; With White Lid/ Two Piece Birch White Removable Screen Frame/ Screw In Mill Finish Flange MFR # V212851100
2. #110V PWR USE 31-1658 ROOF VENT WHITE CVR MFR # V212821100 Superseded: see description
3. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 110 Volt Fan; Polypropylene; With Smoke Lid/ Two Piece Polar White Removable Screen Frame/ Screw In Mill Finish Flange; CSA (Canadian Standards Association) Listed MFR # V2128-613-00
4. #Roof Vent; Radius Corner Screen Frame Design; With Fan MFR # V21281W
5. #VENT,POWERED RADIUS WHITE COVER 14 1/4" X 14 1/4", 115V, ORDER GARNISH SEPERATELY ACCORDING TO SIZE NEEDED. WHEN IN DOUBT OF SIZE, USE LARGEST ONE- IT CAN BE CUT DOWN. COL.WHITE: 1 ... MFR # V21281WCS Superseded: see description
6. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 110 Volt Fan; Polypropylene; With White Lid/ Two Piece Polar White Removable Screen Frame/ Screw In Mill Finish Flange; CSA (Canadian Standards Association) Listed MFR # V2128-611-00
7. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 110 Volt Fan; Polypropylene; With Smoke Lid/ Two Piece Birch White Removable Screen Frame/ Screw In Mill Finish Flange; CSA (Canadian Standards Association) Listed MFR # V2128-513-00
8. #VENTADOME,COMPLETE 110V SMOKE MFR # V21280300
9. #NO GENERIC NAME; Vent 115V Radius Corner MFR # V212831100
10. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 110 Volt Fan; With White Lid And Polar White Screen Frame/ Radius Corner Polar White Ceiling Trim Ring Part Number VA0445-34 MFR # V2128SP-01
