Ventline / Dexter Powered Roof Vents / Outlet Fans & Vents V2405 Northern Breeze Parts Diagram

Roof Vent · 3 diagram sheets · 29 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Powered Roof Vents / Outlet Fans & Vents V2405 Northern Breeze roof vent fan: 29 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

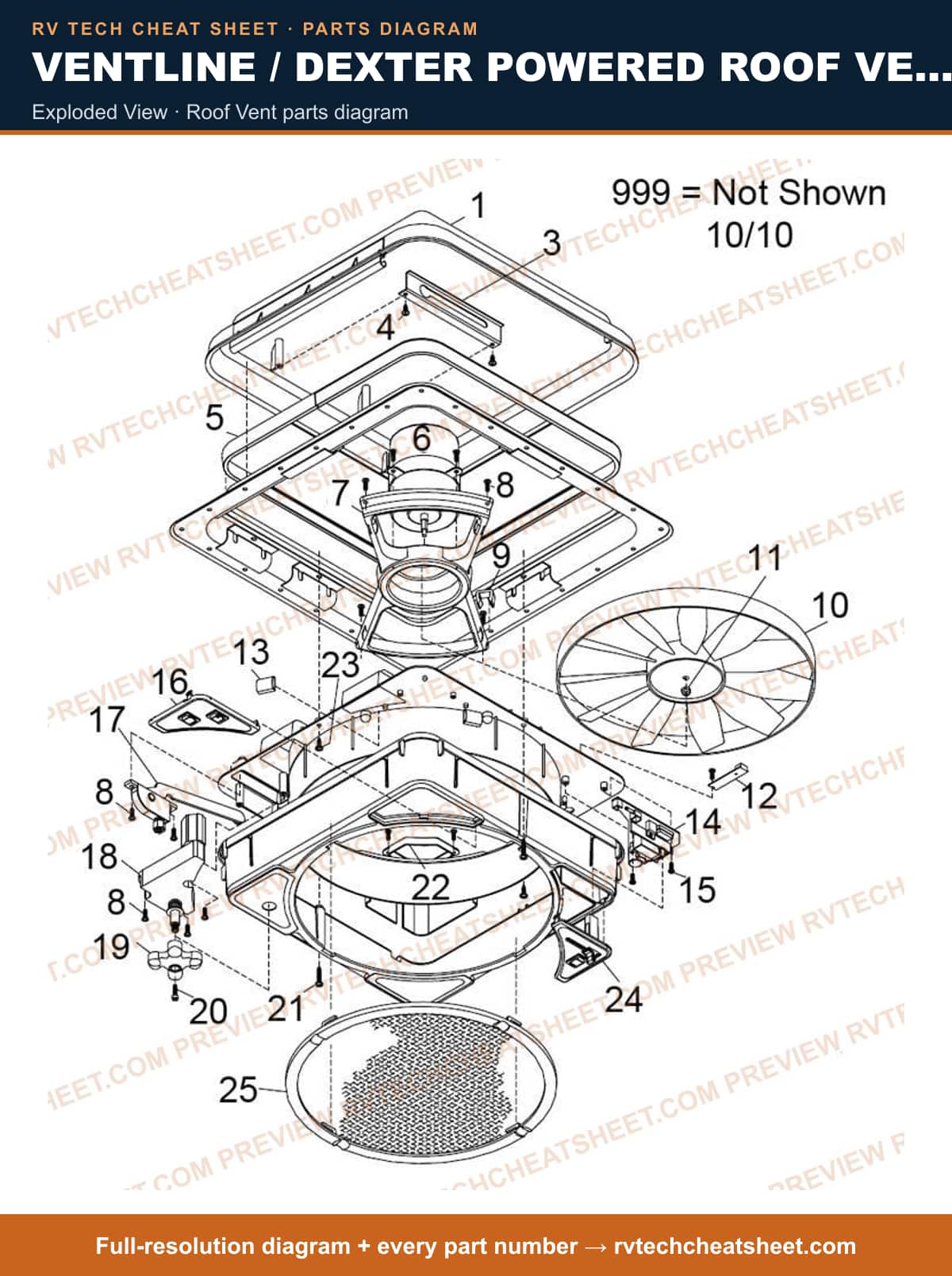

Exploded View

Components

29 items

1. #Roof Vent Lid; For Northern Breeze Roof Vents; 14-1/4 Inch x 14-1/4 Inch; Smoke (Blue/Grey); Polypropylene; Round Profile MFR # VB056804
2. #Roof Vent Lid; For Northern Breeze Roof Vents; 14-1/4 Inch x 14-1/4 Inch; White; Polypropylene; Round Profile MFR # BVB056801
3. #Roof Vent Cross Bar; For Northern Breeze Roof Vent Model V2525 MFR # VC038400
4. #SHEET METAL SCREW - #8 x ? MFR # C011900
5. #SEAL,DOME COVER MFR # VC047900
6. #Roof Vent Motor; Replacement For Northern Breeze V2525-01-S46-M/ V2525-04-S46-M; 12 Volt DC; Variable Speed; 400 CFM MFR # VC038500
7. #BAR,FAN MOTOR MFR # VC037400
8. #Roof Vent Screw; Replacement For Northern Breeze Exhaust Fan; Fits Motor To Motor Bar/ Motor Bar To Frame/ Operator/ Operator Guide Bar; #8-19 Thread x 1/2 Inch MFR # VC047600
9. #CLIP,WIRE RETAINER MFR # VC038200
10. #Fan Blade; Replaces For Northern Breeze Roof Vent V2525-01-S46-M/ V2525-04-S46-M MFR # VC037300
11. #NUT LOCK,NYLON INSERT #10-32 MFR # VC035500
12. #RAIN SENSOR,ELECTRONIC MFR # L510400
13. #RETAINER WIRE,SELF ADHESIVE MFR # VC048800
14. #BOARD, CIRCUIT NORTHERN BREEZE *** USE 49-8168 *** MFR # L511901 Superseded: see description
15. #SCREW,SHEET METAL # 6 -18 X 1/2" MFR # CB040700
16. #Roof Vent Corner Insert; For Ventline Northern Breeze Roof Vent V2405; Corner Insert With Switch MFR # VB059702
17. #Roof Vent Operator; Roof Vent Crank Assembly; For Northern Breeze Roof Vent Models V2505/ V2409/ V2410/ V2414; With Arm MFR # VD028600
18. #VENTILATION RV; Ventline Motor Assy MFR # VC037200
19. #MOTOR, GEAR MFR # VC037202
20. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle; Black; Plastic; With Screw Camper; Single MFR # BVD042100
21. #HANDLE,CRANK USE BVD042100 NORTHERN BREEZE MFR # VC038100 Superseded: see description
22. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle V2092/ V2110/ V2094/ V2128/ V2525; Black; Plastic; With Screw Camper MFR # BVD042115
23. #Roof Vent Screw; Replacement For Ventline Roof Vent Knob Mounting Screw; Fits Ventline V2094/ V2110; #8-32 Thread x 3/4 Inch MFR # V042301
24. #SPACER (4 REQ'D) (V2399, 2394, 2392, 2310) MFR # VB049101
25. #COVR,WIRING COMPARTMENT MFR # VC044001
26. #Roof Vent Screw; Replacement For Ventline Roof Vent Screen Frame Screw; Fits Ventline V2092/ V2094/ V2110/ V2119/ V2128; #8-18 Thread x 5/8 Inch MFR # VA026200
27. #MODULE ASM, LEFT SIDE MFR # VB059801
28. #VENTILATION RV; VENTLINE REMOVABLE SCREEN MFR # VD023100
29. #Roof Vent Thermostat; Honeywell; Replacement For Ventline Northern Breeze Roof Vent MFR # L1028
