Ventline / Dexter Powered Roof Vents / Outlet Fans & Vents V2501 Northern Breeze Parts Diagram

Roof Vent · 3 diagram sheets · 30 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Powered Roof Vents / Outlet Fans & Vents V2501 Northern Breeze roof vent fan: 30 manufacturer part numbers.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

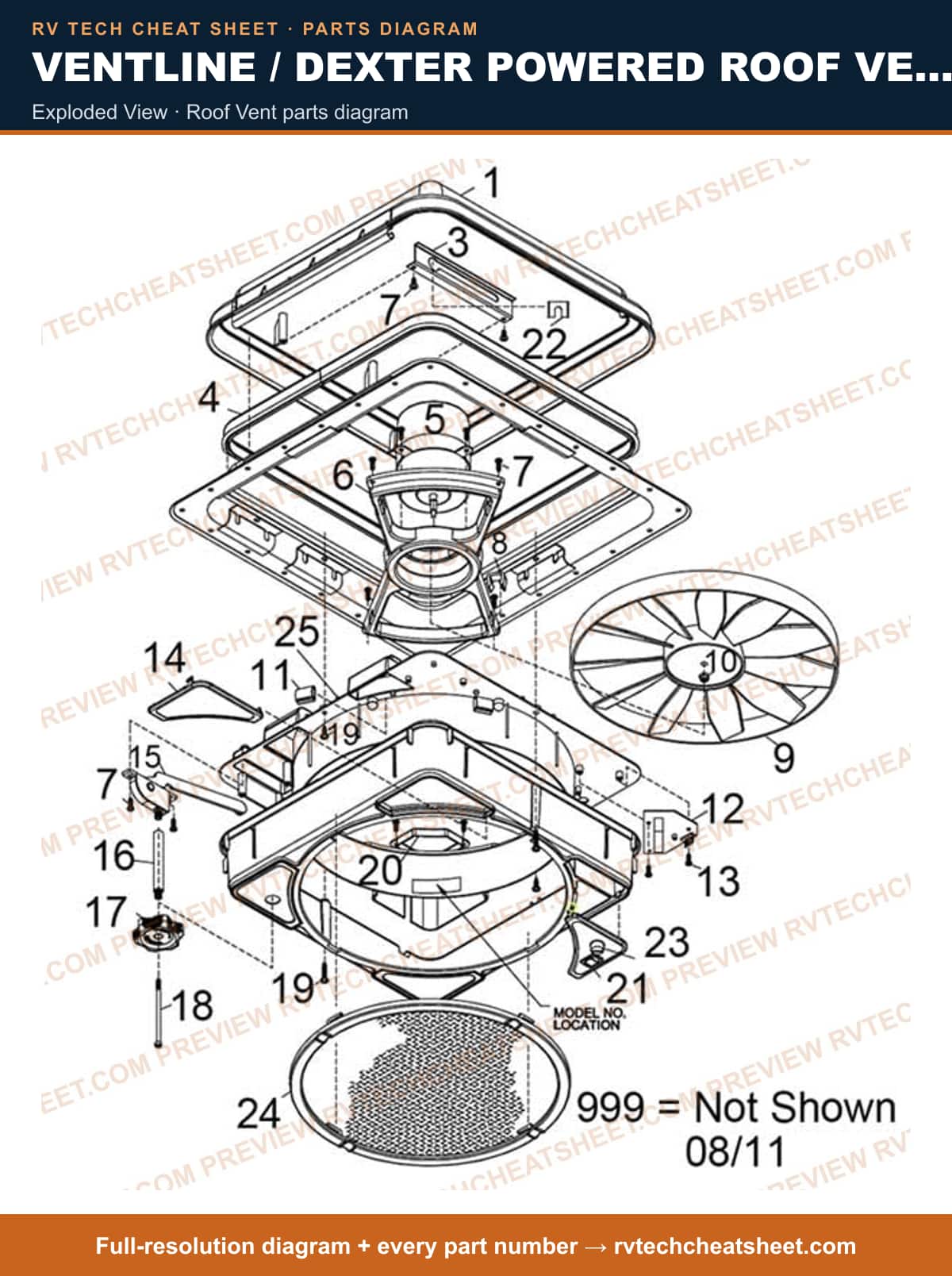

Exploded View

Components

30 items

1. #Roof Vent Lid; For Northern Breeze Roof Vent; White; Polycarbonate MFR # VB056801
2. #Roof Vent Lid; For Northern Breeze Roof Vents; 14-1/4 Inch x 14-1/4 Inch; Smoke (Blue/Grey); Polypropylene; Round Profile MFR # VB056804
3. #Roof Vent Cross Bar; For Northern Breeze Roof Vent Model V2525 MFR # VC038400
4. #Roof Vent Lid Seal; Fits Northern Breeze Roof Vents; 50-1/2 Inch Length; Vinyl MFR # VD041600
5. #Roof Vent Motor; Replacement For Northern Breeze V2525-01-S46-M/ V2525-04-S46-M; 12 Volt DC; Variable Speed; 400 CFM MFR # VD033701
6. #BAR,FAN MOTOR MFR # VC037400
7. #Roof Vent Screw; Replacement For Northern Breeze Exhaust Fan; Fits Motor To Motor Bar/ Motor Bar To Frame/ Operator/ Operator Guide Bar; #8-19 Thread x 1/2 Inch MFR # VC047600
8. #CLIP,WIRE RETAINER MFR # VC038200
9. #Fan Blade; Replaces For Northern Breeze Roof Vent V2525-01-S46-M/ V2525-04-S46-M MFR # VC037300
10. #NUT LOCK,NYLON INSERT #10-32 MFR # VC035500
11. #RETAINER WIRE,SELF ADHESIVE MFR # VC048800
12. #CONTROL CIRCUIT BOARD MFR # L514001
13. #SCREW,SHEET METAL # 6 -18 X 1/2" MFR # CB040700
14. #INSERT, BLANK RIGHT SIDE MFR # VC037801
15. #OPERATOR MFR # V011504
16. #Roof Vent Crank Handle Extension; Replacement For Ventline Northern Breeze V2525; 2-27/32 Inch Length MFR # VB023302
17. #KNOB, DOME CONTROL HAND MFR # VD042100
18. #Roof Vent Screw; Replacement For Northern Breeze Roof Vent Knob Mounting Screw; Fits V2525 Northern Breeze Vent; #8-32 Thread x 3-1/8 Inch MFR # V042304
19. #SCREW, #8-18 X 7/8" MFR # VD034000
20. #COVER,WIRING COMPARTMENT MFR # VC044000
21. #VENTILATION RV; Control Module MFR # VC055600
22. #Roof Vent Lift Arm Clip; For Ventline Roof Vent V2110/ V2092/ V2094 MFR # VA028000
23. #Roof Vent Fan Control Knob; For Northern Breeze Roof Vent; Black; Wall Mount MFR # CB030606
24. #VENTILATION RV; VENTLINE REMOVABLE SCREEN MFR # VD023100
25. #Roof Vent Housing; Replacement For Northern Breeze Roof Vent V2525; Upper Housing MFR # VC037501
26. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 5-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044529
27. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 3-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044527
28. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 4-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044528
29. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 1-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044525
30. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 2-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044526
