Ventline / Dexter Powered Roof Vents / Outlet Fans & Vents V2514 Northern Breeze Parts Diagram

Roof Vent · 3 diagram sheets · 32 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Powered Roof Vents / Outlet Fans & Vents V2514 Northern Breeze roof vent fan: 32 manufacturer part numbers. 1 part is marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

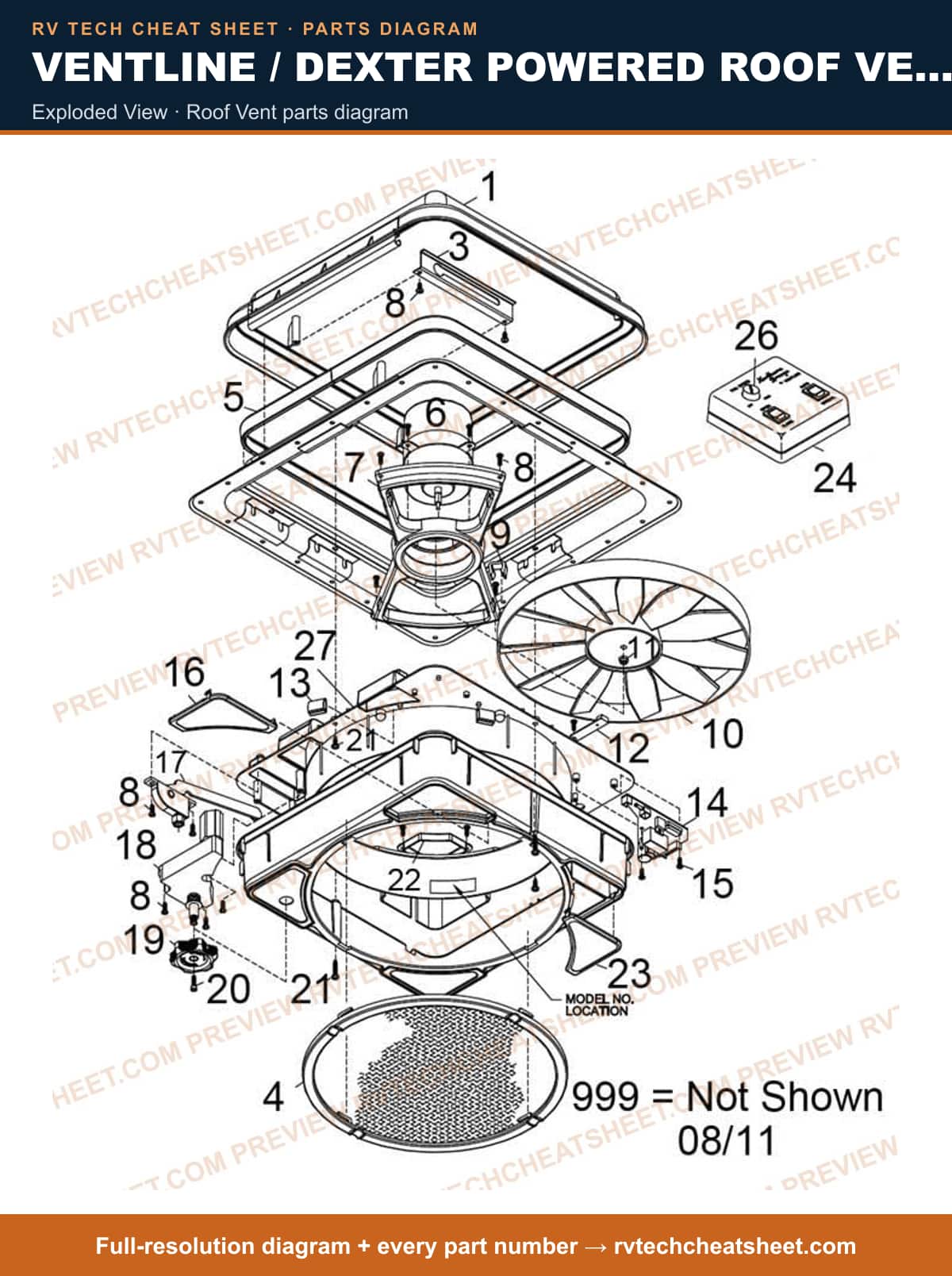

Exploded View

Components

32 items

1. #Roof Vent Lid; For Northern Breeze Roof Vent; White; Polycarbonate MFR # VB056801
2. #Roof Vent Lid; For Northern Breeze Roof Vents; 14-1/4 Inch x 14-1/4 Inch; Smoke (Blue/Grey); Polypropylene; Round Profile MFR # VB056804
3. #Roof Vent Cross Bar; For Northern Breeze Roof Vent Model V2525 MFR # VC038400
4. #VENTILATION RV; VENTLINE REMOVABLE SCREEN MFR # VD023100
5. #Roof Vent Lid Seal; Fits Northern Breeze Roof Vents; 50-1/2 Inch Length; Vinyl MFR # VD041600
6. #Roof Vent Motor; Replacement For Northern Breeze V2525-01-S46-M/ V2525-04-S46-M; 12 Volt DC; Variable Speed; 400 CFM MFR # VD033701
7. #BAR,FAN MOTOR MFR # VC037400
8. #Roof Vent Screw; Replacement For Northern Breeze Exhaust Fan; Fits Motor To Motor Bar/ Motor Bar To Frame/ Operator/ Operator Guide Bar; #8-19 Thread x 1/2 Inch MFR # VC047600
9. #CLIP,WIRE RETAINER MFR # VC038200
10. #Fan Blade; Replaces For Northern Breeze Roof Vent V2525-01-S46-M/ V2525-04-S46-M MFR # VC037300
11. #NUT LOCK,NYLON INSERT #10-32 MFR # VC035500
12. #Roof Vent Rain Sensor Circuit Board; Replacement For Ventline Roof Vent MFR # L510401
13. #RETAINER WIRE,SELF ADHESIVE MFR # VC048800
14. #BOARD, CIRCUIT NORTHERN BREEZE 5-06 TO NOW MFR # L513601
15. #SCREW,SHEET METAL # 6 -18 X 1/2" MFR # CB040700
16. #INSERT, BLANK RIGHT SIDE MFR # VC037801
17. #Roof Vent Operator; Roof Vent Crank Assembly; For Northern Breeze Roof Vent Models V2505/ V2409/ V2410/ V2414; With Arm MFR # VD028600
18. #MOTOR, GEAR MFR # VC037202
19. #KNOB, DOME CONTROL HAND MFR # VD042100
20. #Roof Vent Screw; Replacement For Ventline Roof Vent Knob Mounting Screw; Fits Ventline V2094/ V2110; #8-32 Thread x 3/4 Inch MFR # V042301
21. #SCREW, #8-18 X 7/8" MFR # VD034000
22. #COVER,WIRING COMPARTMENT MFR # VC044000
23. #INSERT BLANK, LEFT SIDE MFR # VC037701
24. #WALL CONTROL PANEL CREAM MFR # VC056604
25. #Roof Vent Switch; Use With Northern Breeze Model V2514 MFR # VC056603 Superseded: see description
